< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

TCM

REMOVAL AND INSTALLATION

TCM

Exploded View

INFOID:0000000010114017

Removal and Installation

INFOID:0000000009469195

CAUTION:

• Do not impact the TCM when removing or installing TCM.

• When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then

replace TCM. Refer to

TM-8, "Description"

.

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove front air duct. Refer to

EM-24, "Removal and Installation"

.

3. Disconnect TCM harness connector (A).

4. Remove TCM nuts and TCM (1) from bracket.

INSTALLATION

Installation is in the reverse order of removal.

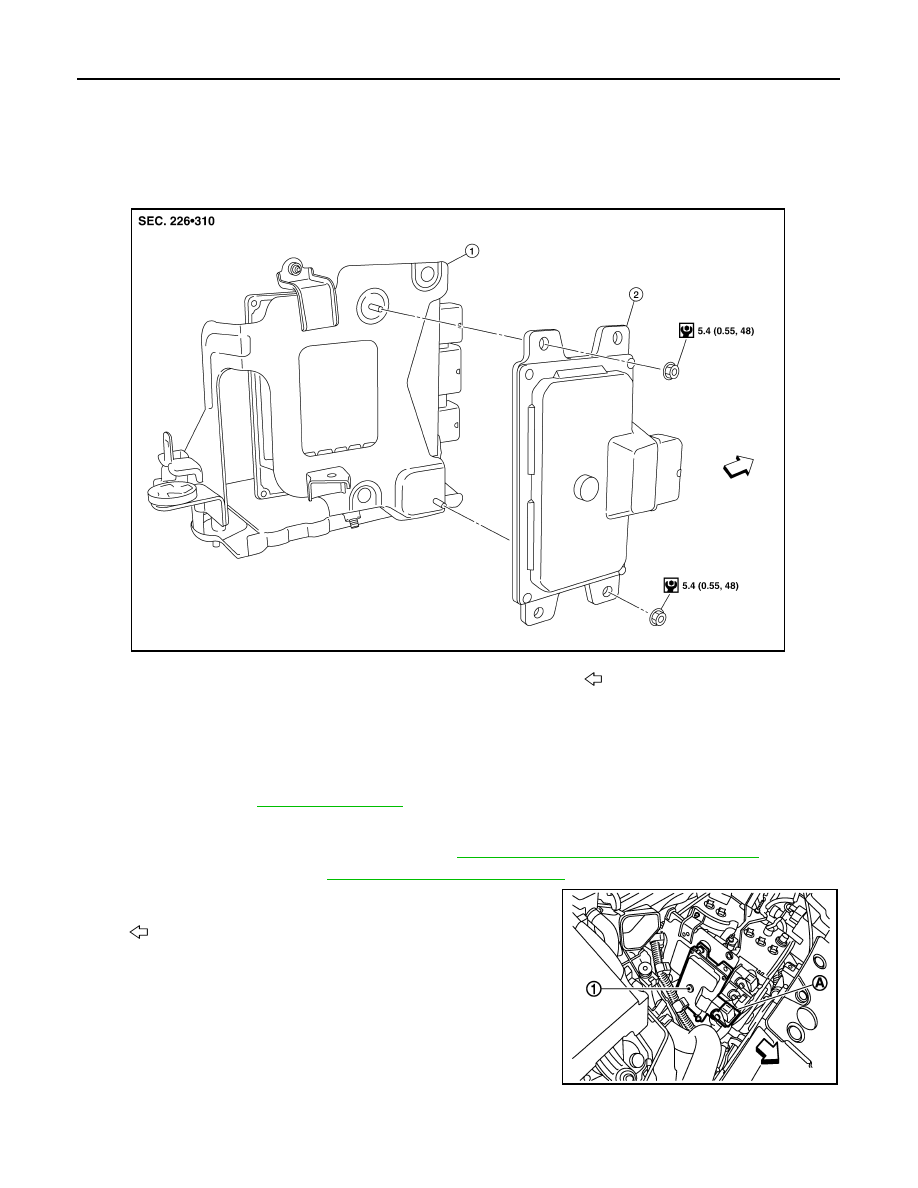

1.

Bracket

2.

TCM

Vehicle front

AWDIA0556GB

: Front

JPDIA0596ZZ

TCM

TM-169

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Adjustment

INFOID:0000000010114018

ADJUSTMENT AFTER INSTALLATION

Perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-8, "Description"

.

TM-170

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

CVT SHIFT SELECTOR

CVT SHIFT SELECTOR

Exploded View

INFOID:0000000009469197

Removal and Installation

INFOID:0000000009469198

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Exploded View"

.

2. Move CVT shift selector to “N” position.

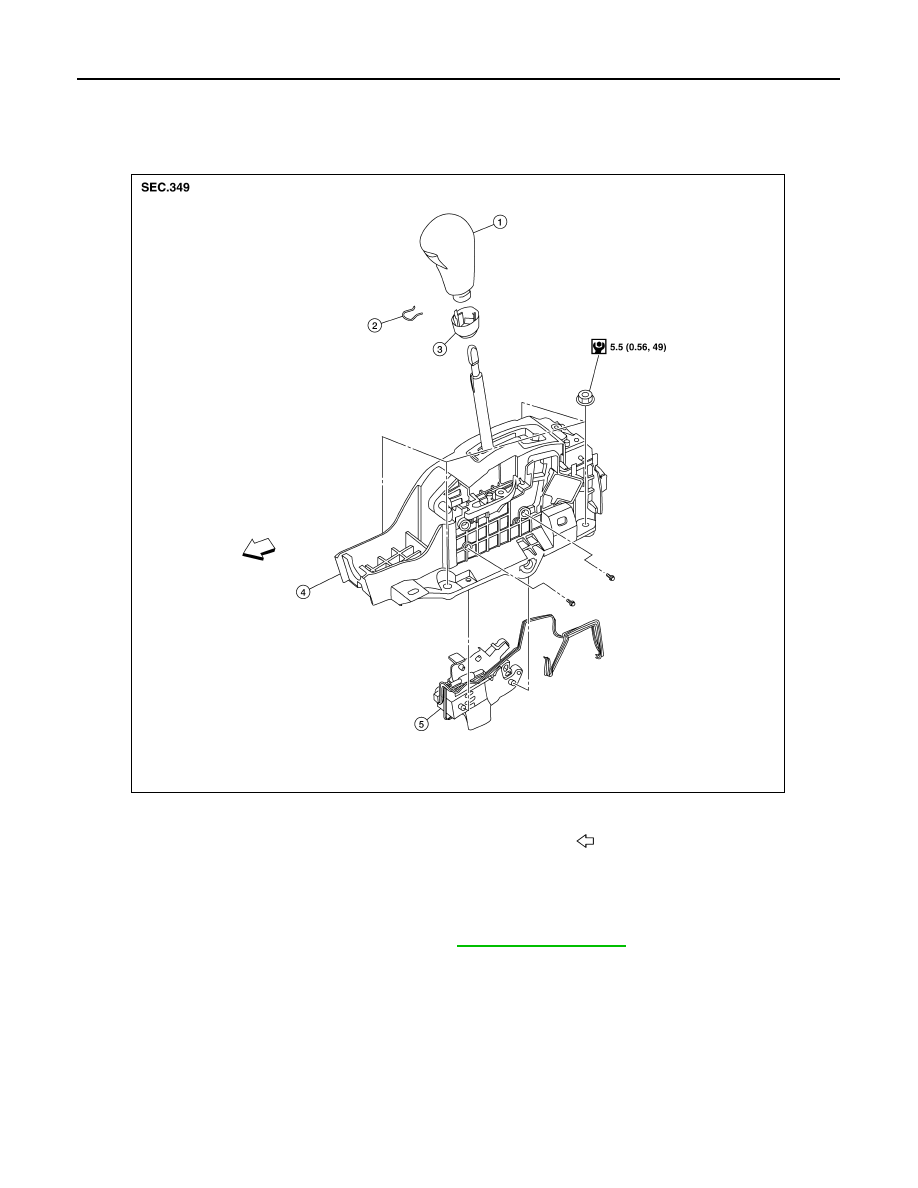

1.

CVT shift selector handle

2.

Shift selector handle clip

3.

Shift selector handle cover

4.

CVT shift selector assembly

5.

Shift lock unit

Front

ALBIA0615GB

CVT SHIFT SELECTOR

TM-171

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

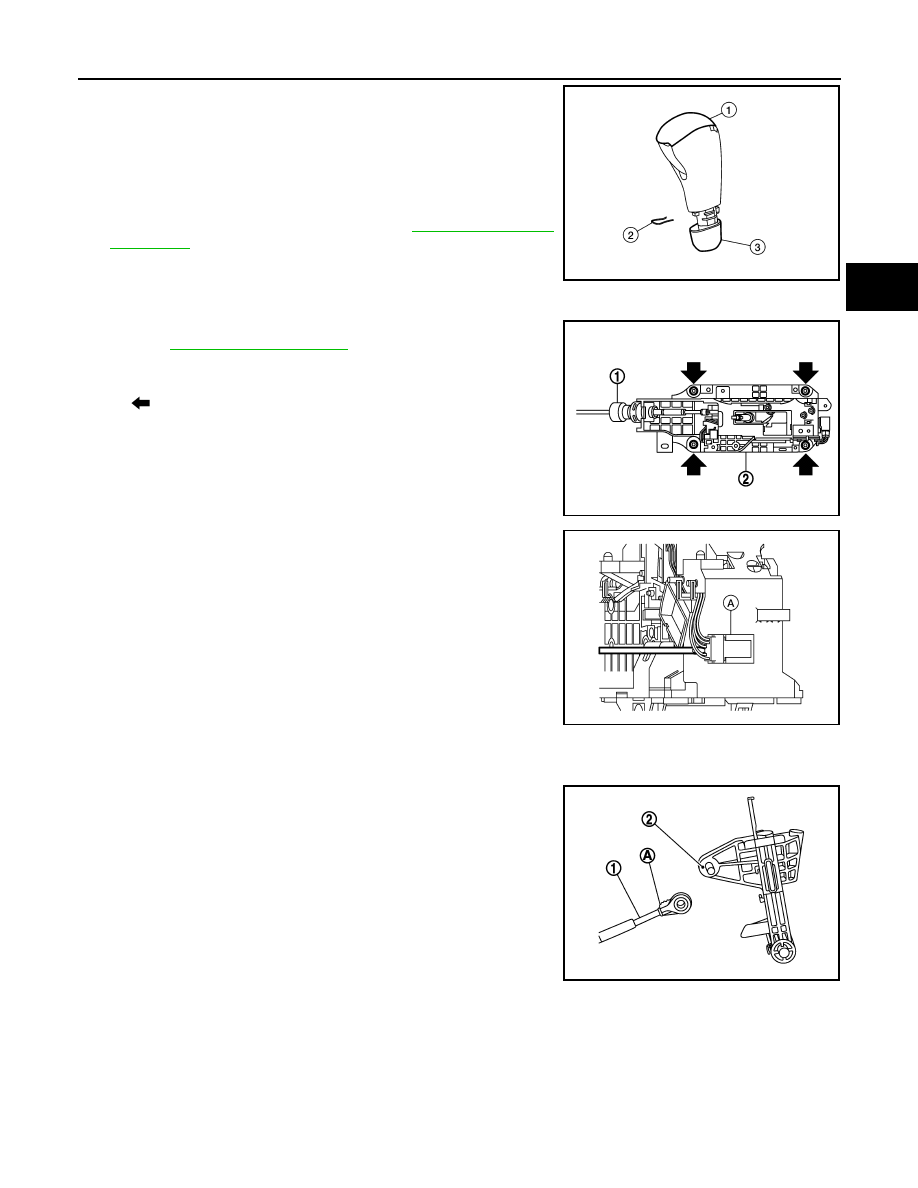

3. Slide shift selector handle cover (3) downward.

CAUTION:

Be careful not to damage shift selector handle cover.

4. Pull shift selector handle clip (2) out of CVT shift selector handle

(1).

5. Remove CVT shift selector handle and shift selector handle

cover.

6. Remove center console assembly. Refer to

IP-11, "Removal and

Installation"

.

7. Move CVT shift selector to “P” position.
8. Remove control cable (1) from CVT shift selector assembly.

Refer to

TM-173, "Exploded View"

.

9. Remove CVT shift selector assembly (2).

10. Disconnect CVT shift selector harness connector (A) using a

suitable tool.

11. Remove shift lock unit from CVT shift selector assembly.

INSTALLATION

Installation is in the reverse order of removal.

• When installing control cable (1) to CVT shift selector assembly

(2), check that control cable is fully pressed in with the ribbed sur-

face (A) facing upward.

Inspection and Adjustment

INFOID:0000000009469199

INSPECTION

1. Move CVT shift selector to “P” position, and turn ignition switch ON (engine stop).
2. Check that CVT shift selector can be moved from “P” position when brake pedal is depressed. Also check

that CVT shift selector can be moved from “P” position only when brake pedal is depressed.

3. Move CVT shift selector and check for excessive effort, sticking, noise or rattle.

ALDIA0209ZZ

: Nut

JPDIA0615ZZ

AWDIA0558ZZ

JPDIA0609ZZ
