PASSENGER SIDE : Disassembly and Assembly

INFOID:0000000009468179

SEAT ASSEMBLY WITH SIDE AIR BAG MODULE

WARNING:

Do not leave any objects (screwdriver, tools, etc.) on the seat during seatback repair. It can lead to per-

sonal injury if the side air bag should accidentally deploy.

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Handle the side air bag module carefully. During disassembly, always hold the side air bag module,

do not let it hang by the wire harness.

• Always place side air bag module with the stud bolt side facing downward.

• Always work from the side or back of the seatback assembly, do not work in front of seat.

• Do not use air tools or electric tools when servicing the seat assembly.

• Replace the side air bag module if it has been dropped or sustained an impact.

• Do not insert any objects into the side air bag module.

• Do not disassemble the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (200°F).

• Do not expose the side air bag module to any oil, grease or water.

• During disassembly, do not damage the trim cover, chutes, connectors, retainers, clips, module har-

ness or the side air bag module.

NOTE:

• If the vehicle has been involved in a collision and the side air bag has deployed, the front seatback assembly

must be replaced.

• For side air bag module removal and installation, refer to

SR-21, "Removal and Installation"

.

Disassembly

1. Remove the front seat assembly. Refer to

SE-126, "Removal and Installation"

.

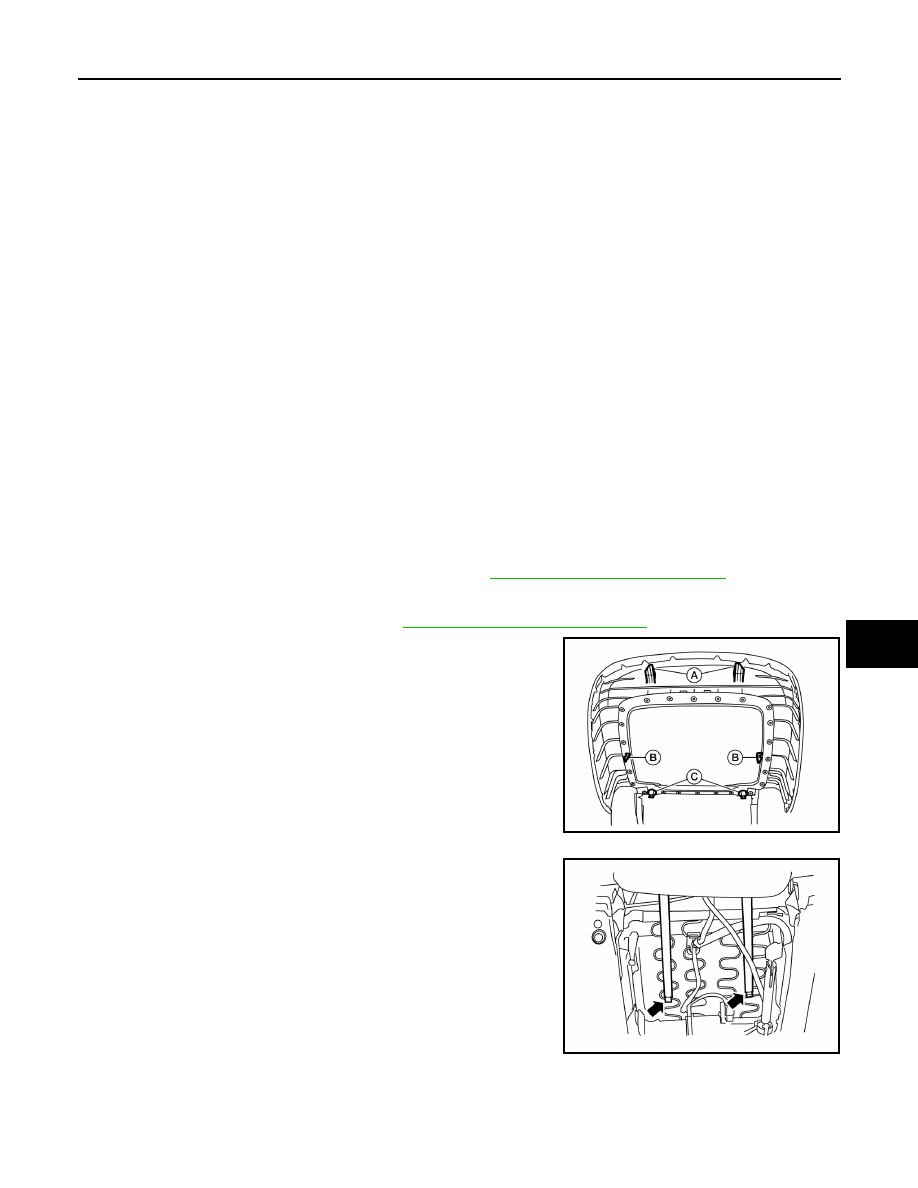

2. Remove the seatback board as follows:

NOTE:

The seatback board is attached to the seat frame with the follow-

ing:

• Two top hooks (A)

• Two side hooks (B)

• Two bottom retainers (C)

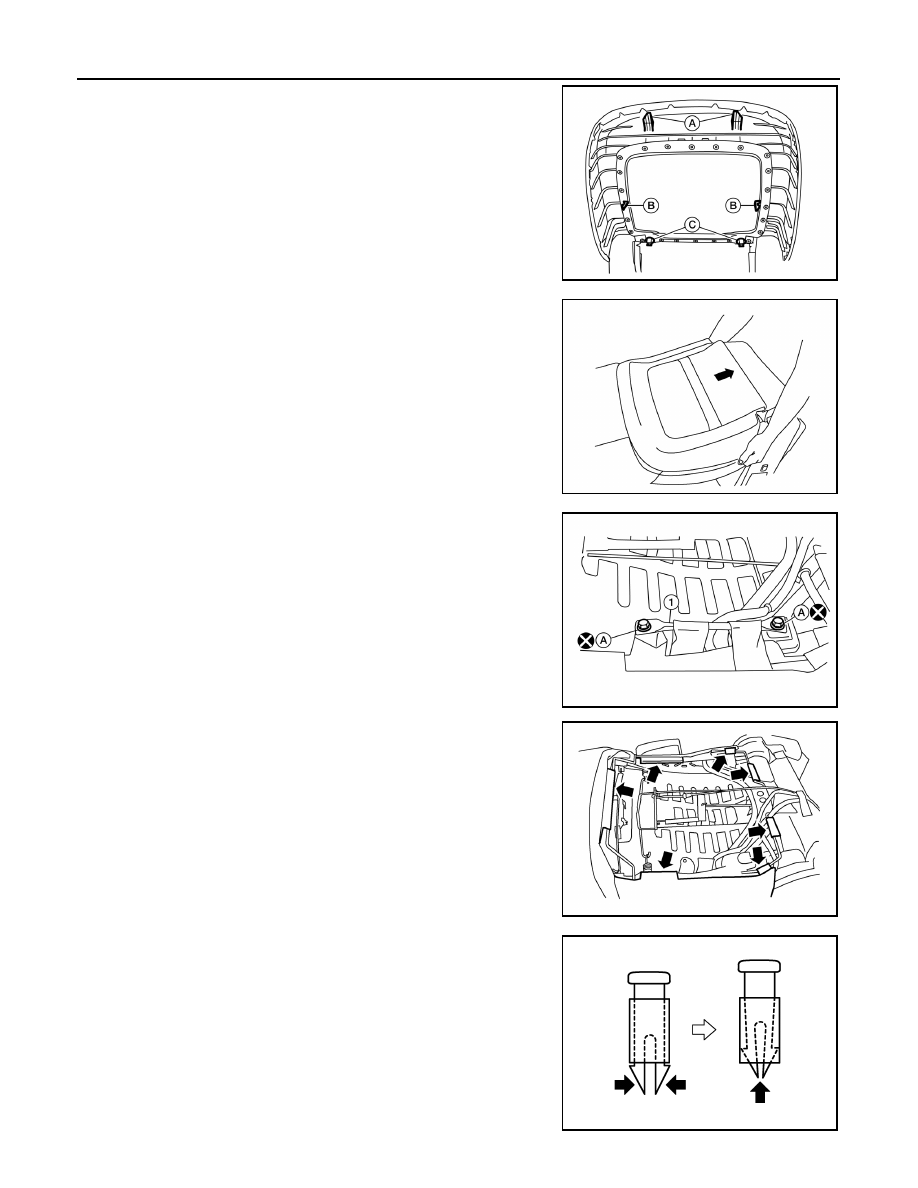

a. From the bottom of the seat, unhook the two seat skirt hooks as

shown.

22.

Seatback frame

23.

Chute rod

24. Side air bag module

25.

Rear slide cover

26.

Headrest holder (locked)

27. Headrest holder (free)

ALJIA0587ZZ

ALJIA0588ZZ

SE-142

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

b. Carefully pull upward on the lower seatback board to release the

two bottom retainers (C).

CAUTION:

Do not pull outward at two top hooks (A)

c.

Hold the seatback board at the side hook locations (B) and push

in the side hooks to release them from the seatback frame, then

pull it rearward.

d. Carefully pull the seatback board downward to disengage the

top hooks as shown.

CAUTION:

Use care not to break the seatback board hooks and retain-

ers. Replace seatback board if any hooks or retainers are

damaged.

3. Remove and discard the two chute rod bolts (A), then remove

the chute rod (1).

CAUTION:

Do not reuse the chute rod bolts.

4. Release the seven seatback retainers from the seatback frame

as shown.

5. Reach in from the bottom of the seatback to release the guide

clips on the headrest holder. Squeeze the clips at the bottom

and push upward to remove as shown.

ALJIA0587ZZ

ALJIA0589ZZ

Chute rod bolts (A)

: 8.2 N·m (0.84 kg-m, 73 in-lb)

ALJIA0590ZZ

ALJIA0598ZZ

PIIB4084J

FRONT SEAT

SE-143

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

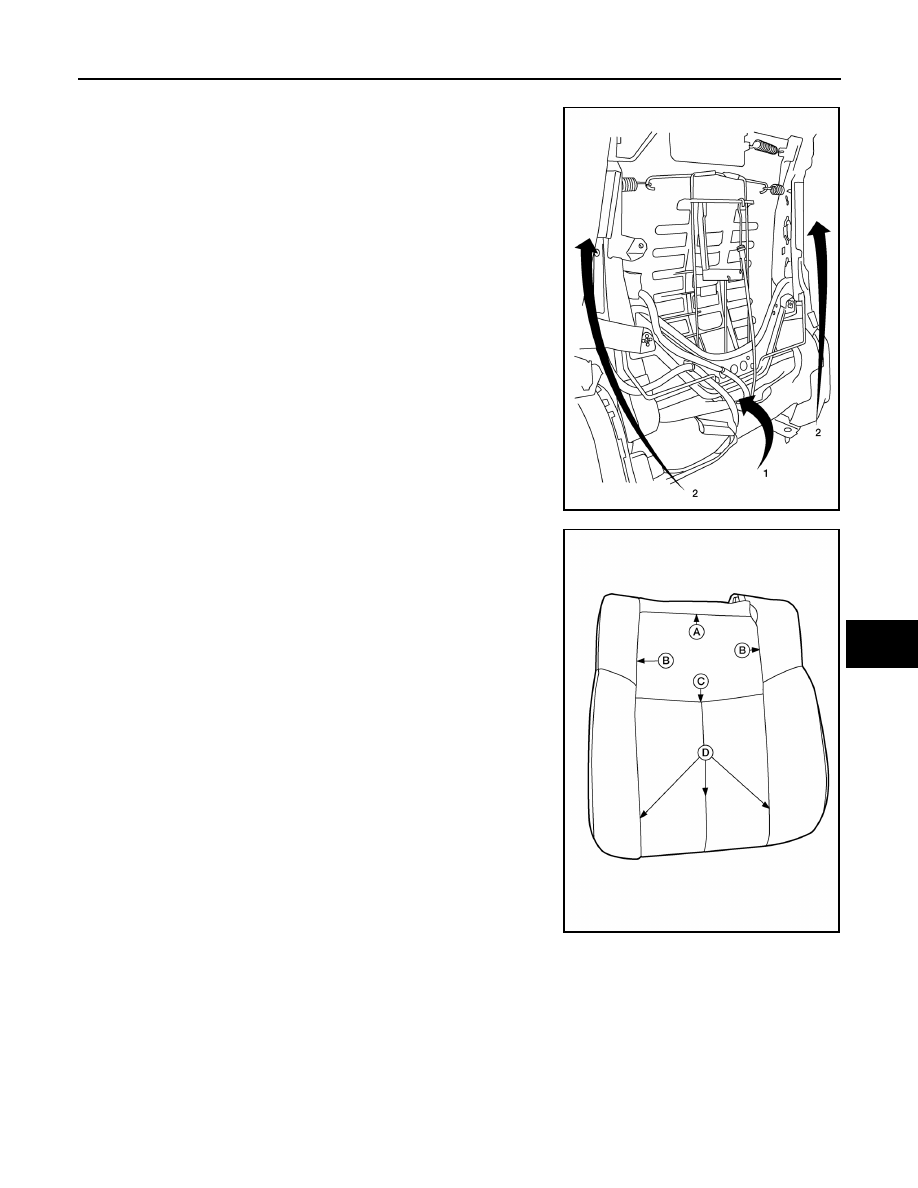

6. Disconnect the harness connector for the seatback heater (if equipped).
7. Push the seatback trim and seatback pad forward at the bottom

(1), then holding the seatback assembly on both sides, lift

upward (2). Remove the seatback trim and seatback pad as an

assembly from the seatback frame.

8. If required, separate the seatback trim from the seatback pad as

follows:

NOTE:

The seatback trim is attached to the seatback pad with the fol-

lowing:

• Five top hog rings (A)

• Four side hog rings (B)

• Three middle hog rings (C)

• Three bottom velcro fasteners (D)

a. Pull the seatback trim cover from the seatback pad to detach the

velcro fasteners.

b. Position the seatback trim to access the middle hog rings.

Remove the middle and side hog rings.

c. Remove the top hog rings, then separate the seatback trim from

the seatback pad.

Assembly

Assembly is in the reverse order of disassembly. During assembly, note the following.

ALJIA0599ZZ

ALJIA0594ZZ

SE-144

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

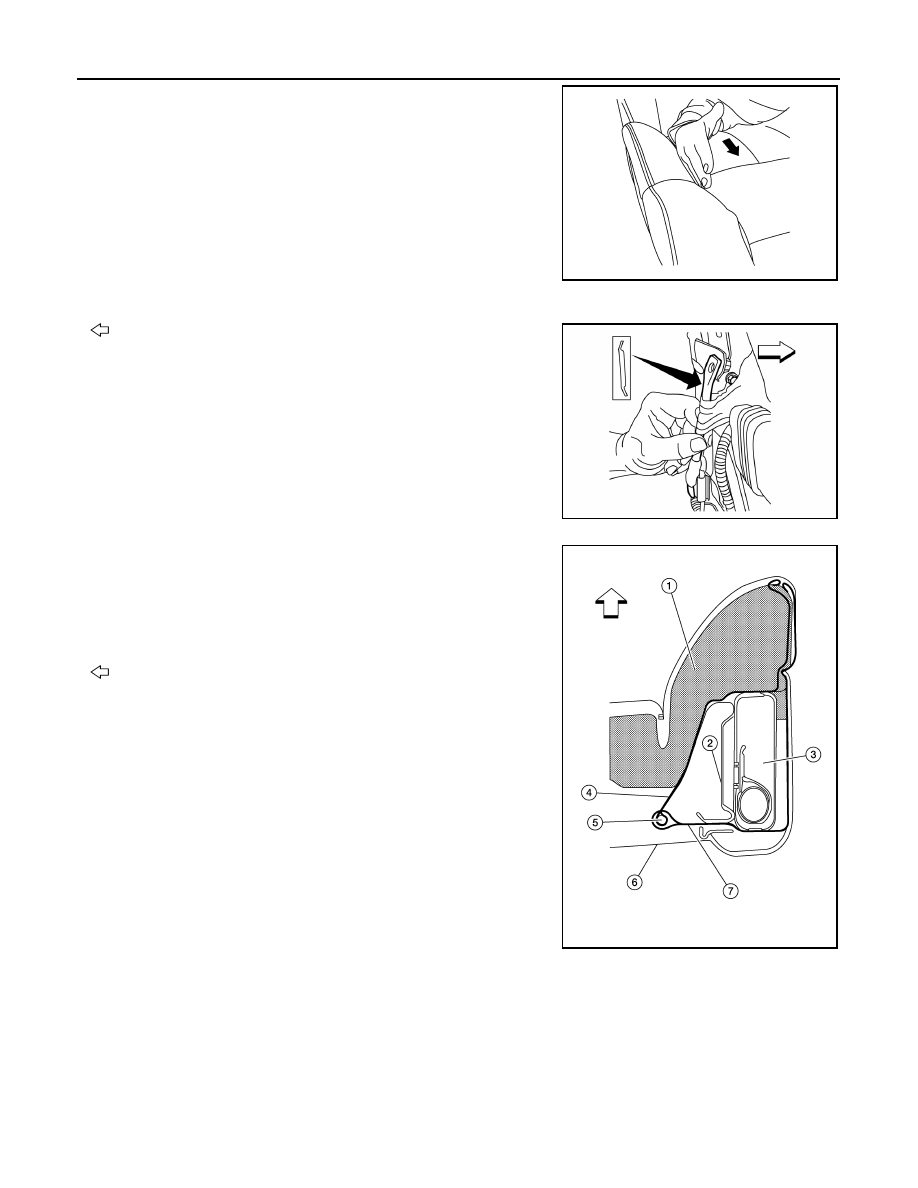

• When installing the seatback trim, firmly push down while sliding

your hand along the seams as shown (arrow) to ensure the velcro

fasteners are fastened properly.

• Make sure the chute rod is properly positioned and installed as shown.

: Front

• Make sure the side air bag outer chute (7) is pulled over the side

air bag module (3) and the side air bag inner chute (4) is pulled

around the frame (2). Make sure there are no wrinkles and the

chutes are not folded, twisted or pinched.

(1) Seatback pad

(5) Chute rod

(6) Seatback board

: Front

CAUTION:

• If a malfunction was detected by the air bag warning lamp, after repair or replacement of the mal-

function parts, reset the memory using self-diagnosis or CONSULT.

• After work is completed, check that no system malfunction is detected by air bag warning lamp.

• Make sure side air bag module shell is closed at all tabs and cushion of module is not exposed. Do

not reuse if the tab of shell is not secured.

• Always install new side air bag module attaching nuts and side air bag chute rod bolts.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with the same type and color. Always install clips in the original location on the harness.

• Smooth out all wrinkles during assembly.

ALJIA0656ZZ

ALJIA0654ZZ

ALJIA0655ZZ
