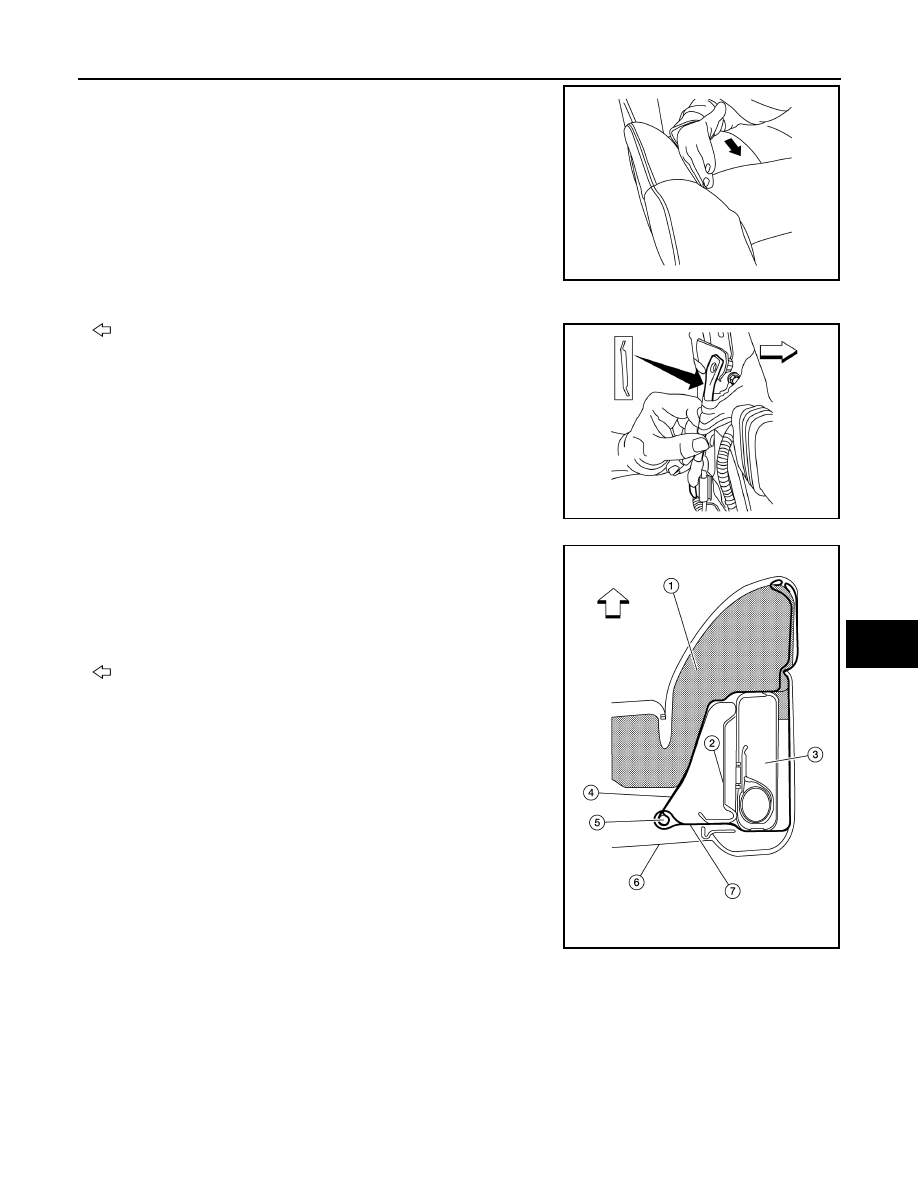

• When installing the seatback trim, firmly push down while sliding
your hand along the seams as shown (arrow) to ensure the velcro
fasteners are fastened properly.
• Make sure the chute rod is properly positioned and installed as shown.
: Front
• Make sure the side air bag outer chute (7) is pulled over the side
air bag module (3) and the side air bag inner chute (4) is pulled
around the frame (2). Make sure there are no wrinkles and the
chutes are not folded, twisted or pinched.
(1) Seatback pad
(5) Chute rod
(6) Seatback board
: Front
CAUTION:
• If a malfunction was detected by the air bag warning lamp, after repair or replacement of the mal-
function parts, reset the memory using self-diagnosis or CONSULT.
• After work is completed, check that no system malfunction is detected by air bag warning lamp.
• Make sure side air bag module shell is closed at all tabs and cushion of module is not exposed. Do
not reuse if the tab of shell is not secured.
• Always install new side air bag module attaching nuts and side air bag chute rod bolts.
• Always route side air bag module harness in original location. Replace any deformed or damaged
clips with the same type and color. Always install clips in the original location on the harness.
• Smooth out all wrinkles during assembly.
ALJIA0656ZZ
ALJIA0654ZZ
ALJIA0655ZZ
