PCS

DIAGNOSIS AND REPAIR WORKFLOW

PCS-5

< BASIC INSPECTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2

2.

 CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data.

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3

Symptom is described, DTC is not displayed>>GO TO 4

Symptom is not described, DTC is displayed>>GO TO 5

3.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.

Verify relationship between the symptom and the condition when the symptom is detected.

>> GO TO 5

4.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.

Verify relationship between the symptom and the condition when the symptom is detected.

>> GO TO 6

5.

 PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.

At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.

If two or more DTCs are detected, refer to

BCS-80, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-

tion Procedure.

Is DTC detected?

YES

>> GO TO 8

NO

>> Refer to

GI-42, "Intermittent Incident"

.

6.

 PERFORM BASIC INSPECTION

Perform basic inspection. Refer to

PCS-42, "Pre-Inspection for Multi-System Diagnostic"

.

Inspection End>>GO TO 7

7.

 DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

PCS-127, "Symptom Table"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 8

PCS-6

< BASIC INSPECTION >

[IPDM E/R]

DIAGNOSIS AND REPAIR WORKFLOW

8.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

NOTE:

The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also

required for the circuit check in the Diagnostic Procedure.
Is malfunctioning part detected?

YES

>> GO TO 9

NO

>> Check voltage of related BCM terminals using CONSULT-III.

9.

 REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is displayed, erase it.

>> GO TO 10

10.

 FINAL CHECK

When DTC was detected in step 2, perform DTC Confirmation Procedure or Component Function Check

again, and then check that the malfunction have been fully repaired.

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4 and check that

the symptom is not detected.
Is the inspection result normal?

YES

>> Inspection End.

NO (DTC is detected)>>GO TO 8

NO (Symptom remains)>>GO TO 6

PCS

RELAY CONTROL SYSTEM

PCS-7

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUNCTION DIAGNOSIS

RELAY CONTROL SYSTEM

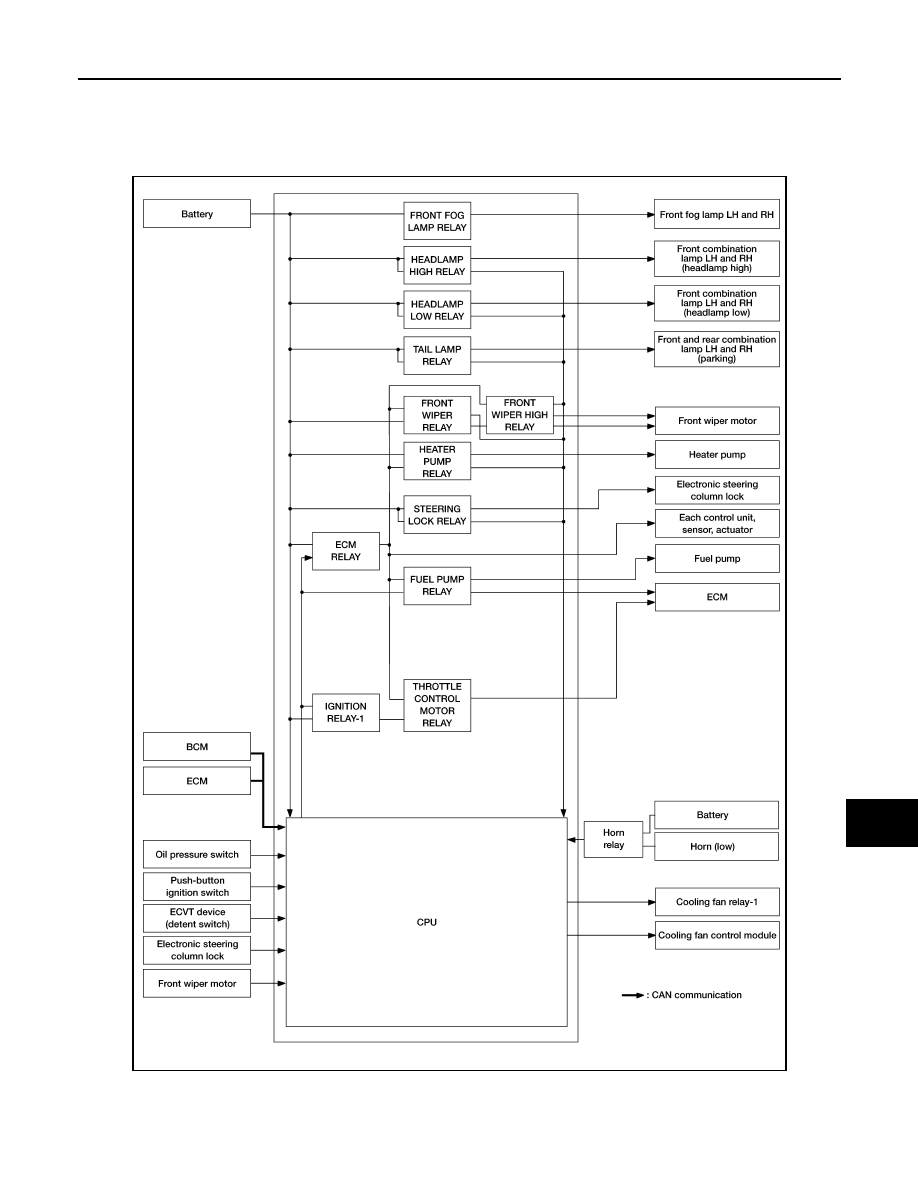

System Diagram

INFOID:0000000004219098

AWMIA1134GB

PCS-8

< FUNCTION DIAGNOSIS >

[IPDM E/R]

RELAY CONTROL SYSTEM

System Description

INFOID:0000000004219099

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-

nals from various sensors and the request signals received from control units via CAN communication.

CAUTION:

IPDM E/R integrated relays cannot be removed.

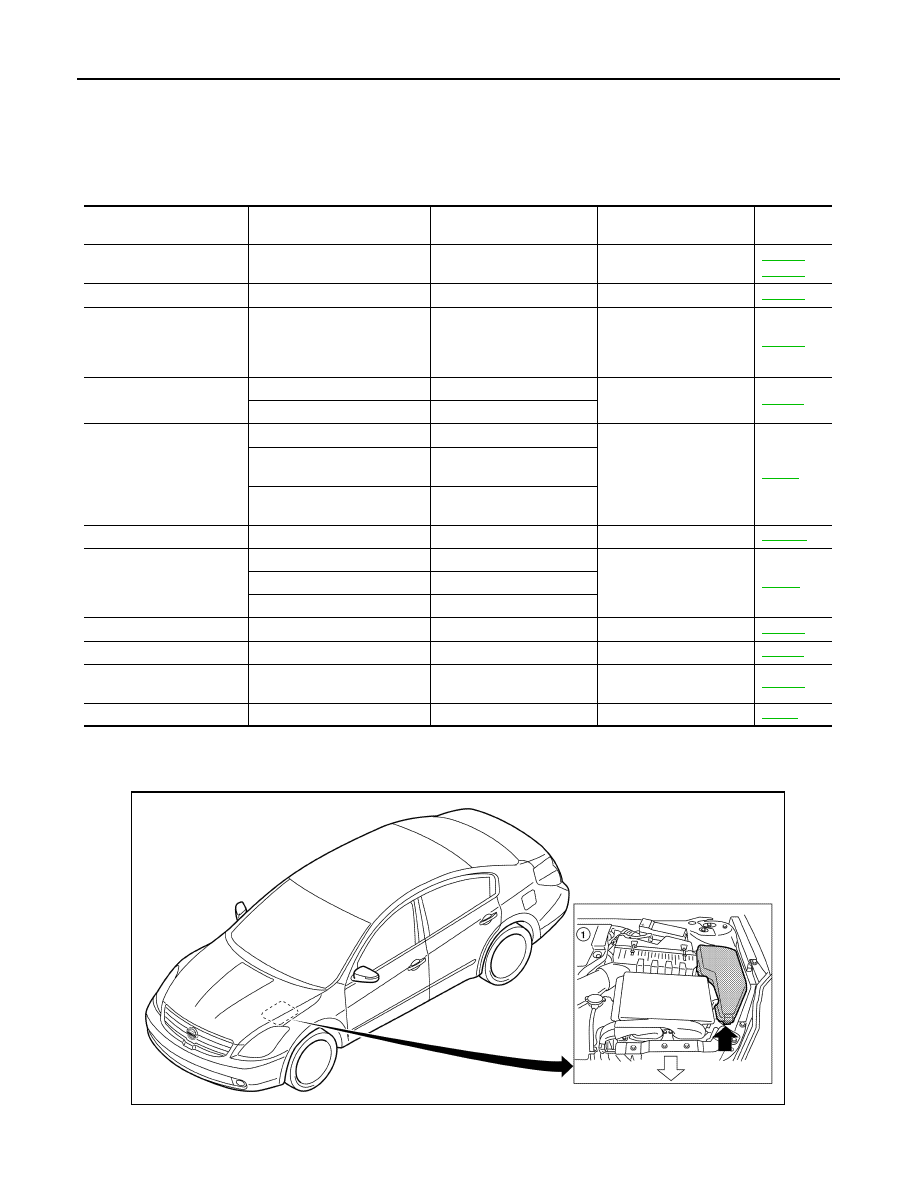

Component Parts Location

INFOID:0000000004219100

Control relay

Input/output

Transmit unit

Control part

Reference

page

• Headlamp low relay
• Headlamp high relay

• Low beam request signal
• High beam request signal

BCM (CAN)

• Headlamp low
• Headlamp High

EXL-41
EXL-39

Front fog lamp relay

Front fog lamp request signal

BCM (CAN)

Front fog lamps

EXL-43

Tail lamp relay

Position light request signal

BCM (CAN)

• Parking  lamp
• License plate lamp
• Tail lamp
• Illuminations

EXL-45

• Front wiper relay
• Front wiper high relay

Front wiper request signal

BCM (CAN)

Front wiper

WW-84

Front wiper auto stop signal

Front wiper motor

Steering lock relay

Steering lock relay signal

BCM (CAN)

Electronic steering col-
umn lock unit

STC-7

Electronic steering column
lock unit condition signal

Electronic steering column
lock unit

ECVT device (Detent switch)
signal

ECVT device (Detent
switch)

Heater pump relay

Heater pump request signal

ECM (CAN)

Heater pump

HAC-84

Ignition relay-1

Ignition switch ON signal

BCM (CAN)

Ignition relay-1

BCS-8

Vehicle speed signal

Combination meter (CAN)

Push-button ignition switch

Push-button ignition switch

Fuel pump relay

Fuel pump request signal

ECM

Fuel pump

EC-386

ECM relay

ECM relay control signal

ECM

ECM relay

EC-114

Throttle contol motor relay

Throttle control motor relay
signal

ECM

Throttle control motor re-
lay

EC-358

Cooling fan relay-1

Cooling fan request signal

ECM (CAN)

Cooling fan relay-1

EC-55

ALCIA0050ZZ
