INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000004215443

CAUTION:

• Disconnect both the negative and positive 12 volt battery terminals, then wait at least three minutes.

• Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

• Be careful not to scratch instrument panel pad and other parts.

REMOVAL

1. Disconnect the negative and positive 12-volt battery terminals, then wait at least three minutes.
2. Remove the front pillar finishers. Refer to

INT-16, "Removal and Installation"

.

3. Put selector lever in the drive (D) position, then remove selector lever knob. Refer to

TM-27, "Removal

and Installation"

.

4. Remove the cluster lid D (1).

5. Remove console finisher. Refer to

TM-27, "Removal and Installation"

.

6. Remove the storage bin (1) or CD changer finisher (if equipped).

1.

Center speaker grille

2.

Tweeter speaker grille (LH)

3.

Instrument panel

4.

Instrument side mask (LH)

5.

Combination meter

6.

Lower knee protector (LH)

7.

Cluster lid A

8.

Instrument lower cover (LH)

9.

Fuse block cover

10. Steering column cover upper

11. Steering column cover lower

12. Console side finisher (LH)

13. CD changer finisher (if equipped)

14. Storage bin

15. Cup holder

16. Console rear finisher (with ventilator grille) 17. CVT finisher

18. Console

19. Console side finisher (RH)

20. Cluster lid D

21. Cluster lid C

22. Center ventilator grilles

23. Glove box assembly

24. Instrument side mask (RH)

25. Tweeter speaker grille (RH)

Clip

Metal clip

Pawl

ALJIA0036ZZ

ALJIA0017ZZ

INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

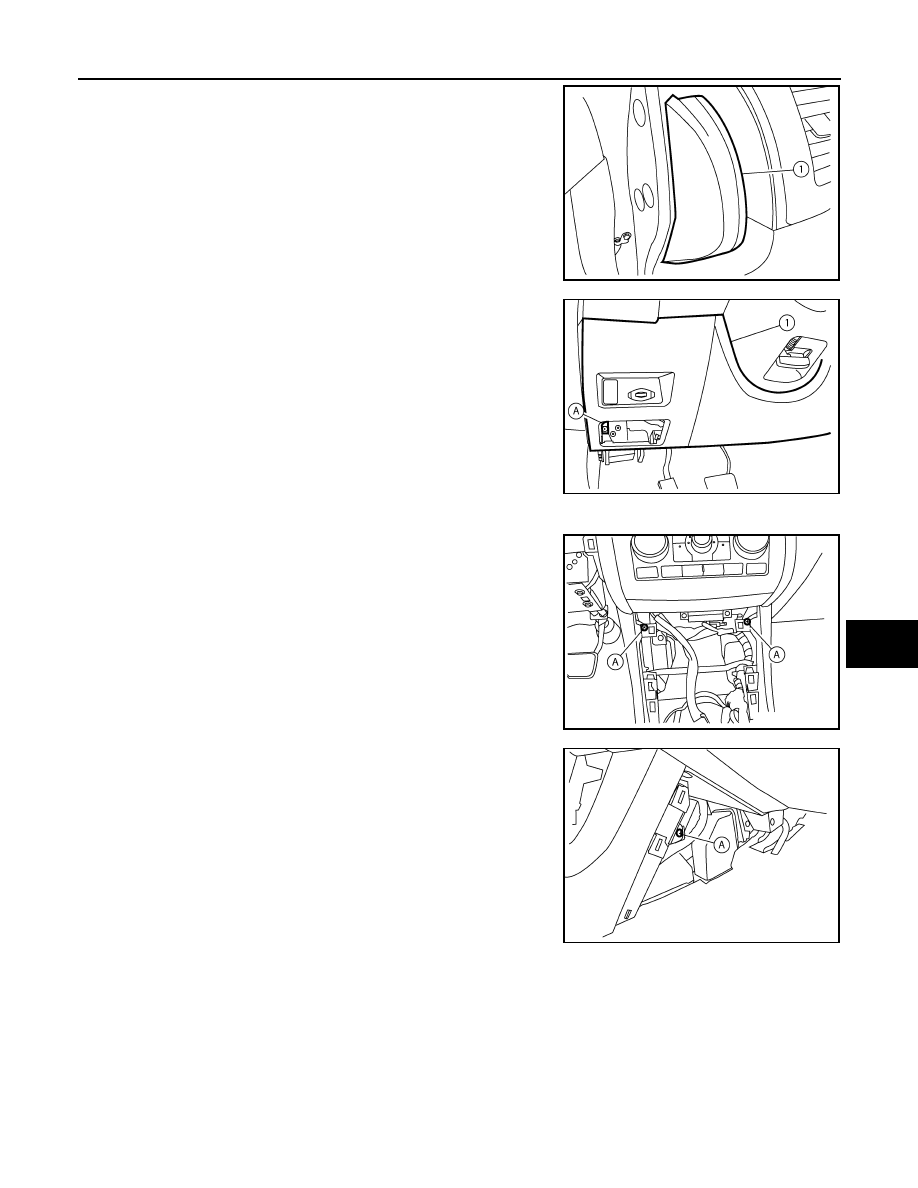

7. Remove both instrument side masks (1).

8. Open the fuse block cover, remove the instrument lower cover

screw (A), then remove the instrument lower cover (1).

• Disconnect the harness connectors.

• Disconnect the aspirator tube.

9. Remove both the console side finishers.
10. Remove the console upper screws (A).

11. Remove the console side screws (A).

ALJIA0018ZZ

ALJIA0019ZZ

ALJIA0022ZZ

ALJIA0023ZZ

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

12. Remove the console rear screws (A), then disconnect the con-

sole harness connector and remove the console assembly.

13. Open the glove box door, remove the glove box assembly

screws (A).

• Glove box assembly (1)

14. Remove the glove box assembly lower screws (A), then remove

the glove box assembly.

15. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

16. Remove the steering column cover screws (A), then remove

both the steering column cover upper (1) and steering column

cover lower (2).

ALJIA0024ZZ

ALJIA0020ZZ

ALJIA0021ZZ

ALJIA0025ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

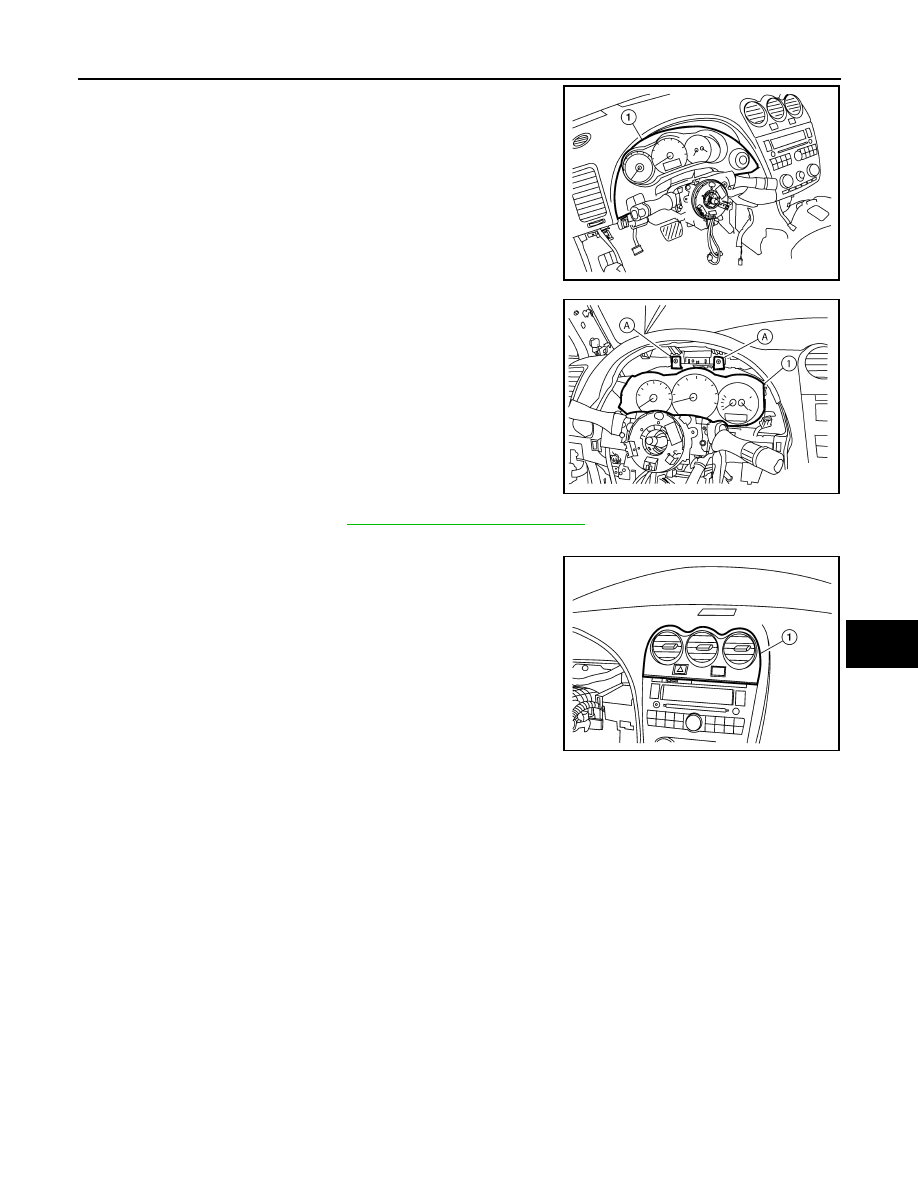

17. Remove the cluster lid A (1).

18. Remove the combination meter screws (A), then remove the

combination meter (1).

• Disconnect the harness connector.

19. Remove the spiral cable. Refer to

SRS-8, "Removal and Installation"

.

20. Disconnect the combination switch connector and remove the combination switch assembly.
21. Remove the center ventilator grilles (1).

ALJIA0026ZZ

ALJIA0027ZZ

ALJIA0029ZZ
