BODY SIDE TRIM

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

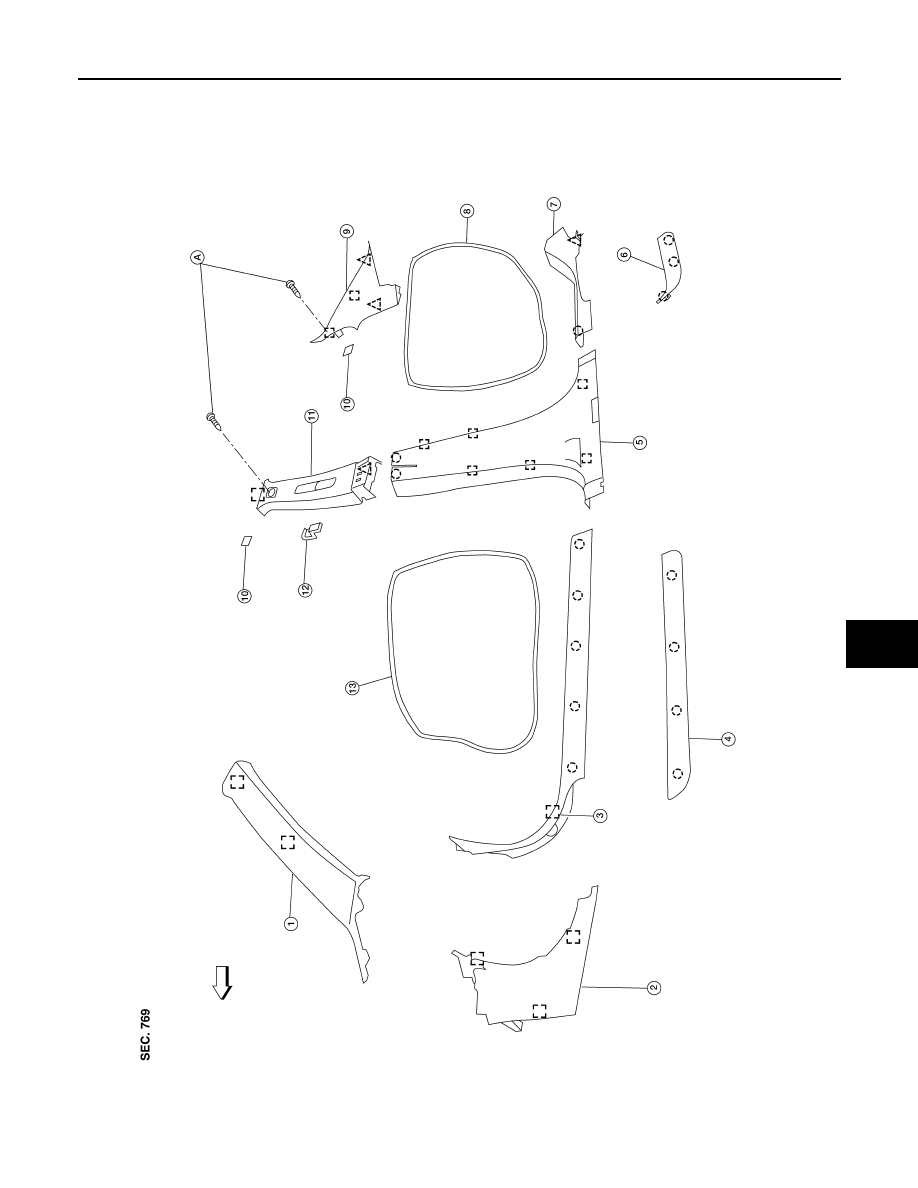

Exploded View

INFOID:0000000004215425

1.

Front pillar finisher

2.

Dash side lower finisher

3.

Front kicking plate

4.

Front sill cover

5.

Center pillar lower finisher

6.

Rear sill cover

7.

Rear kicking plate

8.

Rear body side welt

9.

Rear pillar finisher

ALJIA0002ZZ

INT-16

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

Removal and Installation

INFOID:0000000004215426

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finishers.

FRONT PILLAR FINISHER

Removal

1. Remove front body side welt.

CAUTION:

Insert a suitable clip removing tool wrapped with a shop

cloth inserted into the part shown by the arrow (between

the clip and the body side panel), then release the clip.

2. Release the clips, then remove front pillar finisher.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

DASH SIDE LOWER FINISHER

Removal

1. Remove front kicking plate.
2. Release the clips, then remove dash side lower finisher.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

FRONT KICKING PLATE

Removal

Release the clip and pawls, then remove front kicking plate.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

FRONT BODY SIDE WELT

Removal

1. Remove front kicking plate.
2. Release welt from the body opening, then remove front body side welt.

10. Screw cover

11. Center pillar upper finisher

12. Front seat belt adjuster cover

13. Front body side welt

A.

Screw

Clip C101

Pawl

Metal clip

Vehicle front

PIIB2768J

BODY SIDE TRIM

INT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

CENTER PILLAR LOWER FINISHER

Removal

1. Remove front and rear kicking plate.
2. Remove front and rear body side welt.
3. Release the clips and pawls, then remove center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

CENTER PILLAR UPPER FINISHER

Removal

1. Remove screw cover, then remove the screw.
2. Remove front seat belt adjuster cover and shoulder anchor bolt. Refer to

SB-7, "Exploded View"

.

3. Remove center pillar lower finisher.
4. Release the clips, then remove center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

REAR KICKING PLATE

Removal

Release the clip and pawl, then remove rear kicking plate.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

REAR BODY SIDE WELT

Removal

1. Remove rear kicking plate.
2. Release the welt from the body opening, then remove rear body side welt.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

REAR PILLAR FINISHER

Removal

1. Remove rear body side welt.
2. Remove screw cover, then remove the screw.
3. Release the clips, then remove rear pillar finisher.

Installation

INT-18

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

SILL PLATE COVER (FRONT/REAR)

Removal

Release the pawls, then remove the sill plate cover.

Installation

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.
