DOOR LOCK

DLK-229

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

16. Disconnect the outside handle cable from the outside handle

bracket connection.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing the key cylinder rod be sure to rotate the rod holder until a click is felt.

• Do not reuse the door lock assembly Torx bolts (T30).

BACK DOOR LOCK

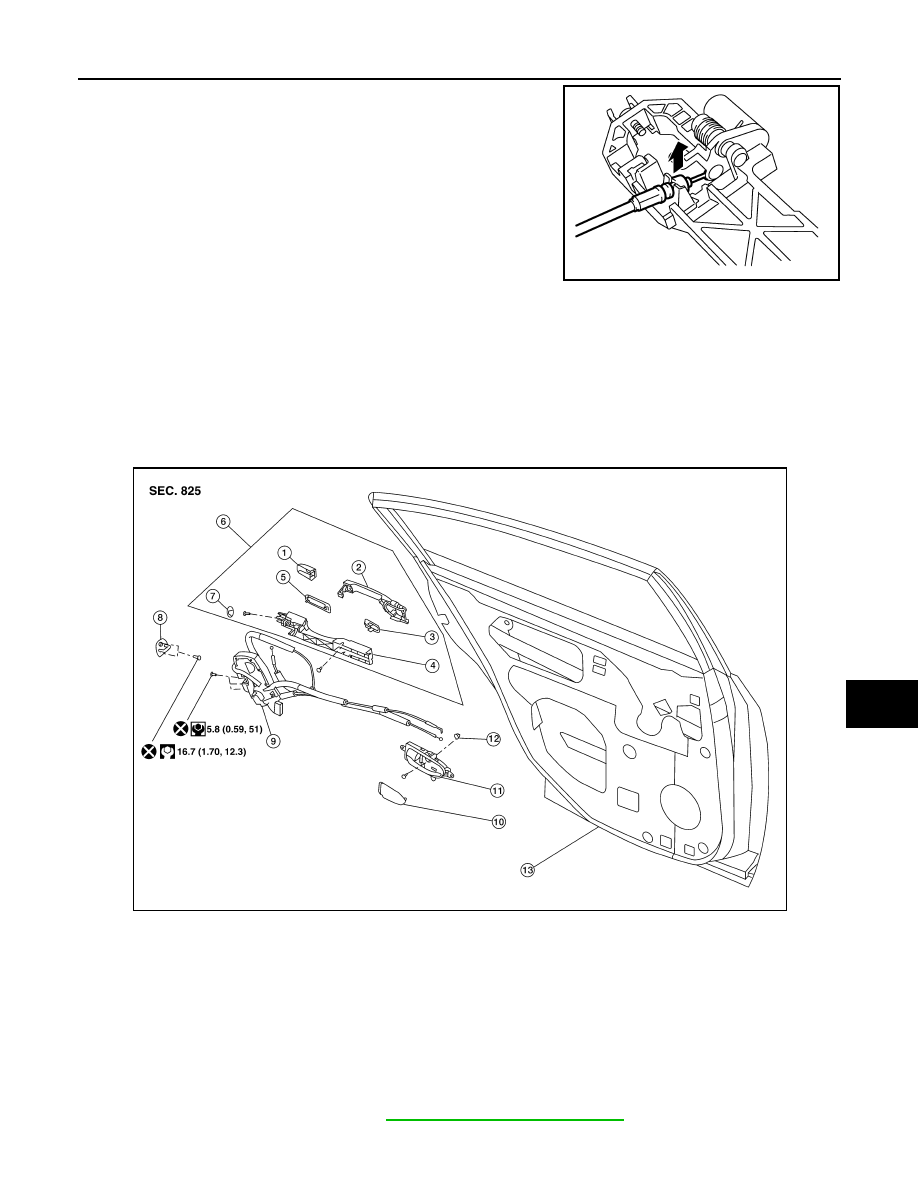

BACK DOOR LOCK : Component Parts Location

INFOID:0000000004215799

BACK DOOR LOCK : Removal and Installation

INFOID:0000000004215800

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

PIIB5815E

1.

Outside handle escutcheon

2.

Outside handle

3.

Front gasket

4.

Outside handle bracket

5.

Rear gasket

6.

Outside handle assembly

7.

Grommet

8.

Rear door striker

9.

Rear door lock assembly

10. Cap

11. Inside handle assembly

12. Grommet

13. Rear door assembly

AWKIA1232GB

DLK-230

< ON-VEHICLE REPAIR >

DOOR LOCK

2. Disconnect the inside handle knob cable and lock knob cable

from the back side of the inside door handle.

3. Remove the rear door sash. Refer to

EXT-21, "Removal and Installation"

.

4. Remove the rear door window and rear door screen assembly.
5. Remove door side grommet, and remove outside handle

escutcheon bolt (TORX T30) from grommet hole.

6. While pulling the outside handle (1), remove outside handle

escutcheon (2).

7. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle (2).

PIIB4933E

PIIB5808E

PIIB5809E

PIIB5810E

DOOR LOCK

DLK-231

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

8. Remove the front gasket and rear gasket.

9. Remove the TORX bolts (T30), remove the door lock assembly.

10. Remove the TORX bolt (T30) (A), and remove the outside han-

dle bracket.

11. While pulling outside handle, slide toward rear of vehicle to

remove outside handle.

12. Disconnect the door lock actuator connector and remove the door lock assembly.

PIIB5811E

PIIB5812E

AWKIA1233ZZ

PIIB5814E

DLK-232

< ON-VEHICLE REPAIR >

DOOR LOCK

13. Disconnect the outside handle cable from the outside handle

bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the door lock assembly Torx bolts (T30).
