< ON-VEHICLE REPAIR >

CONTROLLER

ON-VEHICLE REPAIR

CONTROLLER

Removal and Installation

INFOID:0000000004215235

FRONT AIR CONTROL

Removal

1. Remove cluster lid D. Refer to

IP-12, "Removal and Installation"

.

2. Remove the two brackets (1) and remove the controller (auto

amp.).

Installation

Installation is in the reverse order of removal.

ALIIA0011ZZ

IN-VEHICLE SENSOR

VTL-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000004215236

REMOVAL

1. Remove the instrument lower cover LH. Refer to

IP-12, "Removal and Installation"

.

2. Remove the in-vehicle sensor screw and remove the in-vehicle

sensor.

INSTALLATION

Installation is in the reverse order of removal.

• Make sure that the aspirator hose is securely attached to the in-vehicle sensor when installing the instrument

lower cover LH.

WJIA0098E

VTL-10

< ON-VEHICLE REPAIR >

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000004215237

REMOVAL

1. Remove the front RH speaker grille (1). Refer to

IP-12,

"Removal and Installation"

.

2. Disconnect the connector.

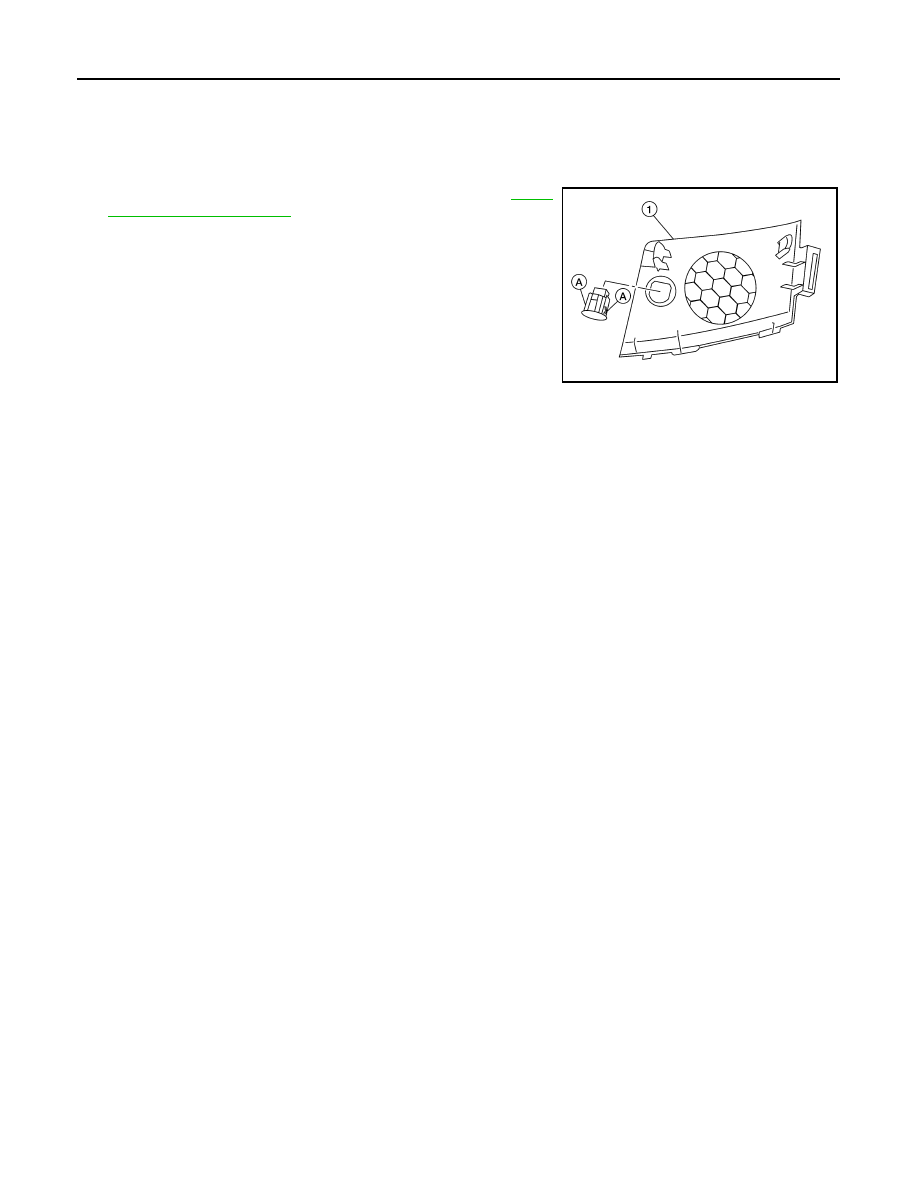

3. Release the sunload sensor tabs (A) to remove it from the front

RH speaker grille (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0012ZZ

AMBIENT SENSOR

VTL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000004215238

REMOVAL

1. From under the vehicle, disconnect the ambient sensor connec-

tor from the ambient sensor (1).

2. Release the ambient sensor clip and remove the ambient sen-

sor (1).

INSTALLATION

Installation is in the reverse order of removal.

WJIA0097E
