PERIODIC MAINTENANCE

ROAD WHEEL

Tire rotation

INFOID:0000000006043983

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

XX-XX, "*****"

.

• When installing the wheel, tighten wheel nuts to the specified

torque.

CAUTION:

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels
from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

Wheel nuts tighting torque

: Refer to

WT-4, "Exploded View"

.

SMA829C

WT-4

< REMOVAL AND INSTALLATION >

ROAD WHEEL TIRE ASSEMBLY

REMOVAL AND INSTALLATION

ROAD WHEEL TIRE ASSEMBLY

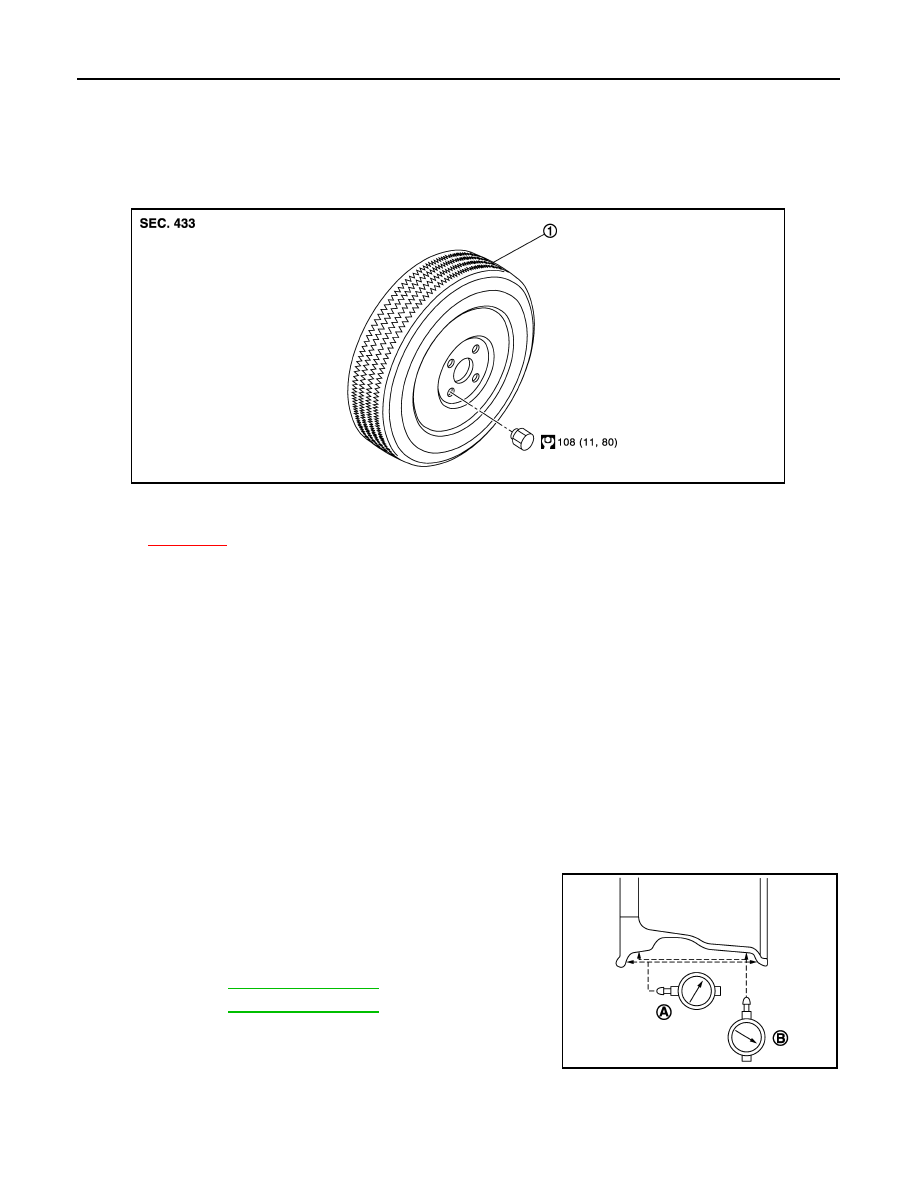

Exploded View

INFOID:0000000006043984

Removal and Installation

INFOID:0000000006043985

REMOVAL

1.

Remove wheel nuts.

2.

Remove tire assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000006043986

ALUMINUM WHEEL

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from aluminum wheel and mount on a tire balance machine.

b.

Set dial indicator as shown in the figure.

c.

If the lateral deflection (A) or vertical deflection (B) for radial
runout value exceeds the limit, replace aluminum wheel.

STEEL WHEEL

1.

Check tires for were and improper inflation.

1.

Tire assembly

Refer to

XX-XX, "*****"

 for symbols in the figure.

JSGIA0640GB

Limit

A:

Refer to

WT-6, "Road Wheel"

.

B:

Refer to

WT-6, "Road Wheel"

.

SEIA0737E

ROAD WHEEL TIRE ASSEMBLY

WT-5

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

2.

Check wheels for deformation, clacks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from steel wheel and mount wheel on a tire balance machine.

b.

Set two dial indicators as shown in the illustration.

c.

Set each dial indicator to “0”.

d.

Rotate wheel and check dial indicators at several points around
the circumference of the wheel.

e.

Calculate runout at each point as shown below.

f.

Select maximum positive runout value and the maximum nega-
tive value. Add the two values to determine total runout.

CAUTION:

In case a positive or negative value is not available, use the
maximum value (negative or positive) for total runout.

g.

If the total runout value exceeds limit, replace steel wheel.

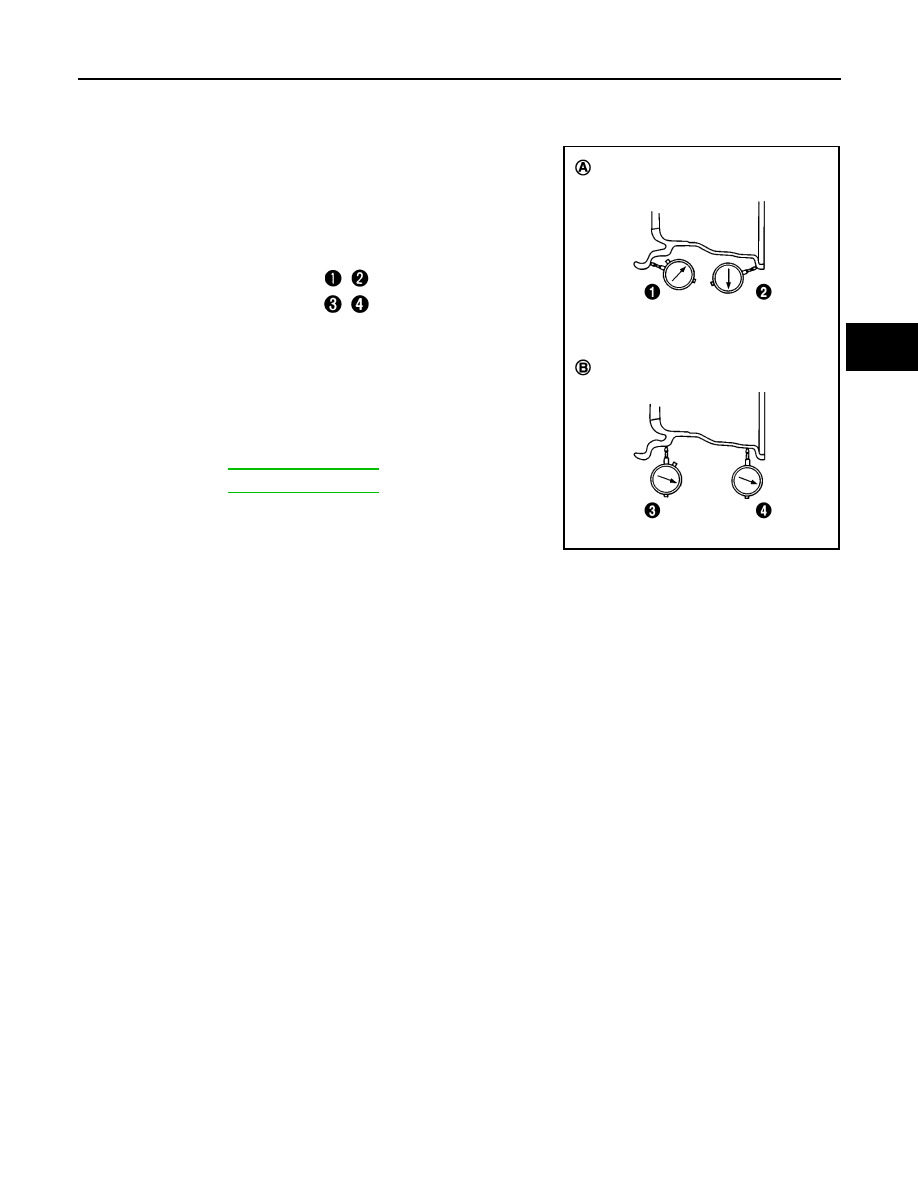

Lateral runout limit (A):

(

+

)/2

Radial runout limit (B):

(

+

)/2

Limit

A:

Refer to

WT-6, "Road Wheel"

.

B:

Refer to

WT-6, "Road Wheel"

.

SEIA0738E

WT-6

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000006043987

ALUMINUM WHEEL

STEEL WHEEL

STEEL WHEEL (FOR EMERGENCY USE)

Tire Air Pressure

INFOID:0000000006043988

Unit: kPa (bar, kg/cm

2

, psi)

Item

Limit

Radial runout

Lateral deflection

Less than 0.3 mm (0.012 in)

Vertical deflection

Allowable unbalance

Dynamic (At flange)

Less than 10 g (0.35 oz) (one side)

Static (At flange)

Less than 20 g (0.70 oz)

Item

Limit

Radial runout

Lateral deflection

Less than 0.8 mm (0.031 in)

Vertical deflection

Less than 0.5 mm (0.020 in)

Allowable unbalance

Dynamic (At flange)

Less than 10 g (0.35 oz) (one side)

Static (At flange)

Less than 20 g (0.70 oz)

Item

Limit

Radial runout

Lateral deflection

Less than 0.8 mm (0.031 in)

Vertical deflection

Less than 0.5 mm (0.020 in)

Allowable unbalance

Dynamic (At flange)

Less than 10 g (0.35 oz) (one side)

Static (At flange)

Less than 20 g (0.70 oz)

Tire size

Air pressure

Front

Rear

Half load

Maximum load

165/70R14 81S

220 (2.2, 2.2, 32)

220 (2.2, 2.2, 32)

300 (3.0, 3.0, 44)

175/60R15 81H

220 (2.2, 2.2, 32)

220 (2.2, 2.2, 32)

300 (3.0, 3.0, 44)
