Nissan March K13. Manual - part 661

WCS

COMPONENT PARTS

WCS-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

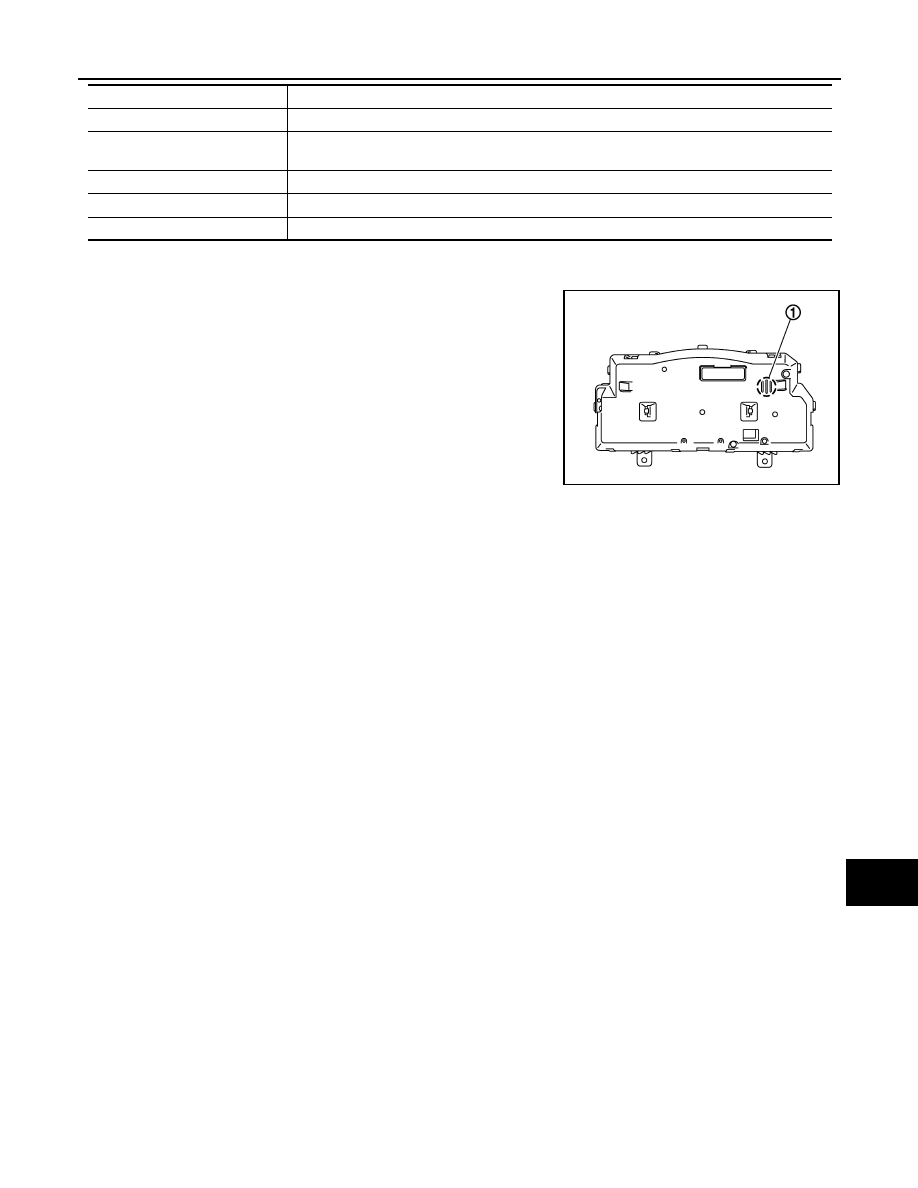

Combination Meter

INFOID:0000000005887664

The buzzer (1) for the warning chime system is integrated in the
combination meter.

TCM (A/T models without ABS)

Transmits the vehicle speed signal to the combination meter via CAN communication.

Combination switch
(Lighting switch)

Transmits the combination switch signal to BCM.

Front door switch (driver side)

Transmits the driver side door switch signal to BCM.

Key switch

Transmits the key switch signal to BCM.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

Unit

Description

JSNIA2928ZZ

WCS-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

WARNING CHIME SYSTEM

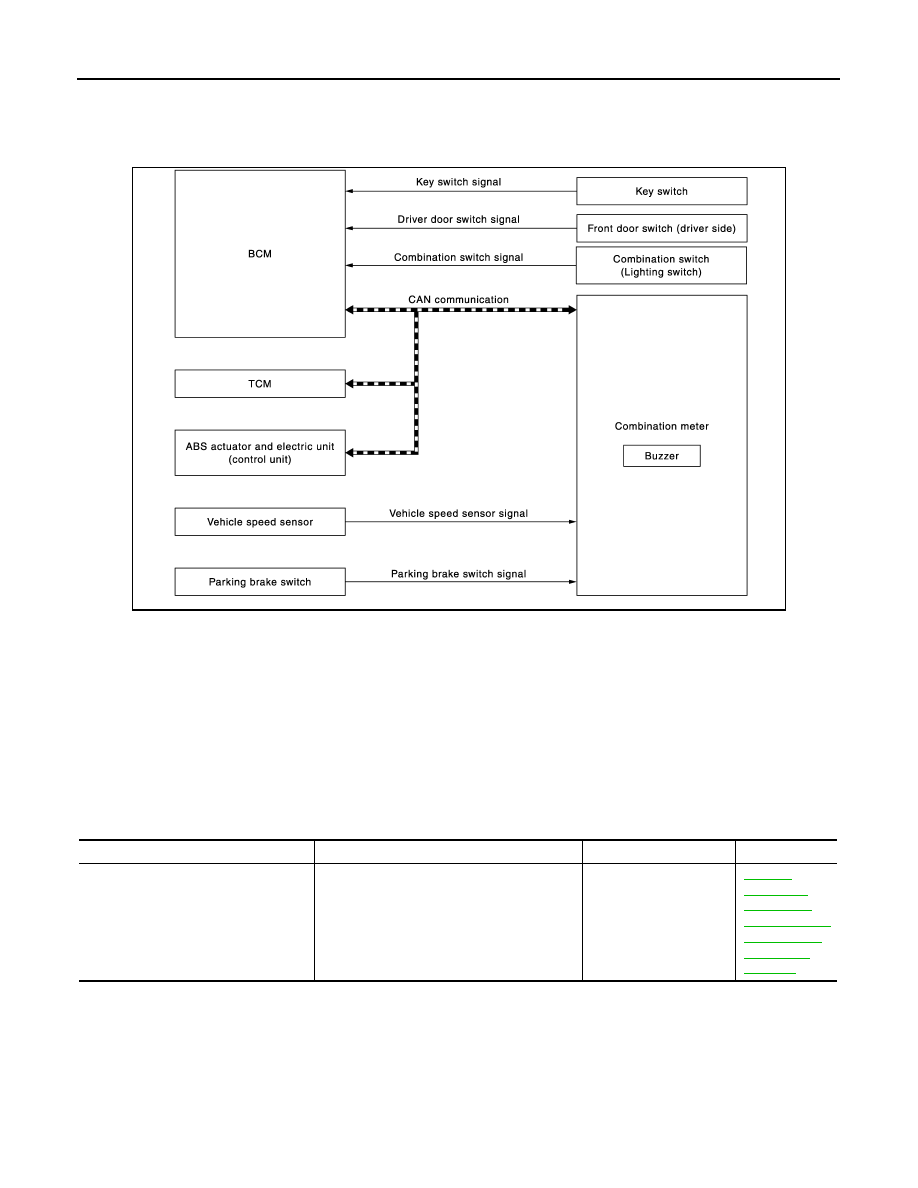

WARNING CHIME SYSTEM : System Diagram

INFOID:0000000005887665

WARNING CHIME SYSTEM : System Description

INFOID:0000000005887666

COMBINATION METER

The combination meter sounds the alarm buzzer installed in the combination meter when receiving the buzzer
output signal transmitted from each unit.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the combination meter via
CAN communication if it judges that the warning buzzer should be activated.

WARNING CHIME FUNCTION LIST

JSNIA2930GB

Warning functions

Out line

Warning judgment unit

Refer to

Parking brake release warning chime

The warning chime sounds when the ignition
switch is in ON position with the parking brake
in operation and the vehicle speed 7 km/h (4.3
MPH) or more.

Combination meter

WCS-9,
"PARKING
BRAKE RE-
LEASE WARN-
ING CHIME :
System De-
scription"

WCS

SYSTEM

WCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING CHIME SYSTEM : Fail-Safe

INFOID:0000000005887667

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

Light reminder warning chime

The warning chime sounds when the ignition
switch is in OFF or ACC position with the com-
bination switch (lighting switch) in the 1st or
2nd position and the driver side door open.

BCM

WCS-10,
"LIGHT RE-
MINDER
WARNING
CHIME : Sys-
tem Descrip-
tion"

Key warning chime (Without intelligent
key)

The warning chime sounds when the ignition
switch is in OFF or ACC position with the key
inserted and the driver side door open.

BCM

WCS-12, "KEY
WARNING
CHIME : Sys-
tem Descrip-
tion"

Warning functions

Out line

Warning judgment unit

Refer to

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Illumination control

When suspending communication, changes to nighttime mode.

Shift position indicator

The indicator turns OFF by suspending communication.

Information display

Instantaneous fuel warning

• When reception time of an abnormal signal is 2 seconds or

less, the last received datum is used for calculation to indi-
cate the result.

• When reception time of an abnormal signal is more than two

seconds, the last result calculated during normal condition is
indicated.

Average fuel consumption

Possible driving distance

Average vehicle speed

Buzzer

The buzzer turns off by suspending communication.

WCS-8

< SYSTEM DESCRIPTION >

SYSTEM

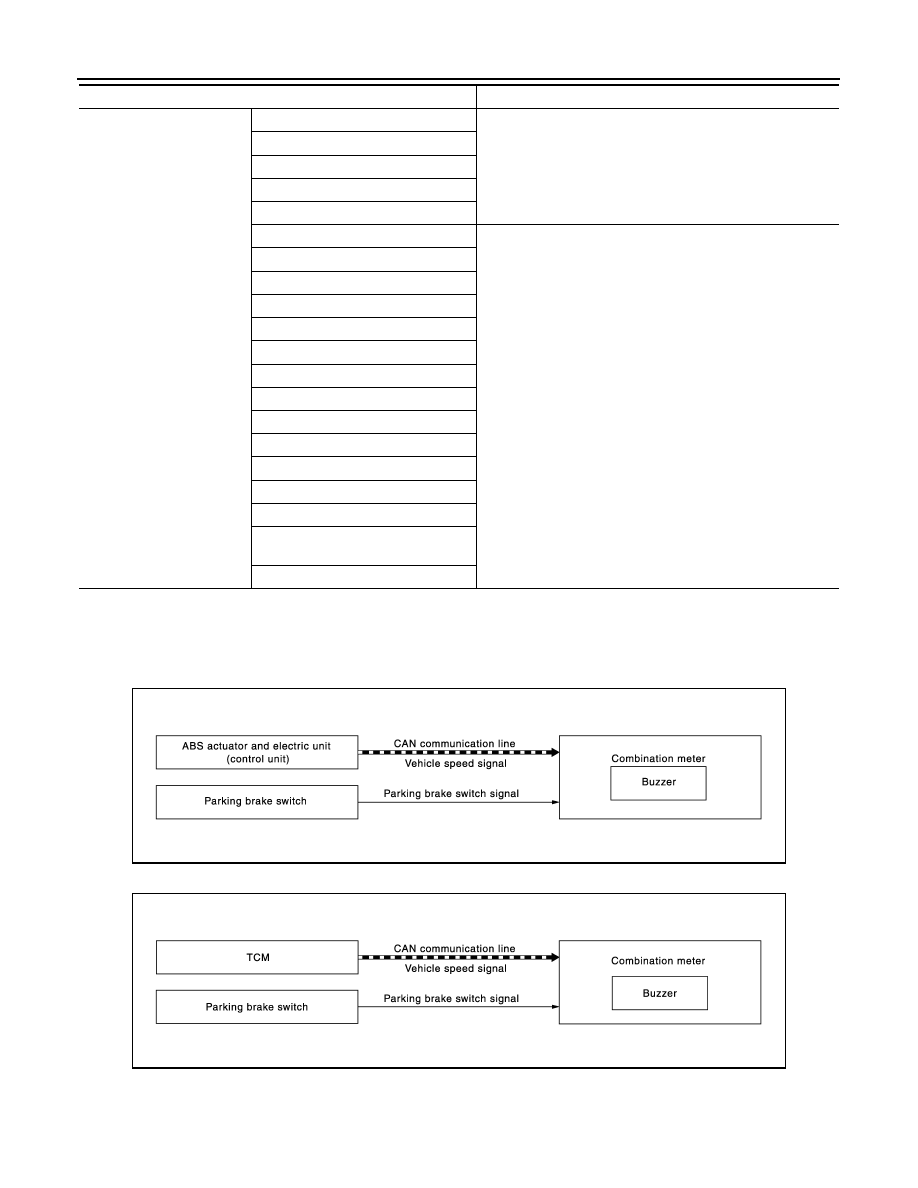

PARKING BRAKE RELEASE WARNING CHIME

PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000005887672

MODELS WITH ABS

A/T MODELS WITHOUT ABS

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

ESP OFF indicator lamp

SLIP indicator lamp

EPS warning lamp

Brake warning lamp

High beam indicator lamp

The lamp turns OFF by suspending communication.

Turn signal indicator lamp

Door warning lamp

Light indicator lamp

Engine start operation indicator lamp

Shift P warning lamp

Oil pressure warning lamp

Malfunction indicator

CRUISE indicator lamp

SET indicator lamp

Speed limiter indicator lamp

SPORT indicator lamp

Key warning lamp

DPF (Diesel Particulate Filter) warn-
ing lamp

Glow indicator lamp

Function

Specifications

JSNIA2422GB

JSNIA2931GB
