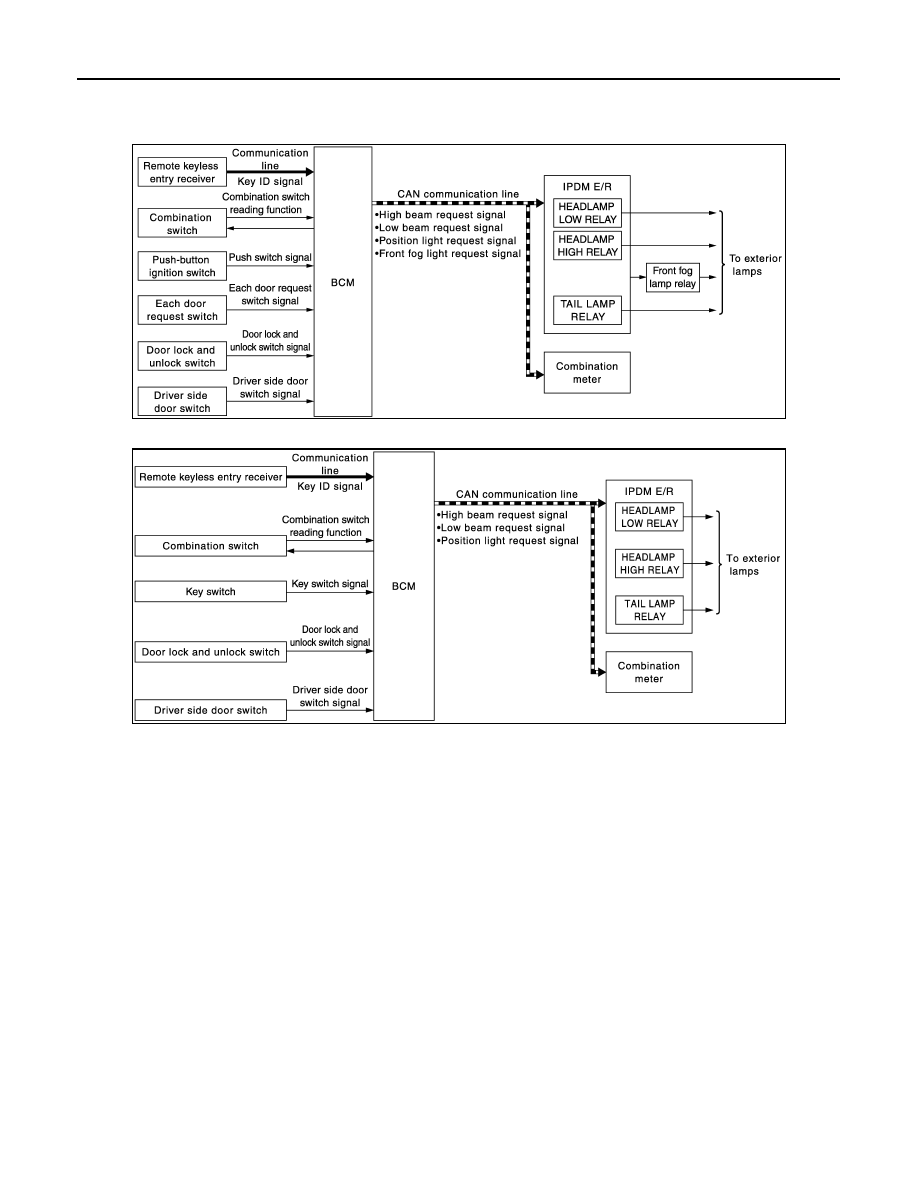

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Diagram

INFOID:0000000005912292

WITH INTELLIGENT KEY SYSTEM

WITH REMOTE KEYLESS ENTRY SYSTEM

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000005912293

OUTLINE

• Exterior lamp battery saver system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Exterior lamp battery saver function

Control by IPDM E/R

- Relay control function
• BCM turns the exterior lamp* OFF, according to the vehicle status when key switch is turned OFF while exte-

rior lamp is ON, for preventing battery discharge.

*: Headlamp (LO/HI), parking lamp, tail lamp, license plate lamp and front fog lamp

EXTERIOR LAMP BATTERY SAVER ACTIVATION

BCM turns the exterior lamps OFF (battery saver is activated) when in all of following conditions.
• Push-button ignition switch does not pressed
• Ignition switch is in the OFF position (with Intelligent Key system) or key switch is OFF (without Intelligent

Key system).

• BCM detects door lock signal (auto door lock function, each door request switch, remote keyless entry

receiver)

NOTE:

JMLIA0947GB

JMLIA0948GB

SYSTEM

EXL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

When in any of following conditions (after the exterior lamp battery saver is activated), exterior lamps can be
turned ON.
• Ignition switch is in the OFF position (with Intelligent Key system) or key switch is OFF (without Intelligent

Key system).

• Switch position of lighting switch is changed
• Front door switch (driver side) is turn from OFF

→

ON

• Passing switch is turned from OFF

→

ON

• Front fog lamp switch is changed

EXL-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006046536

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

*: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT-III.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Automatic air conditioner

AIR CONDITONER

×

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

—

THEFT ALM*

×

×

×

—

RETAINED PWR*

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

EXL-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000005912297

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition

whenever ignition switch OFF

→

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
