EM-10

< PREPARATION >

[HR12DE]

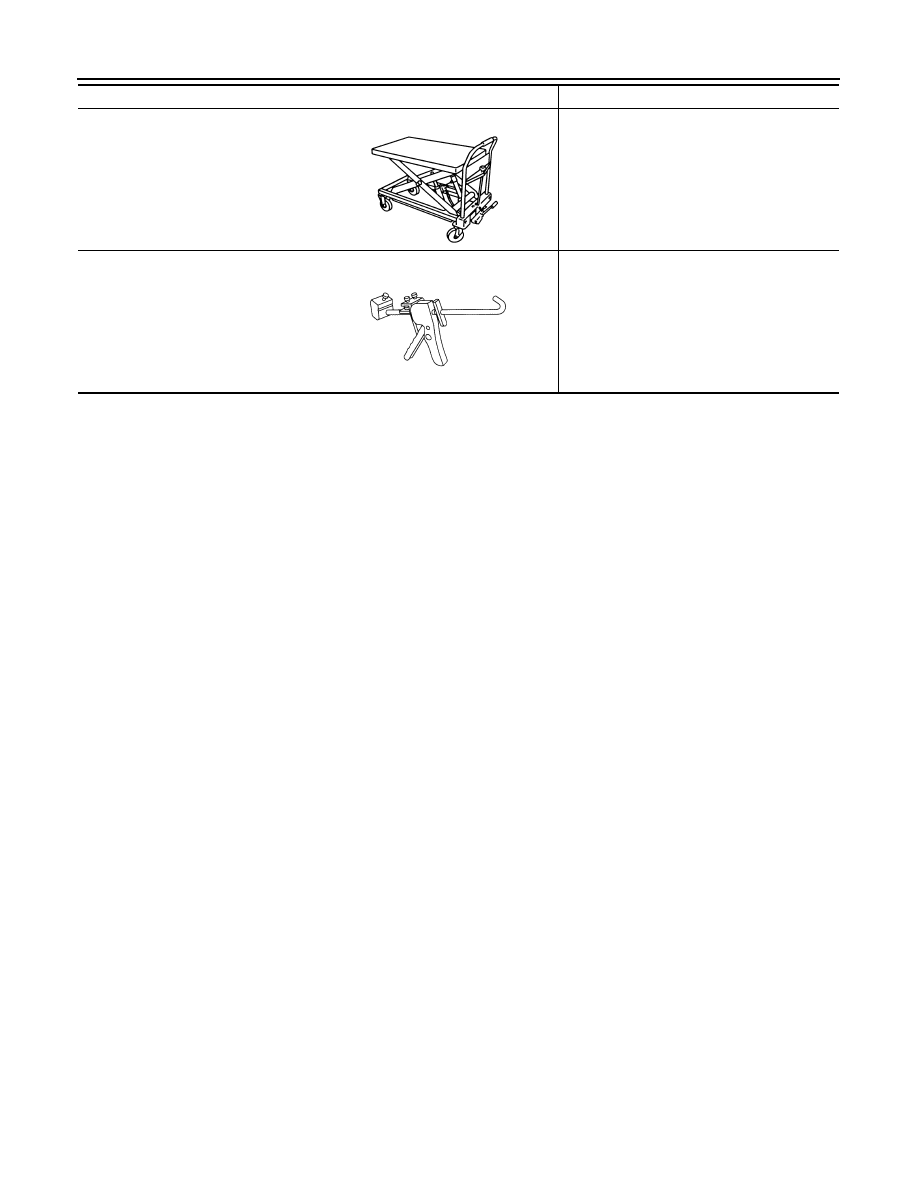

PREPARATION

Manual lift table caddy

Removing and installing engine

Tube presser

Pressing the tube of liquid gasket

Tool name

Description

ZZA1210D

S-NT052

CAMSHAFT VALVE CLEARANCE

EM-11

< BASIC INSPECTION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

BASIC INSPECTION

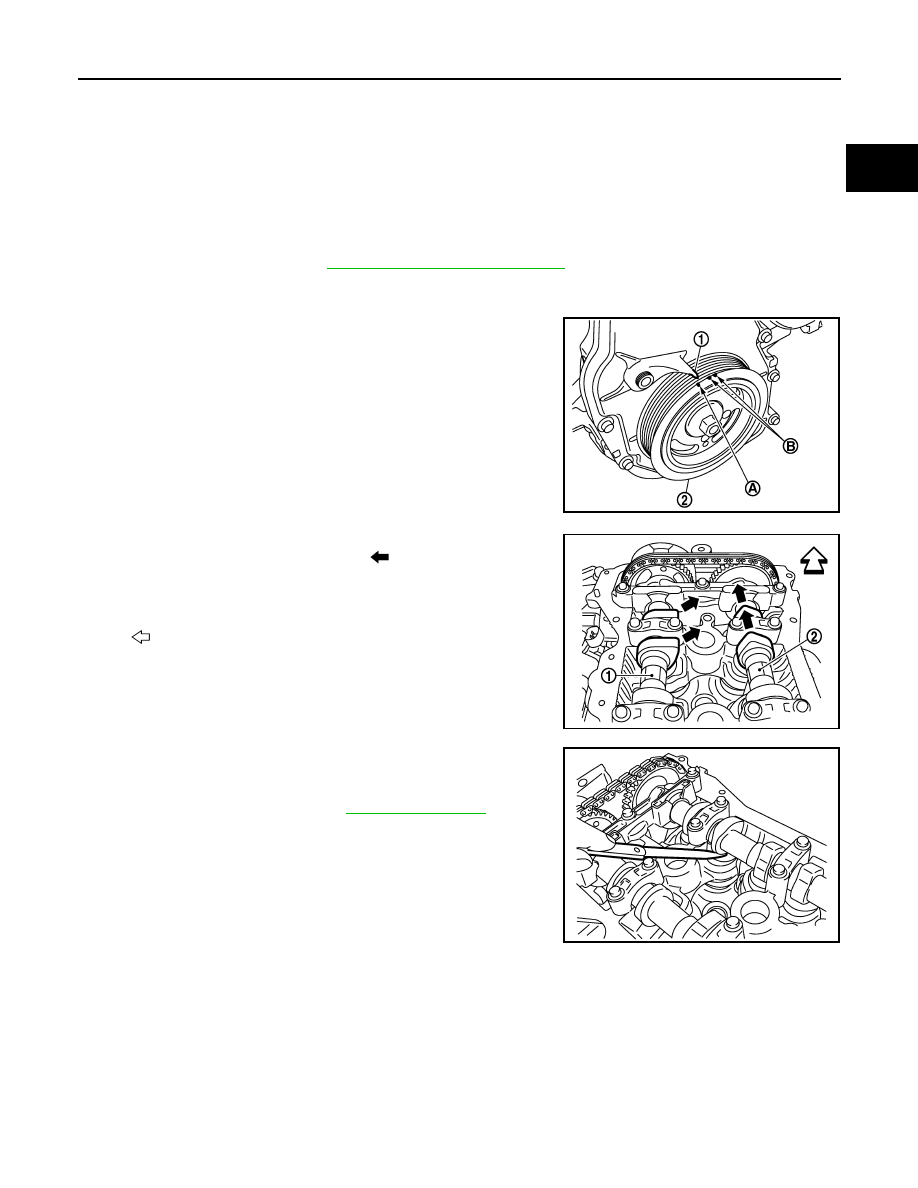

CAMSHAFT VALVE CLEARANCE

Inspection and Adjustment

INFOID:0000000005988165

INSPECTION

Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1.

Remove rocker cover. Refer to

EM-41, "Removal and Installation"

.

2.

Measure the valve clearance with the following procedure:

a.

Set No. 1 cylinder at TDC of its compression stroke.
• Rotate crankshaft pulley (2) clockwise and align TDC mark (no

paint) (A) to timing indicator (1) on front cover.

• At the same time, check that both intake and exhaust cam

noses of No. 1 cylinder face inside (

) as shown in the figure.

• If they do not face inside, rotate crankshaft pulley once more

(360 degrees) and align as shown in the figure.

b.

Use a feeler gauge, measure the clearance between valve lifter
and camshaft.

B : White paint mark (Not use for service)

PBIC3673E

1

: Camshaft (INT)

2

: Camshaft (EXH)

: Engine front

JPBIA3433ZZ

Valve clearance

: Refer to

EM-93, "Camshaft"

.

KBIA3348J

EM-12

< BASIC INSPECTION >

[HR12DE]

CAMSHAFT VALVE CLEARANCE

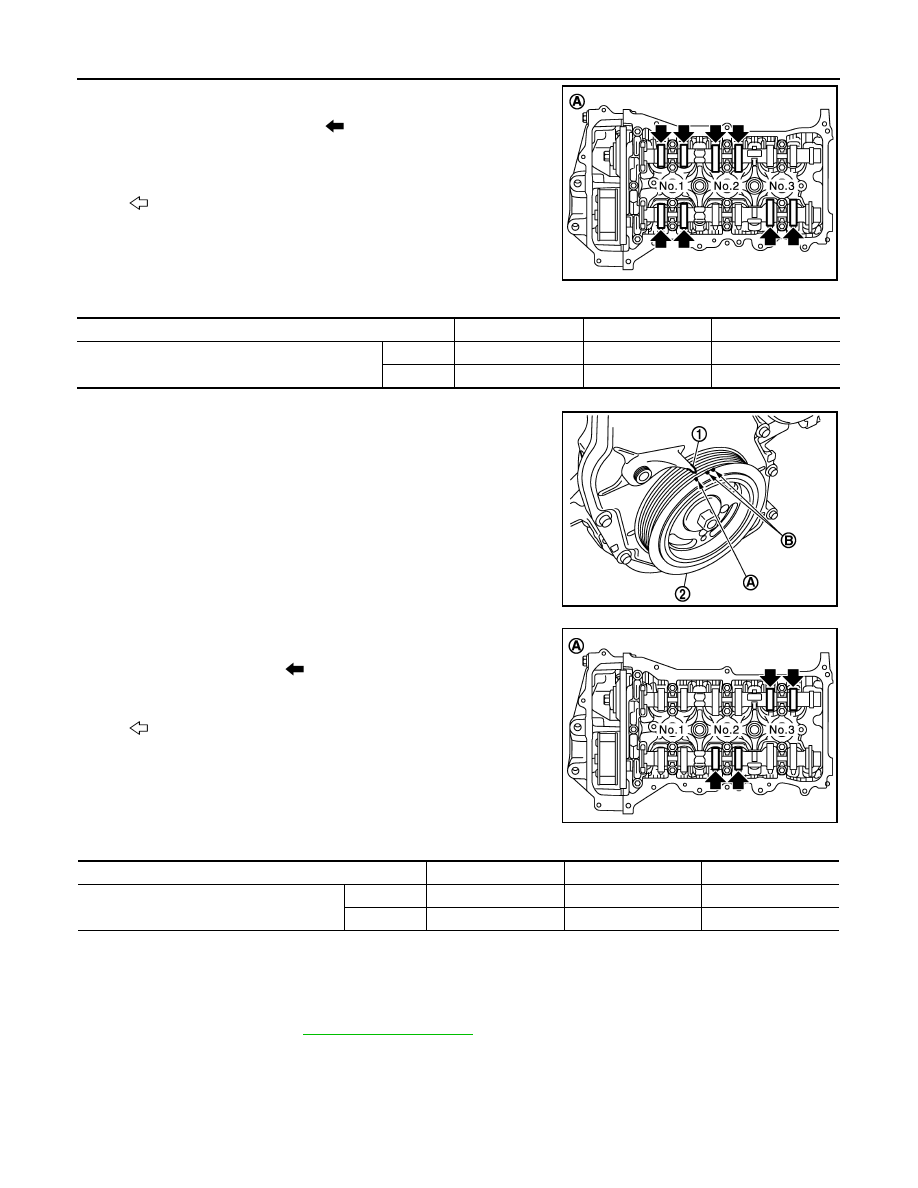

• By referring to the figure, measure the valve clearances at

locations marked “

×

” as shown in the table below [locations

indicated with black arrow (

) in the figure] with a feeler

gauge.

c.

Set No. 3 cylinder at TDC of its compression stroke.
• Rotate crankshaft pulley (2) one revolution (360 degrees) and

align TDC mark (no paint) (A) to timing indicator (1) on front
cover.

• By referring to the figure, measure the valve clearance at loca-

tions marked “

×

” as shown in the table below [locations indi-

cated with black arrow (

) in the figure] with a feeler gauge.

3.

If out of standard, perform adjustment. Refer to “ADJUSTMENT”.

ADJUSTMENT

• Perform adjustment depending on selected head thickness of valve lifter.

1.

Remove camshaft. Refer to

EM-53, "Exploded View"

.

2.

Remove valve lifters at the locations that are out of the standard.

A

: No. 1 cylinder at compression TDC

: Engine front

JPBIA3434ZZ

Measuring position

No. 1 CYL.

No. 2 CYL.

No. 3 CYL.

No. 1 cylinder at compression TDC

EXH

×

×

INT

×

×

B

: White paint mark (Not use for service)

PBIC3673E

A

: No. 3 cylinder at compression TDC

: Engine front

JPBIA3435ZZ

Measuring position

No. 1 CYL.

No. 2 CYL.

No. 3 CYL.

No. 3 cylinder at compression TDC

EXH

×

INT

×

CAMSHAFT VALVE CLEARANCE

EM-13

< BASIC INSPECTION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

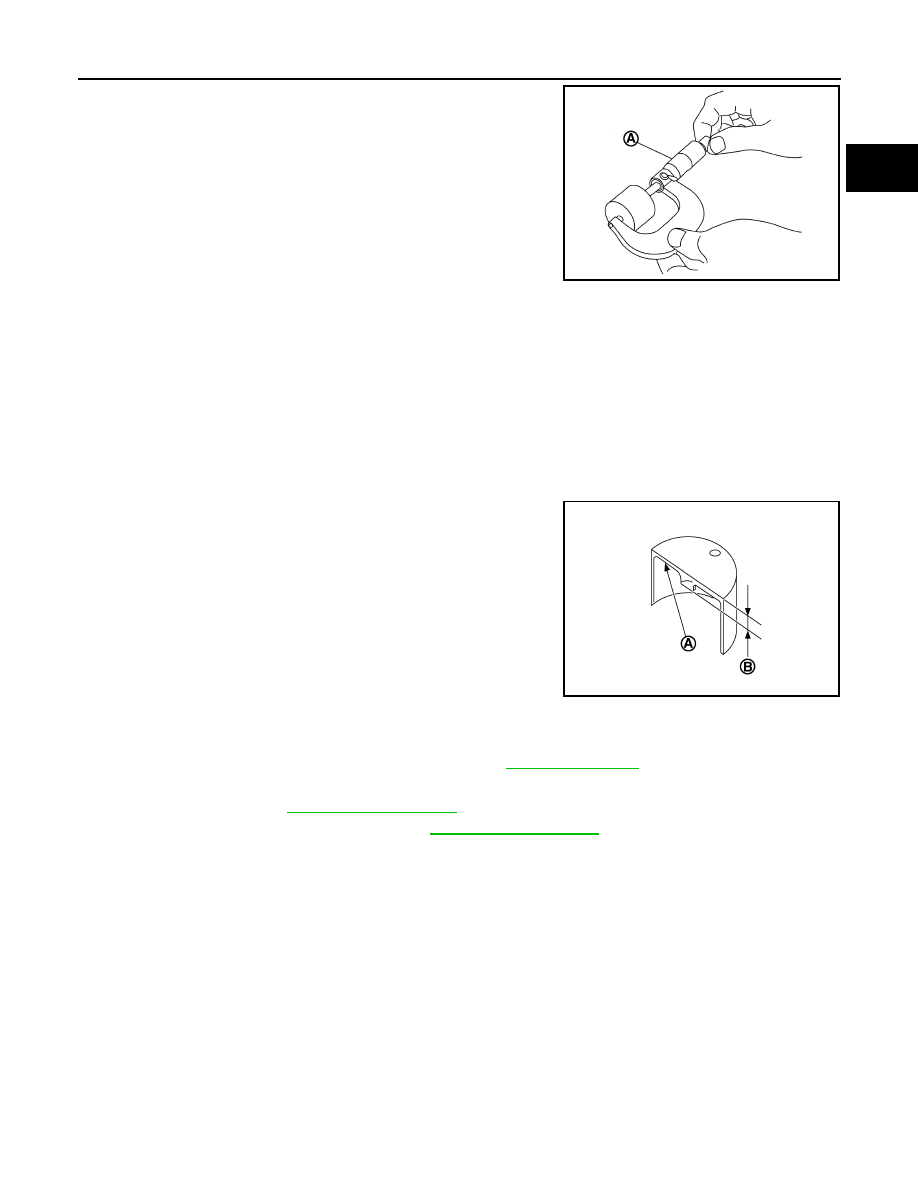

3.

Measure the center thickness of the removed valve lifters with a
micrometer (A).

4.

Use the equation below to calculate valve lifter thickness for replacement.

• Thickness of new valve lifter (B) can be identified by stamp

mark (A) on the reverse side (inside the cylinder).

• Stamp mark “302” indicates 3.02 mm (0.1189 in) in thickness.

NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50 mm (0.1181 to 0.1378 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to

EM-93, "Camshaft"

.

5.

Install the selected valve lifter.

6.

Install camshaft. Refer to

EM-53, "Exploded View"

.

7.

Install timing chain and related parts. Refer to

EM-43, "Exploded View"

.

8.

Manually rotate crankshaft pulley a few rotations.

9.

Check that the valve clearances is within the standard. Refer to “INSPECTION”.

10. Install remaining parts in the reverse order of removal.

11. Warm up the engine, and check for unusual noise and vibration.

PBIC3195J

Valve lifter thickness calculation:

t = t

1

 + (C

1

– C

2

)

t

= Valve lifter thickness to be replaced

t

1

= Removed valve lifter thickness

C

1

= Measured valve clearance

C

2

= Standard valve clearance:

Intake

: 0.30 mm (0.012 in)

Exhaust

: 0.33 mm (0.013 in)

PBIC3196J
