EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-481

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Check the following.
• Harness connectors E6, F1
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between EVAP canister purge volume control solenoid valve harness connector and
ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES-1 >> With CONSULT-III: GO TO 5.
YES-2 >> Without CONSULT-III: GO TO 6.
NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

With CONSULT-III

1.

Reconnect all harness connectors disconnected.

2.

Start engine.

3.

Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-III. Check that engine speed var-
ies according to the valve opening.

Does engine speed vary according to the valve opening?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-481, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace EVAP canister purge volume control solenoid valve.

7.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005886626

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4.

Turn ignition switch ON.

5.

Select “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-III.

EVAP canister purge volume control solenoid valve

ECM

Continuity

Connector

Terminal

Connector

Terminal

F32

2

F7

9

Existed

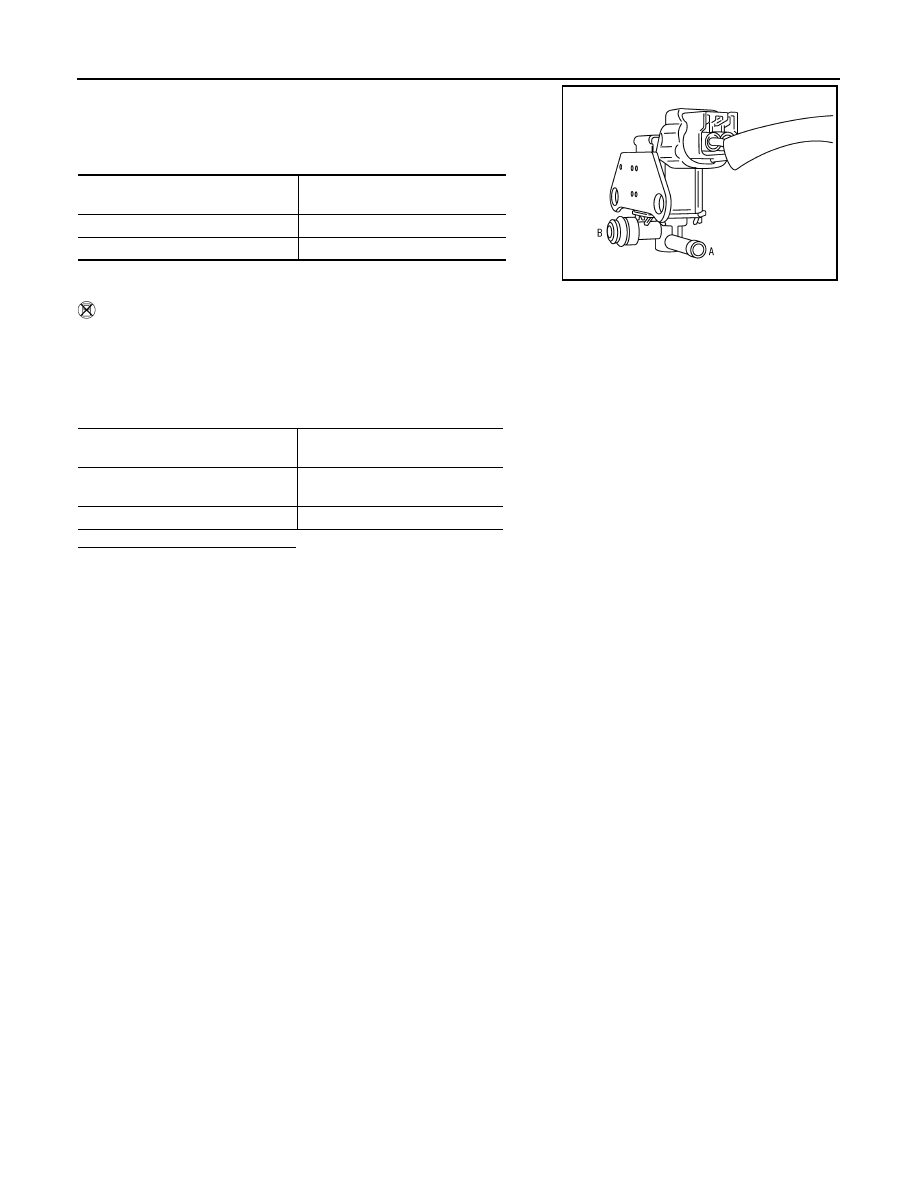

EC-482

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 2)]

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

6.

Touch “Qd” and “Qu” on CONSULT-III screen to adjust “PURG
VOL C/V” opening and check air passage continuity of EVAP
canister purge volume control solenoid valve under the following
conditions.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

3.

Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following
conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP canister purge volume control solenoid valve.

Condition

(PURG VOL C/V value)

Air passage continuity

between (A) and (B)

100%

Existed

0%

Not existed

PBIA9668J

Condition

Air passage continuity

between (A) and (B)

12V direct current supply between
terminals 1 and 2

Existed

No supply

Not existed

FUEL INJECTOR

EC-483

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

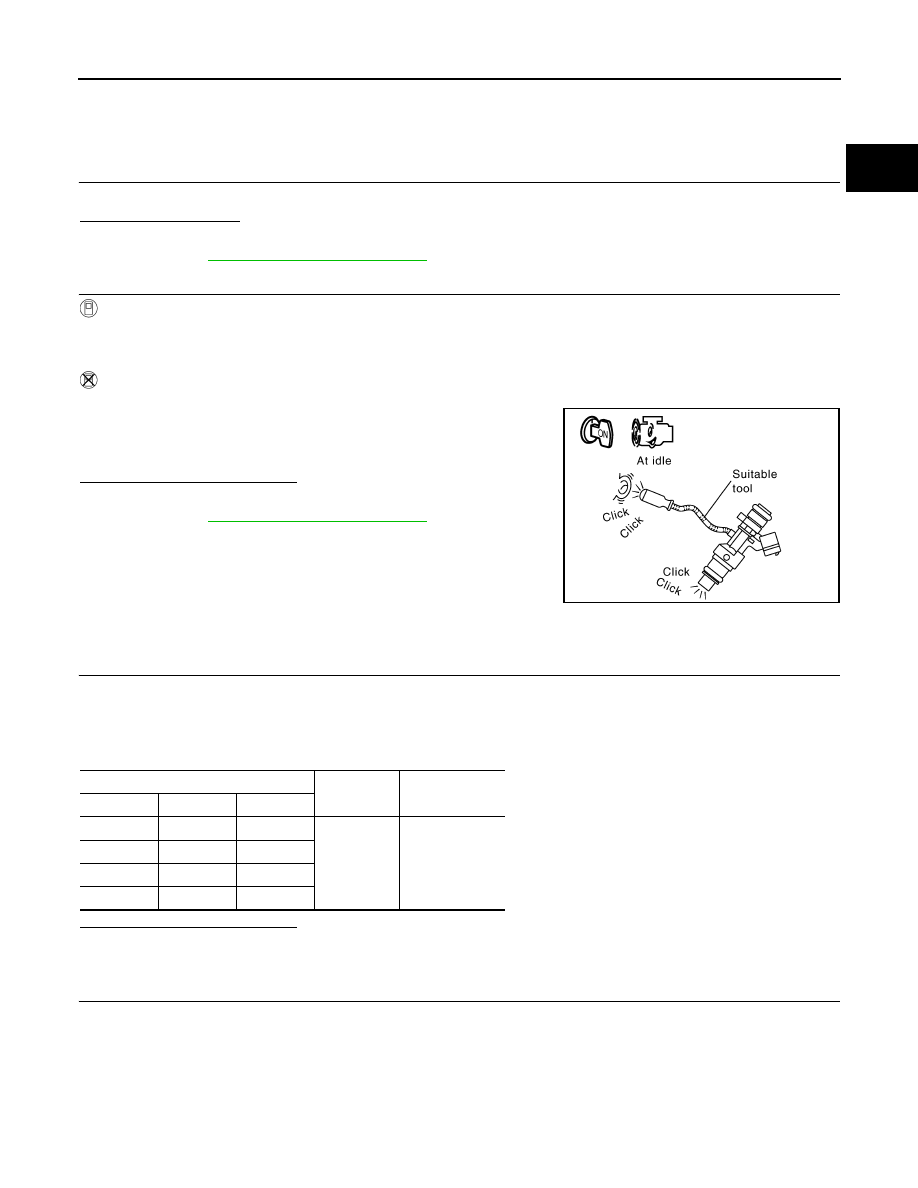

FUEL INJECTOR

Component Function Check

INFOID:0000000006037462

1.

INSPECTION START

Turn ignition switch to START.
Is any cylinder ignited?

YES

>> GO TO 2.

NO

>> Go to

EC-483, "Diagnosis Procedure"

.

2.

CHECK FUEL INJECTOR FUNCTION

With CONSULT-III

1.

Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

3.

Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT-III

1.

Let engine idle.

2.

Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-483, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006037463

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between fuel injector harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E8, F1
• IPDM E/R connector E15
• 15 A fuse (No. 62)
• Harness for open or short between fuel injector and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

Clicking noise should be heard.

PBIB3332E

Fuel injector

Ground

Voltage

Cylinder

Connector

Terminal

1

F37

1

Ground

Battery voltage

2

F38

1

3

F39

1

4

F40

1

EC-484

< DTC/CIRCUIT DIAGNOSIS >

[HR12DE (TYPE 2)]

FUEL INJECTOR

3.

CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between fuel injector harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL INJECTOR

Refer to

EC-484, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning fuel injector.

5.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace harness or connectors.

Component Inspection

INFOID:0000000006037464

1.

CHECK FUEL INJECTOR

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Check resistance between fuel injector terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning fuel injector.

Fuel injector

ECM

Continuity

Cylinder

Connector

Terminal

Connector

Terminal

1

F37

2

F7

31

Existed

2

F38

2

30

3

F39

2

29

4

F40

2

25

Terminals

Resistance

1 and 2

11.1 - 14.5

Ω

 [at 10 - 60

°

C (50 - 140

°

F)]
