IGNITION TIMING

Inspection

INFOID:0000000006001762

1.

CHECK IGNITION TIMING

1.

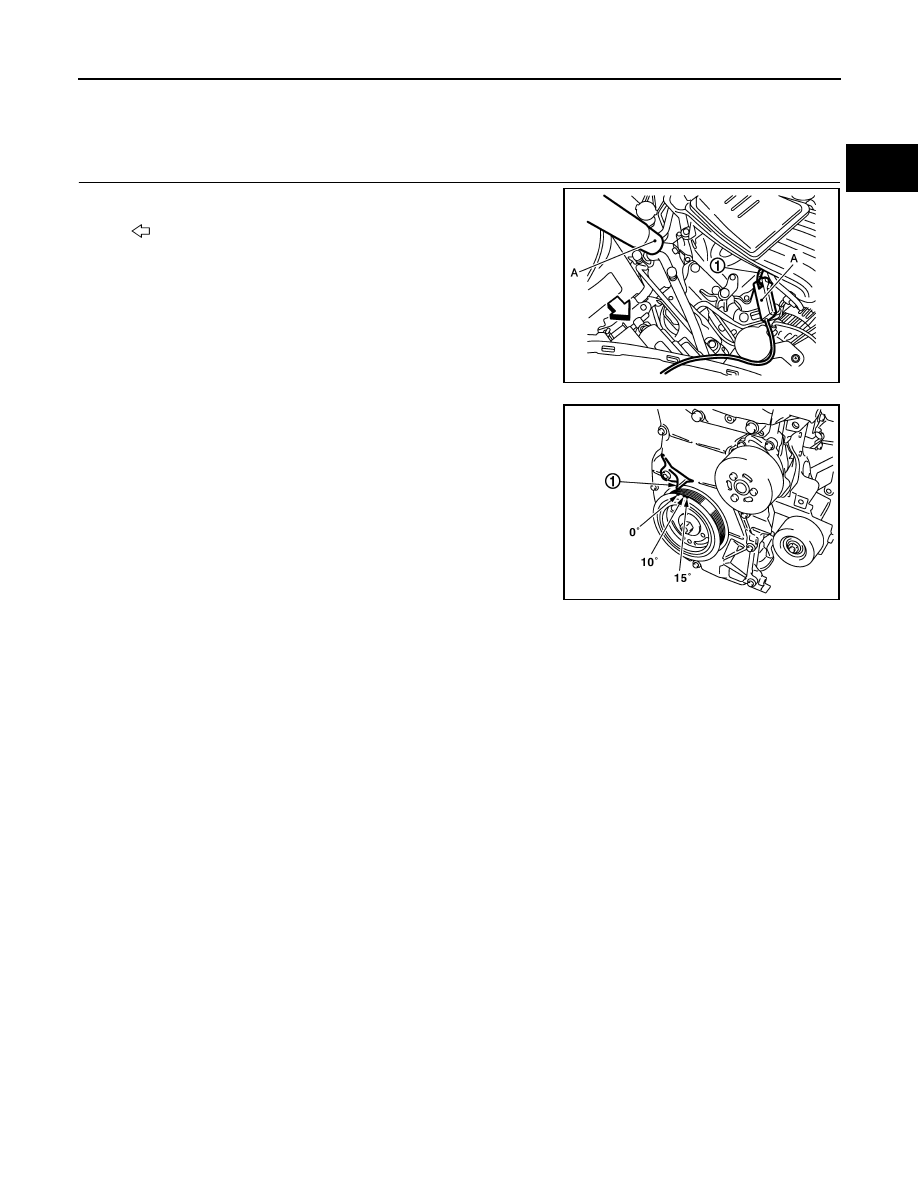

Attach timing light (A) to loop wire (1) as shown.

2.

Check ignition timing.

>> INSPECTION END

: Vehicle front

JSBIA0378ZZ

1

: Timing indicator

MBIB1331E

EC-310

< PERIODIC MAINTENANCE >

[HR12DE (TYPE 1)]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000006001763

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

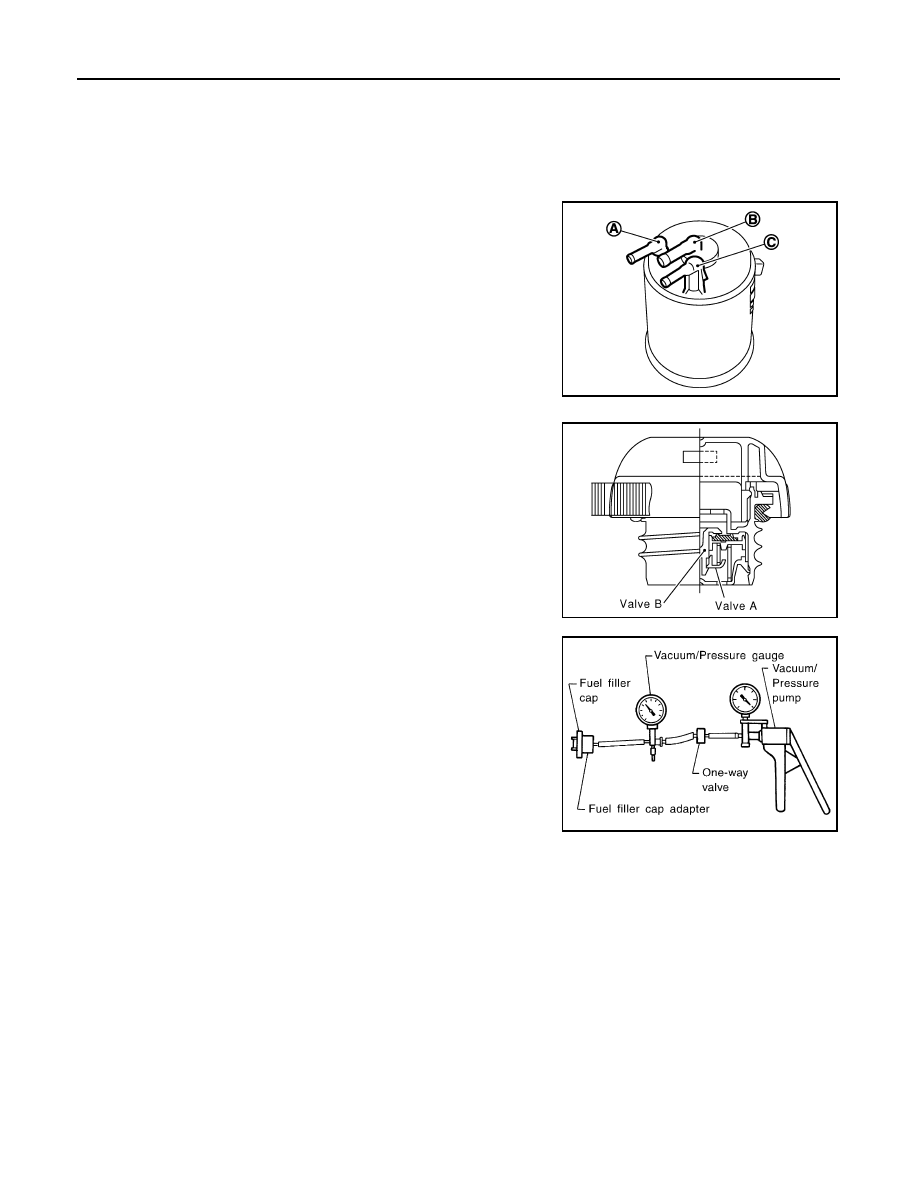

Check EVAP canister as follows:

a.

Block port (A). Orally blow air through port (B).
Check that air flows freely through port (C).

b.

Block port (B). Orally blow air through port (A).
Check that air flows freely through port (C).

3.

Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.

a.

Wipe clean valve housing.

b.

Check valve opening pressure and vacuum.

c.

If out of specification, replace fuel filler cap as an assembly.

JSBIA0335ZZ

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/

cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –

0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

POSITIVE CRANKCASE VENTILATION

EC-311

< PERIODIC MAINTENANCE >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

POSITIVE CRANKCASE VENTILATION

Inspection

INFOID:0000000005989425

1.

CHECK PCV VALVE

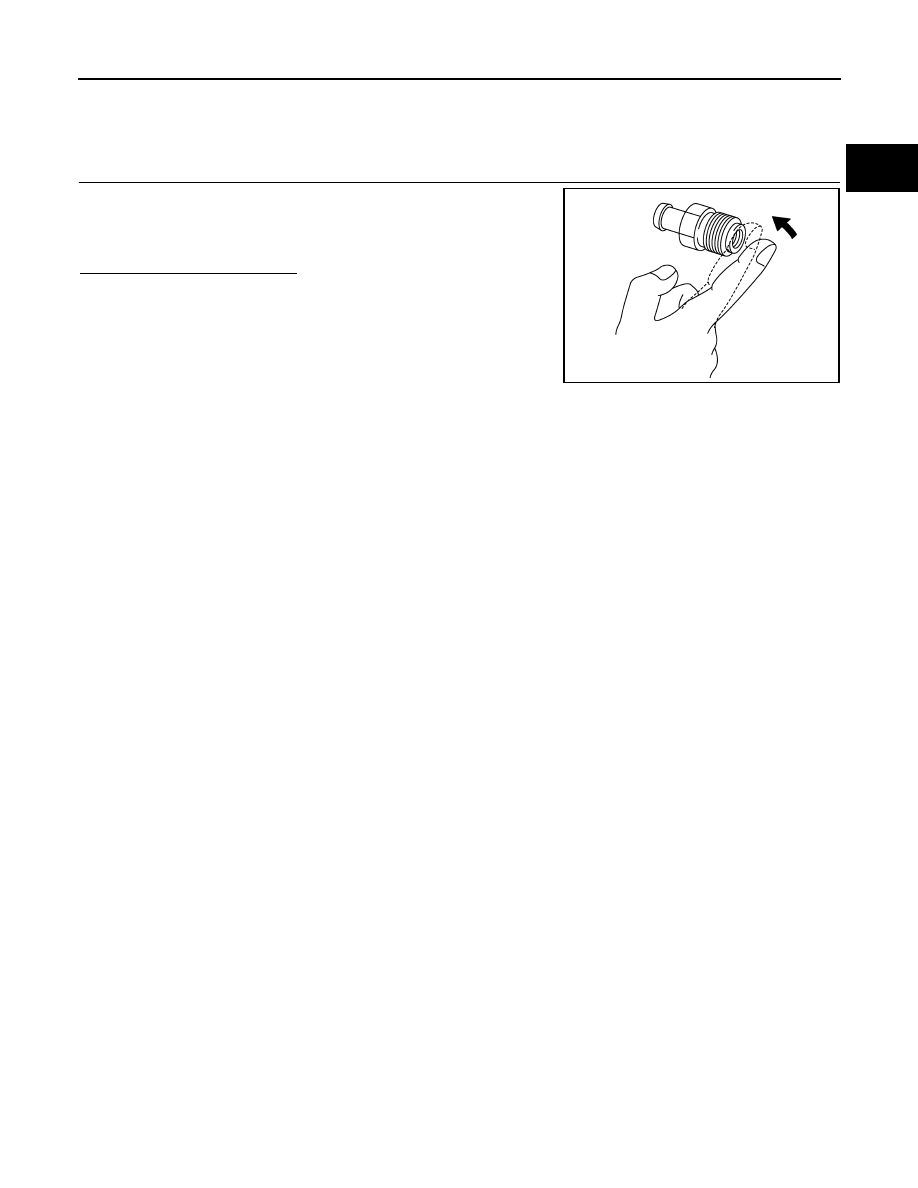

With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PCV valve.

PBIB1589E

EC-312

< REMOVAL AND INSTALLATION >

[HR12DE (TYPE 1)]

ECM

REMOVAL AND INSTALLATION

ECM

Exploded View

INFOID:0000000006001764

Removal and Installation

INFOID:0000000006001765

REMOVAL

1.

Remove battery. Refer to

PG-143, "Exploded View"

.

2.

Remove IPDM E/R. Refer to

PCS-28, "Exploded View"

 (WITH I-KEY) or

PCS-52, "Exploded View"

(WITHOUT I-KEY).

3.

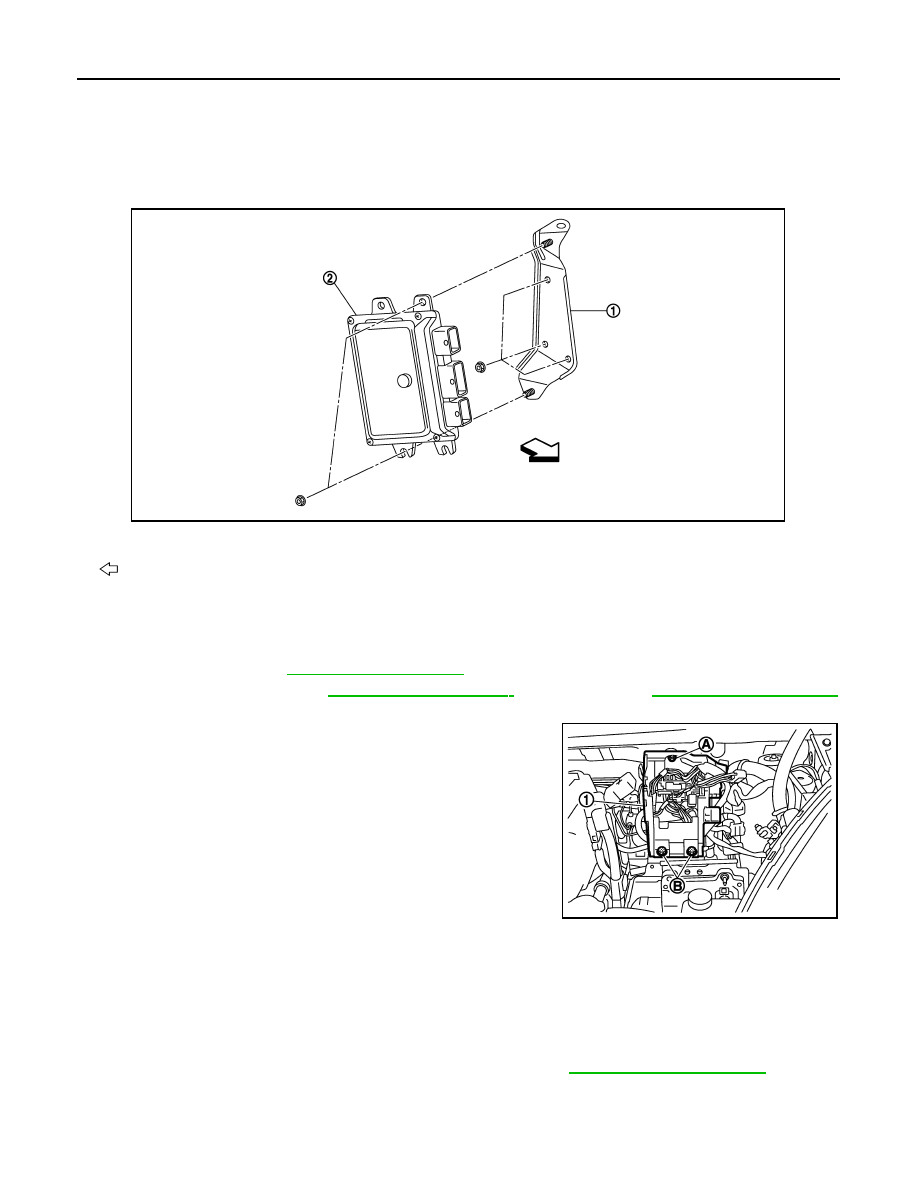

Remove mounting nut (A) and bolts (B).

4.

Disconnect harness connectors, and then remove IPDM E/R
cover (1).

5.

Disconnect ECM harness connectors.

6.

Remove ECM mounting nuts.

7.

Remove ECM from ECM bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Must be perform additional service when replacing ECM. Refer to

EC-103, "Work Procedure"

.

1.

ECM bracket

2.

ECM

: Vehicle front

JSBIA0333ZZ

JSBIA0473ZZ
