Nissan March K13. Manual - part 139

COMPONENT PARTS

EC-17

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*: Not used for engine control system.

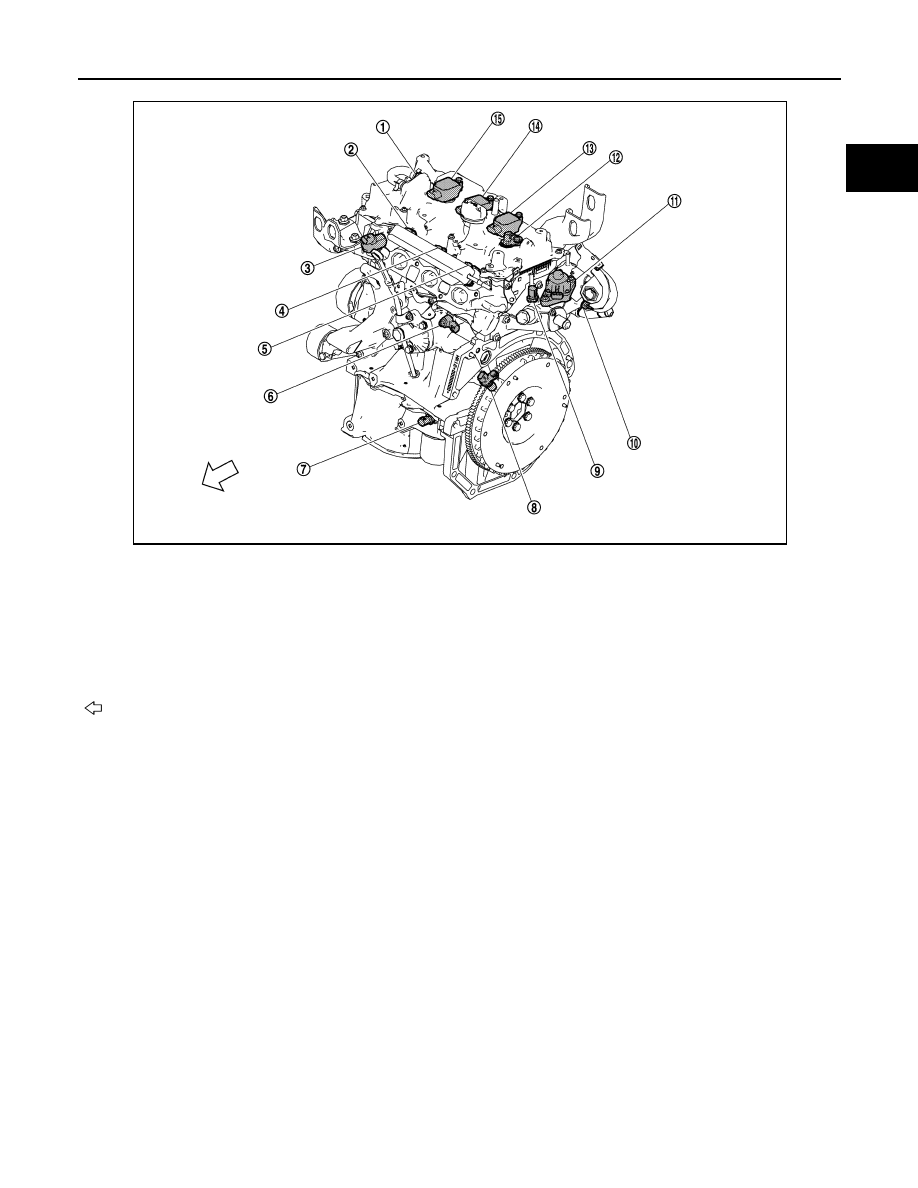

EXHAUST COMPARTMENT

JPBIA3223ZZ

1.

PCV valve

2.

Fuel injector No.1

3.

Intake valve timing control solenoid-
valve

4.

Fuel injector No.2

5.

Fuel injector No.3

6.

Knock sensor

7.

Engine oil temperature sensor

*

8.

Crankshaft position sensor (POS)

9.

Engine coolant temperature sensor

10.

EGR temperature sensor

11.

EGR volume control valve

12.

Camshaftposition sensor (PHASE)

13.

Ignition coil No.3 (with power transis-
tor)

14.

Ignition coil No.2 (with power transis-
tor)

15.

Ignition coil No.1 (with power transis-
tor)

:Vehicle front

EC-18

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 1)]

COMPONENT PARTS

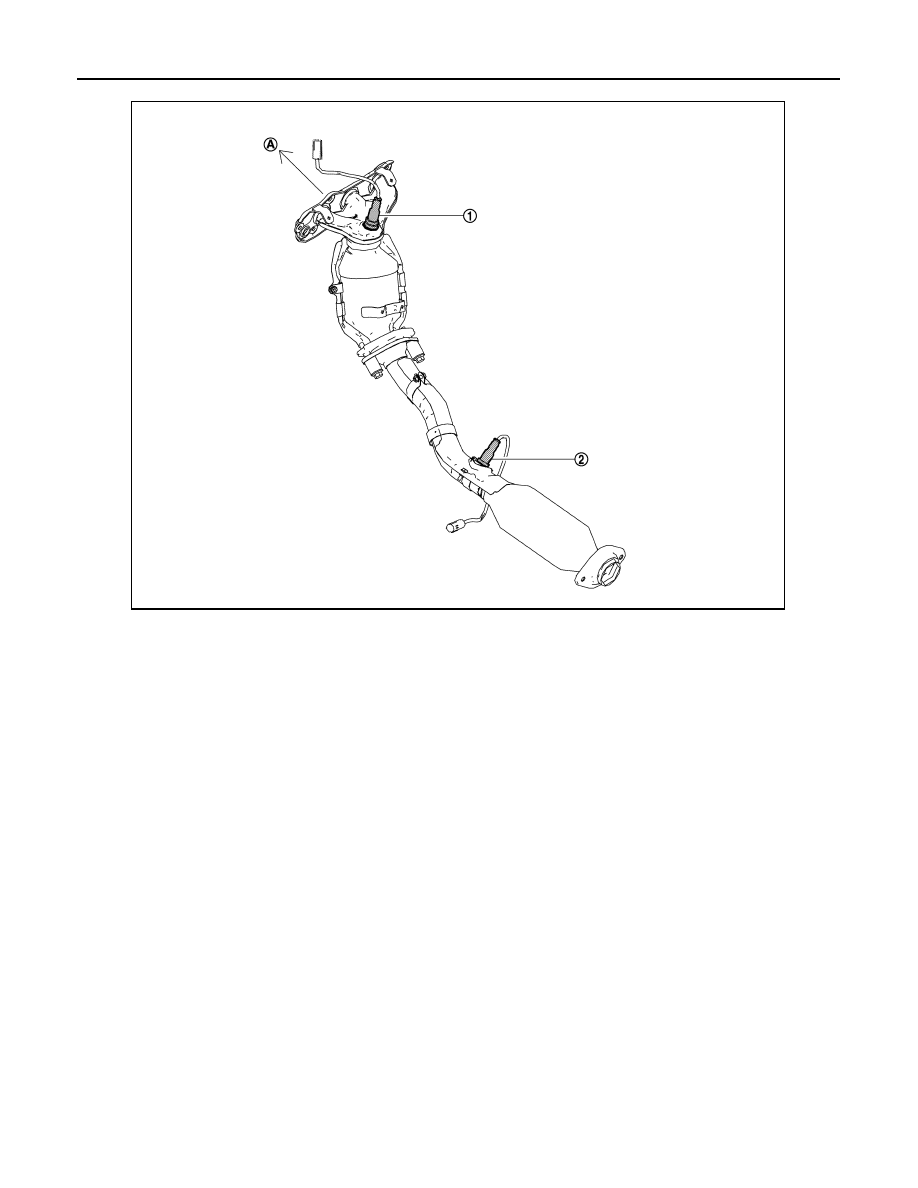

BODY COMPARTMENT

1.

A/F sensor 1

2.

Heated oxygen sensor 2

A.

To engine assembly

JPBIA3215ZZ

COMPONENT PARTS

EC-19

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 1)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000005989668

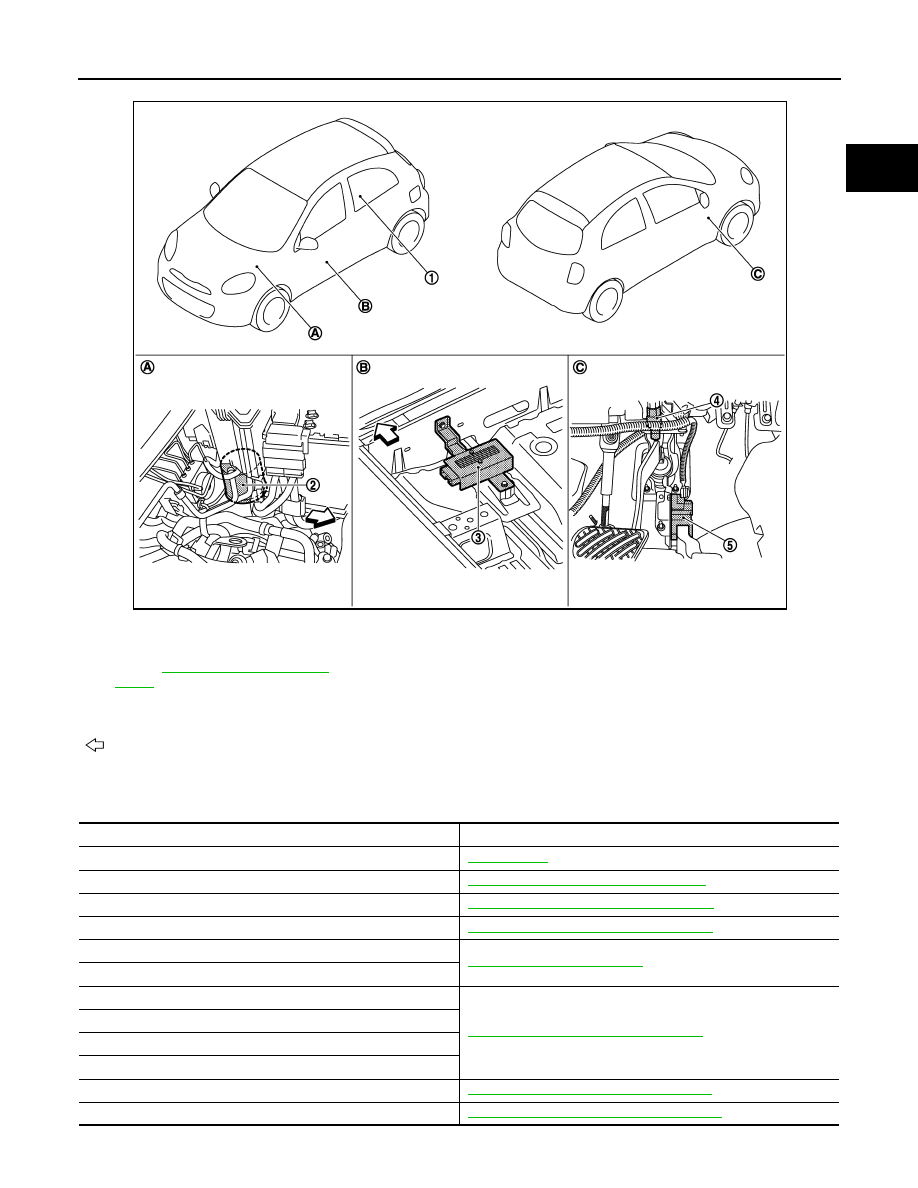

1.

 Fuel pump (with fuel level sensor unit
and fuel pressure regulator)
Refer to

MWI-4, "Component Parts Lo-

cation"

2.

EVAP canister

3.

Fuel pump control module (FPCM)

4.

Stop lamp switch

5.

Accelerator pedal position sensor

A.

Left side of engine room

B.

Under front seat (passenger side)

C.

Periphery of pedals

：

Vehicle front

JSBIA0354ZZ

Component

Reference

ECM

EC-20, "ECM"

Malfunction indicator lamp

EC-20, "Malfunction Indicator Lamp (MIL)"

Ignition coil with power transistor

EC-21, "Ignition Coil With Power Transistor"

Accelerator pedal position sensor

EC-21, "Accelerator Pedal Position Sensor"

Mass air flow sensor

EC-21, "Mass Air Flow Sensor"

Intake air temperature sensor

Electric throttle control actuator

EC-22, "Electric Throttle Control Actuator"

Throttle control motor relay

Throttle control motor

Throttle position sensor

Crankshaft position sensor (POS)

EC-22, "Crankshaft Position Sensor (POS)"

Camshaft position sensor (PHASE)

EC-23, "Camshaft Position Sensor (PHASE)"

EC-20

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 1)]

COMPONENT PARTS

*: Not used for engine control system.

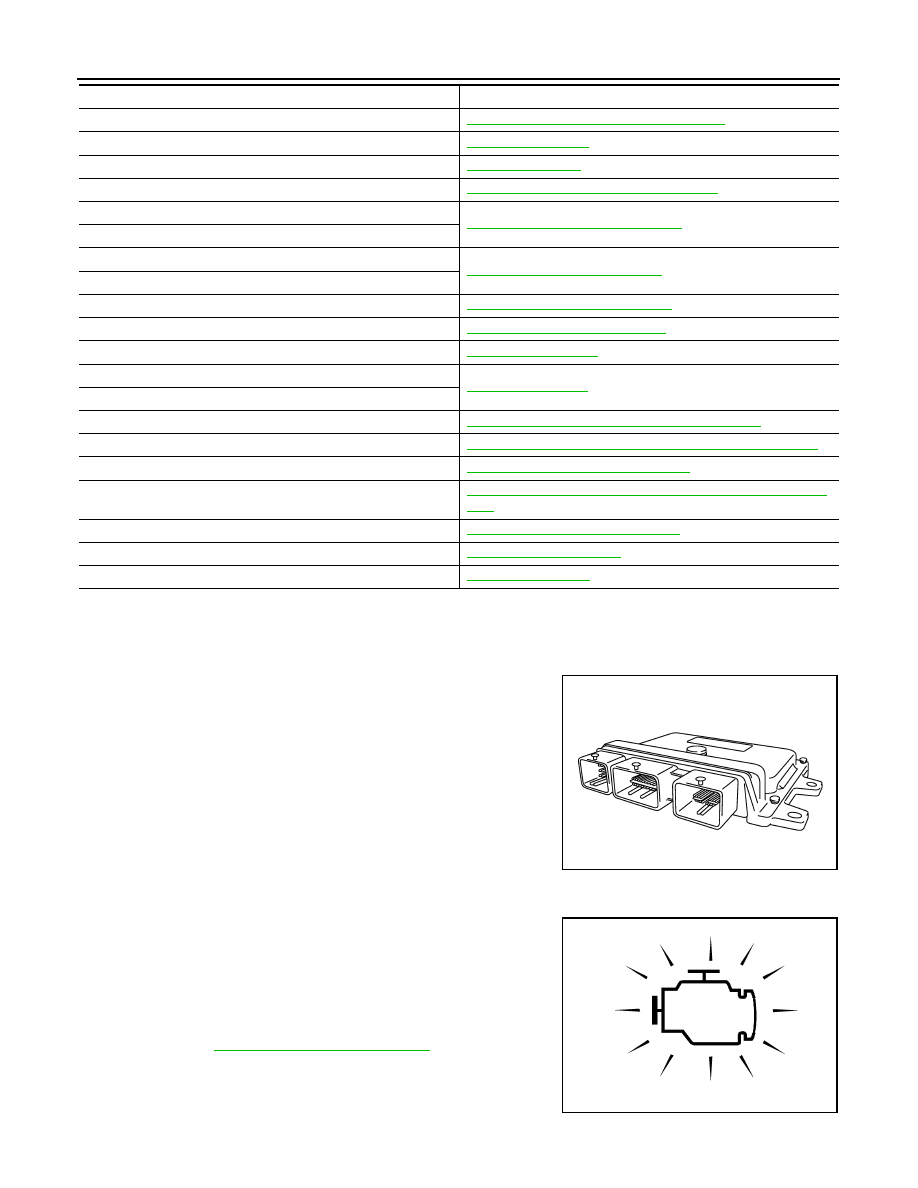

ECM

INFOID:0000000005991040

• ECM  (Engine Control Module) controls the engine.
• ECM consists of a microcomputer and connectors for signal input

and output and for power supply.

• Battery voltage is supplied to the ECM even when the ignition

switch is turned OFF for the ECM memory function of the DTC
memory, the air-fuel ratio feedback compensation value memory,
the idle air volume learning value memory, etc.

Malfunction Indicator Lamp (MIL)

INFOID:0000000005991041

The Malfunction Indicator Lamp (MIL) is located on the combination
meter.
The MIL will illuminate when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MIL should turn off. If the MIL
remains illuminated, the on board diagnostic system has detected an
engine system malfunction.
For details, refer to

EC-45, "Diagnosis Description"

.

Engine coolant temperature sensor

EC-23, "Engine Coolant Temperature Sensor"

Fuel injector

EC-24, "Fuel Injector"

Fuel pump

EC-24, "Fuel Pump"

Fuel pump control module (FPCM)

EC-25, "Fuel Pump Control Module (FPCM)"

A/F sensor 1

EC-25, "Air Fuel Ratio (A/F) Sensor 1"

A/F sensor 1 heater

Heated oxygen sensor 2

EC-25, "Heated Oxygen Sensor 2"

Heated oxygen sensor 2 heater

EGR volume control valve

EC-26, "EGR Volume Control Valve"

EGR temperature sensor

EC-26, "EGR Temperature Sensor"

Knock sensor

EC-27, "Knock Sensor"

Cooling fan control module

EC-27, "Cooling Fan"

Cooling fan motor

Intake valve timing control solenoid valve

EC-28, "Intake Valve Timing Control Solenoid Valve"

EVAP canister purge volume control solenoid valve

EC-28, "EVAP Canister Purge Volume Control Solenoid Valve"

PCV valve

EC-15, "Positive Crankcase Ventilation"

Battery current sensor (with battery temperature sensor

*

)

EC-28, "Battery Current Sensor (With Battery Temperature Sen-
sor)"

Refrigerant pressure sensor

EC-29, "Refrigerant Pressure Sensor"

Stop lamp switch

EC-29, "Stop Lamp Switch"

Park/neutral position switch

EC-230, "Description"

Component

Reference
