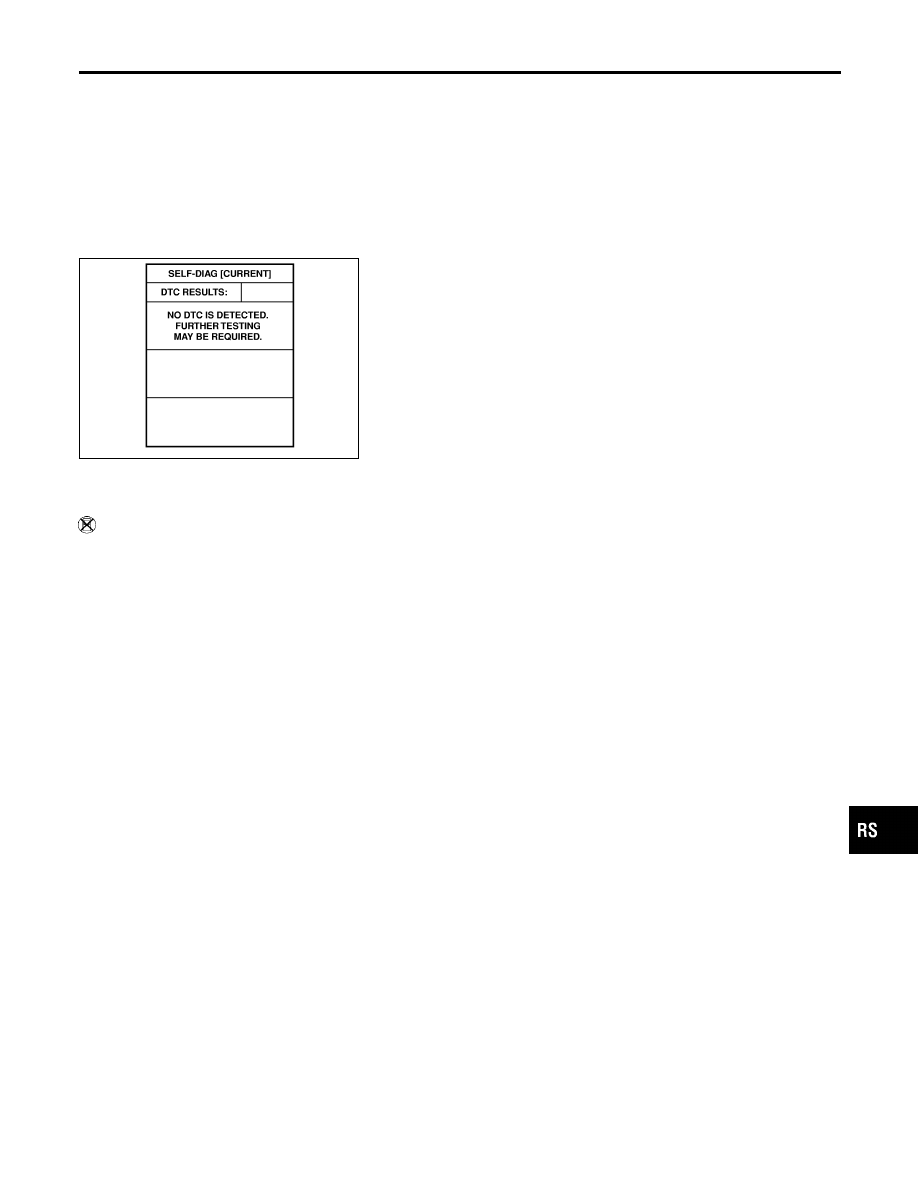

A current Self-diagnosis result is displayed on the CONSULT-II screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.

I

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by pushing “BACK” key of CONSULT-II and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.

NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the sys-
tem malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

SRS701

I

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.

Without CONSULT-II

NMRS0023S0502

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic result is cleared.

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses Introduction (Cont’d)

RS-23

How to Perform Trouble Diagnoses for Quick
and Accurate Repair

=NMRS0024

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.

INFORMATION FROM CUSTOMER

NMRS0024S01

WHAT ..... Vehicle model
WHEN ..... Date, Frequencies
WHERE ..... Road conditions
HOW ..... Operating conditions, Symptoms

PRELIMINARY CHECK

NMRS0024S02

Check that the following parts are in good order.

I

Battery [Refer to SC-3, “BATTERY”.]

I

Fuse [Refer to EL-14, “Fuse”, “POWER SUPPLY ROUTING”.]

I

System component-to-harness connections

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

How to Perform Trouble Diagnoses for Quick and Accurate Repair

RS-24

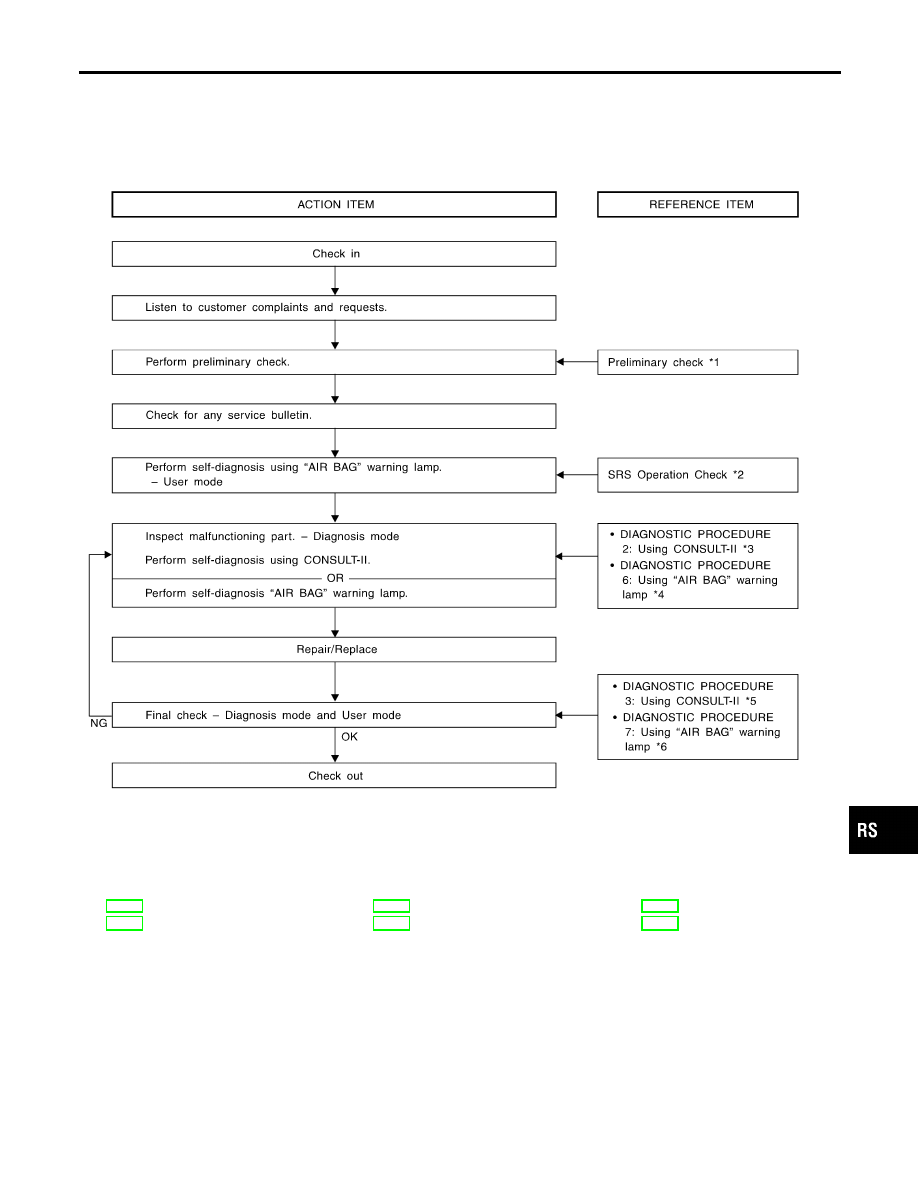

WORK FLOW

NMRS0024S03

SRS926

*1: RS-24
*2: RS-28

*3: RS-29
*4: RS-36

*5: RS-31
*6: RS-38

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

How to Perform Trouble Diagnoses for Quick and Accurate Repair (Cont’d)

RS-25

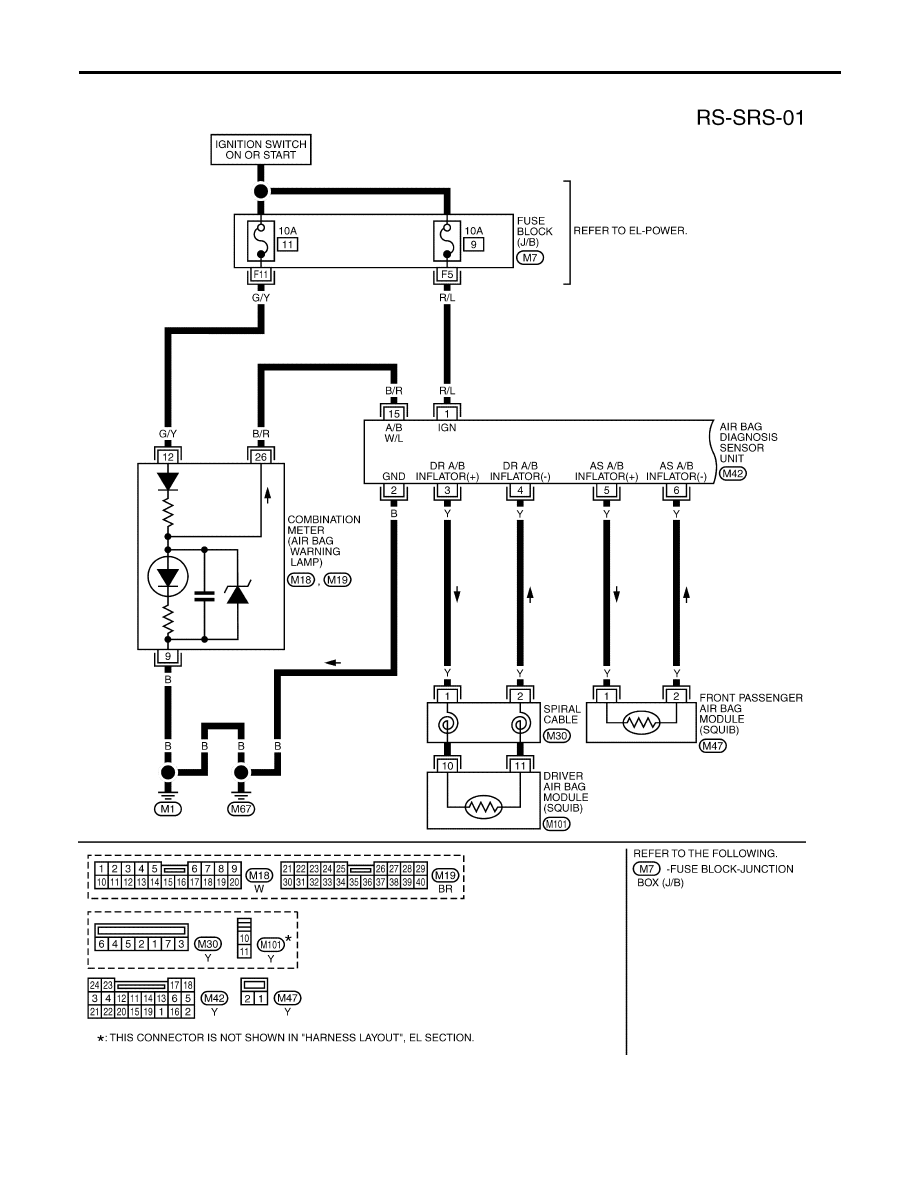

Wiring Diagram — SRS —

NMRS0026

TRS118

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Wiring Diagram — SRS —

RS-26
