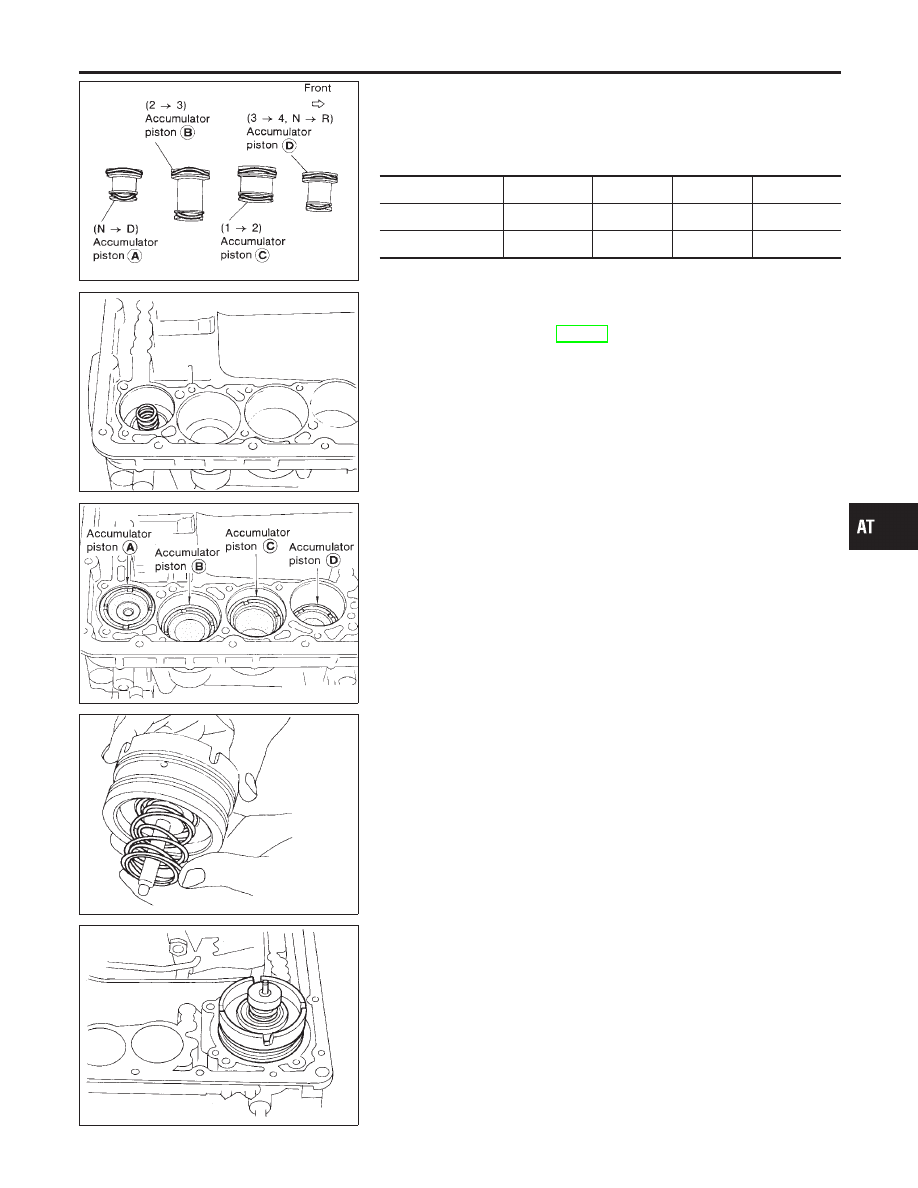

SAT523GA 2. Install accumulator piston. a. Install O-rings onto accumulator piston. I Apply ATF to O-rings. Accumulator piston O-rings Unit: mm (in) Accumulator A B C D Small diameter end 29 (1.14) 32 (1.26) 45 (1.77) 29 (1.14) Large diameter end 45 (1.77) 50 (1.97) 50 (1.97) 45 (1.77) SAT938A b. Install return spring for accumulator A onto transmission case. Free length of return spring: Refer to SDS, AT-289. SAT939AA c. Install accumulator pistons A, B, C and D. I Apply ATF to transmission case. SAT941A 3. Install band servo piston. a. Install return springs onto servo piston. SAT942A b. Install band servo piston onto transmission case. I Apply ATF to O-ring of band servo piston and transmis- c. Install gasket for band servo onto transmission case. GI MA EM LC EC FE CL MT PD AX SU BR ST RS BT HA SC EL IDX ASSEMBLY Assembly (1) (Cont’d) AT-269 |
