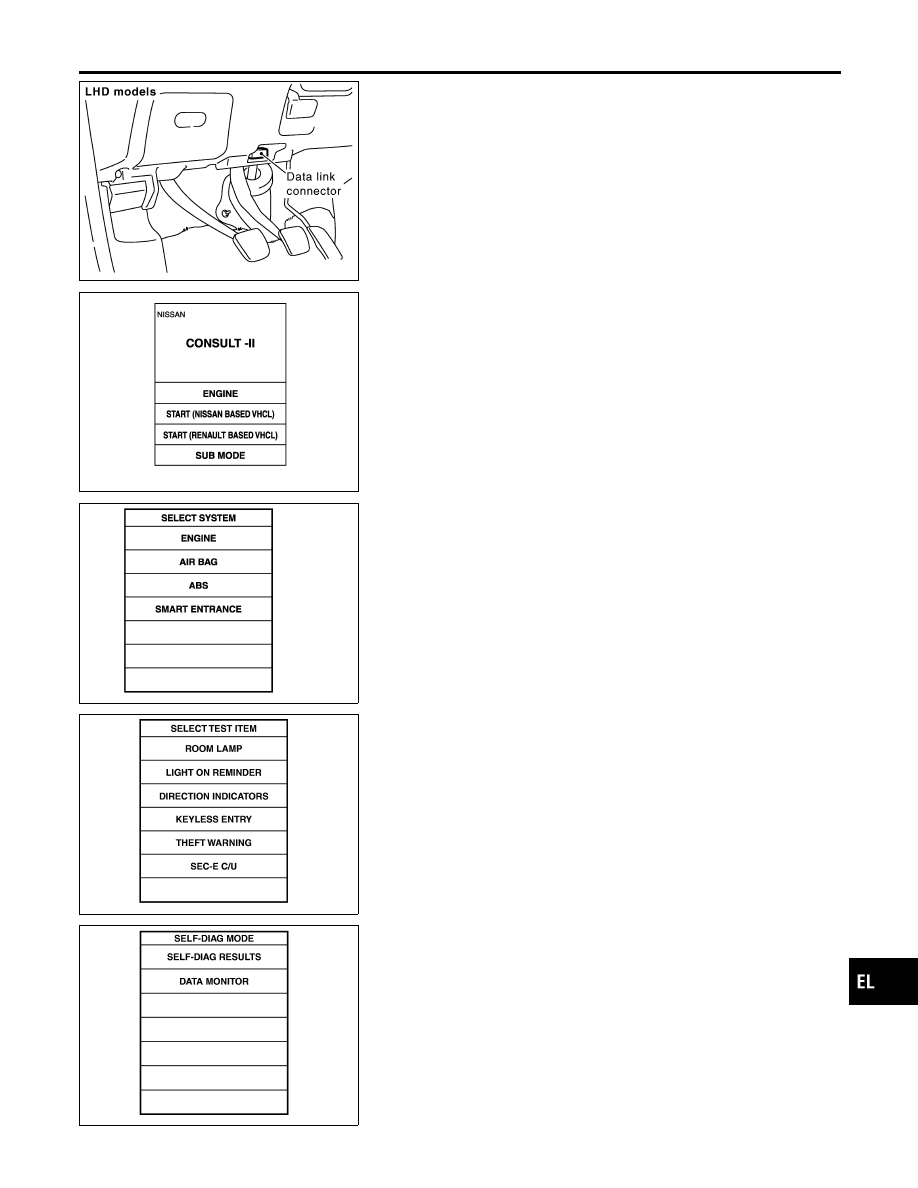

Item (CONSULT-II screen terms)
Diagnosed system
KEY CYL LK
Indicates [ON/OFF] condition of lock signal from door key cylinder.
KEY CYL UNLK
Indicates [ON/OFF] condition of unlock signal from door key cylinder.
MODE
Indicates [CMFRT/SCRTY] condition of multi-remote control system.
CAN COMM
Indicates the communication condition of CAN communication line.
CAN CIRC 1
CAN CIRC 2
CAN CIRC 3
WORK SUPPORT MODE
NLEL0578S03
Mode
Description
Test item
DOOR LOCKING
AUTO RE-LOCK
This mode can set auto re-lock function.
SELECTIVE UNLOCK
This mode can set select unlock function.
KEYLESS ENTRY
KEYLESS REGISTRATION
This mode can register remote controller ID.
KEYLESS CHECK
This mode can check whether water remote controller
ID code is registered or not.
KEYLESS DI FLASH
This mode can set remote controller function.
DIRECTION INDICATORS
AUDIBLE TRAILER WARNING
This mode can set audible trailer warning function.
SELF-DIAG RESULTS MODE
NLEL0578S04
Diagnosis item
Description
Repair order
RH FLASHER (S) BULB BROKEN
RH turn signal lamp system is mal-
functioning.
Check turn signal lamp system. Refer to EL-77,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.
LH FLASHER (S) BULB BROKEN
LH turn signal lamp system is mal-
functioning.
Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.
RH FLASHER CIRCUIT OVER
CURRENT
RH turn signal lamp circuit is open or
shorted.
Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.
LH FLASHER CIRCUIT OVER
CURRENT
LH turn signal lamp circuit is open or
shorted.
Check turn signal lamp system. Refer to EL-125,
“TURN SIGNAL AND HAZARD WARNING LAMPS”.
CAN COMM CIRCUIT*
CAN communication line is open or
shorted.
Check CAN communication line. Refer to EL-351,
“CAN Communication Line Check”.
*: If this malfunction is displayed, first perform the trouble diagnosis.

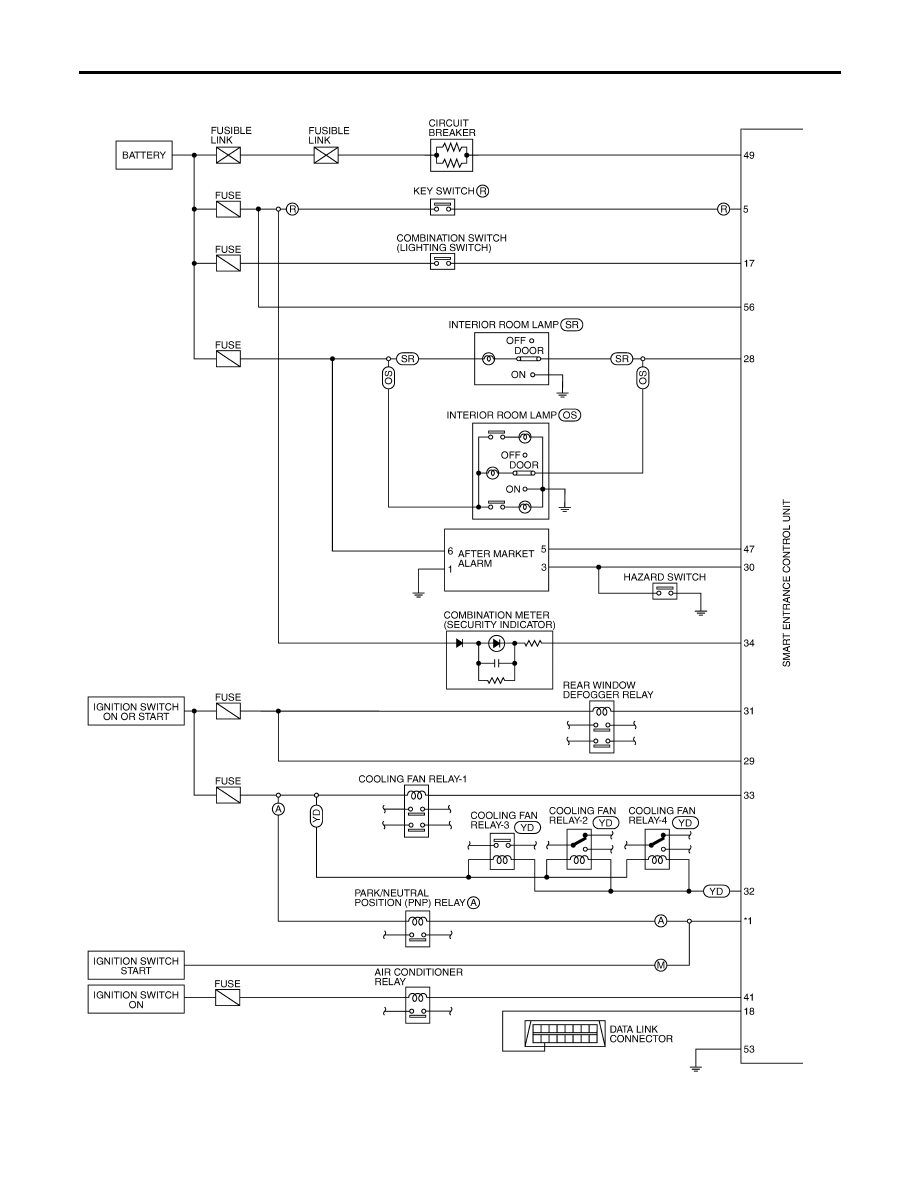

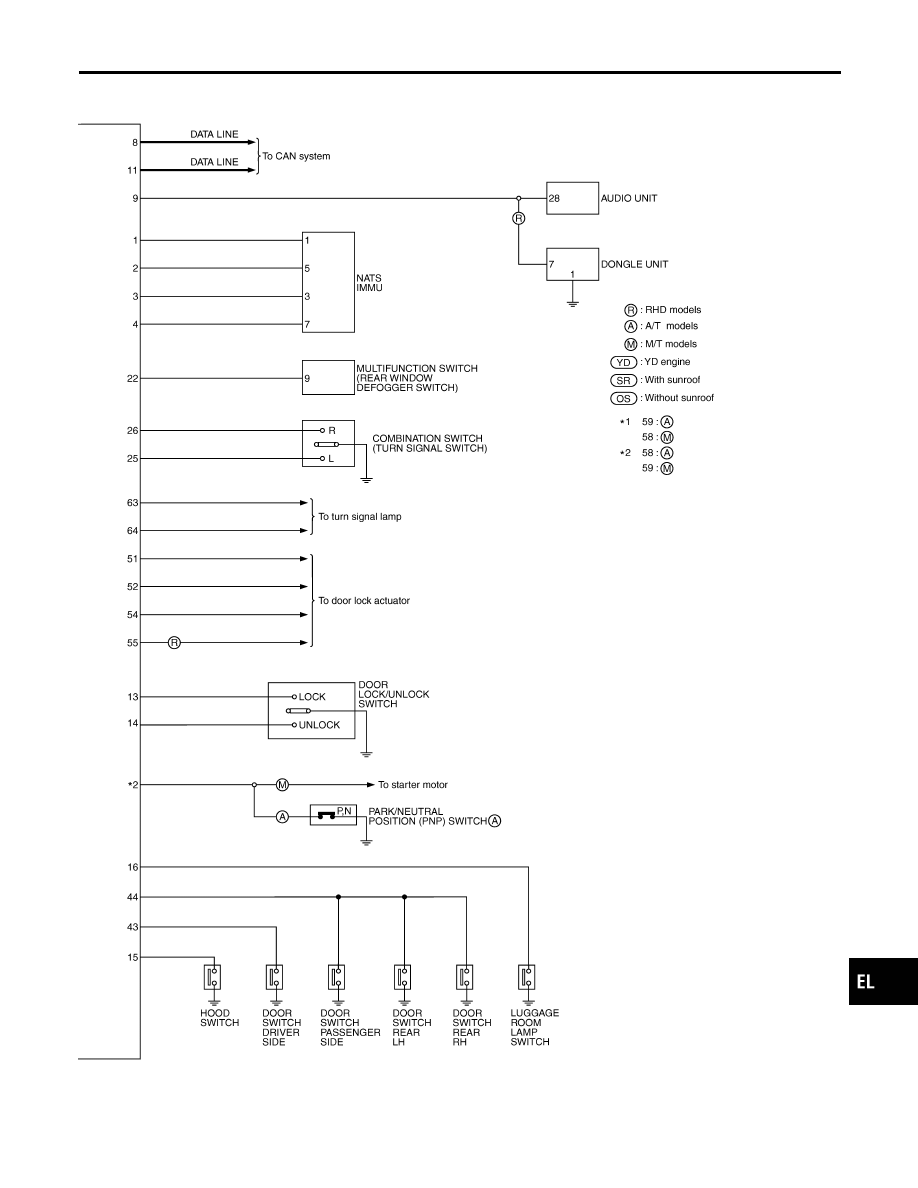

SMART ENTRANCE CONTROL SYSTEM
CONSULT-II (Cont’d)
EL-344
