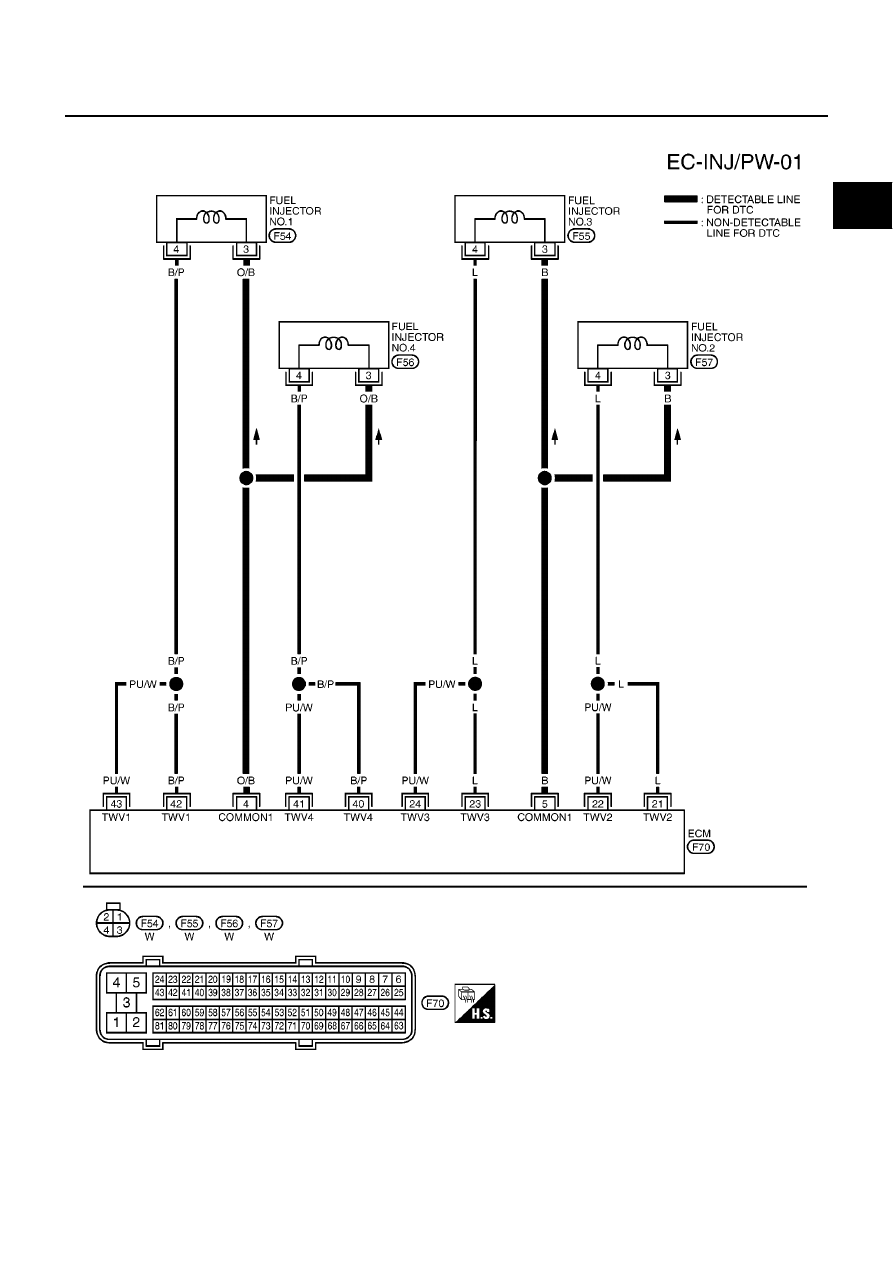

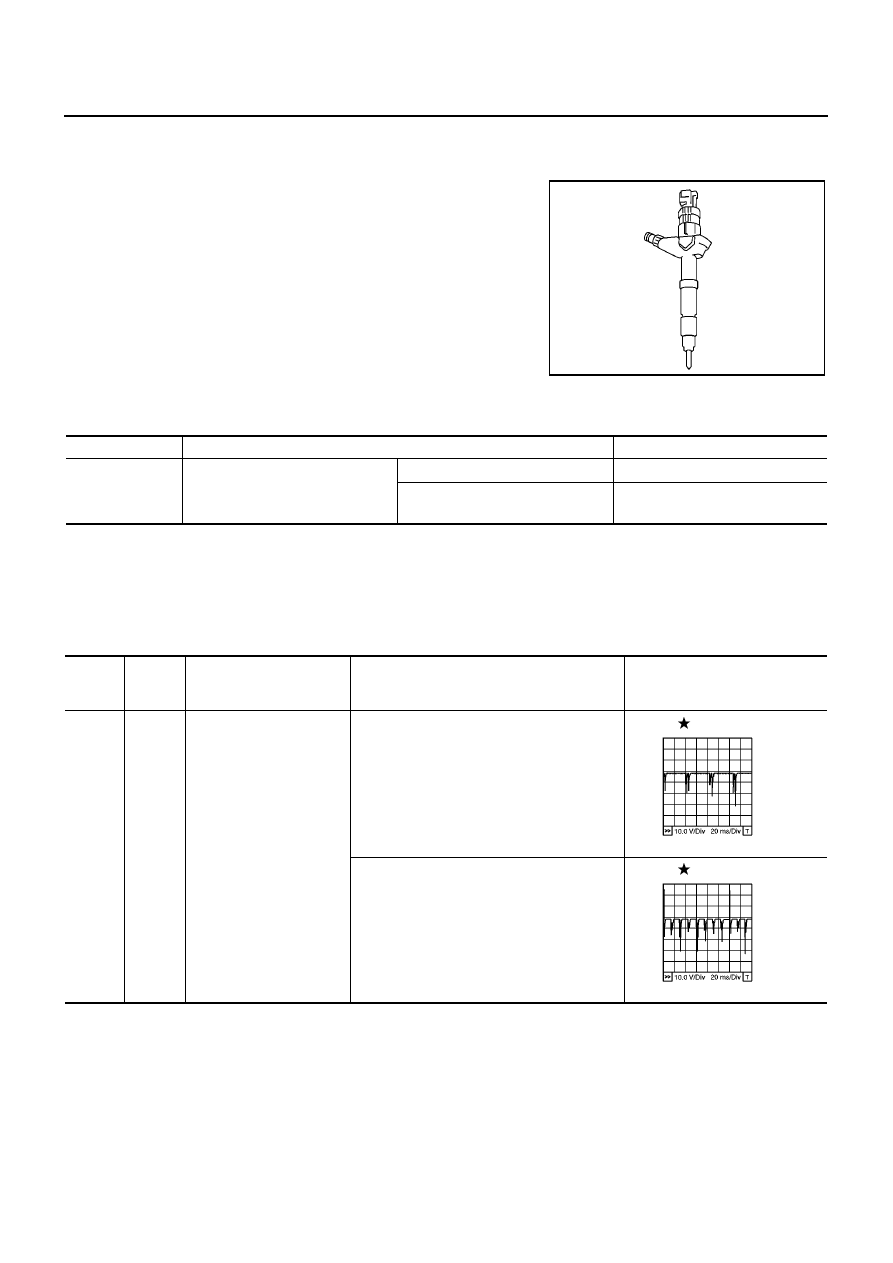

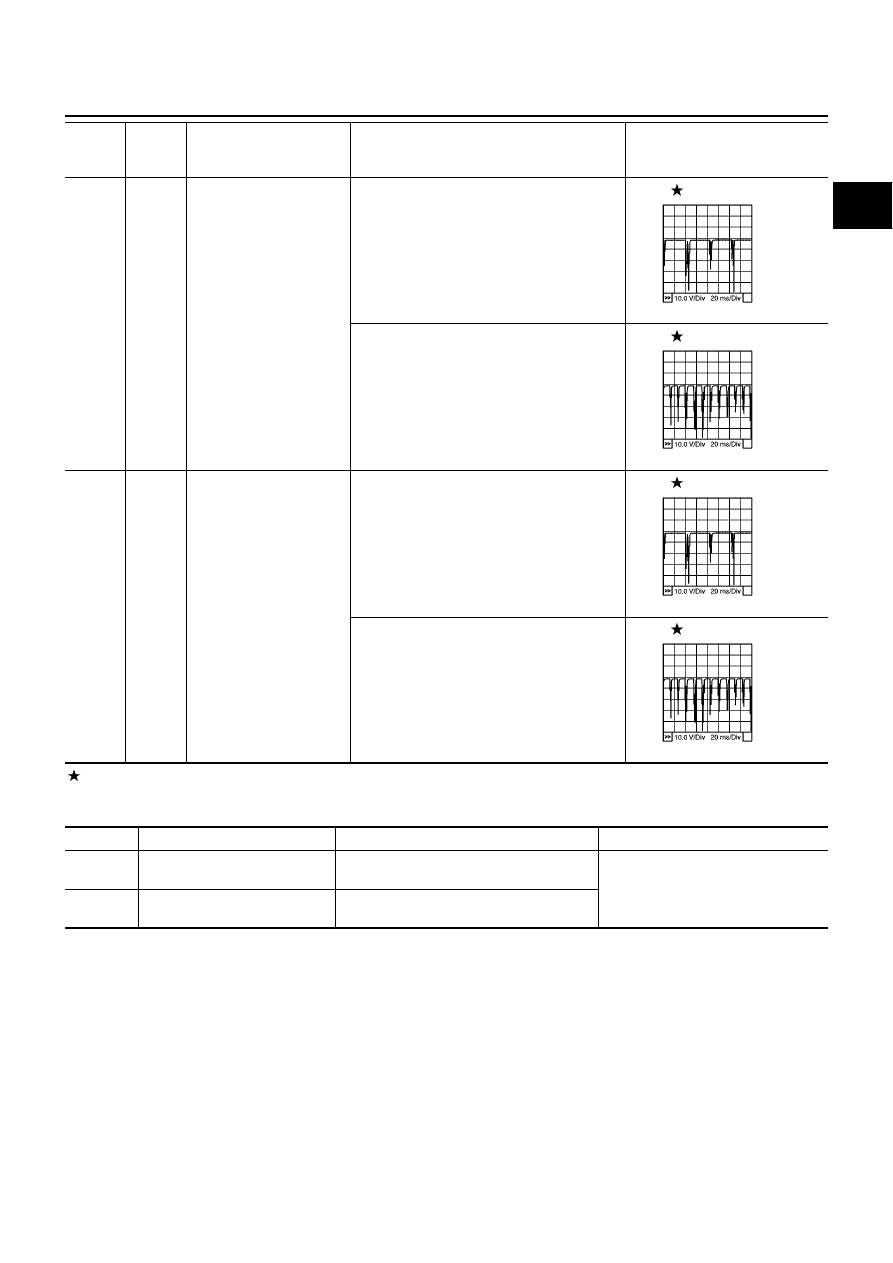

EC-1482 [YD (WITHOUT EURO-OBD)] DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY PFP:16600 Component Description EBS0150M The fuel injector is a small, precise solenoid valve. When the ECM CONSULT-II Reference Value in Data Monitor Mode EBS0150N Specification data are reference values. ECM Terminals and Reference Value EBS0150O Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- PBIB0465E MONITOR ITEM CONDITION SPECIFICATION MAIN INJ WID ● Engine: After warming up ● Shift lever: Neutral position ● Idle speed No-load 0.68 - 0.78 msec Blower fan switch: ON 0.78 - 0.88 msec TERMI- NAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage and Pulse Signal) 4 5 O/B B Fuel injector power supply [Engine is running] ● Warm-up condition ● Idle speed 5 - 10V [Engine is running] ● Warm-up condition ● Engine speed is 2,000 rpm 5 - 10V MBIB0883E MBIB0884E |
