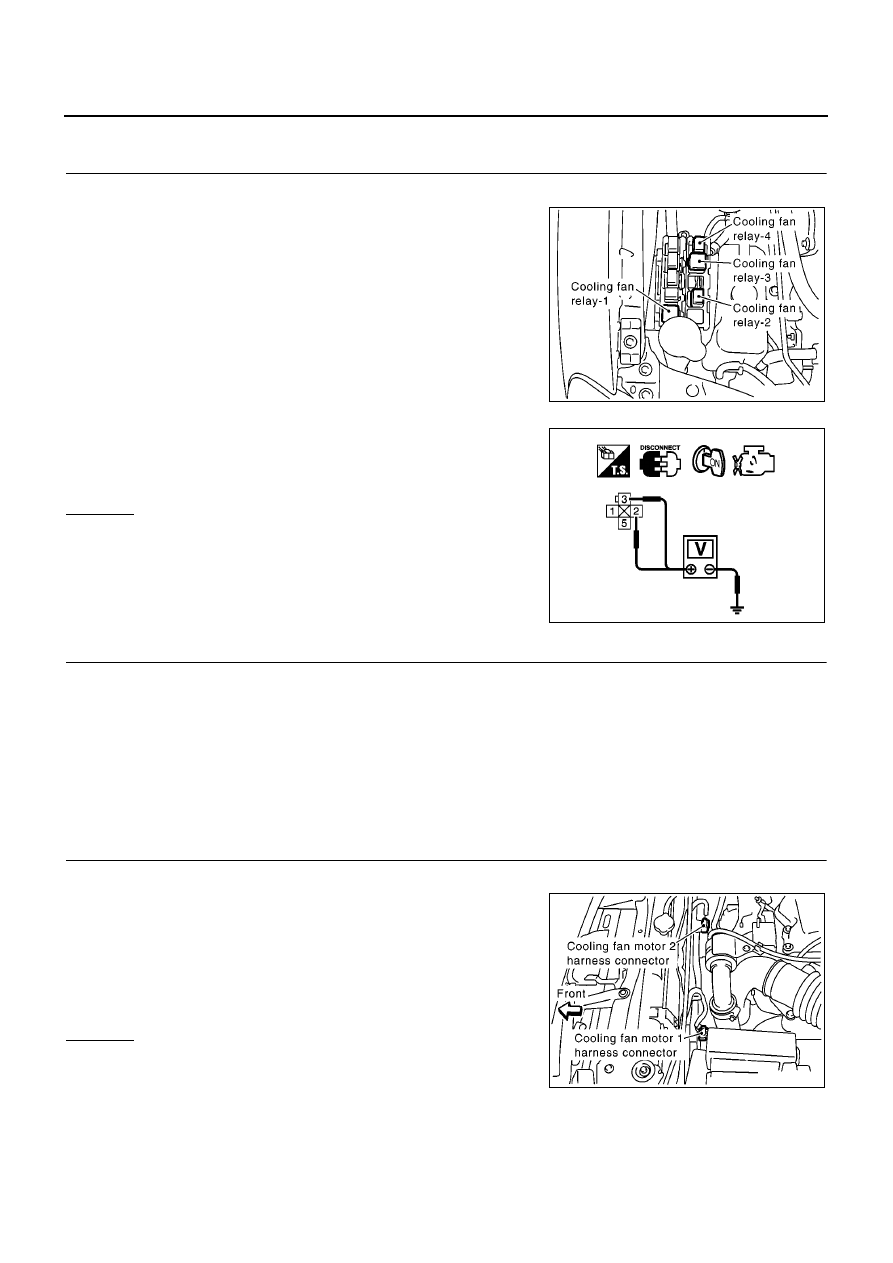

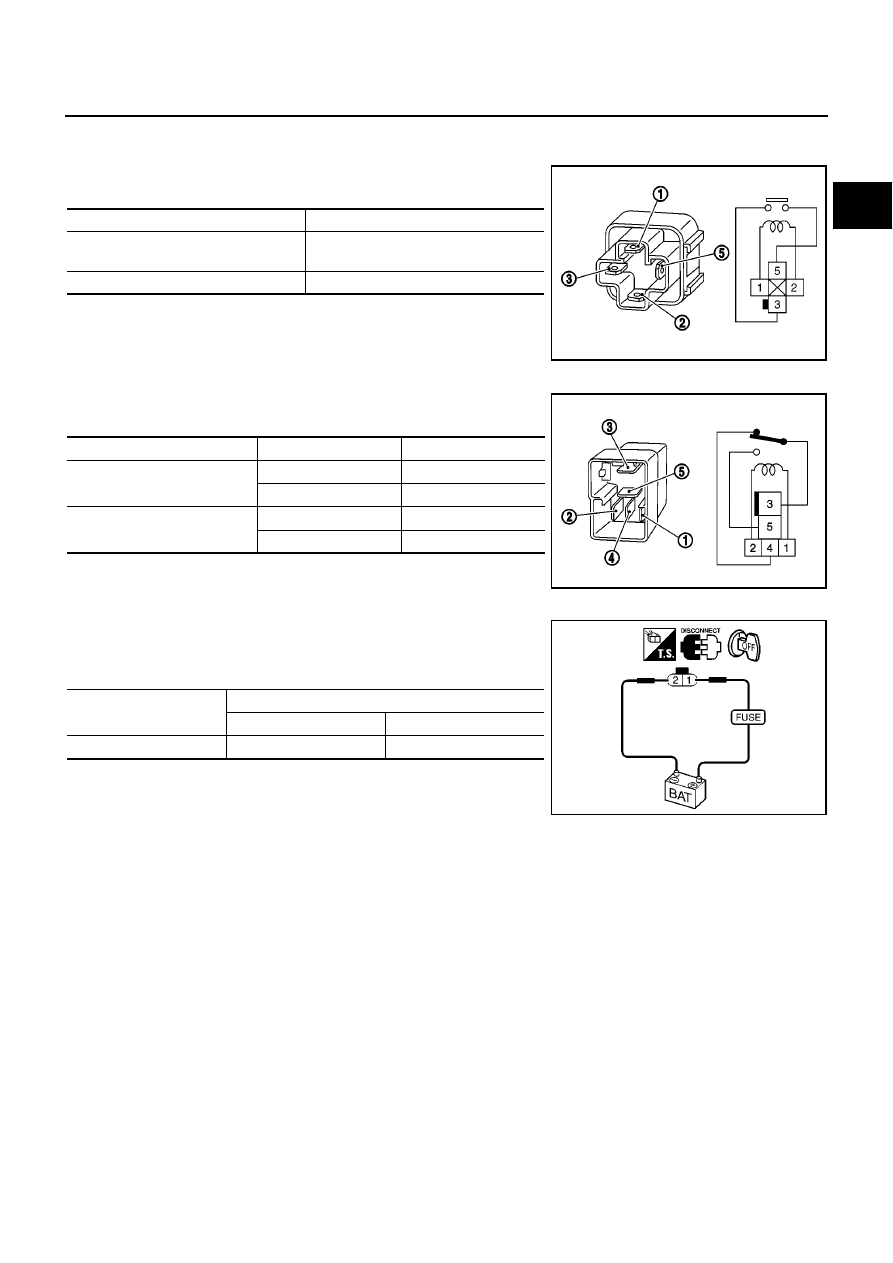

EC-1374 [YD (WITHOUT EURO-OBD)] DTC P0217 ENGINE OVER TEMPERATURE PROCEDURE C 1. CHECK COOLING FAN MOTOR-2 POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect cooling fan relay-3. 3. Turn ignition switch ON. 4. Check voltage between cooling fan relay-3 terminals 2, 3 and OK or NG OK >> GO TO 3. NG >> GO TO 2. 2. DETECT MALFUNCTIONING PART Check the following. ● Fuse block (J/B) connector E109 ● 40A fusible link ● Harness for open or short between cooling fan relay-3 and fuse ● Harness for open or short between cooling fan relay-3 and battery >> Repair open circuit or short to ground or short to power in harness or connectors. 3. CHECK COOLING FAN MOTOR CONTROL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect cooling fan motor-2 harness connector. 3. Check harness continuity between cooling fan relay-3 terminal 5 4. Also check harness for short to ground and short to power. OK or NG OK >> GO TO 4. NG >> Repair open circuit or short to ground short to power in harness or connectors. MBIB1094E Voltage: Battery voltage MBIB0055E Continuity should exist. MBIB0642E |
