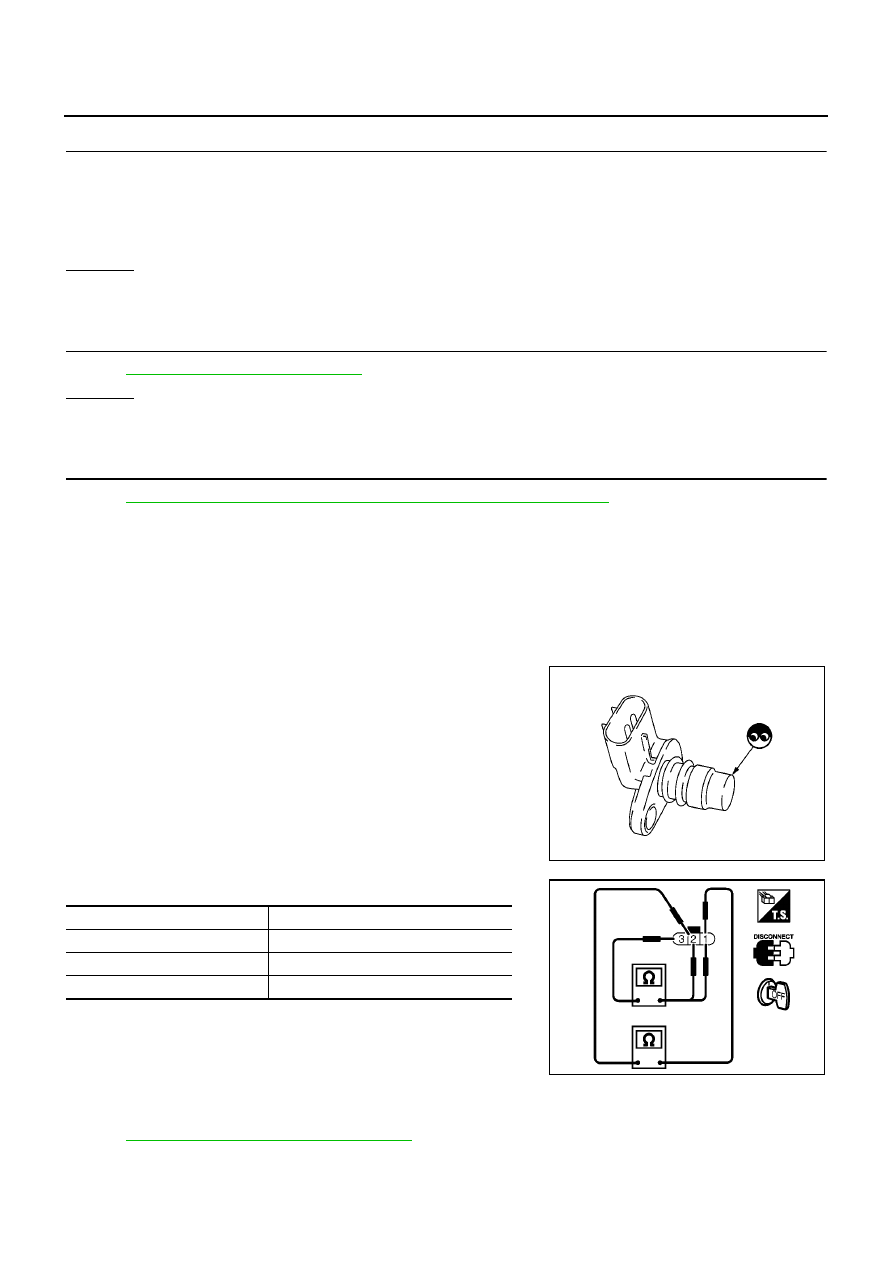

EC-1110 [YD (WITH EURO-OBD)] DTC P0335 CKP SENSOR 4. CHECK CKP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Check harness continuity between ECM terminal 46 and CKP sensor terminal 1. 2. Also check harness for short to ground and short to power. OK or NG OK >> GO TO 5. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5. CHECK CRANKSHAFT POSITION SENSOR Refer to EC-1110, "Component Inspection" . OK or NG OK >> GO TO 6. NG >> Replace crankshaft position sensor. 6. CHECK INTERMITTENT INCIDENT Refer to EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >> INSPECTION END Component Inspection EBS013CL CRANKSHAFT POSITION SENSOR 1. Loosen the fixing bolt of the sensor. 2. Disconnect crankshaft position sensor harness connector. 3. Remove the sensor. 4. Visually check the sensor for chipping. 5. Check resistance as shown in the figure. 6. If NG, replace crankshaft position sensor. Removal and Installation EBS013CM CRANKSHAFT POSITION SENSOR Refer to EM-137, "OIL PAN AND OIL STRAINER" . Continuity should exist. MBIB0864E Terminal No. (Polarity) Resistance Ω [at 25 ° C (77 ° F)] 3 (+) - 1 (-) Except 0 3 (+) - 2 (-) Except 0 or ∞ 2 (+) - 1 (-) Except 0 MBIB0616E |
