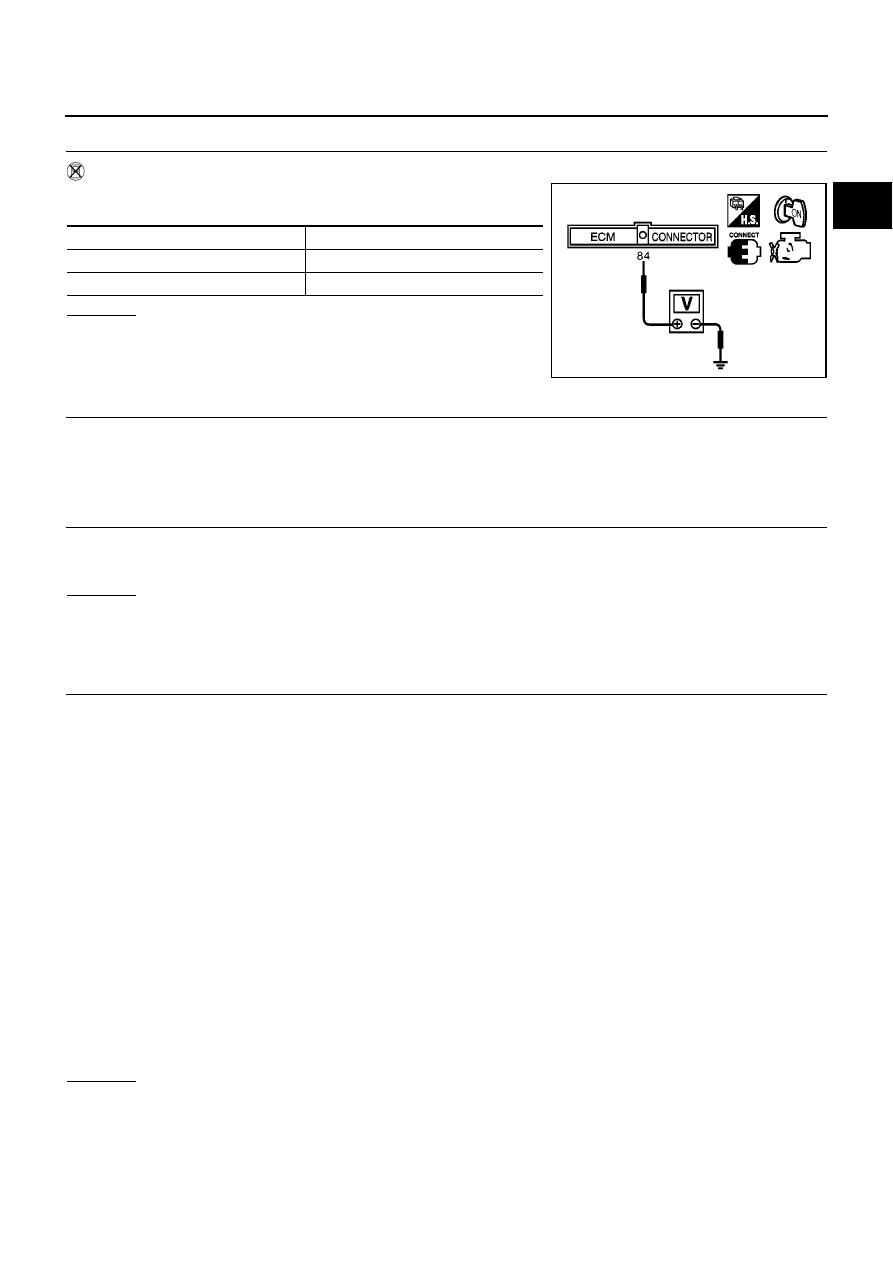

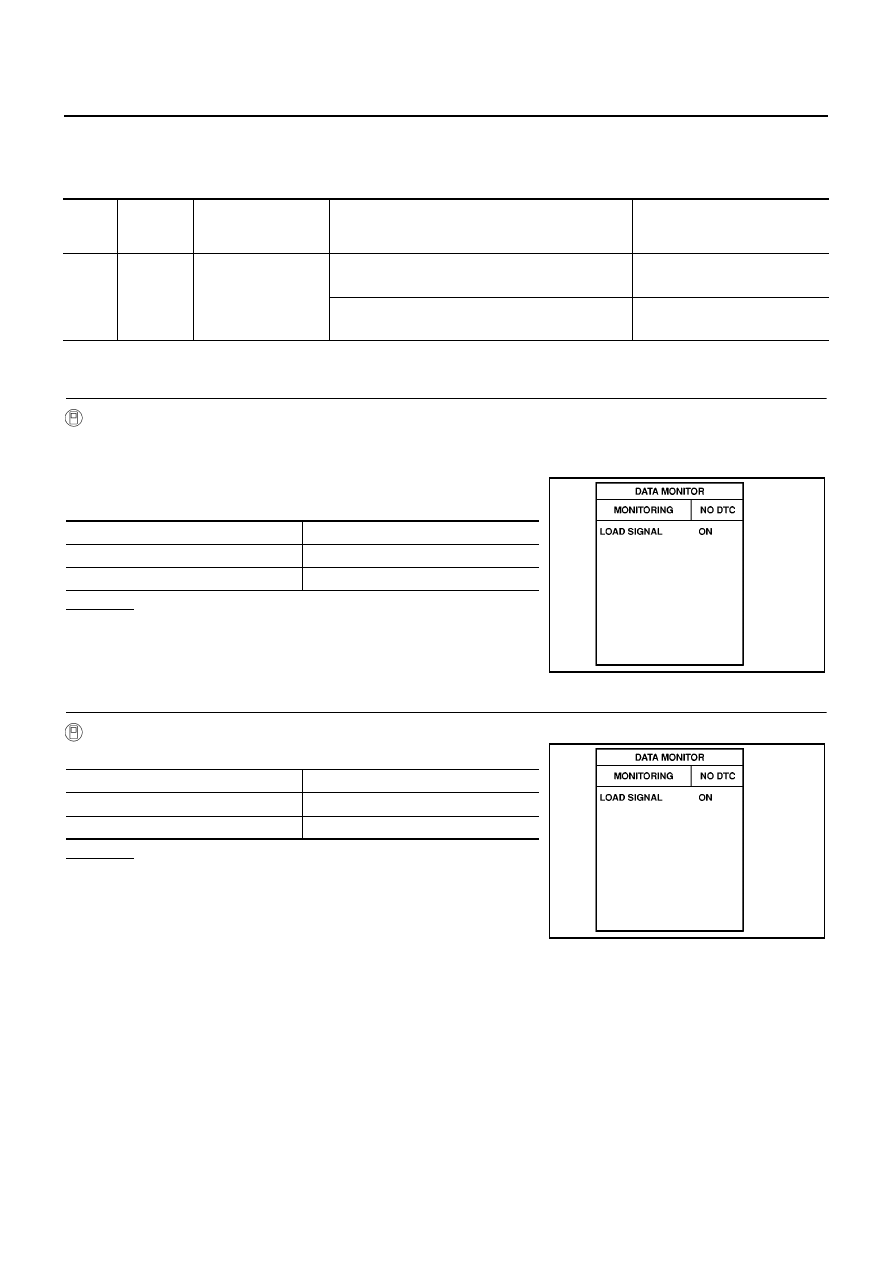

EC-926 [QG (WITHOUT EURO-OBD)] ELECTRICAL LOAD SIGNAL Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- Diagnostic Procedure EBS00R45 1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I With CONSULT-II 1. Turn ignition switch “ON”. 2. Connect CONSULT-II and select “DATA MONITOR” mode. 3. Select “LOAD SIGNAL” and check indication under the following OK or NG OK (With CONSULT-II)>>GO TO 2. >> GO TO 4. 2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II With CONSULT-II Check “LOAD SIGNAL” indication under the following conditions. OK or NG OK >> INSPECTION END NG >> GO TO 5. TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 84 R/Y Electrical load signal [Ignition switch “ON”] ● Lighting switch is “2ND” position BATTERY VOLTAGE [Ignition switch “ON”] ● Lighting switch is “OFF” Approximately 0V Condition Indication Rear window defogger switch “ON” ON Rear window defogger switch “OFF” OFF PBIB0103E Condition Indication Lighting switch “ON” at 2nd position ON Lighting switch “OFF” OFF PBIB0103E |
