Nissan Pathfinder. Manual - part 965

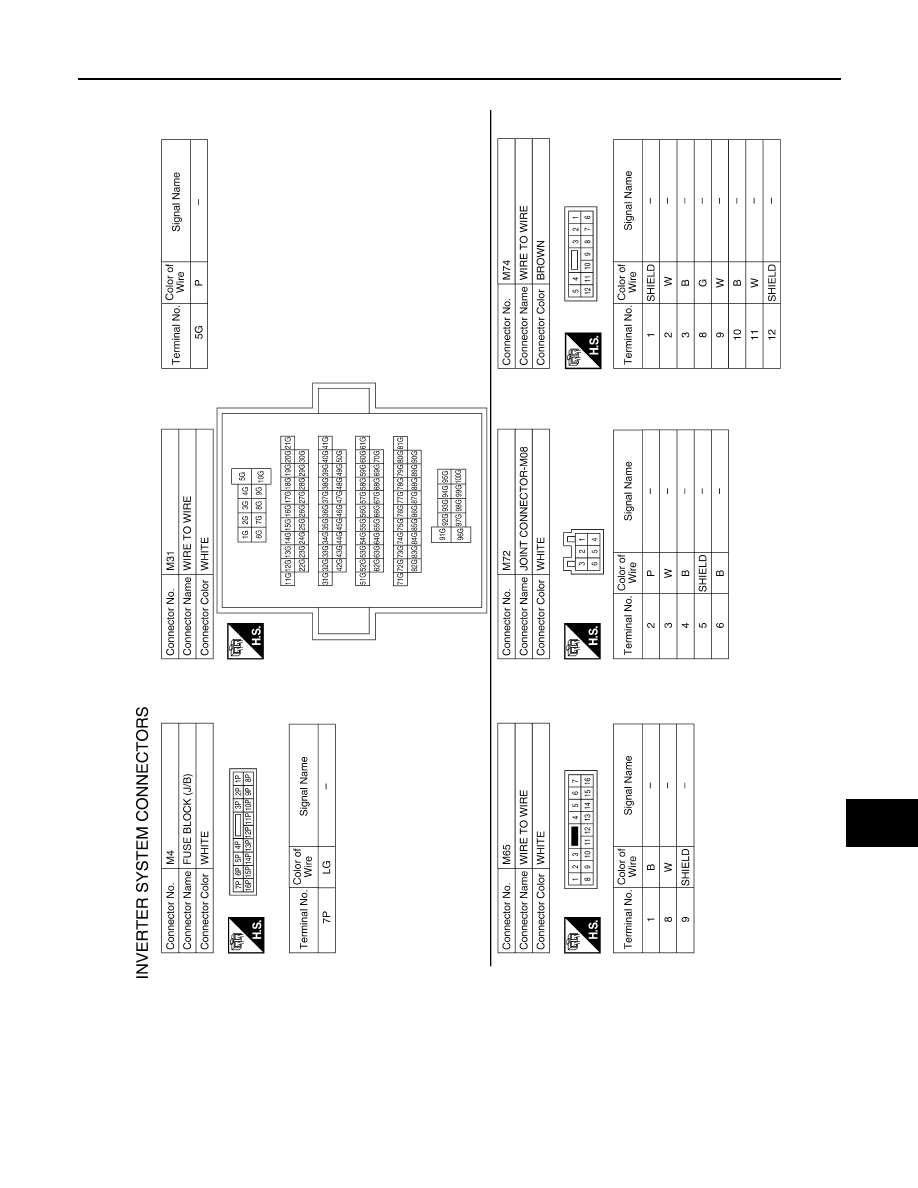

PWO

INVERTER UNIT

PWO-17

< WIRING DIAGRAM >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4870GB

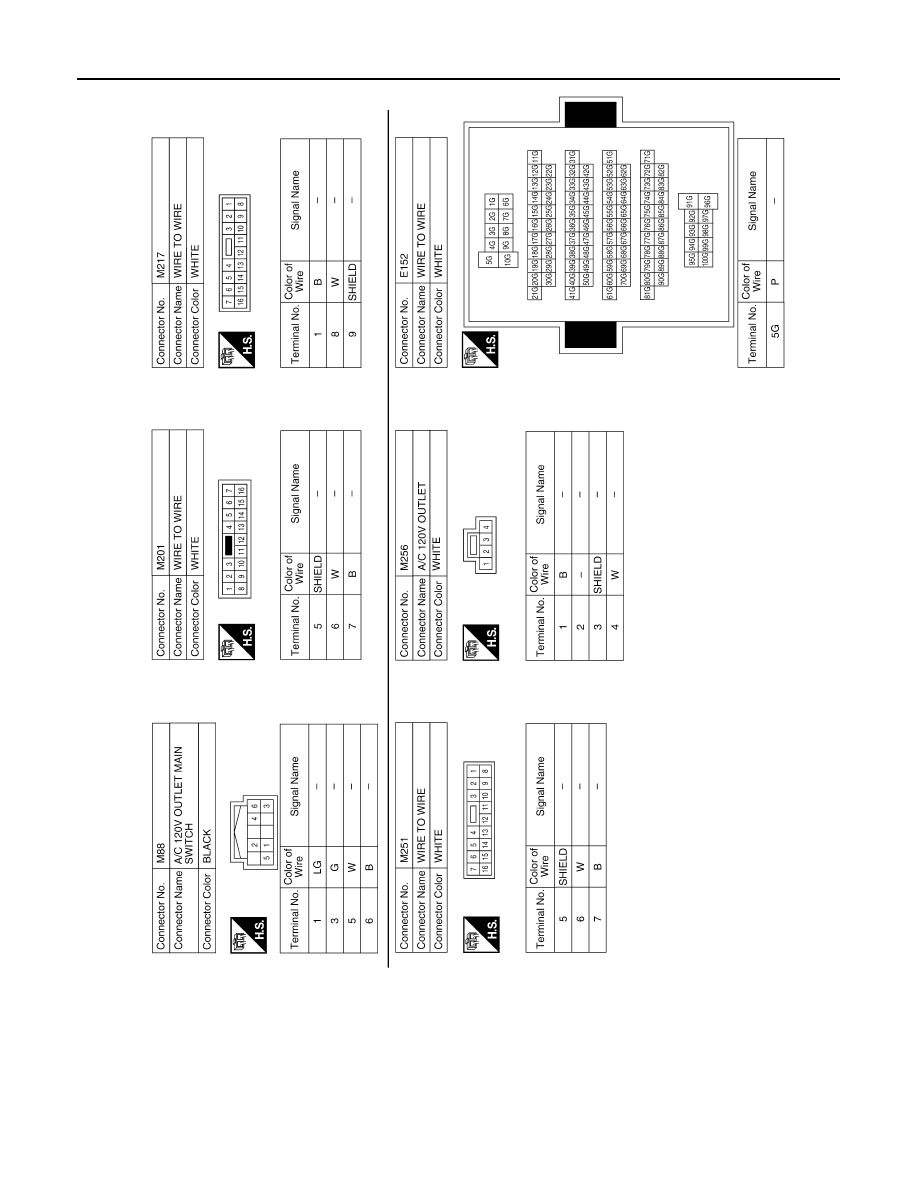

PWO-18

< WIRING DIAGRAM >

[AC 120 V OUTLET]

INVERTER UNIT

ABMIA4871GB

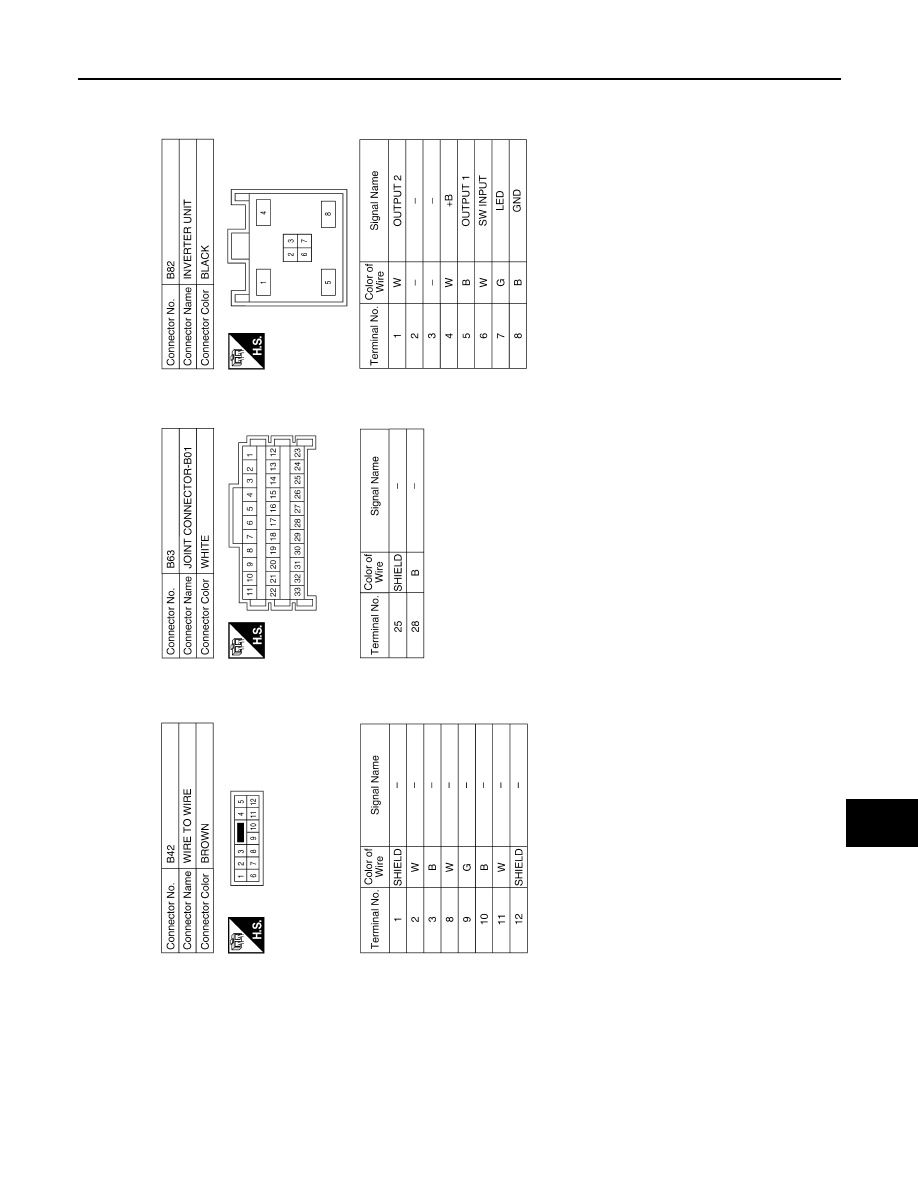

PWO

INVERTER UNIT

PWO-19

< WIRING DIAGRAM >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4872GB

PWO-20

< BASIC INSPECTION >

[AC 120 V OUTLET]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009174847

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the customer about the symptom.

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is a fail-safe condition.
Is fail-safe activated?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

SYSTEM DIAGNOSIS

Perform diagnosis for the fail-safe activated system. Specify the malfunctioning component.

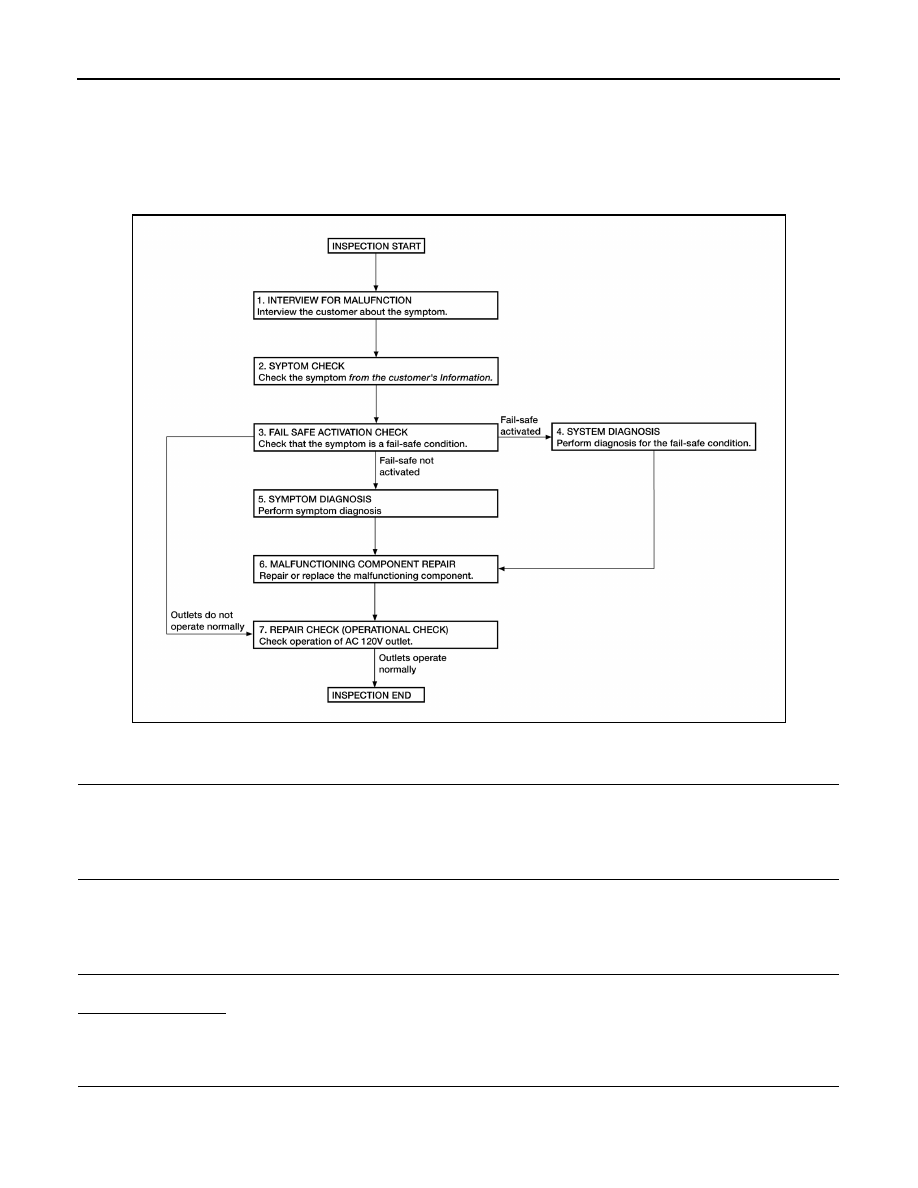

AWMIA1287GB
