CONTENTS

POWER OUTLET

POWER SOCKET

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

WIRING DIAGRAM .......................................

6

POWER SOCKET  ...............................................

6

Wiring Diagram  .........................................................

6

REMOVAL AND INSTALLATION ................

9

POWER SOCKET  ...............................................

9

Removal and Installation ...........................................

9

AC 120 V OUTLET

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

10

Precaution for Work  ................................................

10

PREPARATION ...........................................

11

PREPARATION ..................................................

11

Special Service Tool  ...............................................

11

SYSTEM DESCRIPTION  .............................

12

COMPONENT PARTS  ......................................

12

Component Parts Location  ......................................

12

Component Description  ...........................................

12

Inverter Unit .............................................................

12

AC 120V Outlet Main Switch  ...................................

12

AC 120V Outlet ........................................................

12

SYSTEM ............................................................

13

System Diagram  ......................................................

13

System Description ..................................................

13

Fail-safe ...................................................................

13

ECU DIAGNOSIS INFORMATION ..............

14

INVERTER UNIT  ...............................................

14

Reference Value ......................................................

14

Fail-safe ...................................................................

15

WIRING DIAGRAM ......................................

16

INVERTER UNIT  ...............................................

16

Wiring Diagram ........................................................

16

BASIC INSPECTION  ...................................

20

DIAGNOSIS AND REPAIR WORK FLOW  .......

20

Work Flow ................................................................

20

DTC/CIRCUIT DIAGNOSIS  .........................

22

POWER SUPPLY AND GROUND CIRCUIT  ....

22

Diagnosis Procedure  ...............................................

22

AC 120 V OUTLET MAIN SWITCH POWER
SUPPLY CIRCUIT .............................................

23

Diagnosis Procedure  ...............................................

23

AC 120 V OUTLET MAIN SWITCH INPUT
SIGNAL CIRCUIT ..............................................

24

Diagnosis Procedure  ...............................................

24

PWO-2

Component Inspection (AC 120V Outlet Main
Switch) ....................................................................

24

AC 120 V POWER OUTPUT CIRCUIT ..............

26

Diagnosis Procedure  ..............................................

26

AC 120 V OUTLET MAIN SWITCH INDICA-
TOR CIRCUIT  ....................................................

28

Diagnosis Procedure  ..............................................

28

SYMPTOM DIAGNOSIS  .............................

29

NO OUTPUT FROM AC 120 V OUTLET ...........

29

Diagnosis Procedure  ..............................................

29

AC 120 V OUTLET MAIN SWITCH INDICA-
TOR DOES NOT TURN ON ...............................

30

Diagnosis Procedure  ..............................................

30

NORMAL OPERATING CONDITION  ................

31

Description ..............................................................

31

REMOVAL AND INSTALLATION ..............

32

INVERTER UNIT ................................................

32

Removal and Installation .........................................

32

AC 120V OUTLET MAIN SW  ............................

33

Removal and Installation .........................................

33

AC 120 V OUTLET  ............................................

34

Removal and Installation .........................................

34

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

35

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

35

AC 120V Power Outlet ............................................

35

PWO

PRECAUTIONS

PWO-3

< PRECAUTION >

[POWER SOCKET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009726161

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009174828

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PWO-4

< PREPARATION >

[POWER SOCKET]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009174829

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

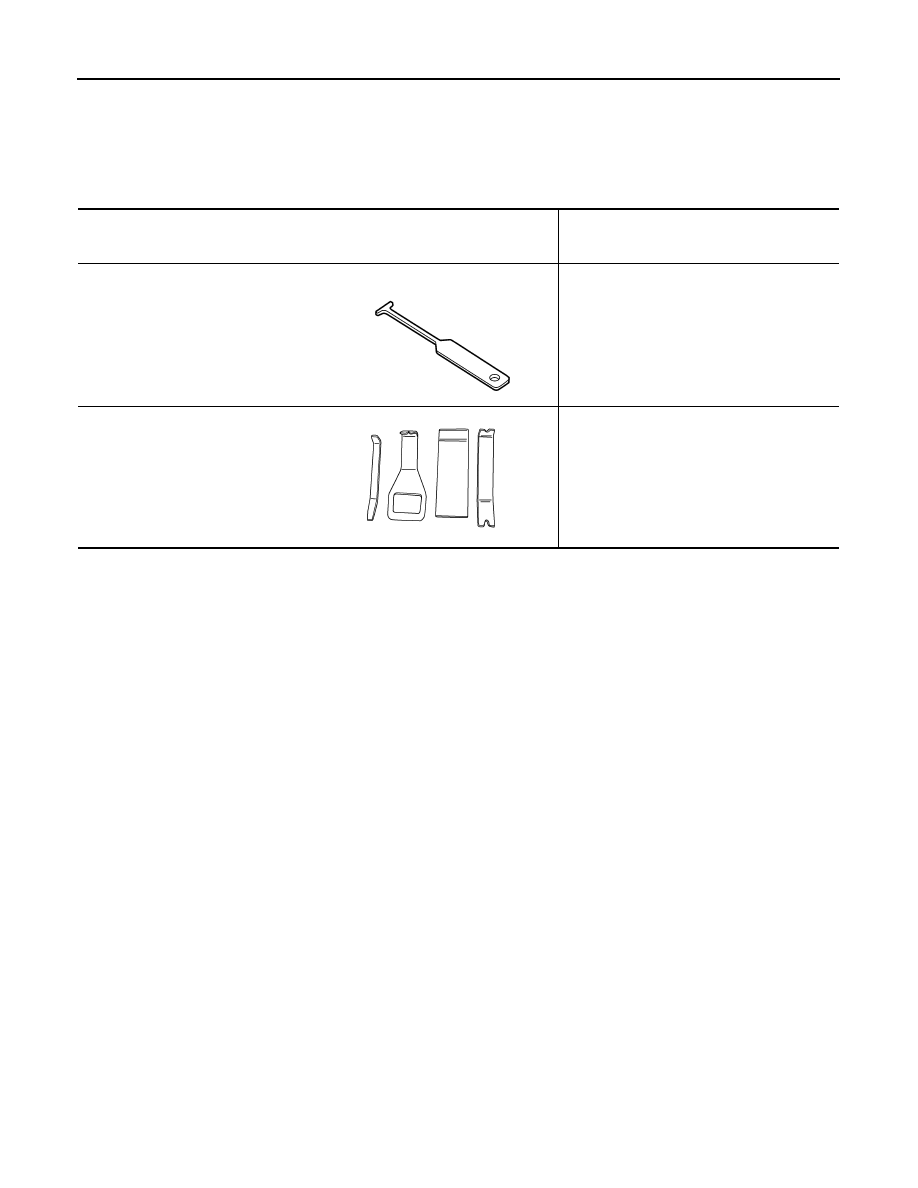

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-42059)
Power socket removal tool

Removing power sockets

—

(J-46534)
Trim tool set

Removing trim components

AWMIA1148GB

AWJIA0483ZZ
