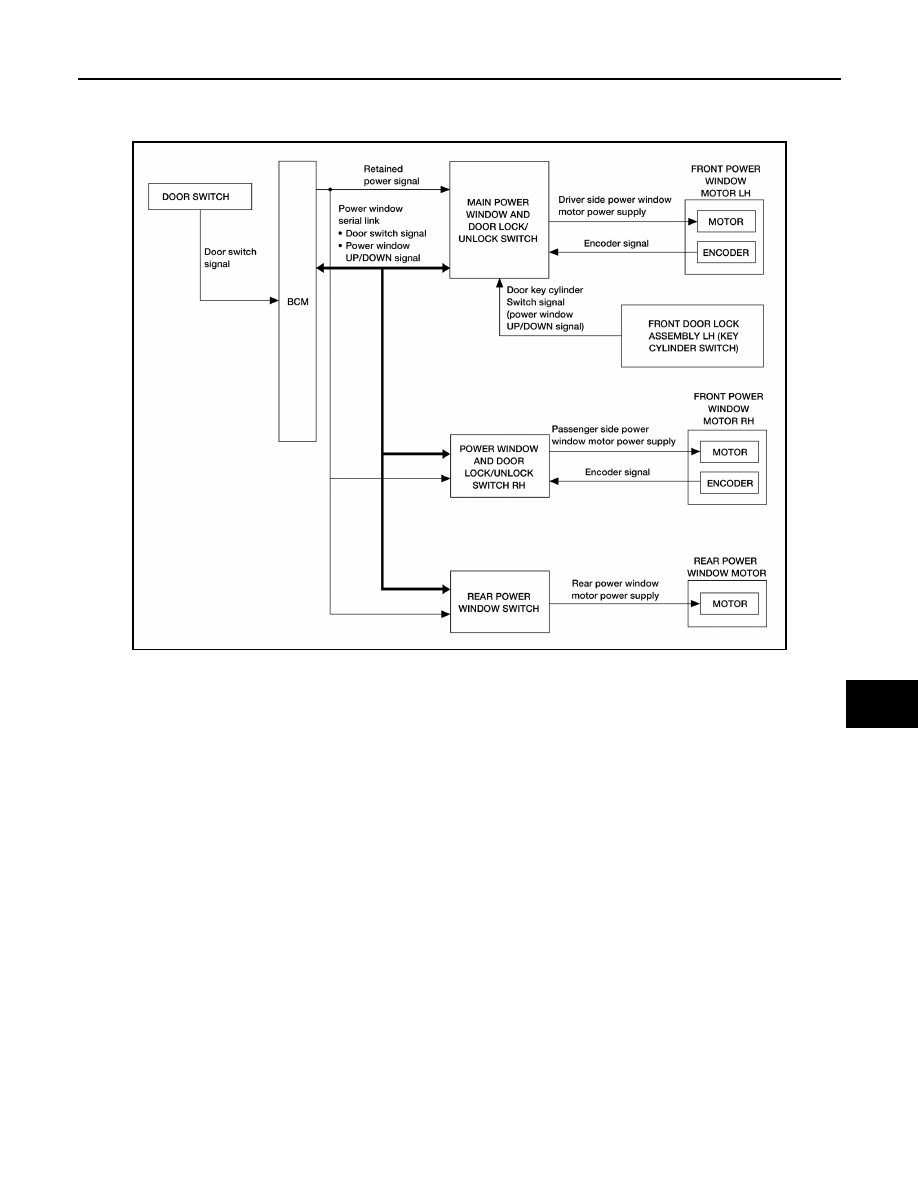

PWC-68 < SYSTEM DESCRIPTION > [LH & RH FRONT AUTO UP/DOWN] COMPONENT PARTS Component Description INFOID:0000000009176178 4. Main power window and door lock/ 5. Power window and door lock/unlock 6. Rear power window switch LH (RH 7. Front door lock assembly LH (key 8. Front door switch LH (RH similar) Component Function BCM • Supplies power to the window switches. Main power window and door lock/un- Directly controls all power window motors. Power window and door lock/unlock Controls power window motor of passenger door. Rear power window switch • Controls anti-pinch operation of power window. Power window motor • Integrates the CPU and WINDOW MOTOR. Front door lock assembly (door key cyl- Transmits operation condition of door key cylinder switch to power window main switch. Front door switch LH/RH Detects door open/close condition and transmits it to the BCM. |
