CENTER CONSOLE ASSEMBLY

IP-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

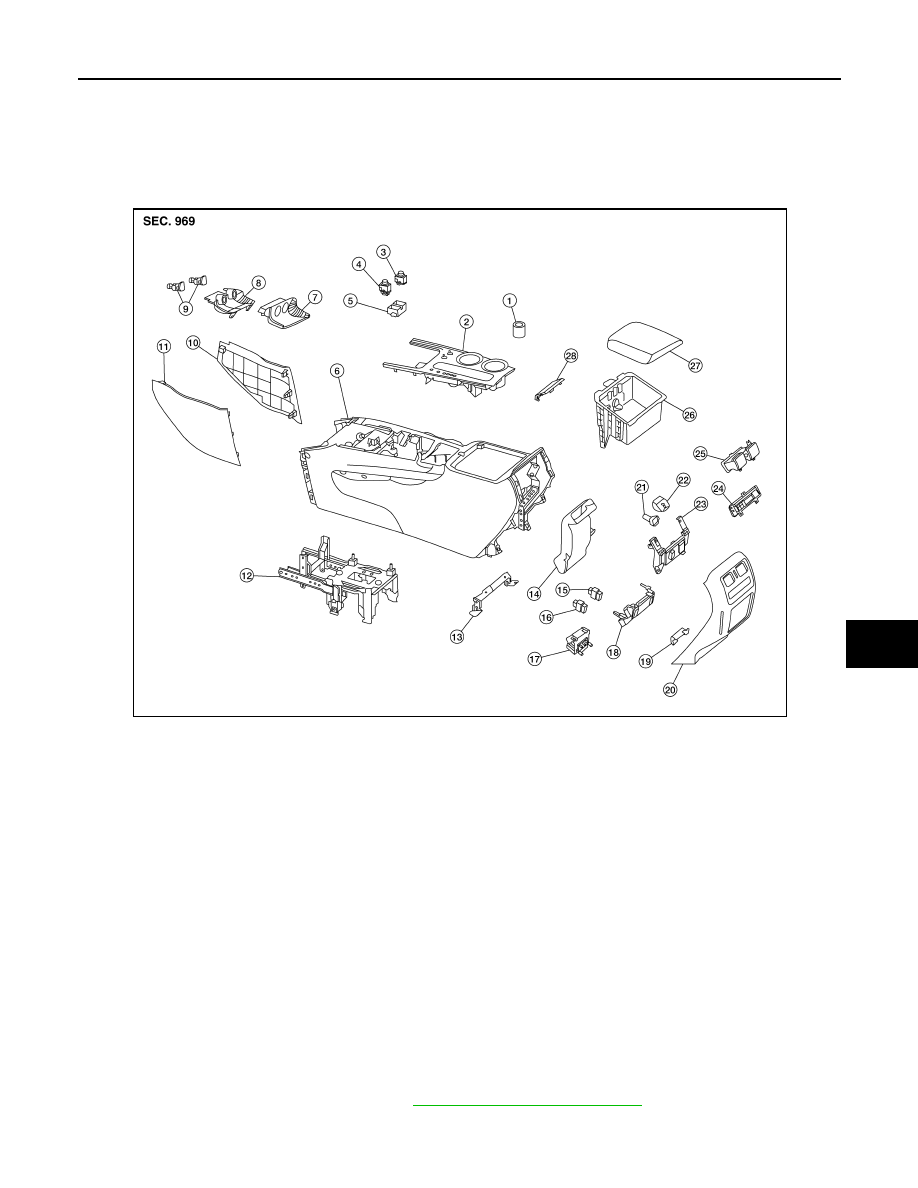

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000009176451

Disassembly and Assembly

INFOID:0000000009176452

DISASSEMBLY

1. Remove center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Release center console bin cover using a suitable tool and remove.

1.

Drive mode selector switch

2.

Shift selector finisher

3.

Front seat climate control switch (RH)
(if equipped)

4.

Front seat climate control switch (LH)
(if equipped)

5.

Center console switch bracket

6.

Center console assembly

7.

Front console mat

8.

Front console tray

9.

Power socket

10. Center console side finisher (RH)

11. Center console side finisher (LH)

12. Center console brace

13. Center console lower brace

14. Rear center ventilator duct

15. 2nd row heated seat switch (RH) (if

equipped)

16. 2nd row heated seat switch (LH) (if

equipped)

17. Rear auxiliary input jack

18. Center console rear finisher lower

bracket

19. Intelligent Key antenna

20. Center console rear finisher

21. Power socket

22. AC 120V outlet

23. Center console rear finisher upper

bracket

24. Rear blower control

25. Rear center ventilator grille assembly

26. Center console bin

27. Center console bin lid

28. Center console rear brace finsher

AWJIA1155ZZ

IP-28

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

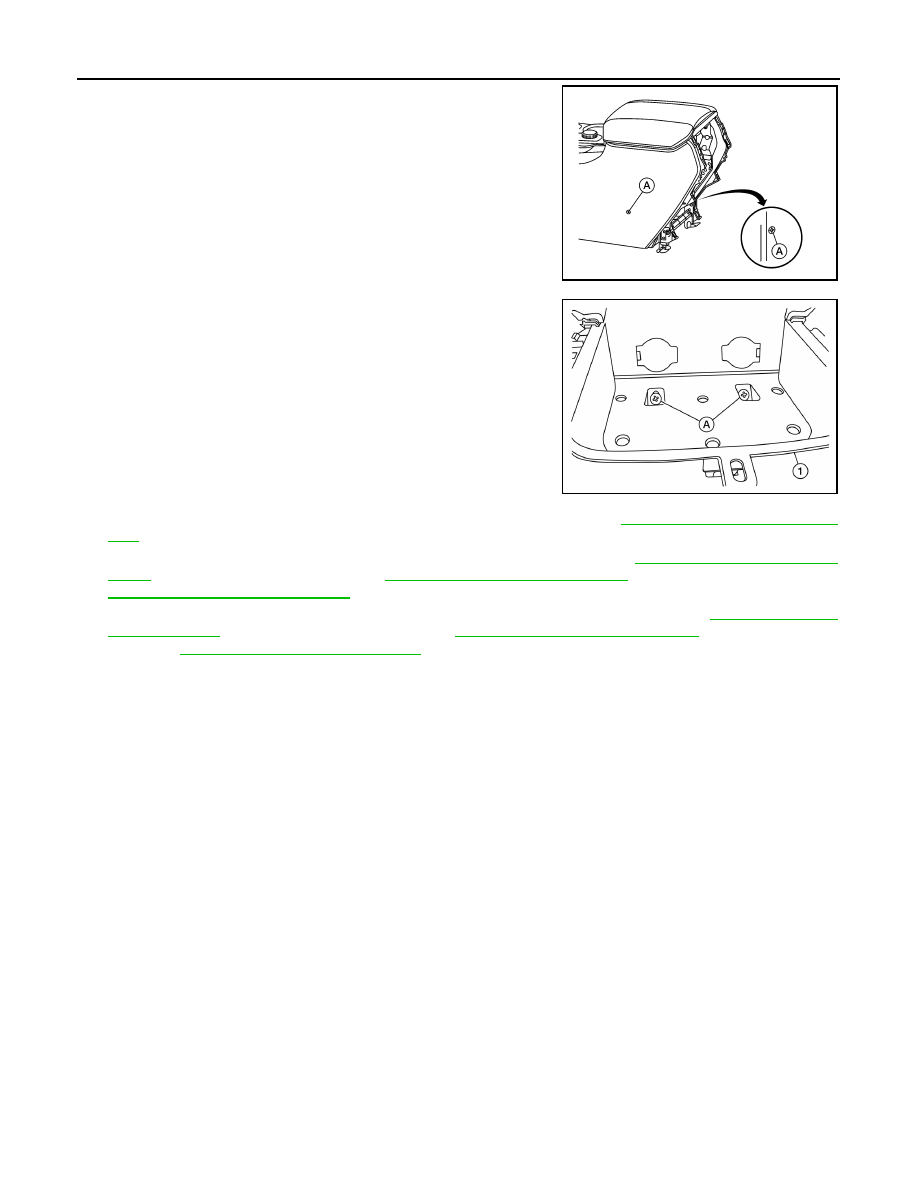

3. Remove center console bin screws (A)

4. Remove remaining center console bin screws (A), disconnect

the harness connectors, then remove the center console bin (1).

5. Remove power socket from the center console bin (if necessary). Refer to

PWO-9, "Removal and Installa-

tion"

.

6. Remove USB connector from the center console bin (if necessary). Refer to

AV-195, "Removal and Instal-

lation"

 (MID AUDIO WITHOUT BOSE),

AV-380, "Removal and Installation"

 (MID AUDIO WITH BOSE) or

AV-626, "Removal and Installation"

 (PREMIUM AUDIO WITH NAVIGATION).

7. Remove front auxiliary input jack from the center console bin (if necessary). Refer to

AV-196, "Removal

and Installation"

 (MID AUDIO WITHOUT BOSE),

AV-381, "Removal and Installation"

 (MID AUDIO WITH

BOSE) or

AV-627, "Removal and Installation"

 (PREMIUM AUDIO WITH NAVIGATION).

ASSEMBLY

Assembly is in the reverse order of disassembly.

ALJIA1093ZZ

ALJIA1094ZZ

CENTER CONSOLE REAR FINISHER

IP-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

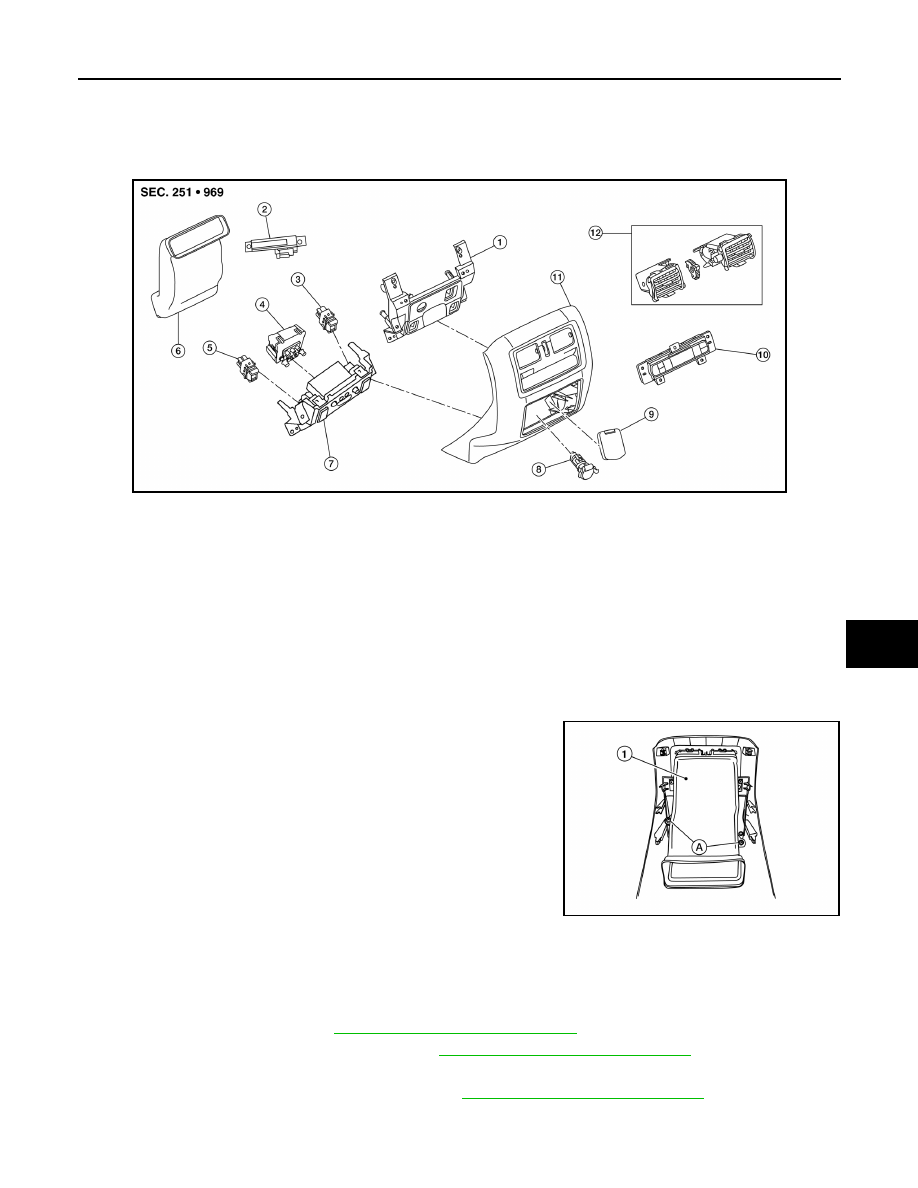

CENTER CONSOLE REAR FINISHER

Exploded View

INFOID:0000000009726156

Disassembly and Assembly

INFOID:0000000009176453

DISASSEMBLY

1. Remove center console rear finisher by releasing clips and pawls using a suitable tool.
2. Remove rear center ventilator duct screws (A) and rear center

ventilator duct (1).

3. Release rear center ventilator grille assembly pawls using a suitable tool and remove.
4. Remove rear blower control.
5. Remove center console rear finisher upper bracket screws and center console rear finisher upper bracket.
6. Remove center console rear finisher lower bracket screws and center console rear finisher lower bracket.
7. Remove power socket. Refer to

PWO-9, "Removal and Installation"

.

8. Remove AC 120V outlet (if equipped). Refer to

PWO-34, "Removal and Installation"

.

9. Remove 2nd row heated seat switches (LH/RH).
10. Remove auxiliary input jack (if equipped). Refer to

AV-196, "Removal and Installation"

.

ASSEMBLY

ALJIA0778ZZ

1.

Center console rear finisher upper bracket

2.

Intelligent Key antenna

3.

2nd row heated seat switch (RH) (if
equipped)

4.

Rear auxiliary input jack

5.

2nd row heated seat switch (LH)
(if equipped)

6.

Rear center ventilator duct

7.

Center console rear finisher lower bracket

8.

Power socket

9.

AC 120V outlet (if equipped)

10. Rear blower control

11. Center console rear finisher

12. Rear center ventilator grille assembly

ALIIA0540ZZ

IP-30

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE REAR FINISHER

Assembly is in the reverse order of disassembly.
