REAR COMBINATION LAMP
REAR COMBINATION LAMP
Exploded View
INFOID:0000000009175420
Disassembly and Assembly
INFOID:0000000009175421
WARNING:
Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.
CAUTION:
• After installing, be sure to install the bulb sockets securely to ensure watertightness.
• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent
damage to bulb.
• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may
affect the performance of lamp. When replacing bulb, be sure to replace it with new one.
DISASSEMBLY
1. Remove rear combination lamp. Refer to
EXL-149, "Removal and Installation"
2. Rotate rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove rear turn signal bulb from bulb socket.
4. Rotate stop/tail lamp bulb socket counterclockwise and remove.
5. Remove stop/tail bulb from bulb socket.
6. Rotate side marker lamp bulb socket counterclockwise and remove.
7. Remove side marker bulb from bulb socket.
ASSEMBLY
Assembly is in the reverse order of disassembly.

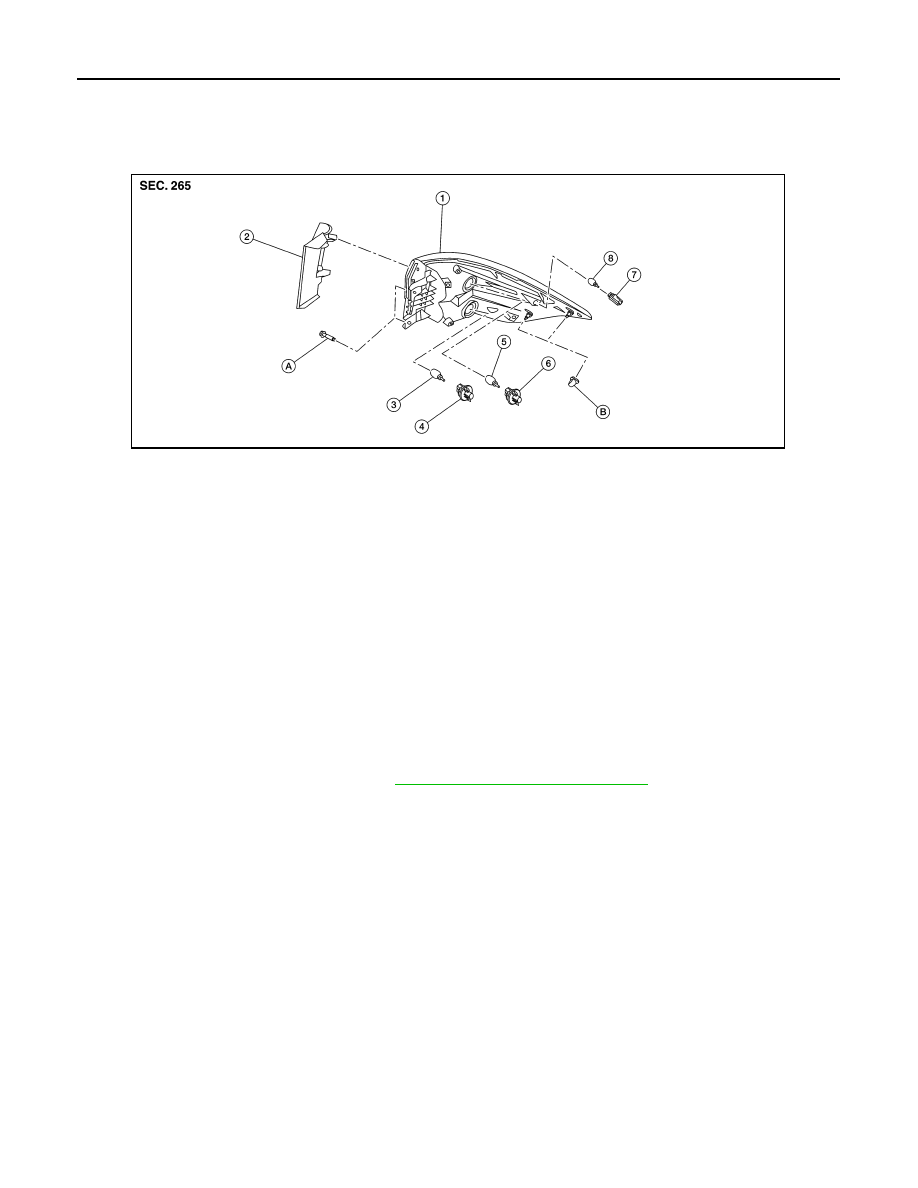

1. Rear combination lamp
2. Rear combination lamp bolt cover 3.
Rear turn signal lamp bulb
4. Rear turn signal bulb socket
5. Stop/Tail lamp bulb
6.
Stop/Tail bulb socket
7. Side marker bulb socket
8. Side marker lamp bulb
A.
Bolt
B. Locator pin
AWLIA2188ZZ
