CAMSHAFT

EM-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAMSHAFT

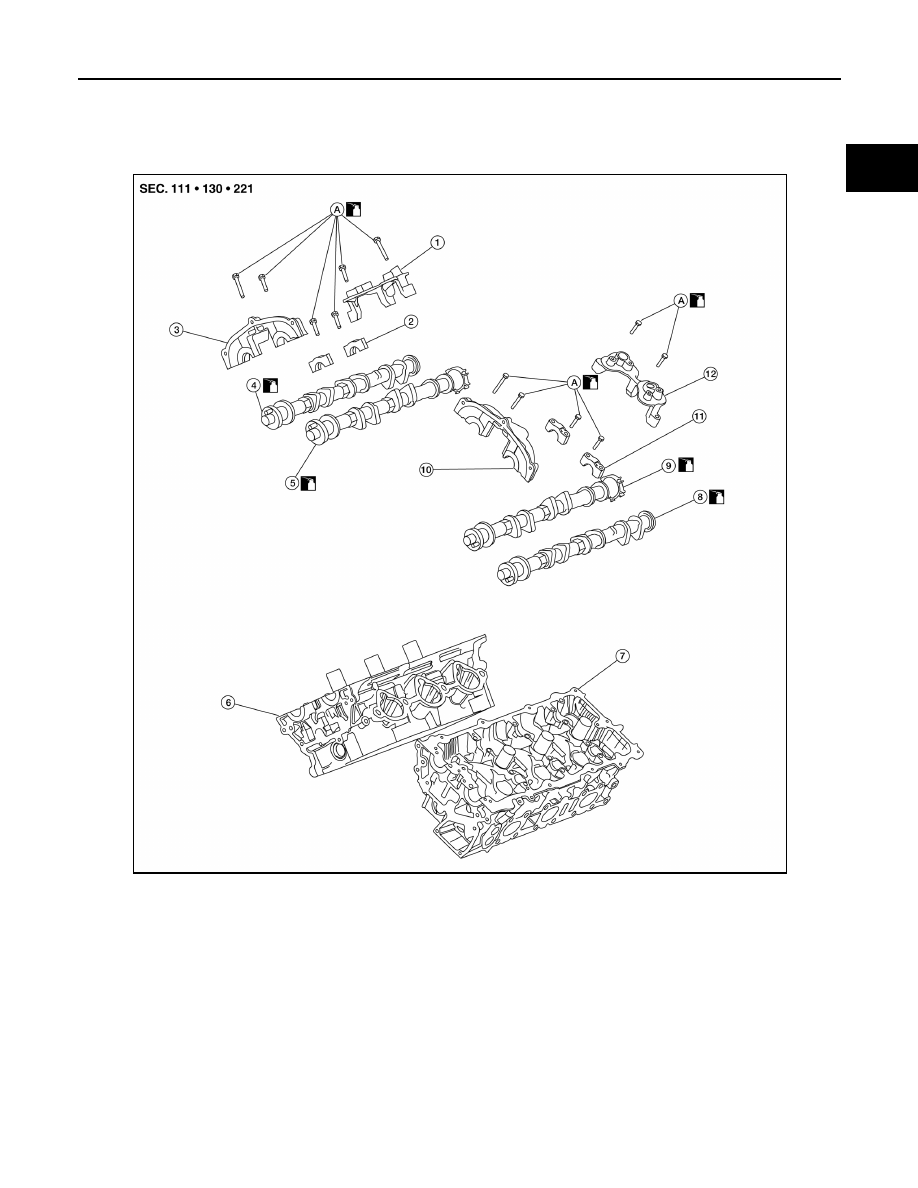

Exploded View

INFOID:0000000009177928

CAUTION:

Apply new engine oil to parts marked in illustration before installation.

Removal and Installation

INFOID:0000000009177929

REMOVAL

1.

Camshaft position sensor bracket (RH) 2.

Camshaft brackets

3.

No. 1 camshaft bracket (RH)

4.

Camshaft (EXH) (RH)

5.

Camshaft (INT)
(RH)

6.

Cylinder head (RH)

7.

Cylinder head (LH)

8.

Camshaft (EXH)
(LH)

9.

Camshaft (INT) (LH)

10. No. 1 camshaft bracket (LH)

11. Camshaft brackets

12. Camshaft position sensor bracket (LH)

A.

Refer to INSTALLATION

AWBIA1178GB

EM-76

< REMOVAL AND INSTALLATION >

CAMSHAFT

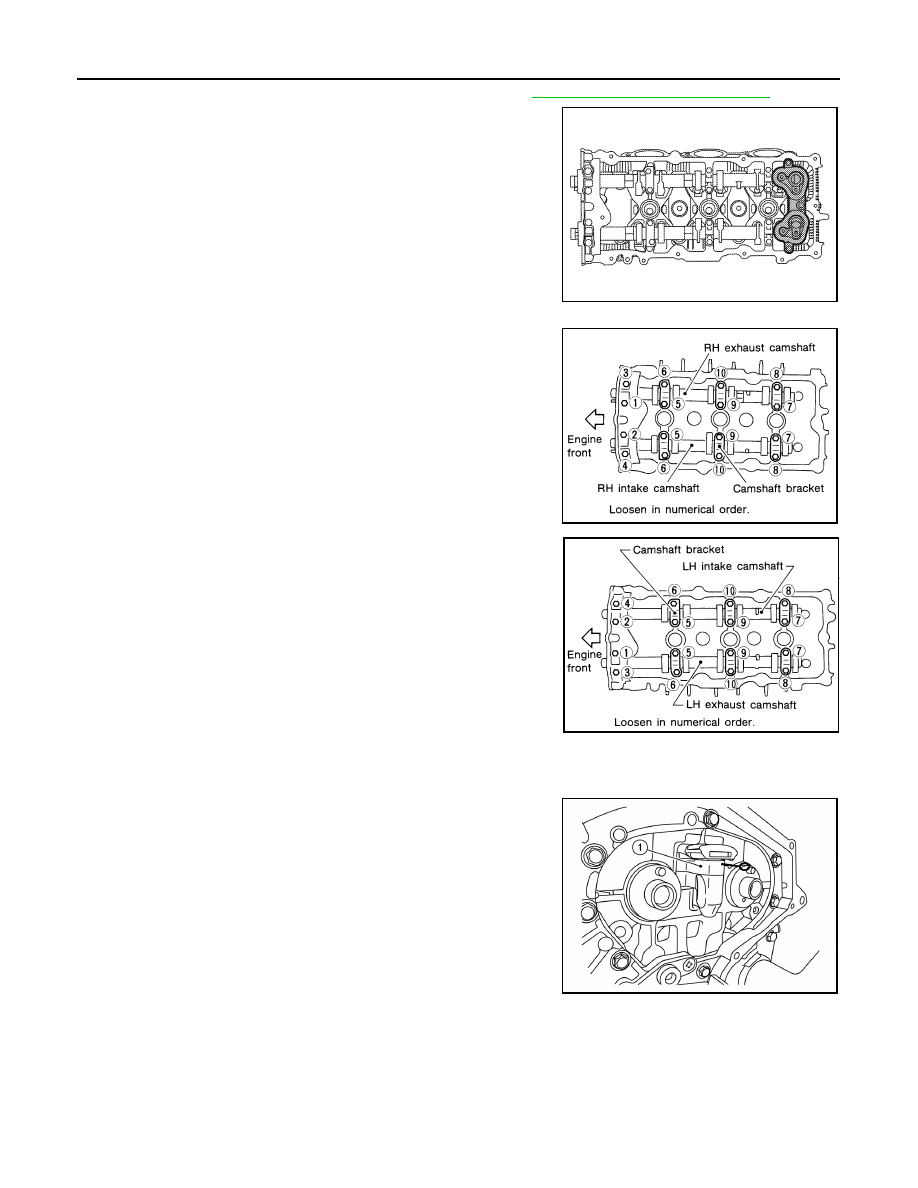

1. Remove the timing chains (primary and secondary). Refer to

EM-62, "Removal and Installation"

.

2. Remove camshaft position brackets (RH shown, LH similar).

3. Remove the intake and exhaust camshaft brackets and the cam-

shafts.

• Mark the camshafts, camshaft brackets, and bolts so they are

placed in the same position and direction for installation.

• Equally loosen the camshaft bracket bolts in several steps in

the numerical order as shown.

4. Remove valve lifters if necessary.

NOTE:

Identify installation positions to ensure proper installation.

5. Remove secondary timing chain tensioner (1) from cylinder

head.

• Remove secondary tensioner with its stopper pin attached.

NOTE:

Stopper pin was attached when secondary timing chain was

removed.

INSTALLATION

ALBIA0259ZZ

SEM856E

SEM857E

AWBIA1238GB

CAMSHAFT

EM-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

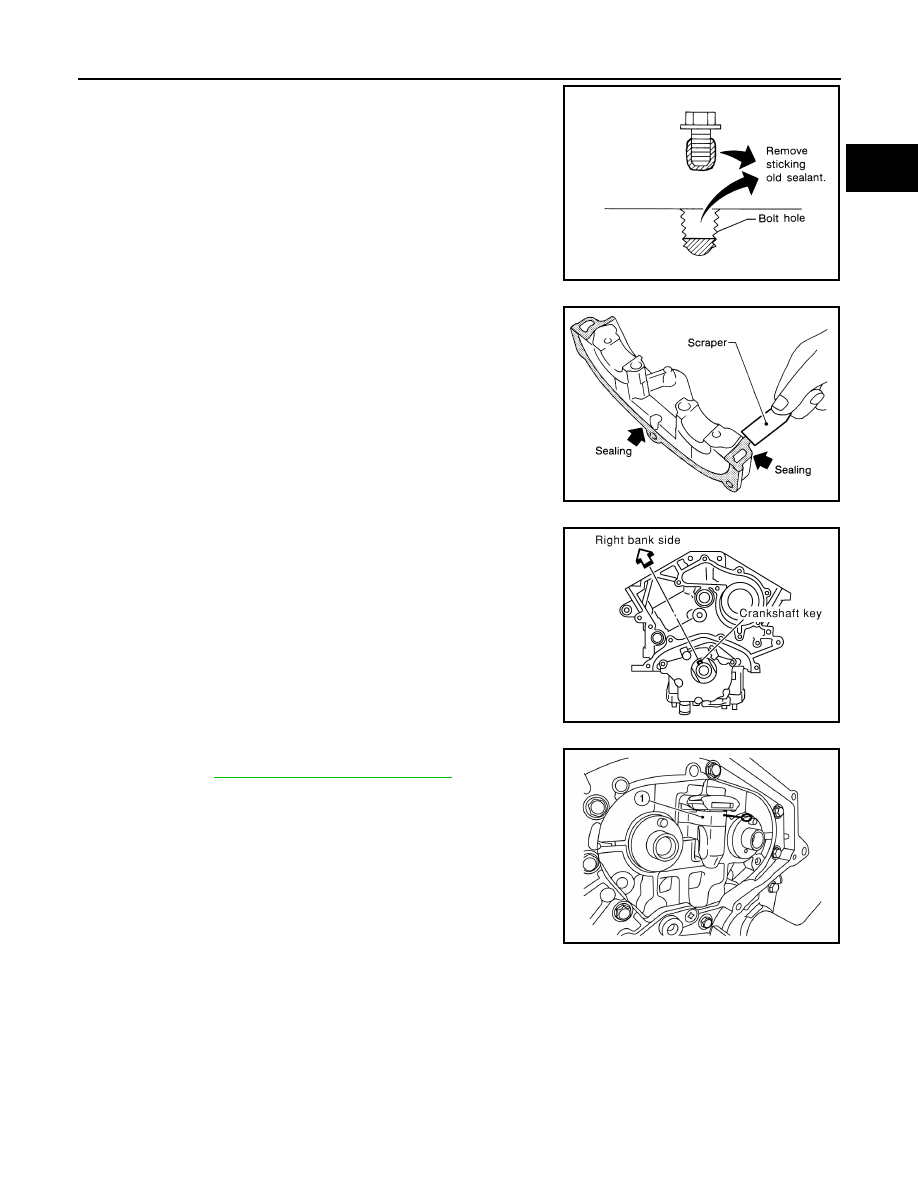

1. Before installation, remove any old Silicone RTV Sealant from

component mating surfaces using a scraper.

• Remove the old Silicone RTV Sealant from the bolt holes and

threads.

• Do not scratch or damage the mating surfaces.

2. Before installing the front cam bracket, remove the old Silicone

RTV Sealant from the mating surface using a scraper.

• Do not scratch or damage the mating surface.

3. Turn the crankshaft until No. 1 piston is set at TDC on the com-

pression stroke.

• The crankshaft key should line up with the right bank cylinder

center line as shown.

4. Install camshaft chain tensioners (1) on both sides of cylinder

head. Refer to

EM-54, "Removal and Installation"

.

5. Install valve lifter, if removed.

NOTE:

Install them in original positions.

SEM161F

SEM892E

SEM532G

AWBIA1238GB

EM-78

< REMOVAL AND INSTALLATION >

CAMSHAFT

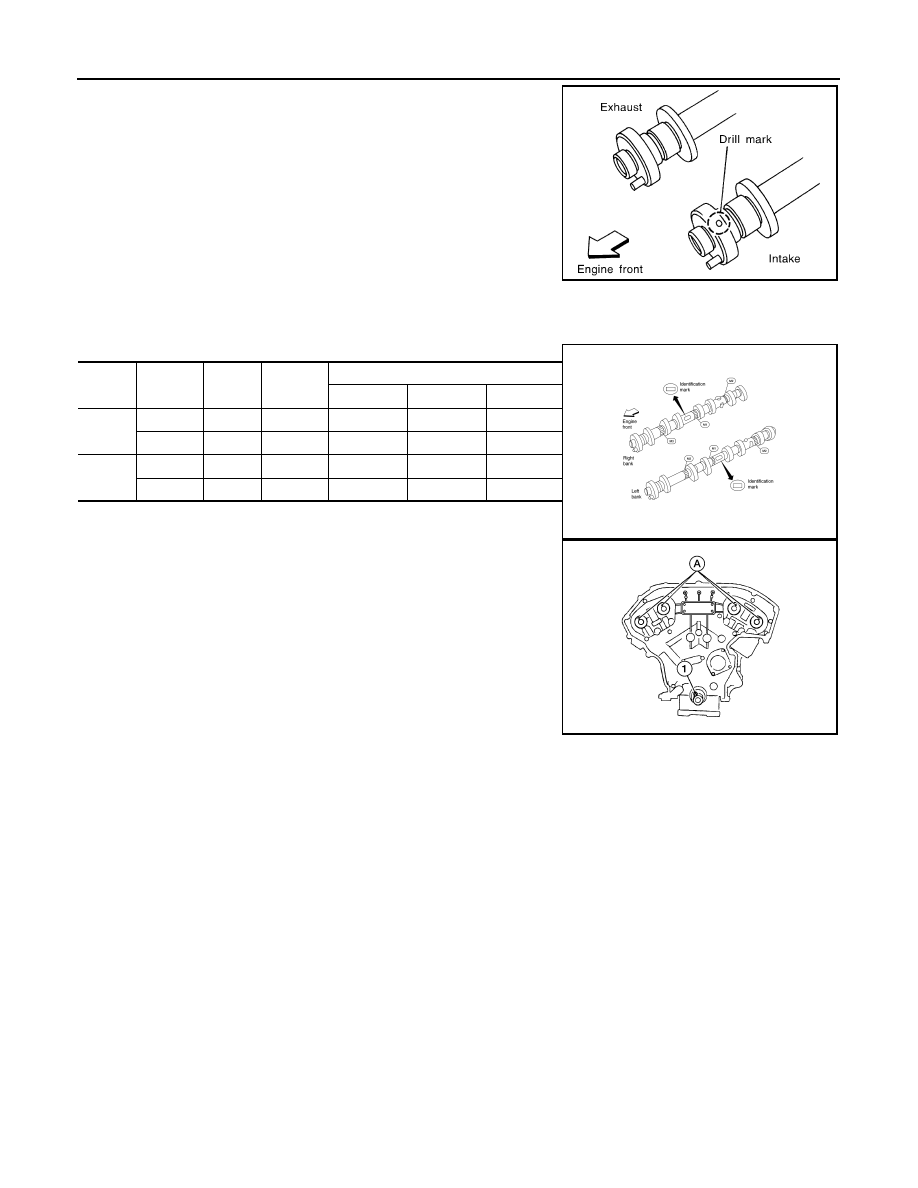

6. Install exhaust and intake camshafts and camshaft brackets.

• Intake camshaft has a drill mark on camshaft sprocket mount-

ing flange.

• Follow your identification marks made during removal or follow the identification marks that are present

on the new camshafts components for proper placement and direction of the components.

• Position the camshaft dowel pins (A) as shown.

SEM652F

Bank

INT/EXH

ID mark

(A)

Drill mark

Paint marks

M1 (E)

M2 (F)

M3 (D)

RH (B)

INT

1A

Yes

Pink

No

Light blue

EXH

1C

No

No

Light Blue

Light blue

LH (C)

INT

1B

Yes

Pink

No

Light blue

EXH

1D

No

No

Light Blue

Light blue

AWBIA1638ZZ
