HOOD LOCK

HOOD LOCK

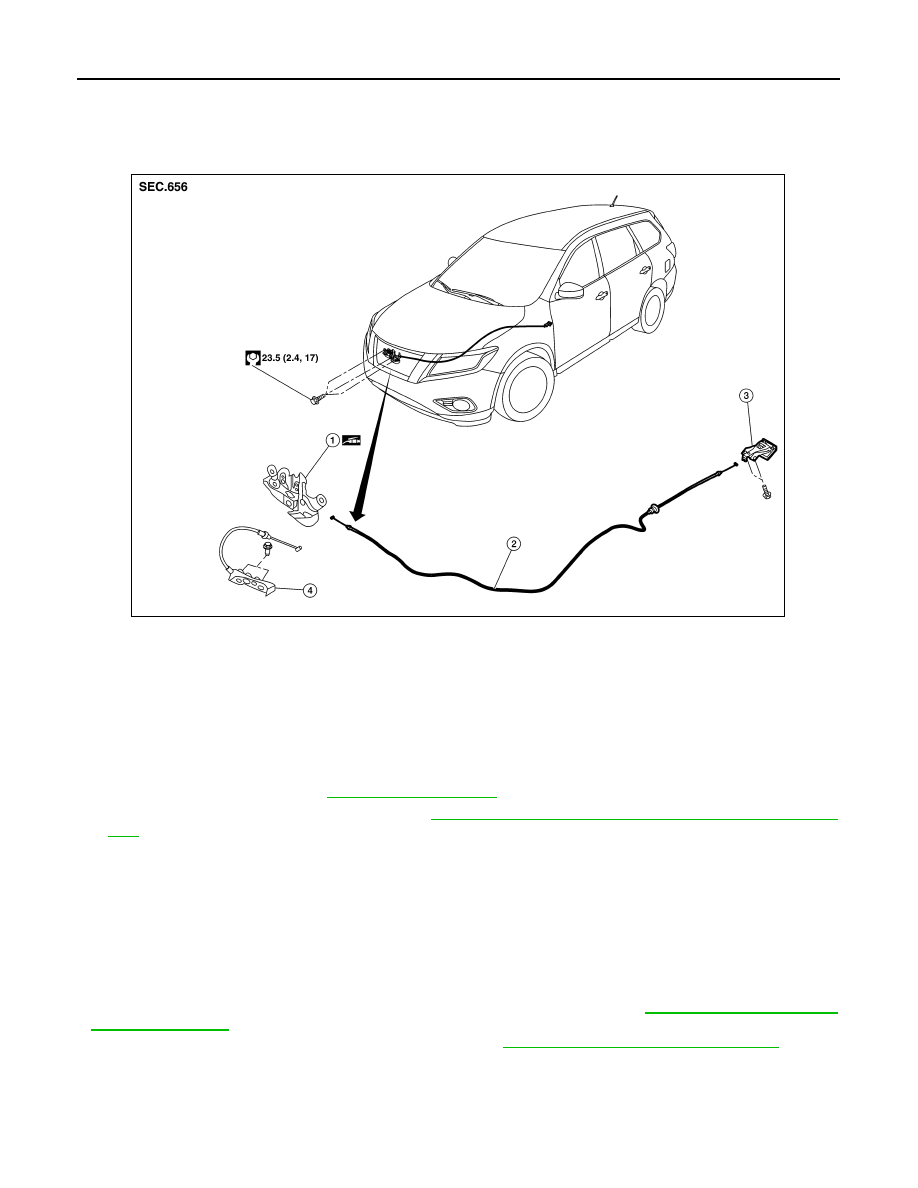

Exploded View

INFOID:0000000009175889

HOOD LOCK
HOOD LOCK : Removal and Installation

INFOID:0000000009175890

REMOVAL

1. Remove front air duct. Refer to

EM-24, "Exploded View"

.

2. Remove front fender protector (LH). Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installa-

tion"

.

3. Remove hood lock assembly bolts.
4. Disconnect hood lock release cable and secondary latch cable from hood lock assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keeping the radius 100 mm (3.94 in) or more.

• Check that hood lock release cable and secondary latch cable are properly engaged with hood lock

assembly.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-276, "HOOD ASSEM-

BLY : Adjustment"

.

• After adjusting, perform hood lock inspection. Refer to

DLK-298, "HOOD LOCK : Inspection"

.

HOOD LOCK : Inspection

INFOID:0000000009175891

NOTE:

If the hood lock cable is bent or deformed, replace it.

1.

Hood lock assembly

2.

Hood lock release cable

3.

Hood lock release handle

4.

Secondary latch

AWKIA2630ZZ

HOOD LOCK

DLK-299

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Check that secondary latch is properly engaged with secondary striker with hoods own weight.
2. While operating hood lock release handle, carefully check that the front end of hood assembly is raised by

approximately 20.0 mm (0.79 in). Also check that hood lock release handle returns to the original position.

3. Check that hood lock release handle operates at 49 N (5.0 kg-m, 11.0 ft-lb) or below.
4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg–m, 70.8-110.2 ft–lb).

NOTE:

• Do not exert vertical force on right side and left side of hood lock.

• Do not press simultaneously on both sides.

5. Check the hood lock lubrication condition. If necessary, apply a suitable multi-purpose grease to hood lock

assembly.

SECONDARY LATCH
SECONDARY LATCH : Removal and Installation

INFOID:0000000009730836

REMOVAL

1. Remove radiator core support upper cover. Refer to

EXT-16, "Exploded View"

.

2. Disconnect secondary latch cable from hood lock assembly.
3. Remove bolts and secondary latch.

INSTALLATION

Installation is in the reverse order of removal.

HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and Installation

INFOID:0000000009175892

REMOVAL

1. Remove fender protector (LH). Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation"

.

2. Remove front under cover. Refer to

EXT-30, "Removal and Installation"

.

3. Remove front air duct. Refer to

EM-24, "Exploded View"

.

4. Remove radiator core support upper cover. Refer to

EXT-17, "Removal and Installation"

.

5. Disconnect hood lock release cable from hood lock release handle and hood lock assembly.
6. Release all hood lock release cable clips.
7. Remove grommet on the lower dash, and carefully pull the hood lock release cable into the passenger

compartment.

CAUTION:

While pulling, be careful not to damage (peel) the outside of hood lock release cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock release cable is properly engaged with hood lock assembly.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-276, "HOOD ASSEM-

BLY : Adjustment"

.

PIIB5801E

DLK-300

< REMOVAL AND INSTALLATION >

HOOD LOCK

• After adjusting, perform hood lock inspection. Refer to

DLK-298, "HOOD LOCK : Inspection"

.

FRONT DOOR LOCK

DLK-301

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

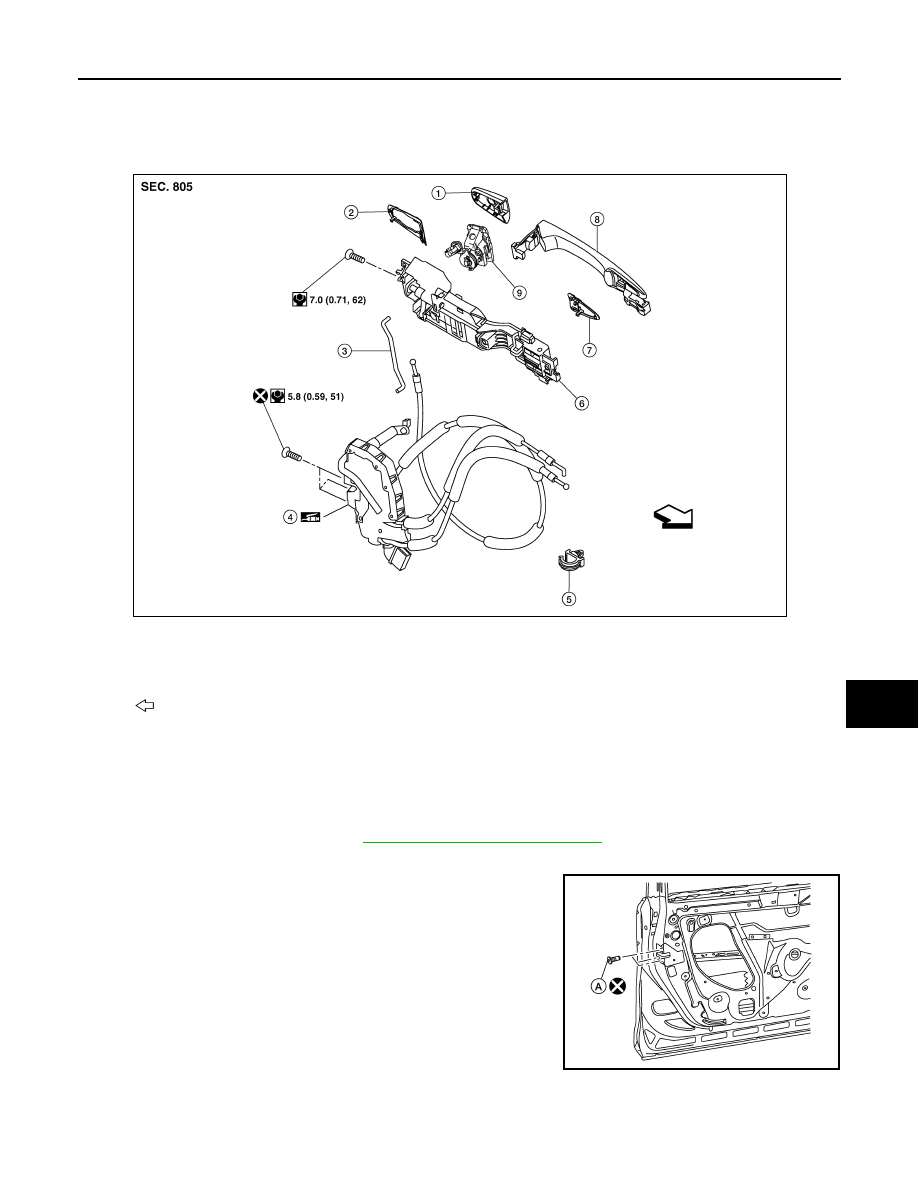

Exploded View

INFOID:0000000009175893

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009175894

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove vapor barrier.
3. Remove front door lock bolts (A).

1.

Outside handle escutcheon

2.

Rear gasket

3.

Door key cylinder rod (LH only)

4.

Front door lock

5.

Cable clip

6.

Outside handle bracket

7.

Front gasket

8.

Outside handle

9.

Door key cylinder (LH only)

Front

AWKIA2613ZZ
