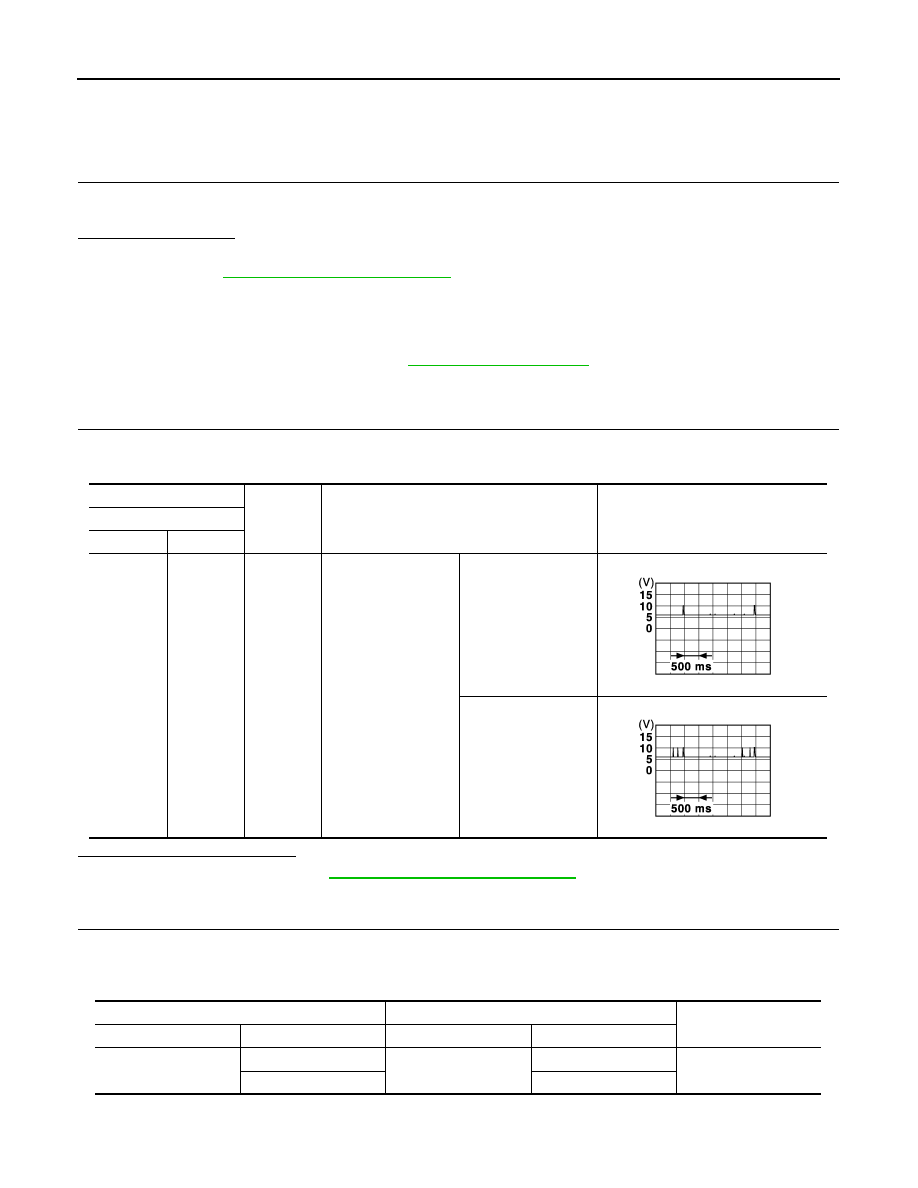

Nissan Pathfinder. Manual - part 350

DLK-166

< DTC/CIRCUIT DIAGNOSIS >

OUTSIDE KEY ANTENNA (DRIVER SIDE)

OUTSIDE KEY ANTENNA (DRIVER SIDE)

Component Function Check

INFOID:0000000009175705

1.

CHECK OUTSIDE KEY ANTENNA (DRIVER SIDE)

1. Place the Intelligent Key into the detection area of the outside key antenna (driver side).

2. Press the door request switch (driver side).
Does the door unlock?

YES

>> Inspection End.

NO

>> Refer to

DLK-166, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009175706

Regarding Wiring Diagram information, refer to

DLK-74, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (driver side) connector.

2. Check continuity between BCM harness connector and outside key antenna (driver side) harness connec-

tor.

3. Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M80

121, 122

Ground

When the driver door
request switch is oper-
ated with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

BCM

Outside key antenna (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M80

122

D15

1

Yes

121

2

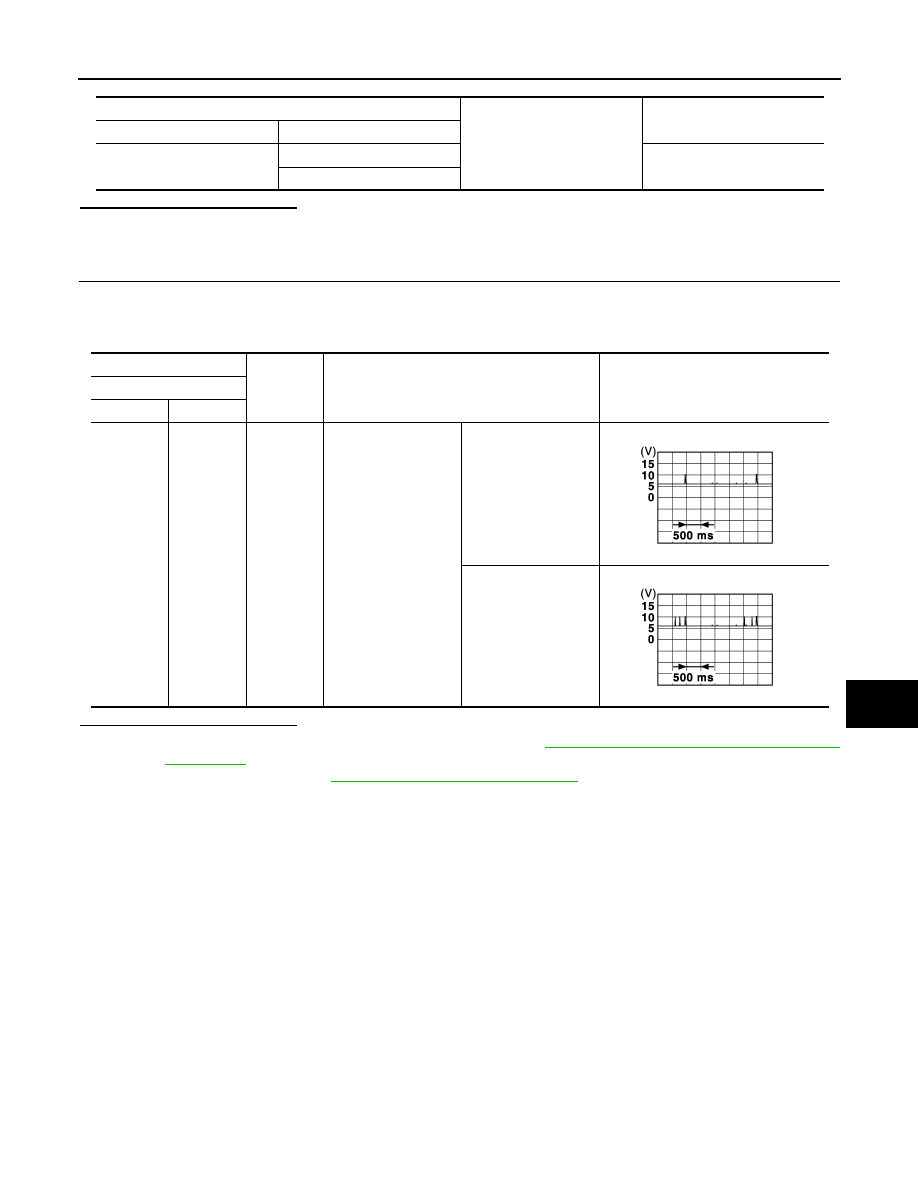

OUTSIDE KEY ANTENNA (DRIVER SIDE)

DLK-167

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (driver side). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (driver side) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (driver side). Refer to

DLK-316, "DRIVER SIDE : Removal and

Installation"

.

NO

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

M80

122

Not existed

121

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M80

121, 122

Ground

When the driver door
request switch is oper-
ated with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

DLK-168

< DTC/CIRCUIT DIAGNOSIS >

OUTSIDE KEY ANTENNA (REAR BUMPER)

OUTSIDE KEY ANTENNA (REAR BUMPER)

Component Function Check

INFOID:0000000009175707

1.

CHECK OUTSIDE KEY ANTENNA (REAR BUMPER)

1. Place the Intelligent Key into the detection area of the outside key antenna (rear bumper).

2. Press the door request switch (back door).
Does the door unlock?

YES

>> Inspection End.

NO

>> Refer to

DLK-168, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009175708

Regarding Wiring Diagram information, refer to

DLK-74, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (rear bumper) connector.

2. Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-

nector.

3. Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M20

101, 102

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

M20

102

B403

1

Yes

101

2

OUTSIDE KEY ANTENNA (REAR BUMPER)

DLK-169

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (rear bumper). (New antenna or other antenna)

2. Connect BCM and outside key antenna (rear bumper) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper). Refer to

DLK-316, "REAR BUMPER : Removal and

Installation"

.

NO

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

M20

102

No

101

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M20

101, 102

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB
