REPLACEMENT OPERATIONS

BRM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

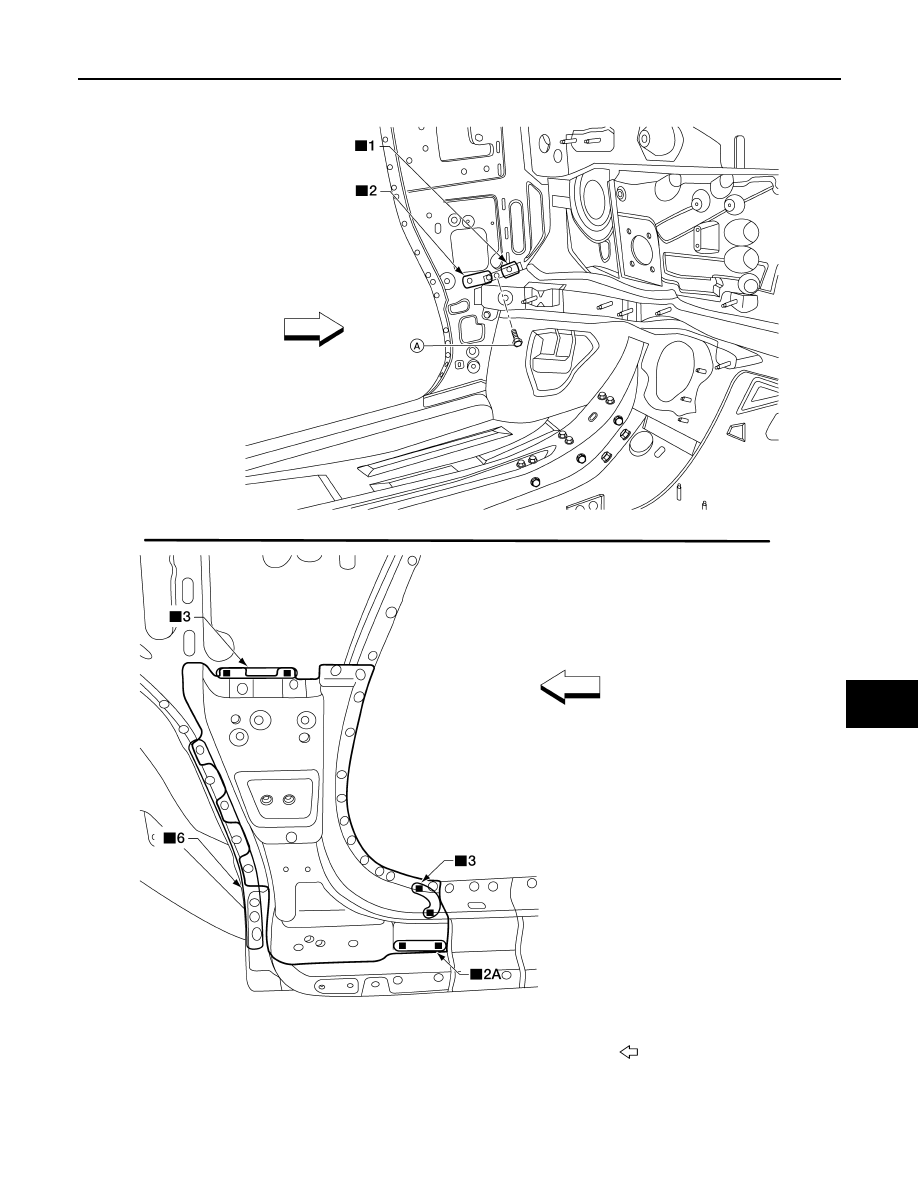

• Work after hinge pillar upper has been removed.

Replacement parts

z

Front pillar lower hinge brace

A. Bolt

Front

ALKIA2756ZZ

BRM-34

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

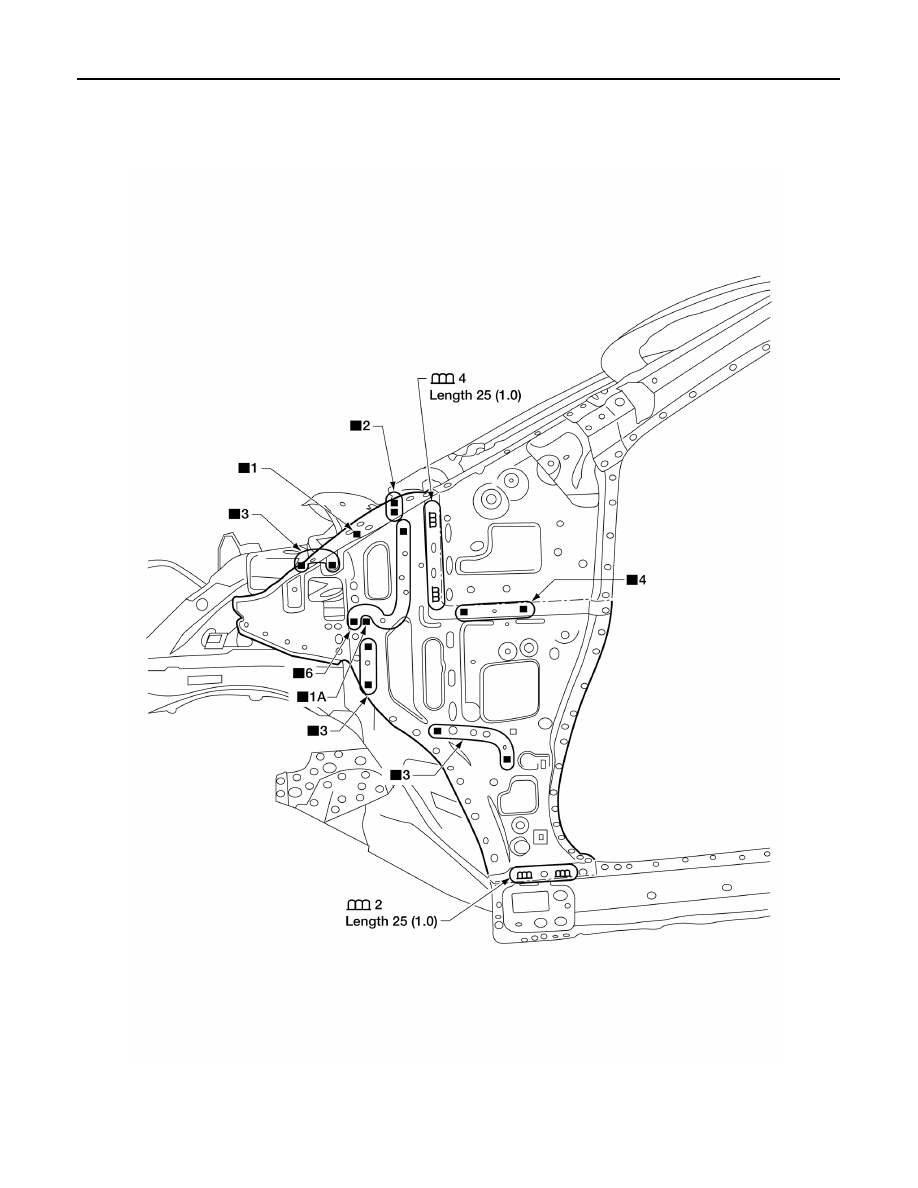

Dash Side

INFOID:0000000009176380

Work after the front pillar portion of body side inner reinforcement and the front pillar lower hinge brace have

been removed.

Unit: mm (in)

Replacement parts

z

Dash side

ALKIA2522ZZ

REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

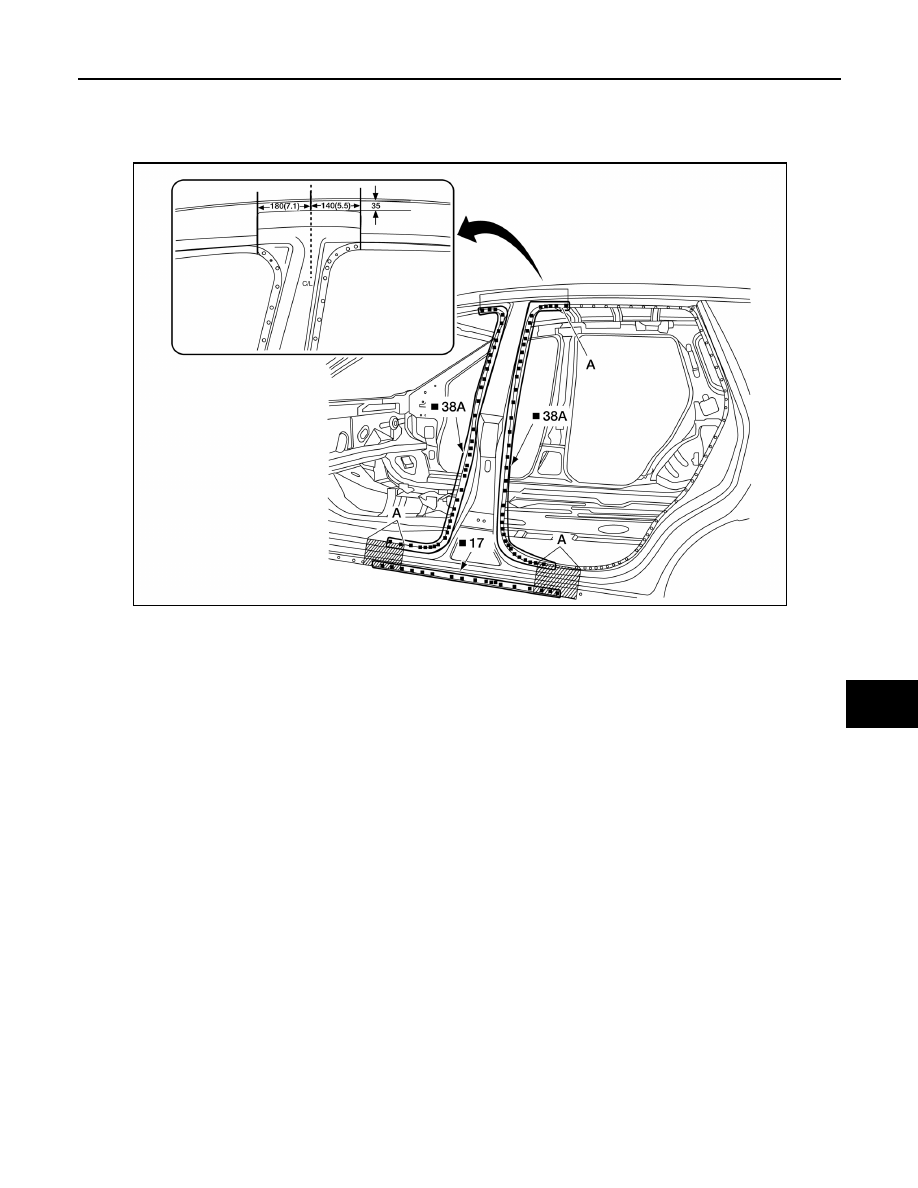

Center Pillar

INFOID:0000000009176381

OUTER

Unit: mm (in)

REINFORCEMENT

Work after center pillar portion of front body side outer has been removed.

Replacement parts
z

Center pillar portion of front body side outer

A. Recommended sectioning area

ALKIA2827ZZ

BRM-36

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Outer Sill Reinforcement

INFOID:0000000009176382

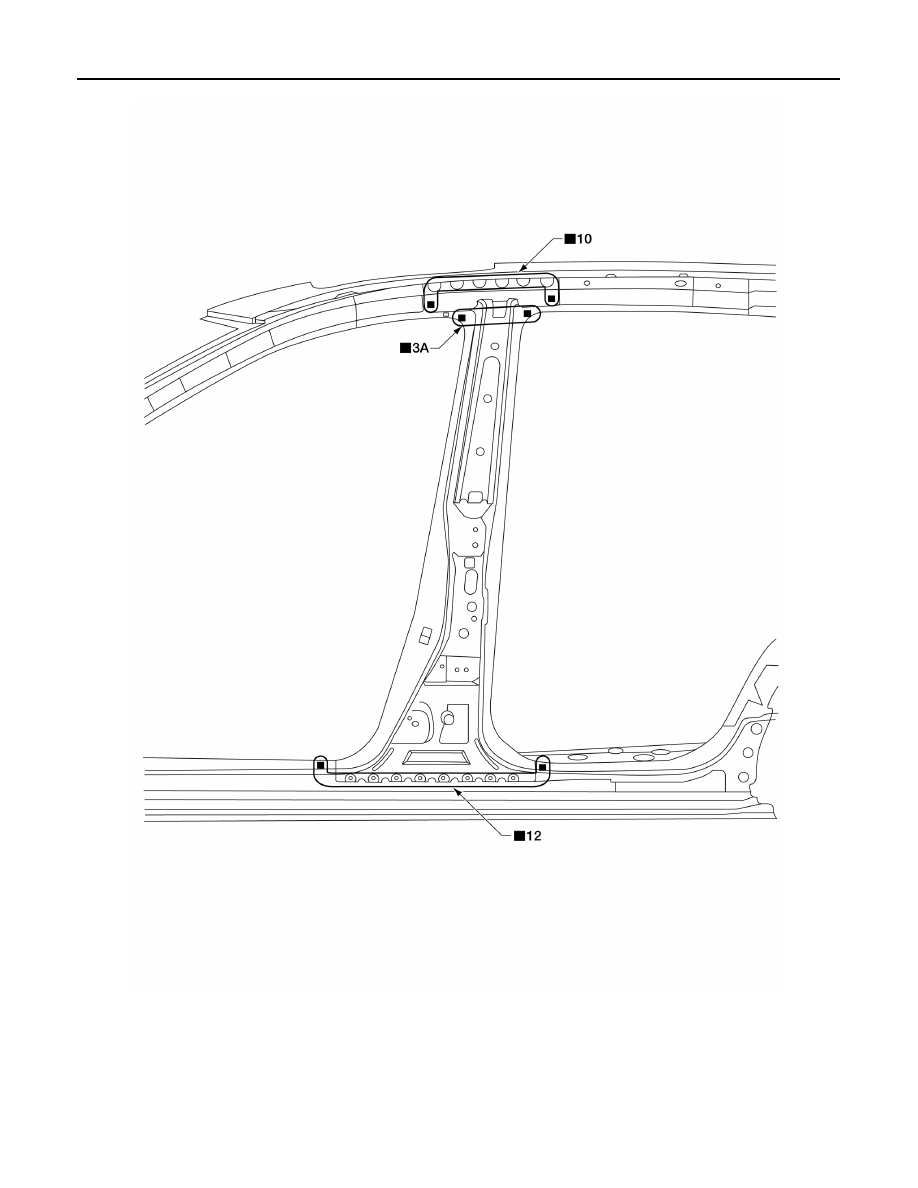

Work after the front pillar lower hinge brace and the center pillar reinforcement have been removed.

Replacement parts

z

Center pillar reinforcement

ALKIA2452ZZ
