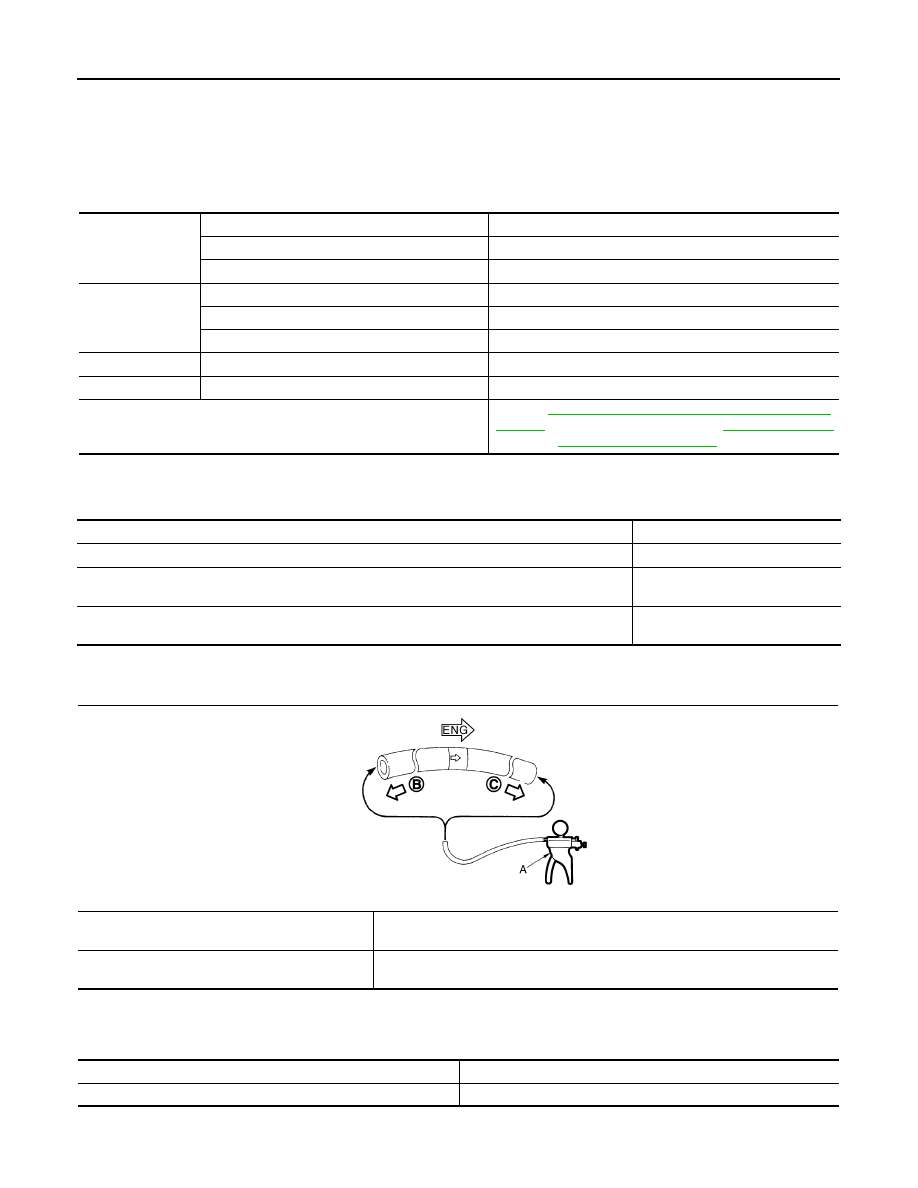

BR-48 < SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) General Specifications INFOID:0000000009177209 Unit: mm (in) Brake Pedal INFOID:0000000009177210 Unit: mm (in) Check Valve INFOID:0000000009177211 Brake Booster INFOID:0000000009177212 Unit: mm (in) Front brake Cylinder bore diameter 45.0 (1.772) × 2 Pad length × width × thickness 131.4 (5.173) × 53.0 (2.087) × 10.0 (0.394) Rotor outer diameter × thickness 320.0 (12.598) × 28.0 (1.102) Rear brake Cylinder bore diameter 42.86 (1.6874) Pad length × width × thickness 83.0 (3.268) × 33.0 (1.299) × 8.5 (0.335) Rotor outer diameter × thickness 308 (12.126) × 16.0 (0.630) Master cylinder Cylinder bore diameter 26.99 (1.063) Control valve Valve type Electric brake force distribution Recommended brake fluid MA-15, "FOR USA AND CANADA : Fluids and Lu- (United States and Canada) or (Mexico). Item Standard Brake pedal height (H 1 ) 214.2 – 224.2 (8.43 – 8.82) Clearance (A) between brake pedal bracket, stop lamp switch and ASCD cancel switch contact 0.74 – 1.96 (0.0291 – 0.0772) Depressed brake pedal height (H 2 ) [Depressing 490 N (50 kg, 110 lb) while turning the engine ON] 75.1 (2.96) When suitable tool (A) is connected to booster side 3.3 kPa (25 mmHg, 0.98 inHg) maximum vacuum loss for 15 seconds at vacuum of -66.7 kPa (-500 mmHg, -19.69 inHg) When suitable tool (A) is connected to engine side No vacuum should exist. JPFIA0024ZZ Item Standard Input rod length 127 (5.00) |
