Nissan Pathfinder. Manual - part 216

BCS

BCM

BCS-53

< ECU DIAGNOSIS INFORMATION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B261A: PUSH-BTN IGN SW

—

×

—

PCS-70, "DTC Logic"

B261B: RES ENG RUN

—

—

—

DLK-148, "DTC Logic"

B261E: VEHICLE TYPE

×

× (Turn ON for

15 seconds)

—

SEC-126, "Description"

B2621: INSIDE ANTENNA

—

—

—

DLK-149, "DTC Logic"

B2622: INSIDE ANTENNA

—

—

—

DLK-151, "DTC Logic"

B2623: INSIDE ANTENNA

—

—

—

DLK-153, "DTC Logic"

B26F1: IGNITION RELAY

—

—

—

PCS-72, "DTC Logic"

B26F2: IGNITION RELAY

—

—

—

PCS-74, "DTC Logic"

B26F3: STARTER CONTROL RELAY

—

—

—

SEC-128, "DTC Logic"

B26F4: STARTER CONTROL RELAY

—

—

—

SEC-129, "DTC Logic"

B26F6: BCM

—

—

—

PCS-76, "DTC Logic"

B26F7: BCM

—

—

—

SEC-130, "DTC Logic"

B26F8: BCM

—

—

—

SEC-131, "DTC Logic"

B26FD: SHIFT LOCK SOLENOID

—

—

—

DLK-155, "DTC Logic"

B26FE: HOOD SWITCH

—

—

—

DLK-158, "DTC Logic"

B26FF: REMOTE KEYLESS ENTRY RE-
CEIVER

—

—

—

DLK-160, "DTC Logic"

C1704: LOW PRESSURE FL

—

—

×

WT-33, "DTC Logic"

C1705: LOW PRESSURE FR

—

—

×

C1706: LOW PRESSURE RR

—

—

×

C1707: LOW PRESSURE RL

—

—

×

C1708: [NO DATA] FL

—

—

×

WT-35, "DTC Logic"

C1709: [NO DATA] FR

—

—

×

C1710: [NO DATA] RR

—

—

×

C1711: [NO DATA] RL

—

—

×

C1712: [CHECKSUM ERR] FL

—

—

×

WT-38, "DTC Logic"

C1713: [CHECKSUM ERR] FR

—

—

×

C1714: [CHECKSUM ERR] RR

—

—

×

C1715: [CHECKSUM ERR] RL

—

—

×

C1716: [PRESSDATA ERR] FL

—

—

×

WT-40, "DTC Logic"

C1717: [PRESSDATA ERR] FR

—

—

×

C1718: [PRESSDATA ERR] RR

—

—

×

C1719: [PRESSDATA ERR] RL

—

—

×

C1720: [CODE ERR] FL

—

—

×

WT-41, "DTC Logic"

C1721: [CODE ERR] FR

—

—

×

C1722: [CODE ERR] RR

—

—

×

C1723: [CODE ERR] RL

—

—

×

C1724: [BATT VOLT LOW] FL

—

—

×

WT-43, "DTC Logic"

C1725: [BATT VOLT LOW] FR

—

—

×

C1726: [BATT VOLT LOW] RR

—

—

×

C1727: [BATT VOLT LOW] RL

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

×

WT-45, "DTC Logic"

CONSULT display

Fail-safe

Intelligent Key

warning lamp

ON

Tire pressure

monitor warning

lamp ON

Reference page

BCS-54

< ECU DIAGNOSIS INFORMATION >

[BCM]

BCM

C1730: FLAT TIRE FL

—

—

×

WT-46, "DTC Logic"

C1731: FLAT TIRE FR

—

—

×

C1732: FLAT TIRE RR

—

—

×

C1733: FLAT TIRE RL

—

—

×

C1734: CONTROL UNIT

—

—

×

WT-48, "DTC Logic"

C1735: IGNTION SIGNAL

—

—

×

WT-50, "DTC Logic"

CONSULT display

Fail-safe

Intelligent Key

warning lamp

ON

Tire pressure

monitor warning

lamp ON

Reference page

BCS

BCM

BCS-55

< WIRING DIAGRAM >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

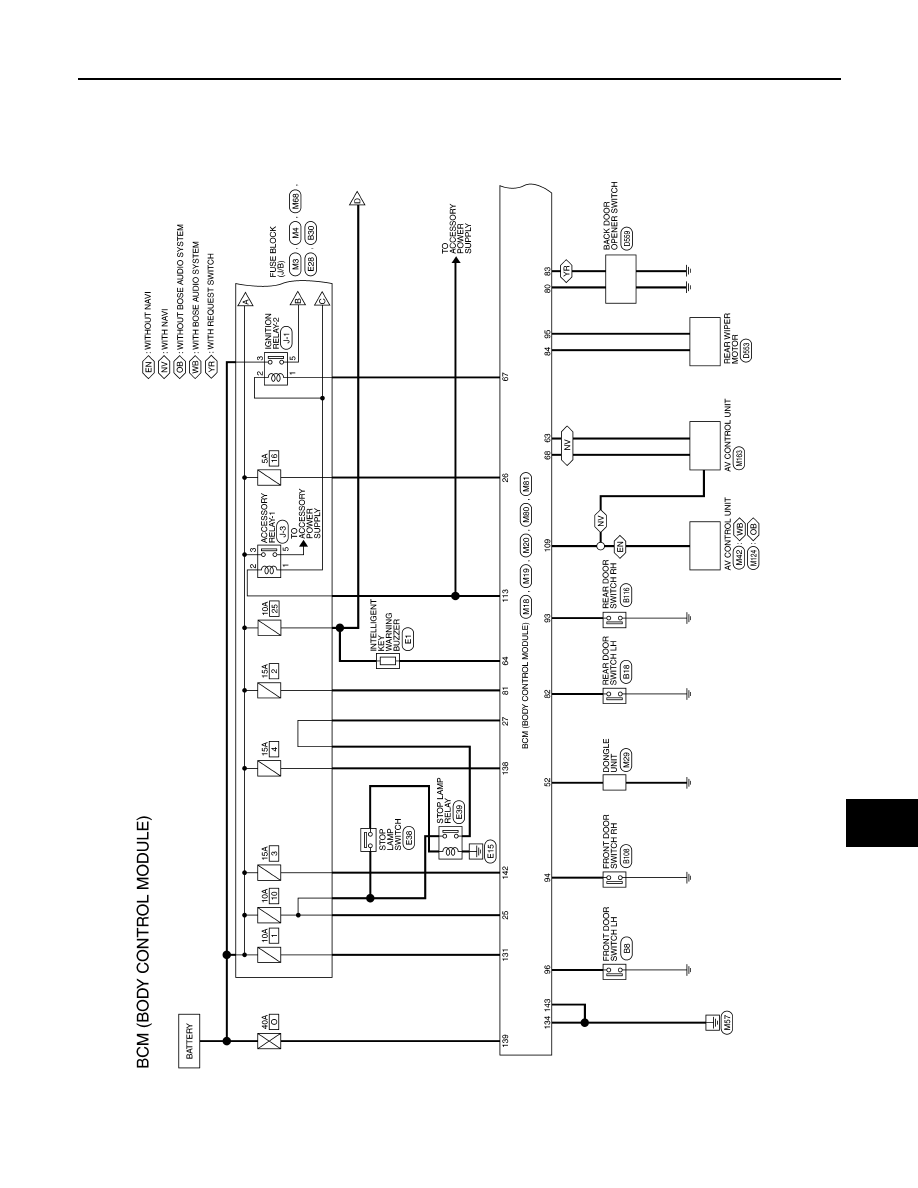

WIRING DIAGRAM

BCM

Wiring Diagram

INFOID:0000000009174895

ABMWA2110GB

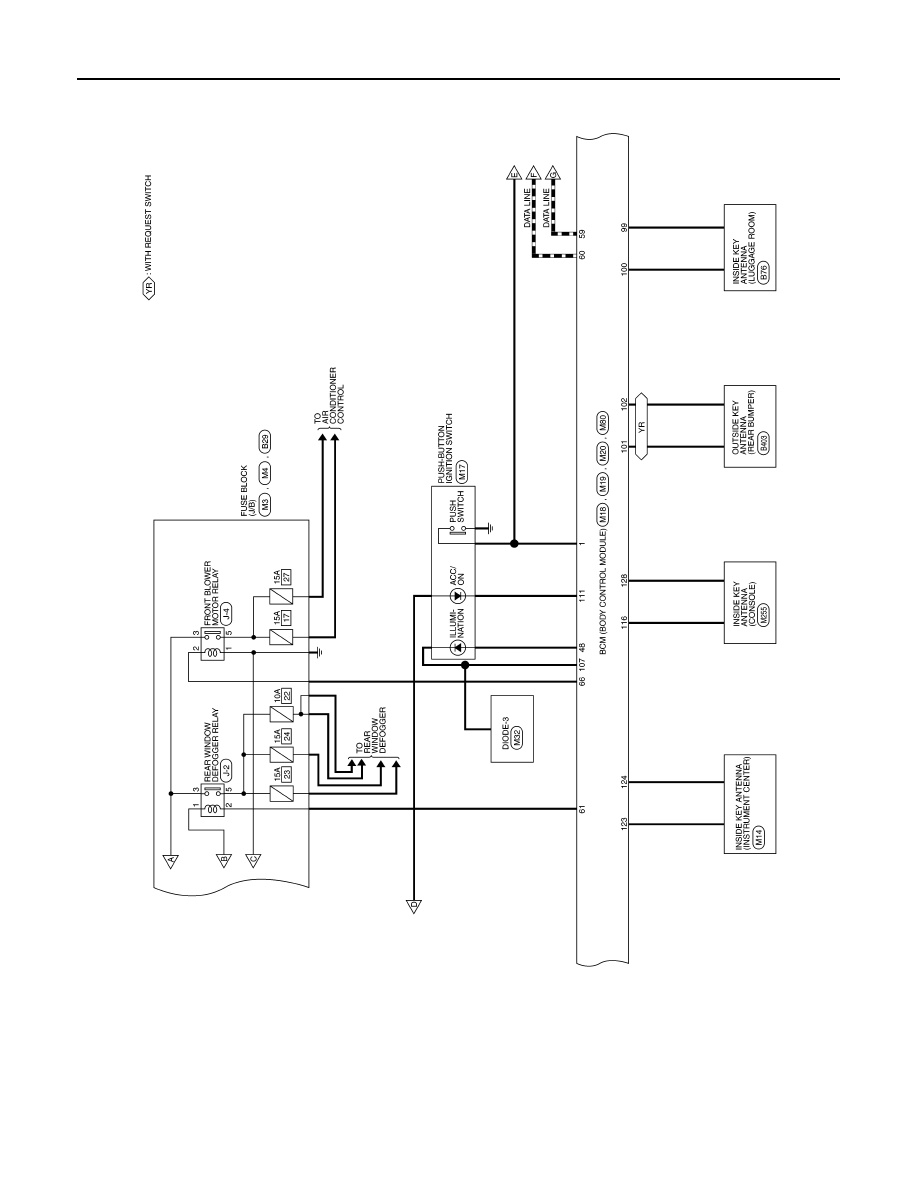

BCS-56

< WIRING DIAGRAM >

[BCM]

BCM

ABMWA2111GB
