C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

YES

>> Perform DTC CONFIRMATION PROCEDURE again. Refer to

WT-33, "DTC Logic"

.

NO

>> GO TO 3.

3.

CHECK TIRE PRESSURE SIGNAL

 With CONSULT

1. Adjust tire pressure for all wheels to the specified value. Refer to

WT-65, "Tire Air Pressure"

.

2. Select Data Monitor from AIR PRESSURE MONITOR of BCM.

3. Check that the air pressures match the specified value.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace malfunctioning components.

Monitor item

Displayed value

AIR PRESS FL

Approximately equal to value indicated on tire gauge for front LH tire

AIR PRESS FR

Approximately equal to value indicated on tire gauge for front RH tire

AIR PRESS RR

Approximately equal to value indicated on tire gauge for rear RH tire

AIR PRESS RL

Approximately equal to value indicated on tire gauge for rear LH tire

C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)

WT-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)

DTC Logic

INFOID:0000000009177437

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM SELF DIAGNOSTIC RESULT

 With CONSULT

1. Perform tire pressure sensor ID registration. Refer to

WT-30, "Work Procedure"

.

2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for

10 minutes.

NOTE:

Avoid driving in areas with radio interference.

3. Perform Self Diagnostic Result.
Is DTC C1708, C1709, C1710, or C1711 detected?

YES

>> Proceed to

WT-35, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009177438

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

Regarding Wiring Diagram information, refer to

WT-14, "Wiring Diagram - With Individual Tire Pressure Dis-

play"

 or

WT-23, "Wiring Diagram - Without Individual Tire Pressure Display"

.

1.

CHECK TIRE PRESSURE SIGNAL

 With CONSULT

1. Select Data Monitor from AIR PRESSURE MONITOR of BCM.

2. Check that the air pressures match the specified value.

CONSULT Display

DTC Detection Condition

Possible Cause

[NO - DATA] - FL
[C1708]

Data signal from the front LH wheel sensor cannot
be detected.

• Driving in area with radio interference.
• ID registration incomplete
• Tire pressure sensor
• Harness or connectors
• Remote keyless entry receiver
• BCM

[NO - DATA] - FR
[C1709]

Data signal from the front RH wheel sensor cannot
be detected.

[NO - DATA] - RR
[C1710]

Data signal from the rear RH wheel sensor cannot
be detected.

[NO - DATA] - RL
[C1711]

Data signal from the rear LH wheel sensor cannot
be detected.

WT-36

< DTC/CIRCUIT DIAGNOSIS >

C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)

Are all tire pressures displayed 0 kPa (psi)?

YES

>> GO TO 2.

NO

>> Replace applicable tire pressure sensor. Refer to

BCS-80, "Removal and Installation"

.

2.

CHECK REMOTE KEYLESS ENTRY RECEIVER POWER CIRCUIT

Check voltage between remote keyless entry receiver connector M86 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

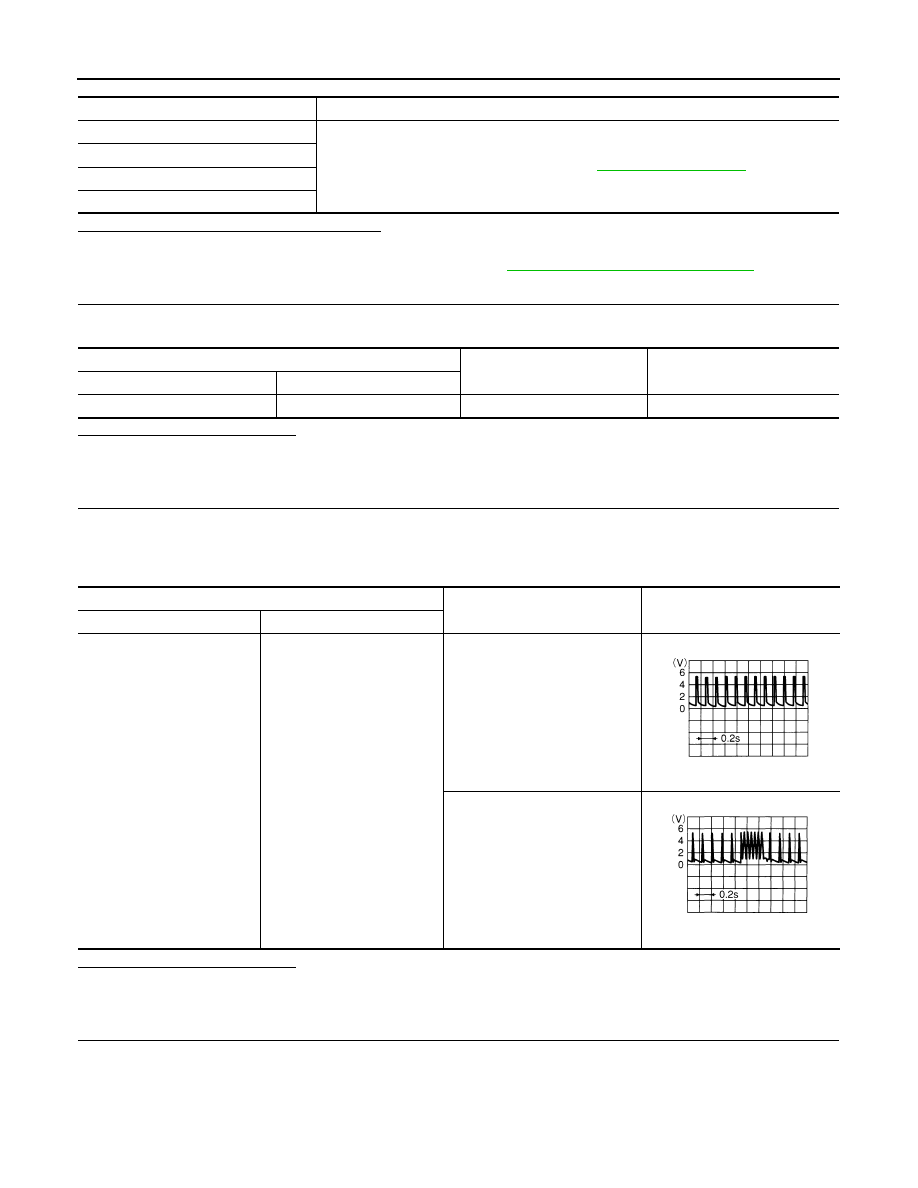

CHECK REMOTE KEYLESS ENTRY RECEIVER SIGNAL

1. Turn ignition switch ON.

2. Check signal between remote keyless entry receiver connector M86 terminal 2 and ground with an oscillo-

scope.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 4.

4.

CHECK REMOTE KEYLESS ENTRY RECEIVER SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector M80 and remote keyless entry receiver connector.

3. Check continuity between BCM connector M80 terminal 119 and remote keyless entry receiver connector

M86 terminal 2.

Monitor item

Displayed value

AIR PRESS FL

Approximately equal to specified value. Refer to

WT-65, "Tire Air Pressure"

.

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL

Remote keyless entry receiver

Ground

Voltage

(Approx.)

Connector

Terminal

M86

1

—

Battery voltage

Remote keyless entry receiver

Condition

Voltage

(Approx.)

Connector

Terminal

M86

2

Standby state

When receiving the signal from
the transmitter

OCC3881D

OCC3880D

C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)

WT-37

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

4. Check continuity between BCM connector M80 terminal 119 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT

Check continuity between remote keyless entry receiver connector M86 terminal 3 and ground.

Is the inspection result normal?

YES

>> Replace the remote keyless entry receiver. Refer to

WT-64, "Removal and Installation"

.

NO

>> Repair or replace harness or connectors.

6.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to

WT-30, "Work Procedure"

.

Can the tire pressure sensor ID registration be completed?

YES

>> GO TO 7.

NO

>> Replace applicable tire pressure sensor. Refer to

WT-61, "Removal and Installation"

.

7.

RECHECK TIRE PRESSURE SIGNAL

 With CONSULT

1. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for

10 minutes.

2. Select Data Monitor from AIR PRESSURE MONITOR of BCM.

3. Check that the air pressures match the specified value.

Does Data Monitor display specified value without turning tire pressure warning lamp ON?

YES

>> Inspection End.

NO

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

BCM

Remote keyless entry receiver

Continuity

Connector

Terminal

Connector

Terminal

M80

119

M86

2

Yes

BCM

Ground

Continuity

Connector

Terminal

M80

119

—

No

Remote keyless entry receiver

Ground

Continuity

Connector

Terminal

M86

3

—

Yes

Monitor item

Displayed value

AIR PRESS FL

Approximately equal to specified value. Refer to

WT-65, "Tire Air Pressure"

.

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL
