34. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
35. Select “CONFORM CVTF DETERIORTN”.
36. Select “Erase”.
37. Stop the engine.

Adjustment

INFOID:0000000009177645

CAUTION:

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be main-

tained from 35 to 45

°C (95 to 113°F).

• During adjustment of the CVT fluid level, check that the engine speed is maintaining 500 rpm.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40

°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the

“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.

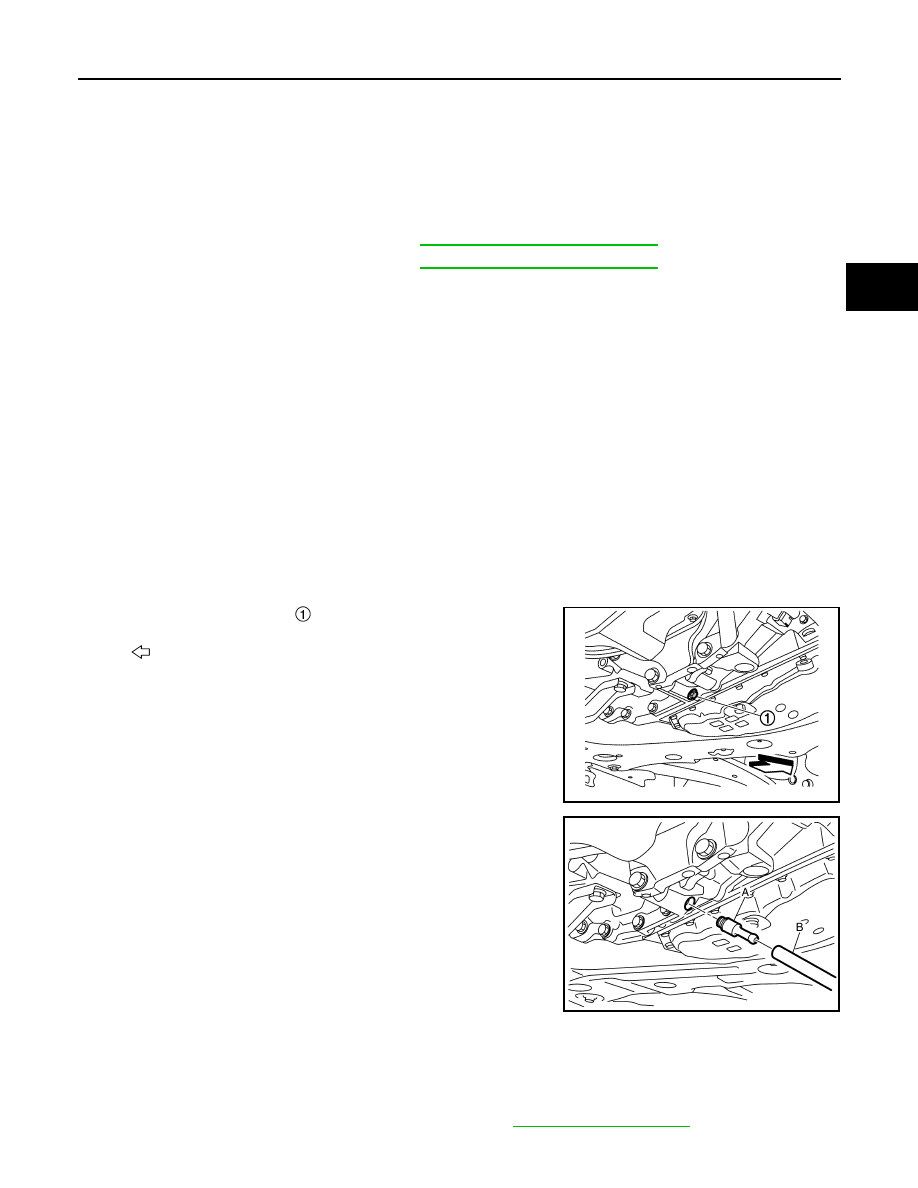

7. Remove the overflow plug   from converter housing.

8. Install the charging pipe set (KV311039S0) (A) into the overflow

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 0.5 liter (1/2 US qt, 1/2 lmp qt) of the CVT

fluid.

11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it

does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the converter housing.
13. Tighten the overflow plug to the specified torque. Refer to

TM-197, "Exploded View"

.

CAUTION:

CVT fluid

: Refer to

TM-219, "General Specification"

.

Fluid capacity

: Refer to

TM-219, "General Specification"

.

: Vehicle front

JSDIA3714ZZ

JSDIA3713ZZ

TM-188

< PERIODIC MAINTENANCE >

[CVT: RE0F10E]

CVT FLUID

Never reuse O-ring.

14. Lift down the vehicle.
15. Stop the engine.

CVT SHIFT SELECTOR

TM-189

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

Exploded View

INFOID:0000000009177646

Removal and Installation

INFOID:0000000009177647

REMOVAL

1. Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

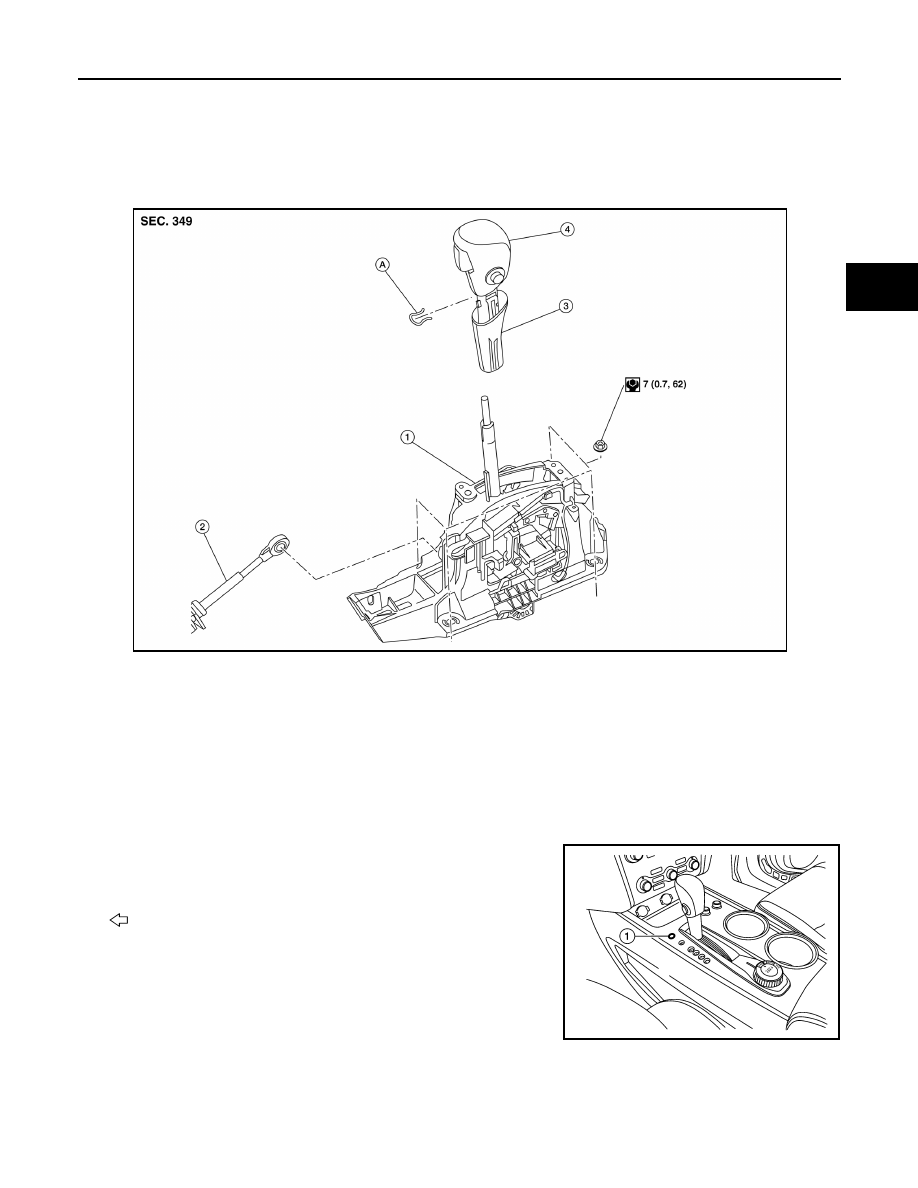

2. Remove shift lock override button cover (1) using suitable tool,

and insert suitable tool into opening to depress the shift lock

override button. Move shift selector to "N" position while

depressing shift lock override button.

: Front

1.

CVT shift selector assembly

2.

Control cable

3.

Shift selector handle cover

4

Shift selector handle

A.

Shift selector handle clip

AWDIA1064ZZ

ALDIA0393ZZ

TM-190

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

CVT SHIFT SELECTOR

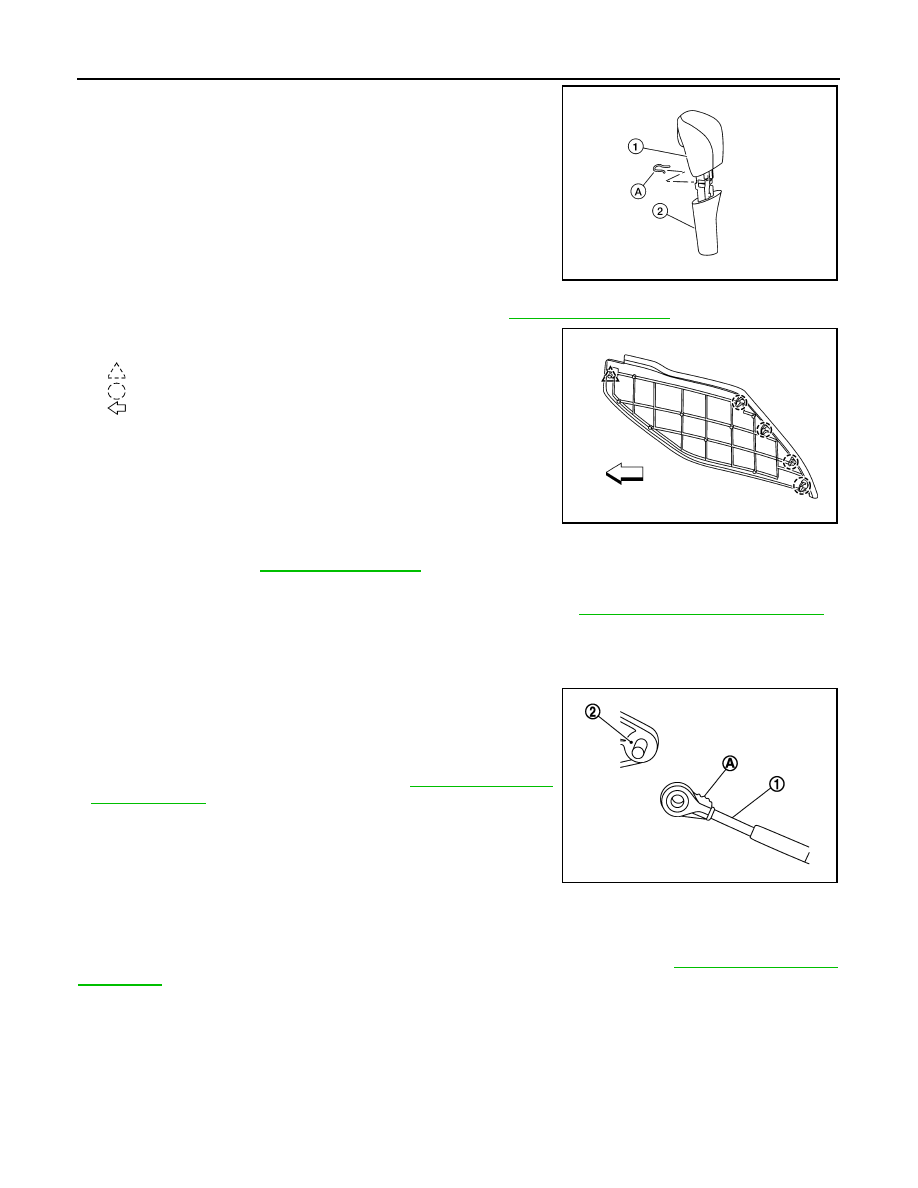

3. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a suitable tool

from the base of the shift selector handle (1).

b. Remove the shift selector handle clip (A).
c.

Pull upward and remove the shift selector handle (1).

4. Remove center console upper side finisher (LH). Refer to

IP-18, "Exploded View"

.

5. Release center console side finisher (LH/RH) clip and pawls

using a suitable tool and remove.

: Clip
: Pawl

: Front

6. Release shift selector finisher clips and pawls using a suitable tool, disconnect the harness connectors

and remove. Refer to

IP-18, "Exploded View"

.

7. Release the harness clip, then disconnect the harness connector from shift selector.
8. Remove the control cable from the shift selector assembly. Refer to

TM-191, "Removal and Installation"

.

9. Remove the four shift selector assembly nuts and the shift selector assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• When installing control cable (1) to the shift selector assembly (2),

check that control cable is fully pressed in until it stops with the

ribbed surface (A) facing upward.

NOTE:

Apply multi-purpose grease to control cable eye before installation.

• Adjust control cable as necessary. Refer to

TM-192, "Inspection

and Adjustment"

.

Inspection

INFOID:0000000009177648

INSPECTION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-88, "Inspection and

Adjustment"

.

ALDIA0353ZZ

ALJIA1257ZZ

JSDIA1624ZZ
