PANIC ALARM FUNCTION DOES NOT OPERATE

Description

INFOID:0000000009176073

NOTE:

• Before performing the diagnosis following procedure, check “Work Flow”. Refer to

SEC-71, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis and

check each symptom.

CONDITIONS OF VEHICLE (OPERATION CONDITIONS)

• Ignition switch is in OFF or LOCK position.

• Intelligent Key is removed from key slot.

Diagnosis Procedure

INFOID:0000000009176074

1.

CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.
Does door lock/unlock with Intelligent Key button?

YES

>> GO TO 2.

NO

>> Go to

DLK-238, "Diagnosis Procedure"

.

2.

CHECK VEHICLE SECURITY ALARM OPERATION

Check vehicle security alarm operation.
Does alarm (headlamps and horns) active?

YES

>> GO TO 3.

NO

>> Go to

SEC-14, "VEHICLE SECURITY SYSTEM : System Description"

.

3.

CHECK “PANIC ALARM SET” SETTING IN “WORK SUPPORT”

Check “PANIC ALARM SET” setting in “WORK SUPPORT”.

Refer to

BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Set “PANIC ALARM SET” setting in “WORK SUPPORT”.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

NO

>> GO TO 1.

SEC-144

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

NATS ANTENNA AMP.

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

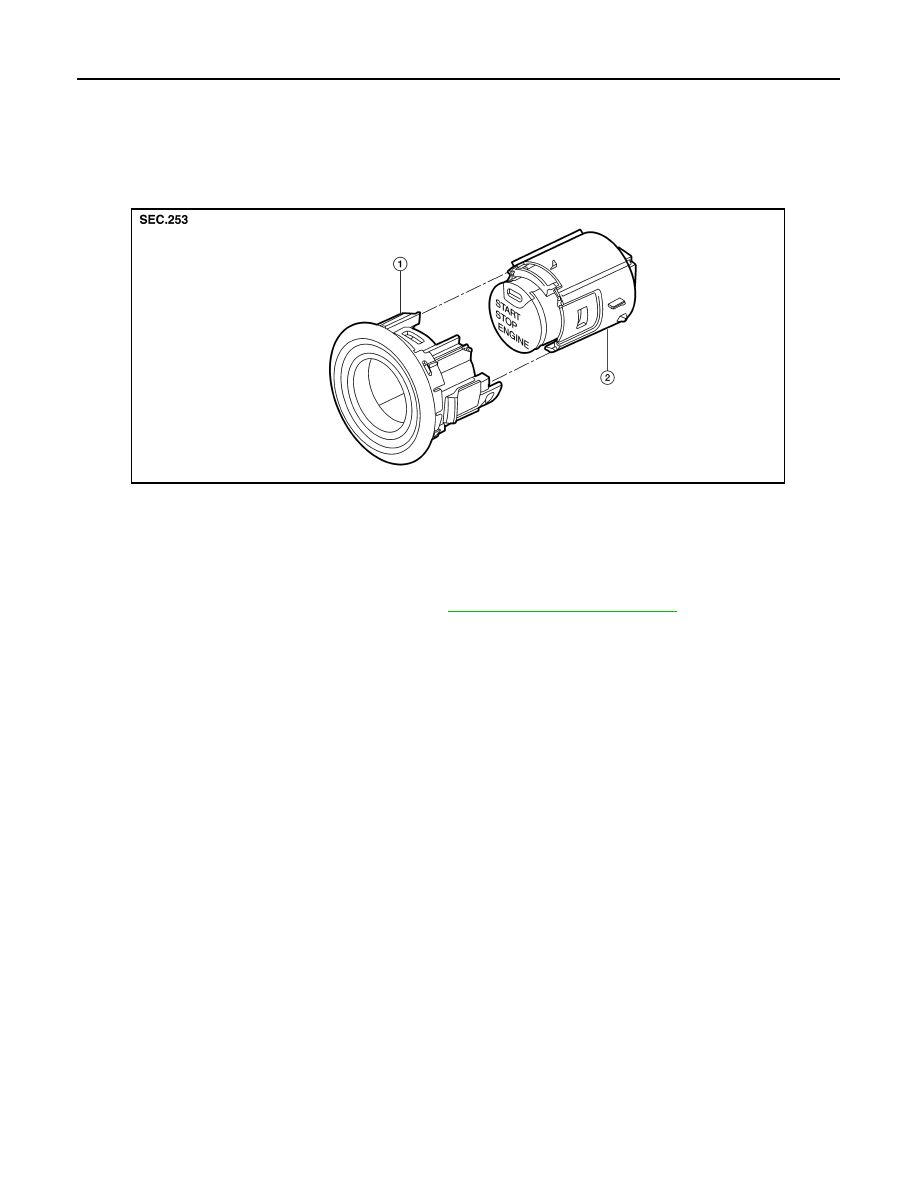

Exploded View

INFOID:0000000009176075

Removal and Installation

INFOID:0000000009176076

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

2. Disconnect the harness connector from the NATS antenna amp and the push button ignition switch.
3. Release the pawl on each side of NATS antenna amp and remove from the instrument pad (LH).
4. Release the pawl on each side and remove the NATS antenna amp from the push-button ignition switch.

INSTALLATION

Installation is in the reverse order of removal.

1.

NATS antenna amp.

2.

Push-button ignition switch

ALKIA2470ZZ

PUSH-BUTTON IGNITION SWITCH

SEC-145

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

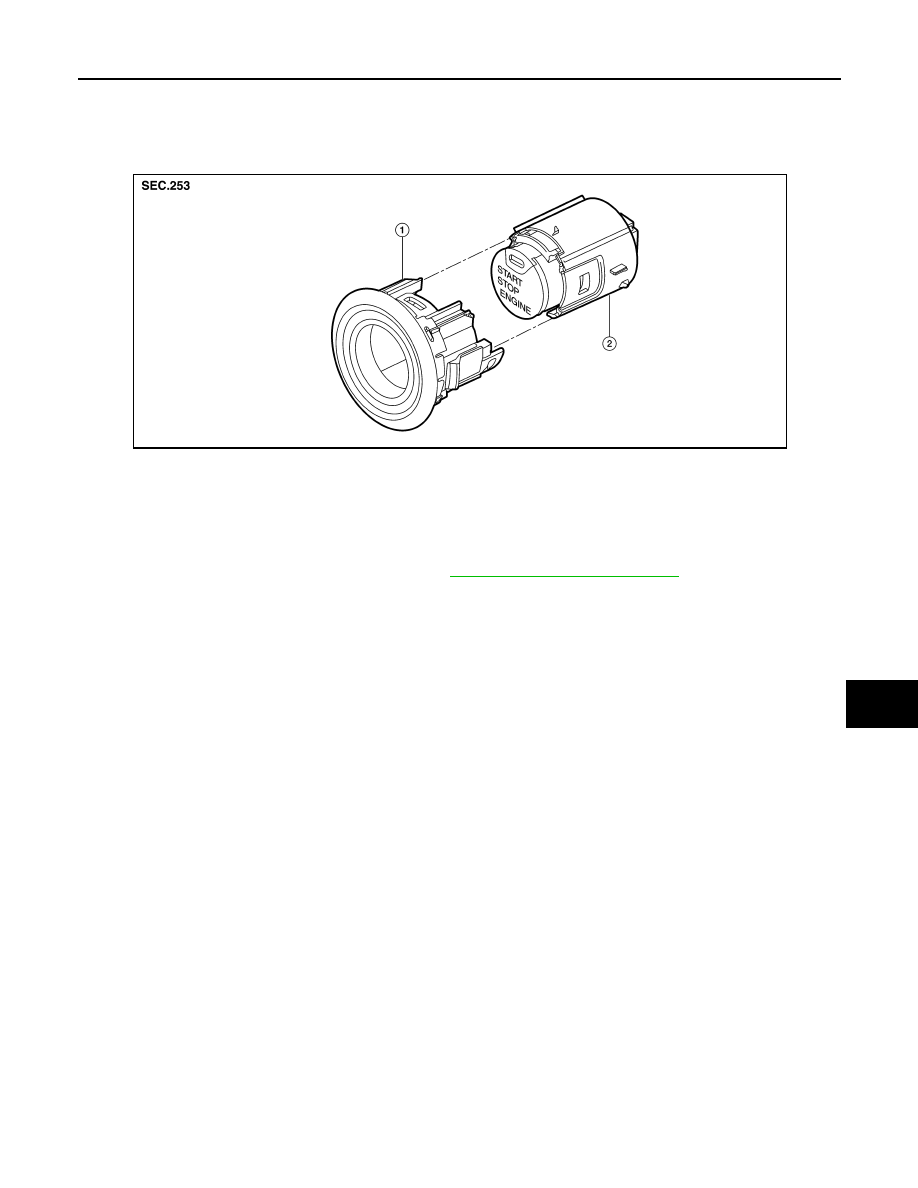

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000009176077

Removal and Installation

INFOID:0000000009176078

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

2. Disconnect the harness connector from the NATS antenna amp and the push button ignition switch.
3. Release the pawl on each side of NATS antenna amp and remove from the instrument pad (LH).
4. Release the pawl on each side and remove the NATS antenna amp from the push-button ignition switch.

INSTALLATION

Installation is in the reverse order of removal.

1.

NATS antenna amp.

2.

Push-button ignition switch

ALKIA2470ZZ

SEC-146

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

IMMOBILIZER CONTROL MODULE

IMMOBILIZER CONTROL MODULE

Removal and Installation

INFOID:0000000009176079

The immobilizer control module is integrated into the body control module (BCM). For removal and installation,

refer to

BCS-80, "Removal and Installation"

.
