FRONT SEAT

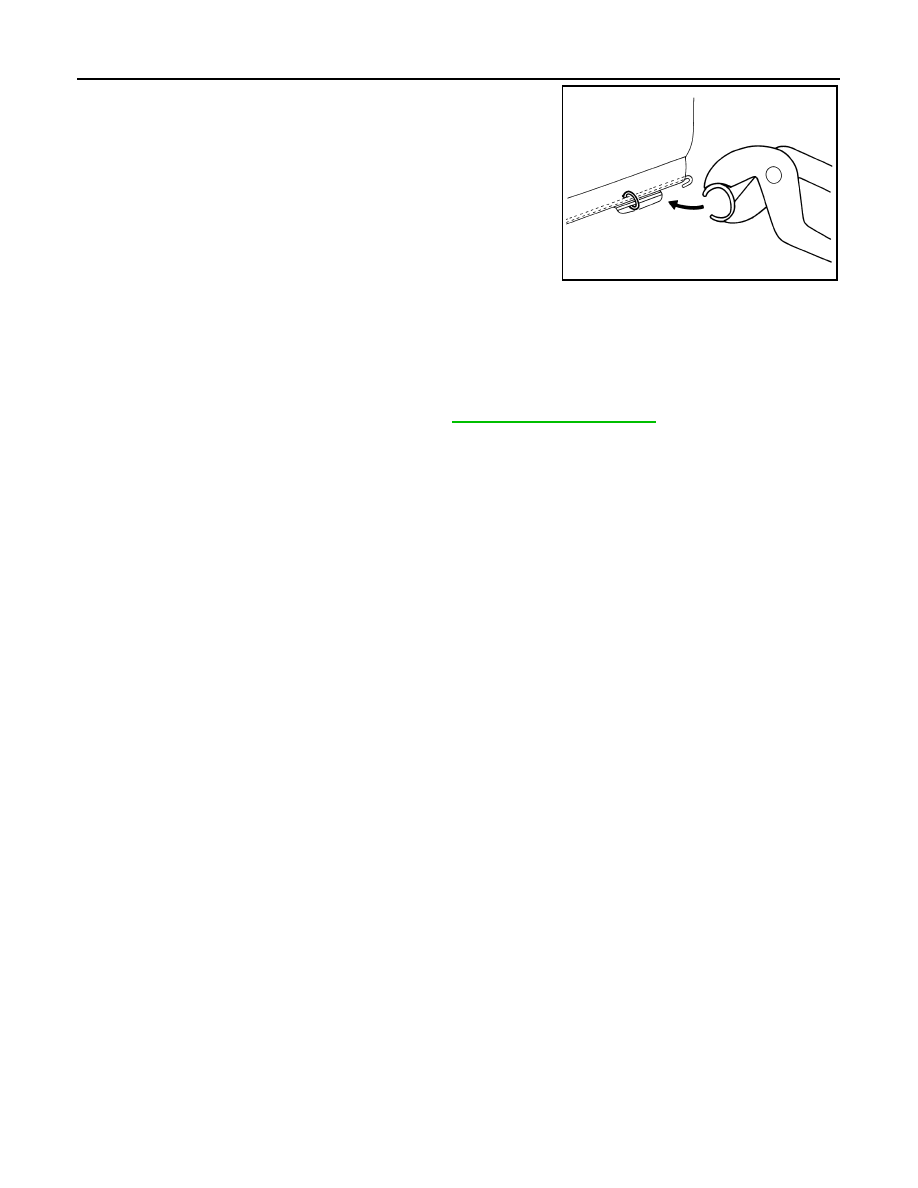

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

CAUTION:

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-16, "SRS Final Check"

.

PIIB3356J

SECOND ROW SEAT

SE-123

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SECOND ROW SEAT

Exploded View

INFOID:0000000009727792

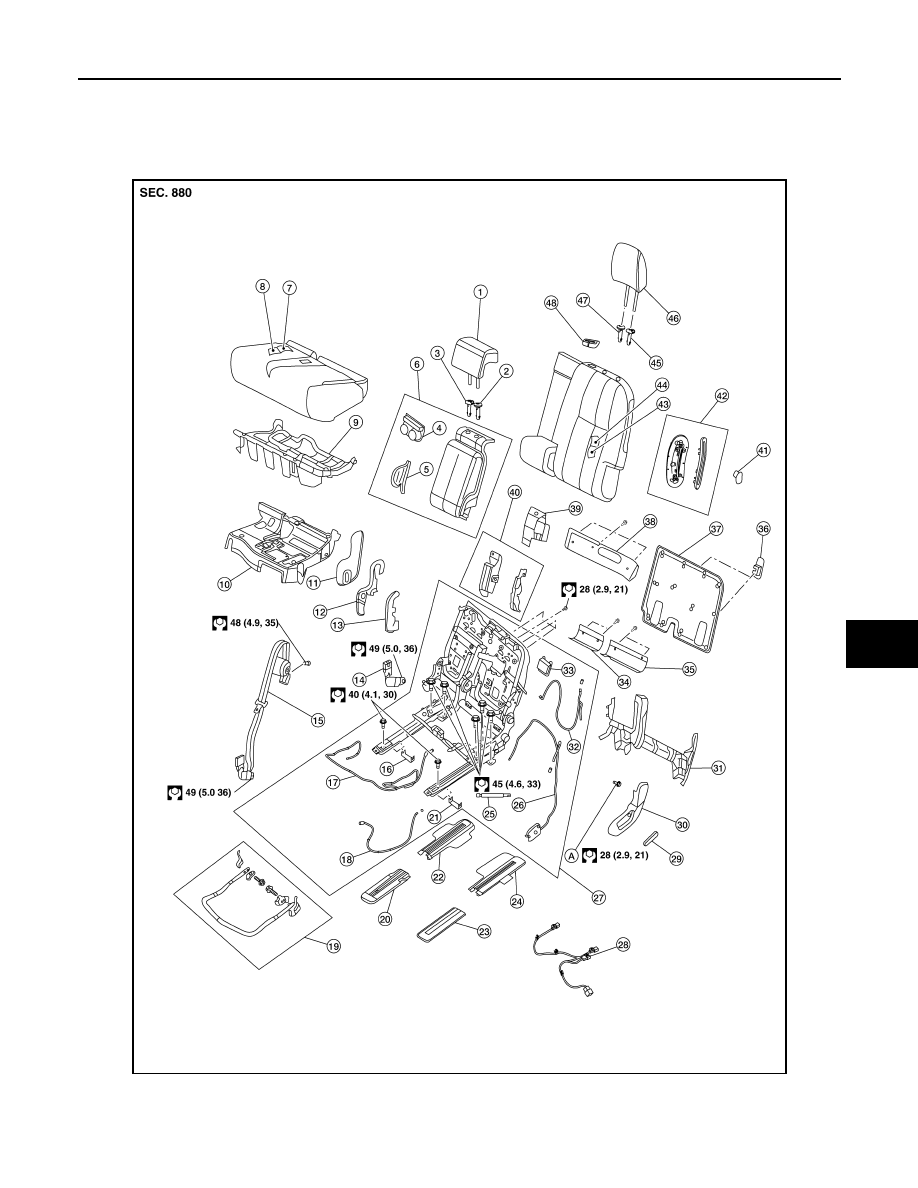

LH SEAT

AWJIA1000ZZ

1.

Headrest (RH)

2.

Headrest holder (free) (RH)

3.

Headrest holder (locked) (RH)

4.

Cup holder

5.

Armrest hinge finisher

6.

Armrest assembly

SE-124

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion frame

10

Seat cushion latch finisher

11. Outer finisher (RH)

12. Inner finisher (RH)

13. Recline finisher (center)

14. Seat belt buckle (RH)

15. Seat belt retractor (center)

16. Seat slide clip (RH)

17. Seat slide release cable

18. Seat cushion release cable

19. Seat slide control lever assembly

20. Front slide finisher (RH)

21. Seat slide clip (LH)

22. Rear slide finisher (RH)

23. Front slide finisher (LH)

24. Rear slide finisher (LH)

25. Support strut

26. Recline release cable assembly

27. Seat frame assembly

28. Seat harness

29. Recline lever

30. Seat cushion outer finisher LH

31. Rear finisher

32. EZ entry cable

33. Dampener

34. Trim stiffener (RH)

35. Trim stiffener (LH)

36. Tether anchor finisher

37. Seatback board

38. EPP upper panel

39. Seat belt retractor finisher

40. Support finisher (RH)

41. EZ entry lever finisher

42. EZ entry finisher

43. Seatback pad

44. Seatback trim

45. Headrest holder (locked) (LH)

46. Headrest (LH)

47. Headrest holder (free) (LH)

48. Seat belt retractor finisher

A.

Seat cushion pivot bolt

SECOND ROW SEAT

SE-125

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

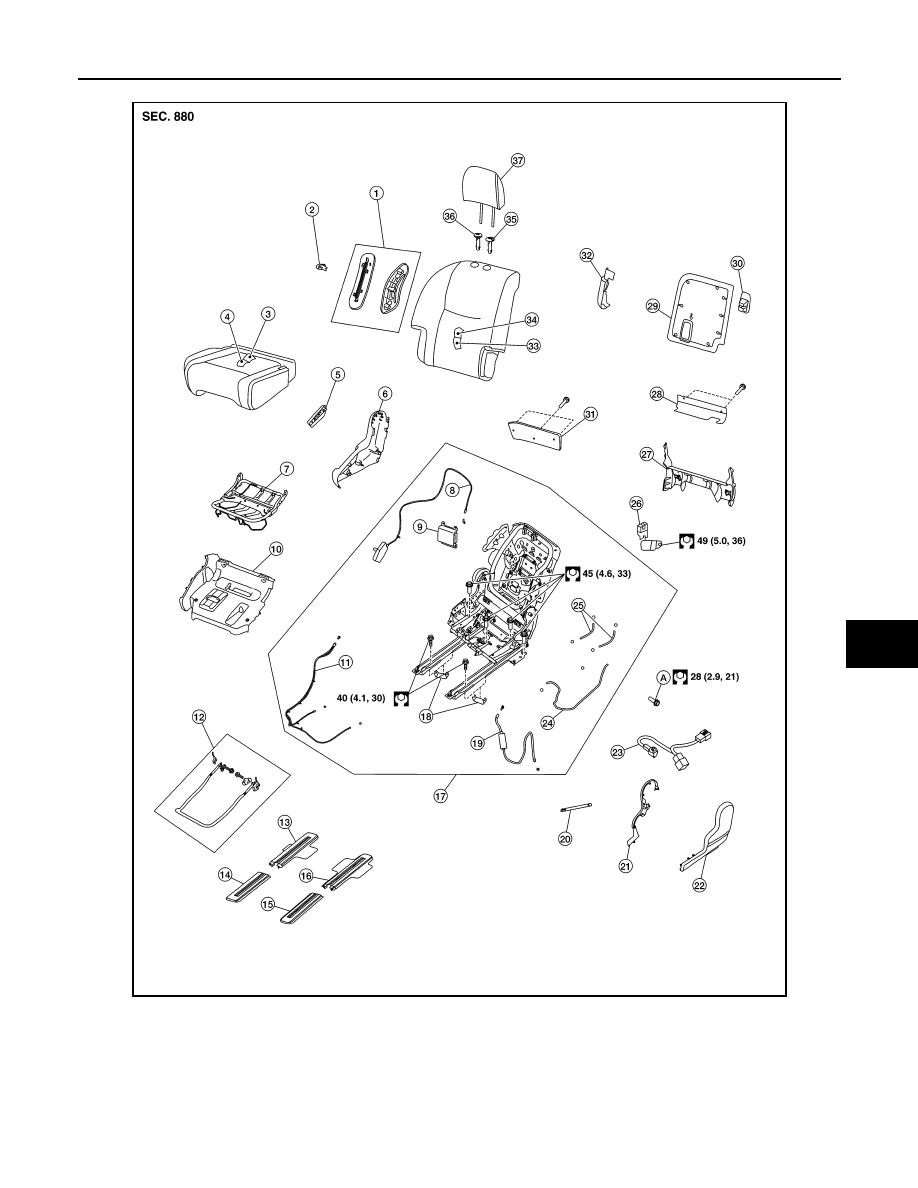

RH SEAT

AWJIA0985ZZ

1.

EZ entry finisher

2.

EZ entry lever finisher

3.

Seat cushion trim

4.

Seat cushion pad

5.

Recline lever

6.

Seat cushion outer finisher (RH)

7.

Seat cushion frame

8.

Recline release cable assembly

9.

Dampener

10. Seat cushion latch finisher

11. Track tilt release cable

12. Seat slide control lever assembly

13. Rear slide finisher (RH)

14. Front slide finisher (RH)

15. Front slide finisher (LH)

16. Rear slide finisher (LH)

17. Seat frame assembly

18. Seat slide clip
