Nissan Pathfinder. Manual - part 15

ADP-52

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER SYSTEM

ABJIA0807GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-53

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

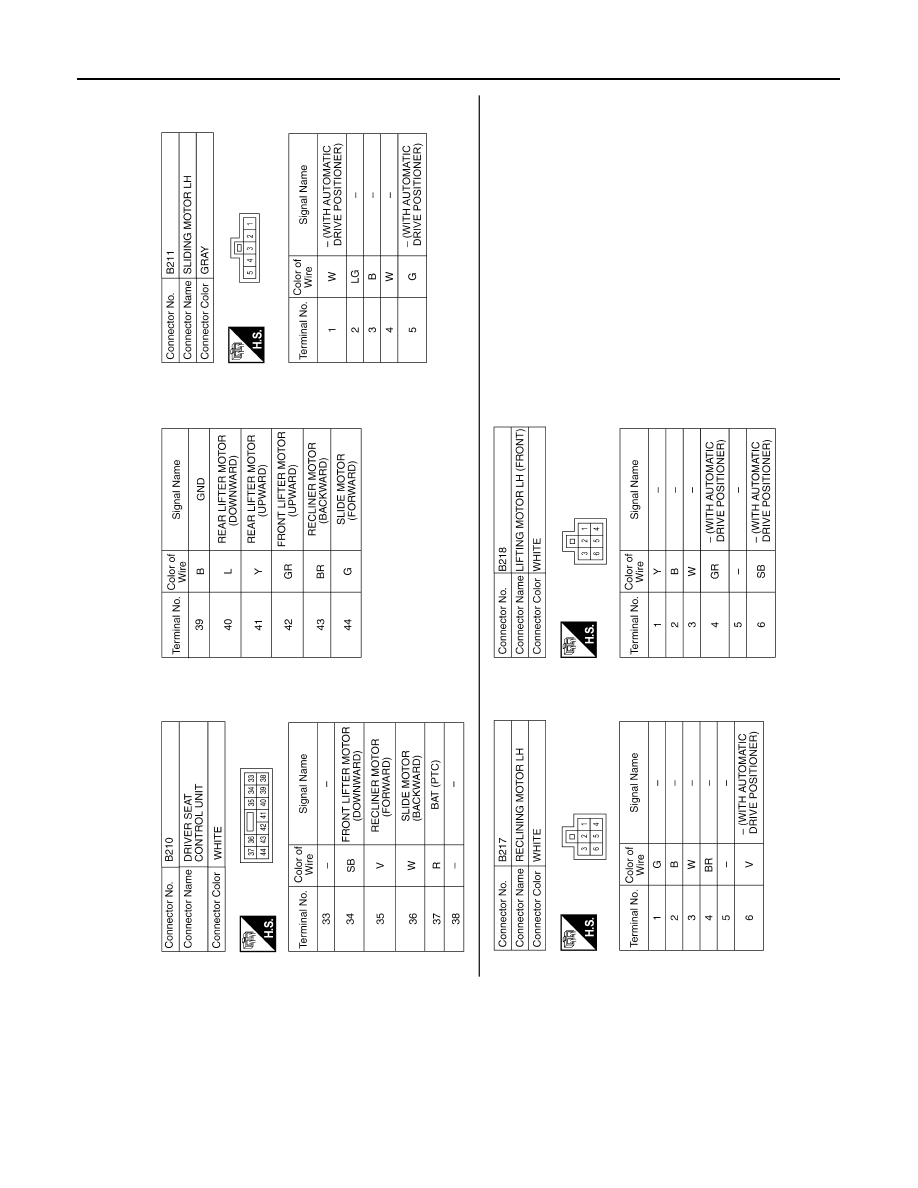

ABJIA0808GB

ADP-54

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER SYSTEM

WITH AROUND VIEW MONITOR

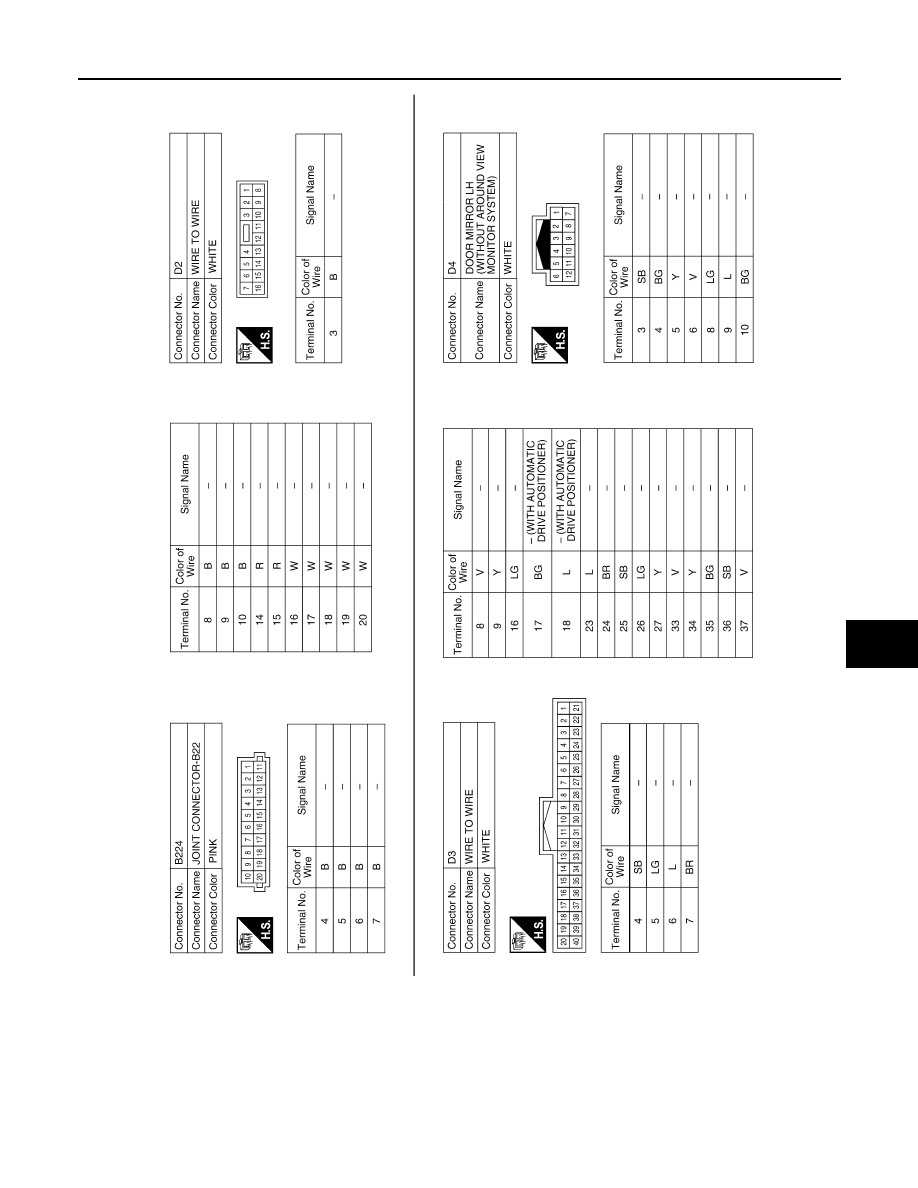

ABJIA0809GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

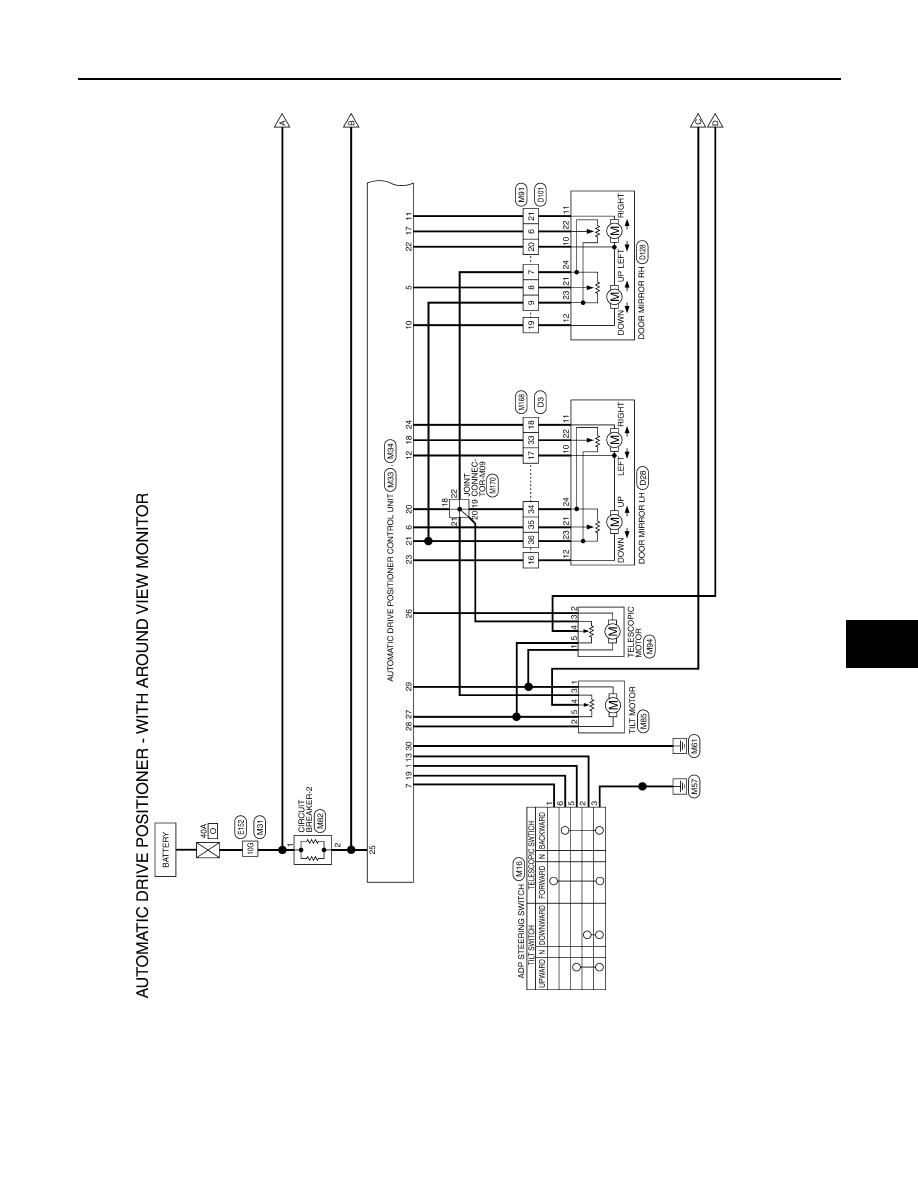

WITH AROUND VIEW MONITOR : Wiring Diagram

INFOID:0000000009176542

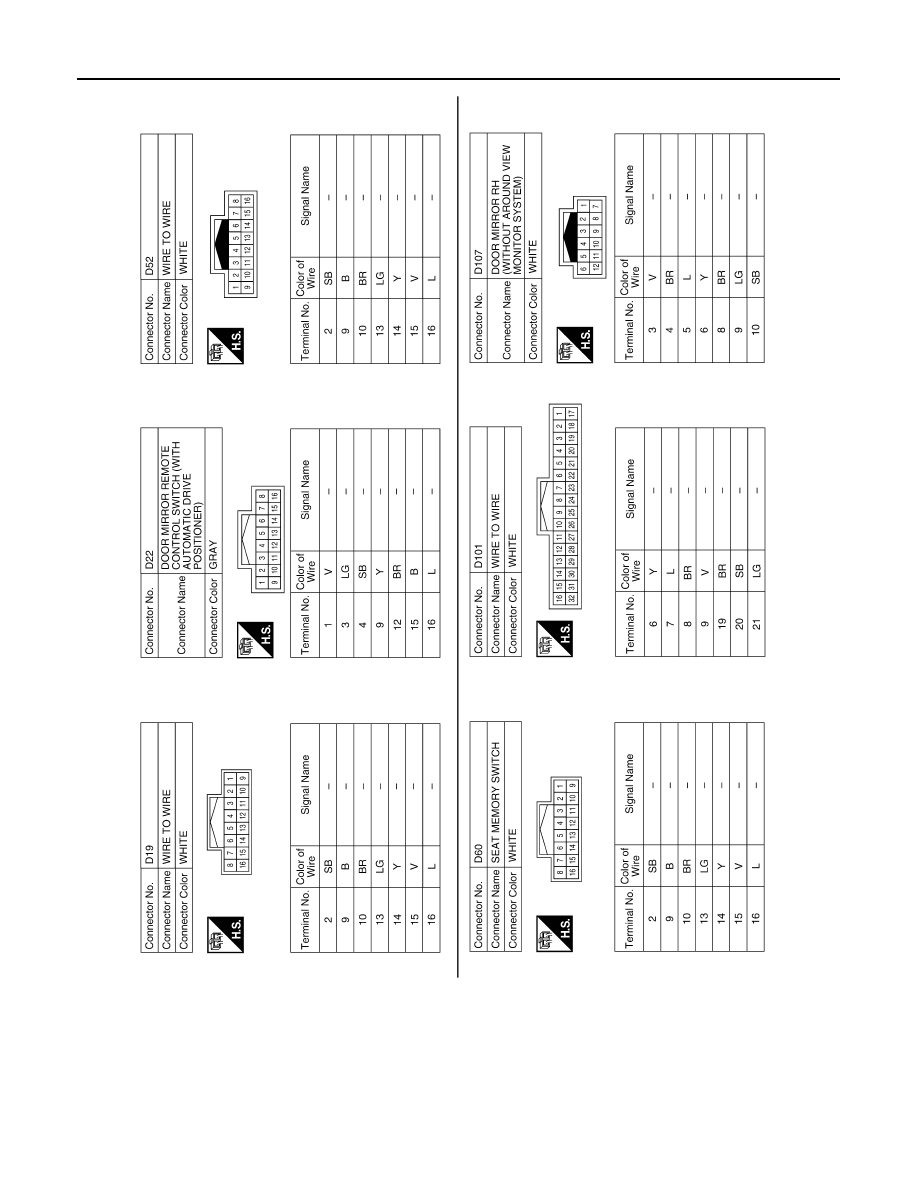

ABJWA0343GB
