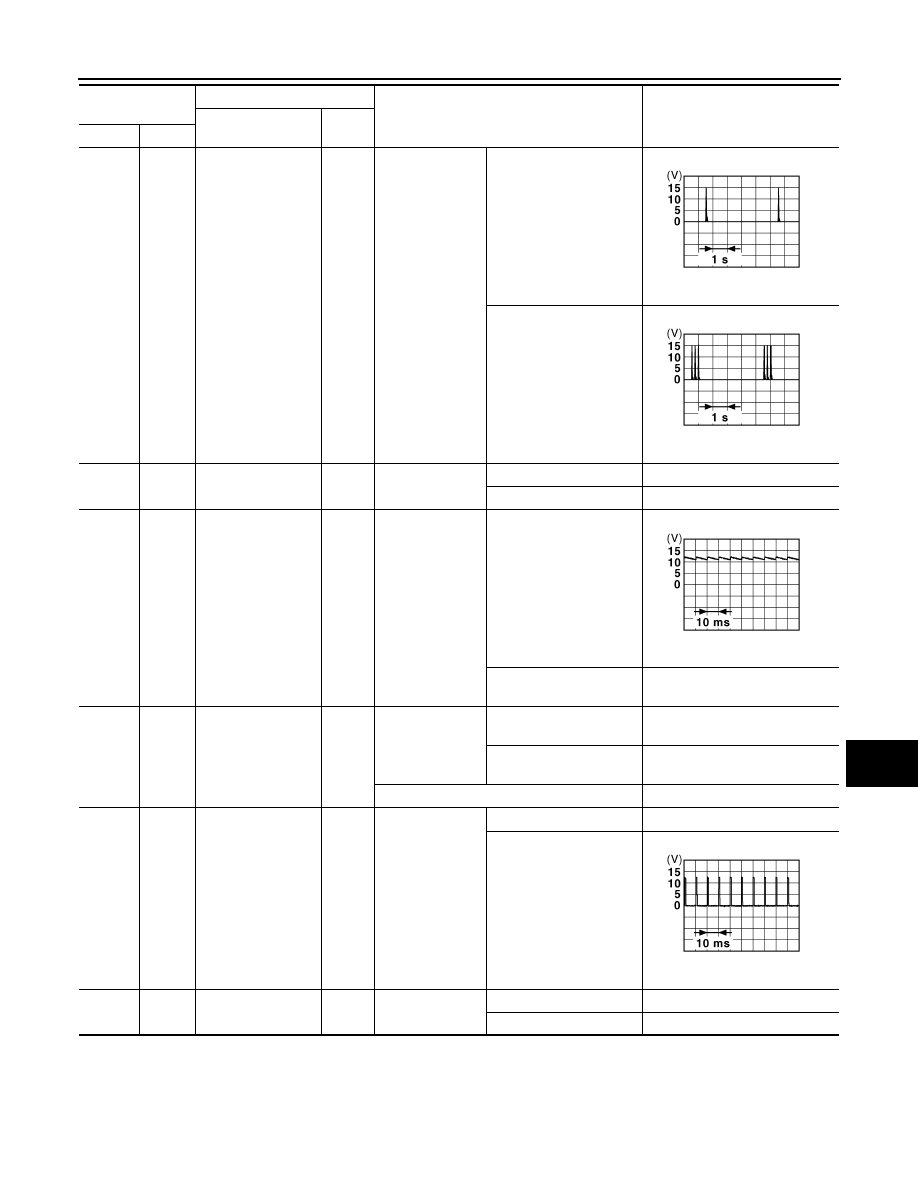

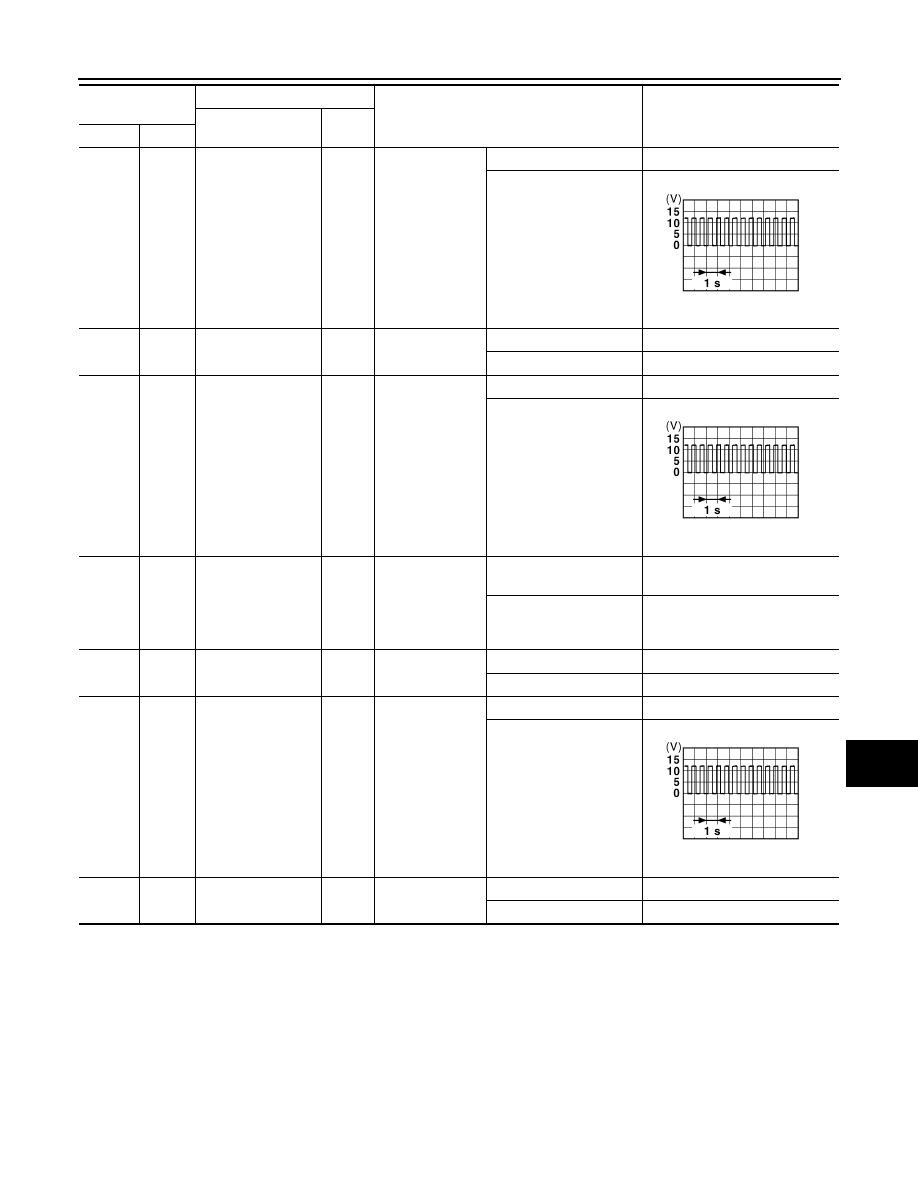

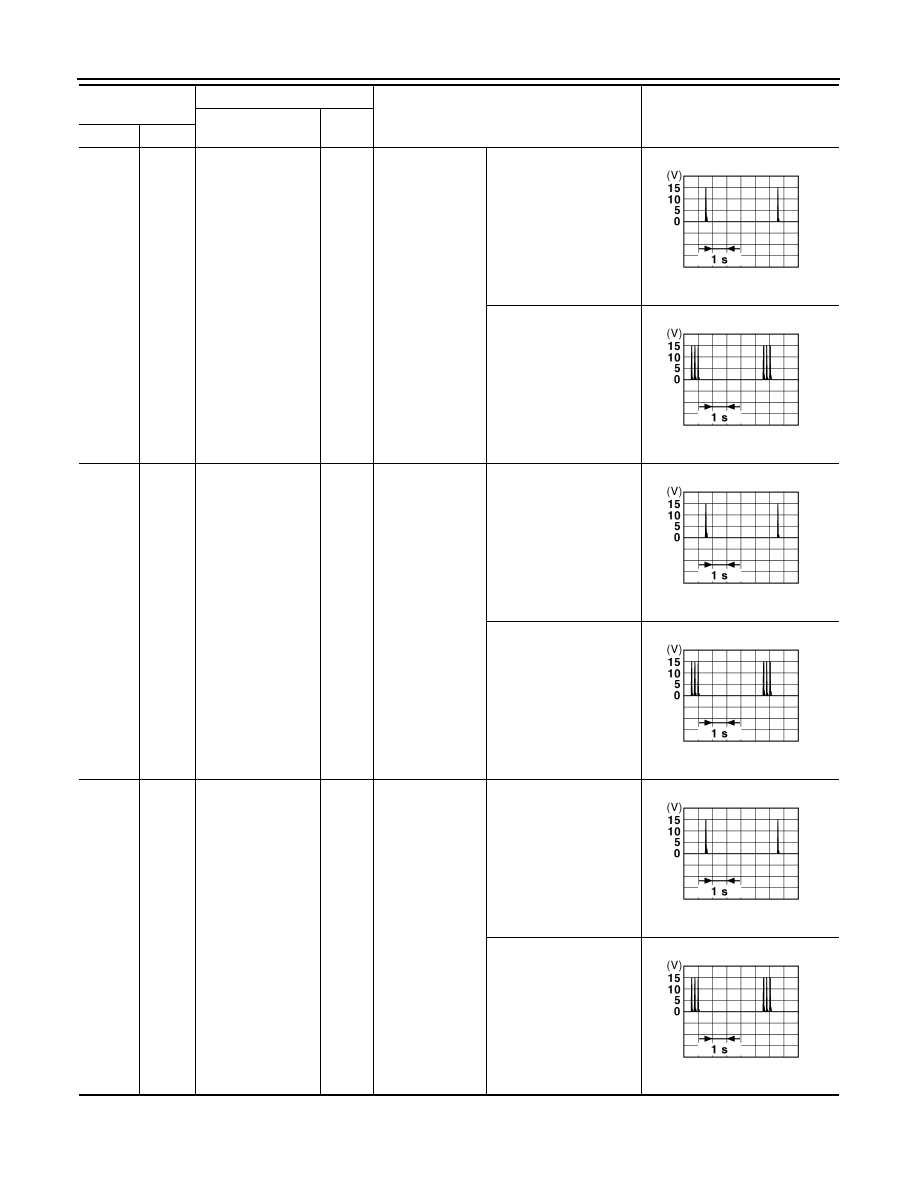

INL-58 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) PHYSICAL VALUES Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + – 1 (W/B) Ground Battery power sup- Input Ignition switch OFF Battery voltage 2 (R/Y) Ground P/W power supply Output Ignition switch OFF Battery voltage 3 (L/W) Ground P/W power supply Output Ignition switch ON Battery voltage 4 (P/W) Ground Interior room lamp Output Interior room lamp battery saver is activated. 0 V Interior room lamp battery saver is not activat- Battery voltage 5 (G/Y) Ground Passenger door Output Passenger door UNLOCK (Actuator is ac- Battery voltage Other than UNLOCK (Ac- 0 V 7 (R/W) Ground Step lamp Output Step lamp ON 0 V OFF Battery voltage 8 (V) Ground All doors LOCK Output All doors LOCK (Actuator is acti- Battery voltage Other than LOCK (Actua- 0 V 9 (G) Ground Driver door UN- Output Driver door UNLOCK (Actuator is ac- Battery voltage Other than UNLOCK (Ac- 0 V 10 (G/Y) Ground Rear RH door and Output Rear RH door UNLOCK (Actuator is ac- Battery voltage Other than UNLOCK (Ac- 0 V 11 (Y/R) Ground Battery power sup- Input Ignition switch OFF Battery voltage 13 (B) Ground Ground — Ignition switch ON 0 V 15 (Y) Ground ACC indicator lamp Output Ignition switch OFF (LOCK indicator is Battery voltage ACC or ON 0 V 17 (G/B) Ground Turn signal RH Output Ignition switch Turn signal switch OFF 0 V Turn signal switch RH 6.5 V PKID0926E |
