EM-60

< ON-VEHICLE REPAIR >

TIMING CHAIN

• Align dowel pin and pin hole on camshafts with the groove and dowel pin on sprockets, and install them.
• On the intake side, align pin hole on the small diameter side of the camshaft front end with dowel pin on

the back side of camshaft sprocket, and install them.

• On the exhaust side, align dowel pin on camshaft front end with pin groove on camshaft sprocket, and

install them.

• In case that positions of each mating mark and each dowel pin are not fit on mating parts, make fine

adjustment to the position holding the hexagonal portion on camshaft with wrench or equivalent.

• Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is

enough to prevent the dislocation of dowel pins.

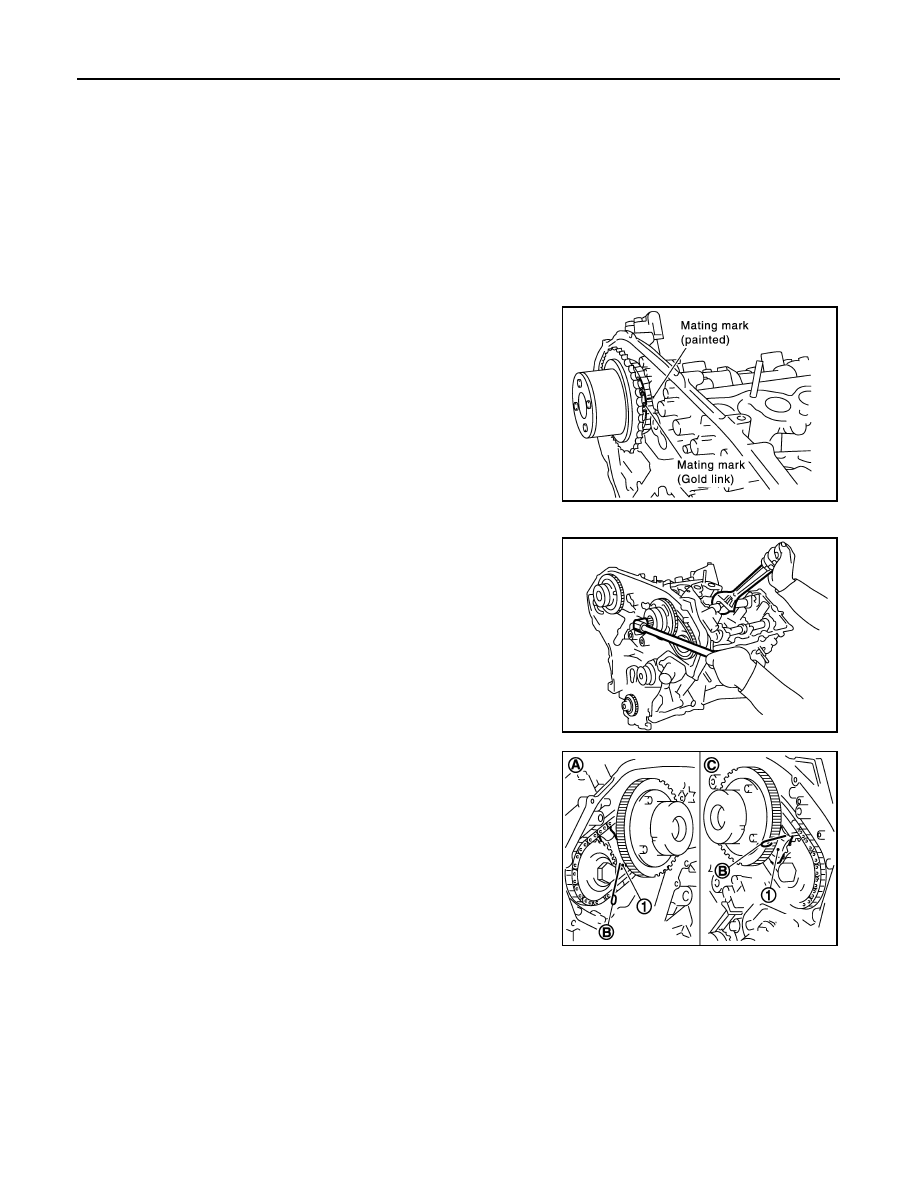

• It may be difficult to visually check the dislocation of mating

marks during and after installation. To make the matching eas-
ier, make a mating mark on the top of sprocket teeth and its
extended line in advance with paint.

c.

After confirming the mating marks are aligned, tighten camshaft sprocket mounting bolts.
• Secure camshaft using wrench at the hexagonal portion to

tighten mounting bolts.

d.

Pull stopper pins (B) out from timing chain tensioners (second-
ary) (1).

4.

Install tension guide.

5.

Install timing chain (primary) as follows:

Bank 1

: Use circle type.

Bank 2

: Use oval type.

PBIC0891E

KBIA1698J

A

:  Bank  1

C

:  Bank  2

JPBIA1727ZZ

TIMING CHAIN

EM-61

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

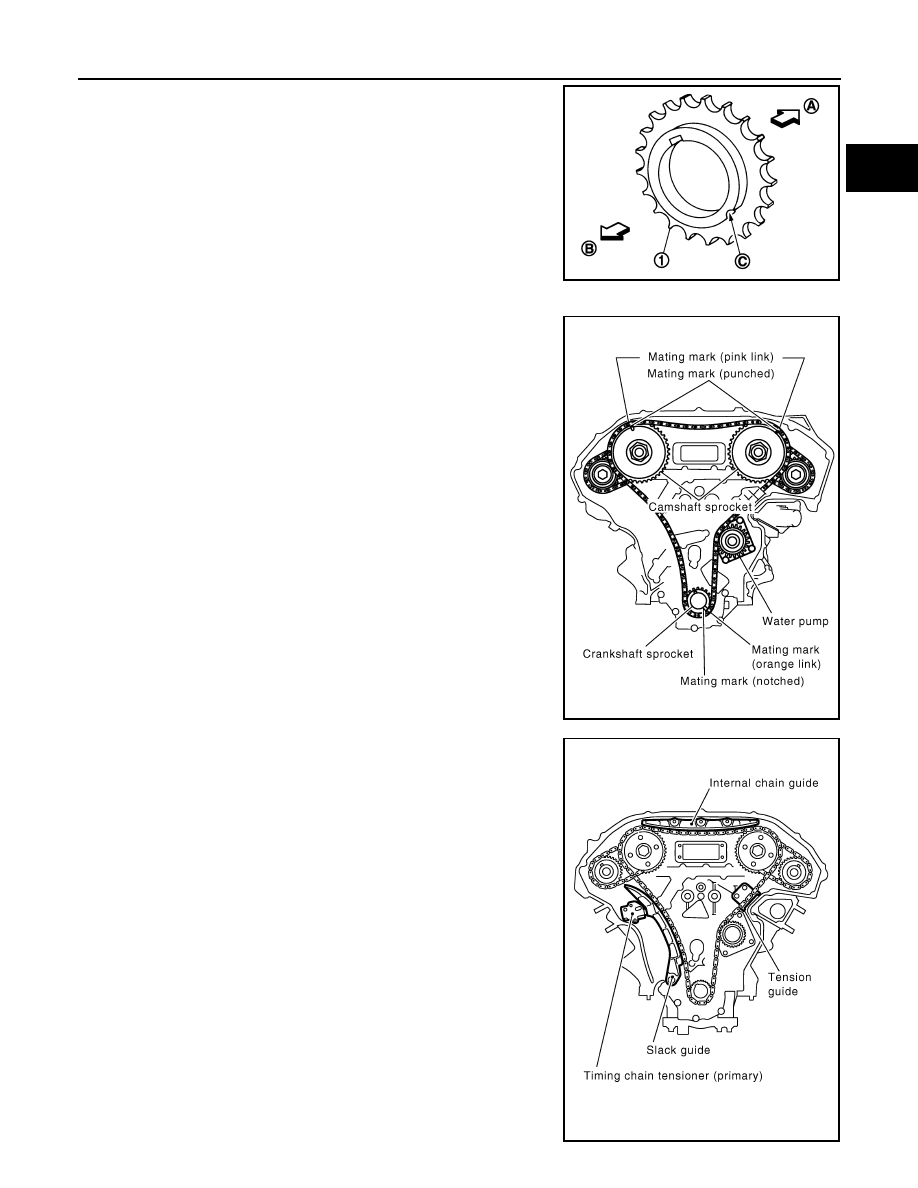

a.

Install crankshaft sprocket (1).

• Check the mating marks on crankshaft sprocket face the front

of the engine.

b.

Install timing chain (primary).
• Install timing chain (primary) so the mating mark (punched) on

camshaft sprocket (INT) is aligned with the pink link on timing
chain, while the mating mark (notched) on crankshaft sprocket
is aligned with the orange one on timing chain, as shown in the
figure.

• When it is difficult to align mating marks of timing chain (pri-

mary) with each sprocket, gradually turn camshaft using
wrench on the hexagonal portion to align it with the mating
marks.

• During alignment, be careful to prevent dislocation of mating

mark alignments of timing chains (secondary).

6.

Install internal chain guide, slack guide and timing chain ten-
sioner (primary).

A

: Crankshaft side

B

: Engine front side

C

: Mating mark (Front side)

JPBIA0273ZZ

PBIC3494E

PBIC2109E

EM-62

< ON-VEHICLE REPAIR >

TIMING CHAIN

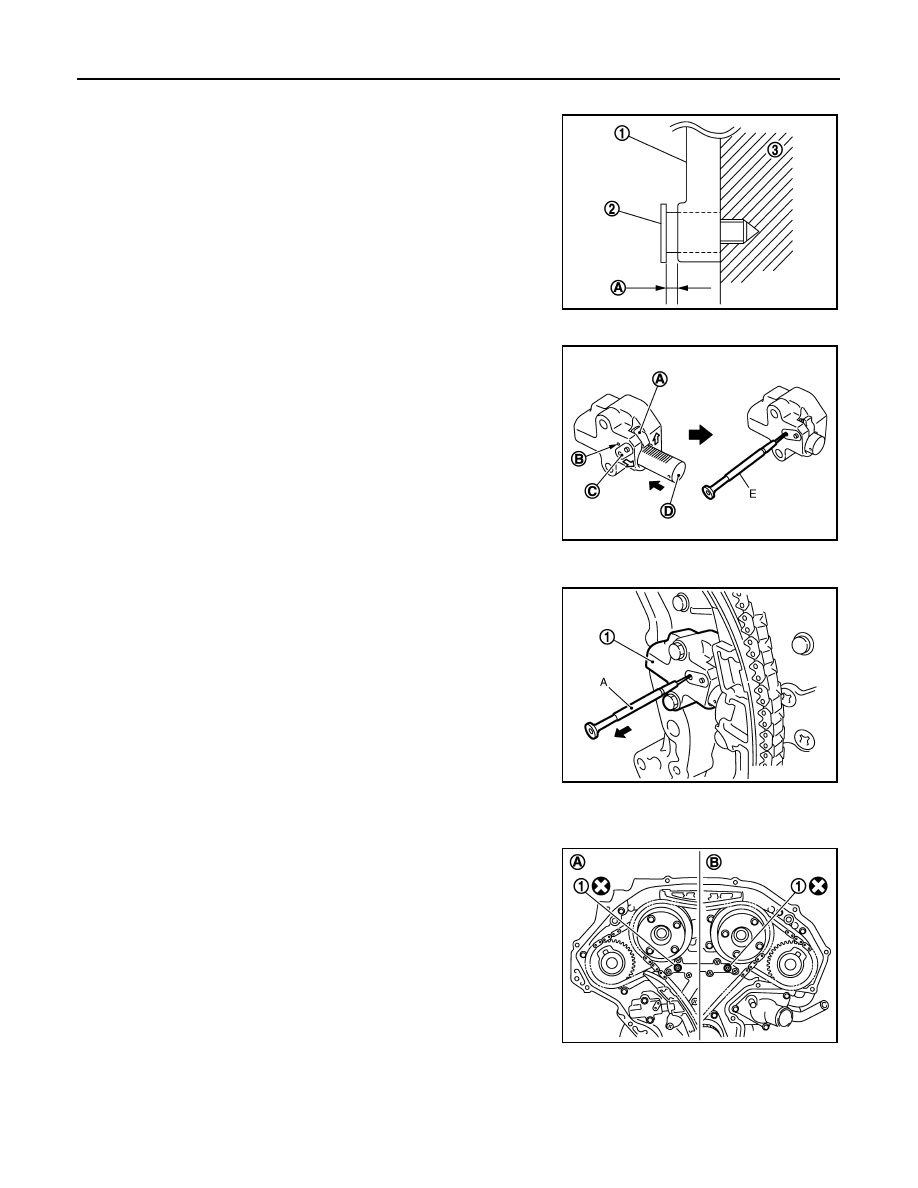

CAUTION:

Never overtighten slack guide mounting bolt (2). It is nor-
mal for a gap (A) to exist under the bolt seat when mounting
bolt is tightened to specification.

7.

Install the timing chain tensioner (primary) with the following procedure:

a.

Pull plunger stopper tab (A) up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger (D).
NOTE:
Plunger stopper tab and lever (C) are synchronized.

b.

Push plunger into the inside of tensioner body.

c.

Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.

d.

To secure lever, insert stopper pin (E) through hole of lever into
tensioner body hole (B).
• The lever parts and the tab are synchronized. Therefore, the

plunger will be secured under this condition.

NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.

e.

Install timing chain tensioner (primary) (1).
• Remove any dirt and foreign materials completely from the

back and the mounting surfaces of timing chain tensioner (pri-
mary).

f.

Pull out stopper pin (A) after installing, and then release plunger.

8.

Check again that the mating marks on each sprocket and each timing chain have not slipped out of align-
ment.

9.

Install new O-rings (1) on rear timing chain case.

10. Install new front oil seal on front timing chain case.

• Apply new engine oil to both oil seal lip and dust seal lip.

1

: Slack guide

3

: Cylinder block

JPBIA0117ZZ

JPBIA0118ZZ

JPBIA0119ZZ

A

:  Bank  1

B

:  Bank  2

JPBIA1111ZZ

TIMING CHAIN

EM-63

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

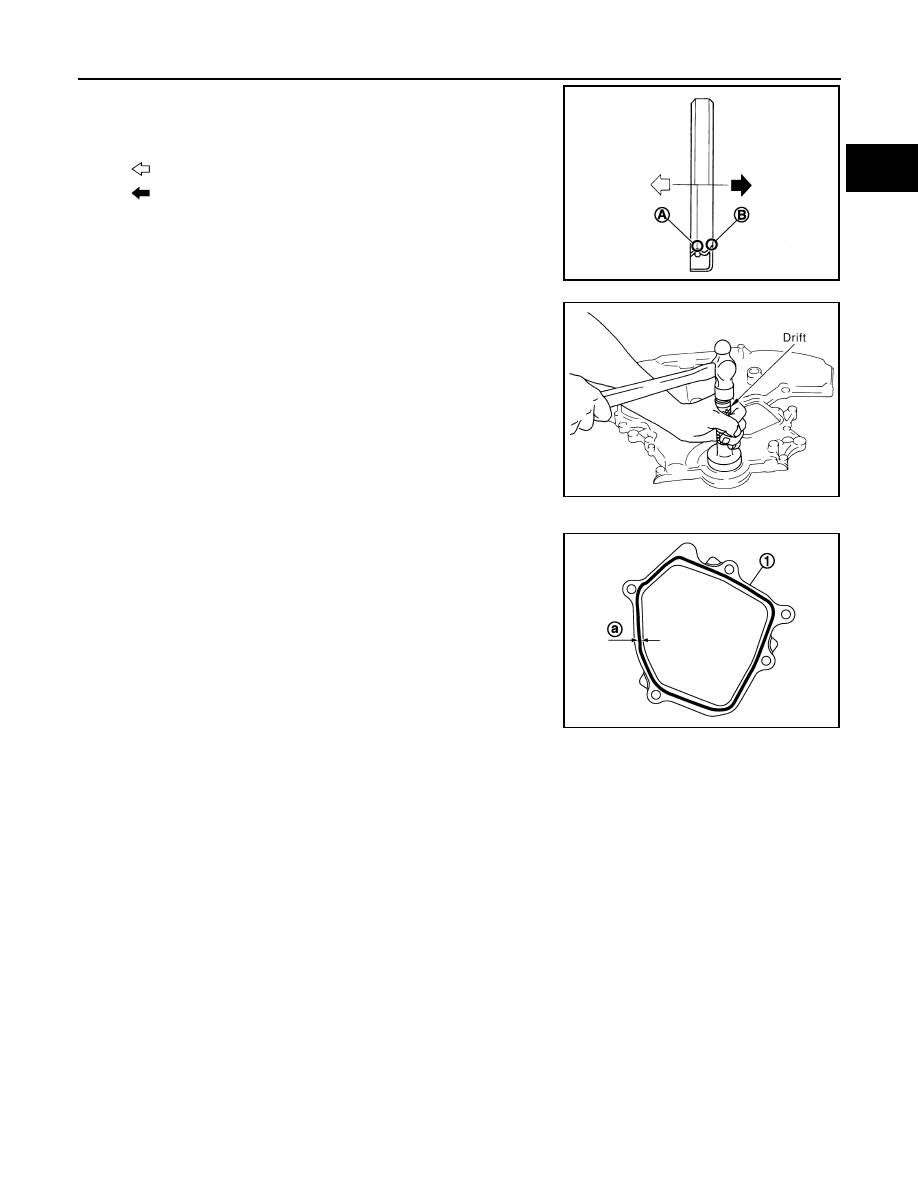

• Install it so that each seal lip is oriented as shown in the figure.

• Using a suitable drift [outer diameter: 60 mm (2.36 in)], press-

fit oil seal until it becomes flush with front timing chain case
end face.

• Check the garter spring is in position and seal lip is not

inverted.

11. Install water pump cover to front timing chain case.

• Apply a continuous bead of liquid gasket with the tube presser

(commercial service tool) to water pump cover (1) as shown in
the figure.

Use Genuine Liquid Gasket or equivalent.

12. Install front timing chain case as follows:

A

:  Oil  seal  lip

B

: Dust seal lip

: Engine inside

: Engine outside

JPBIA0054ZZ

PBIC0790E

a :

φ

2.3 - 3.3 mm (0.091 - 0.130 in)

JPBIA1722ZZ
