Nissan Teana J32. Manual - part 1214

VTL-42

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

AIR MIX DOOR MOTOR

2.

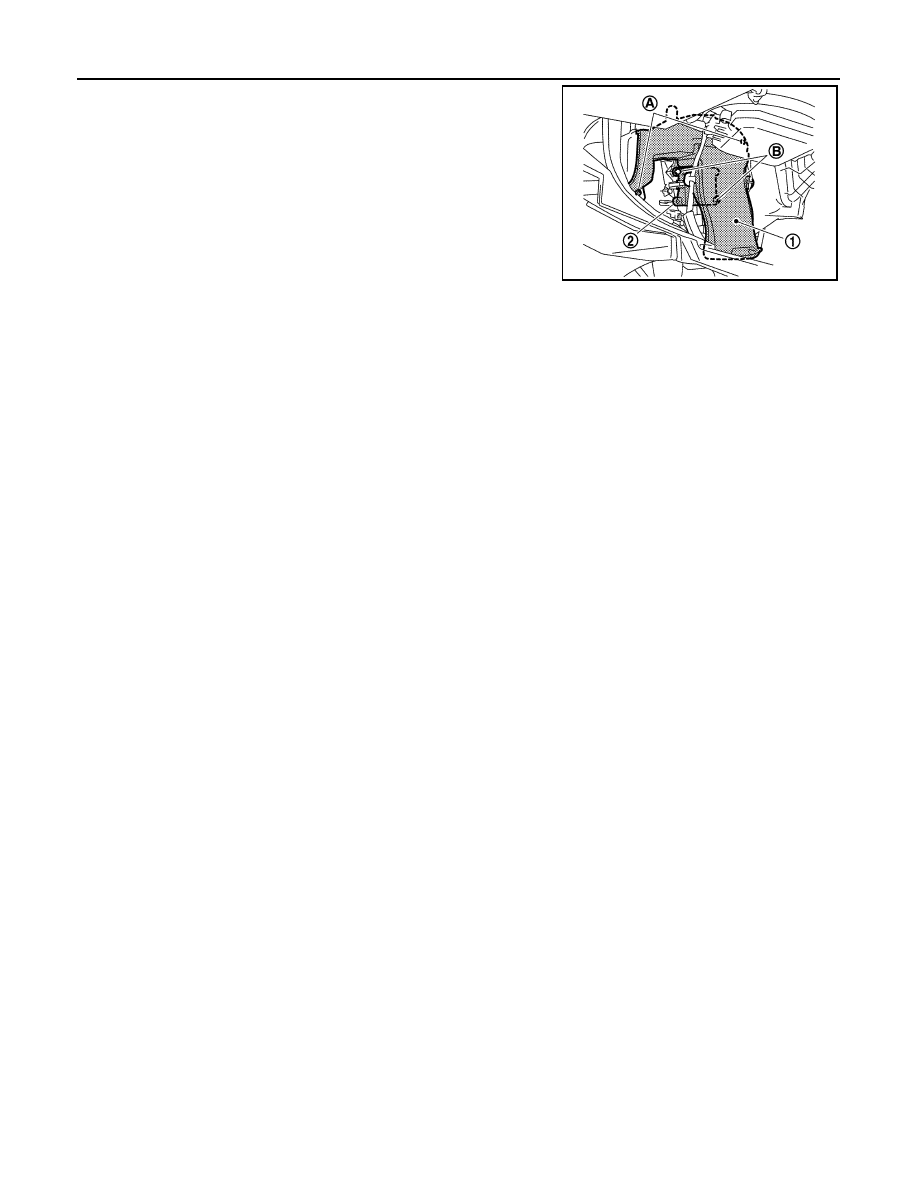

Remove mounting screws (A), and then move foot duct (passen-
ger side) (1) to a position where it does not inhibit work.

3.

Remove mounting screws (B), and then remove air mix door
motor (passenger side) (2).

4.

Disconnect air mix door motor connector (passenger side).

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0924ZZ

HEATER CORE

VTL-43

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

HEATER CORE

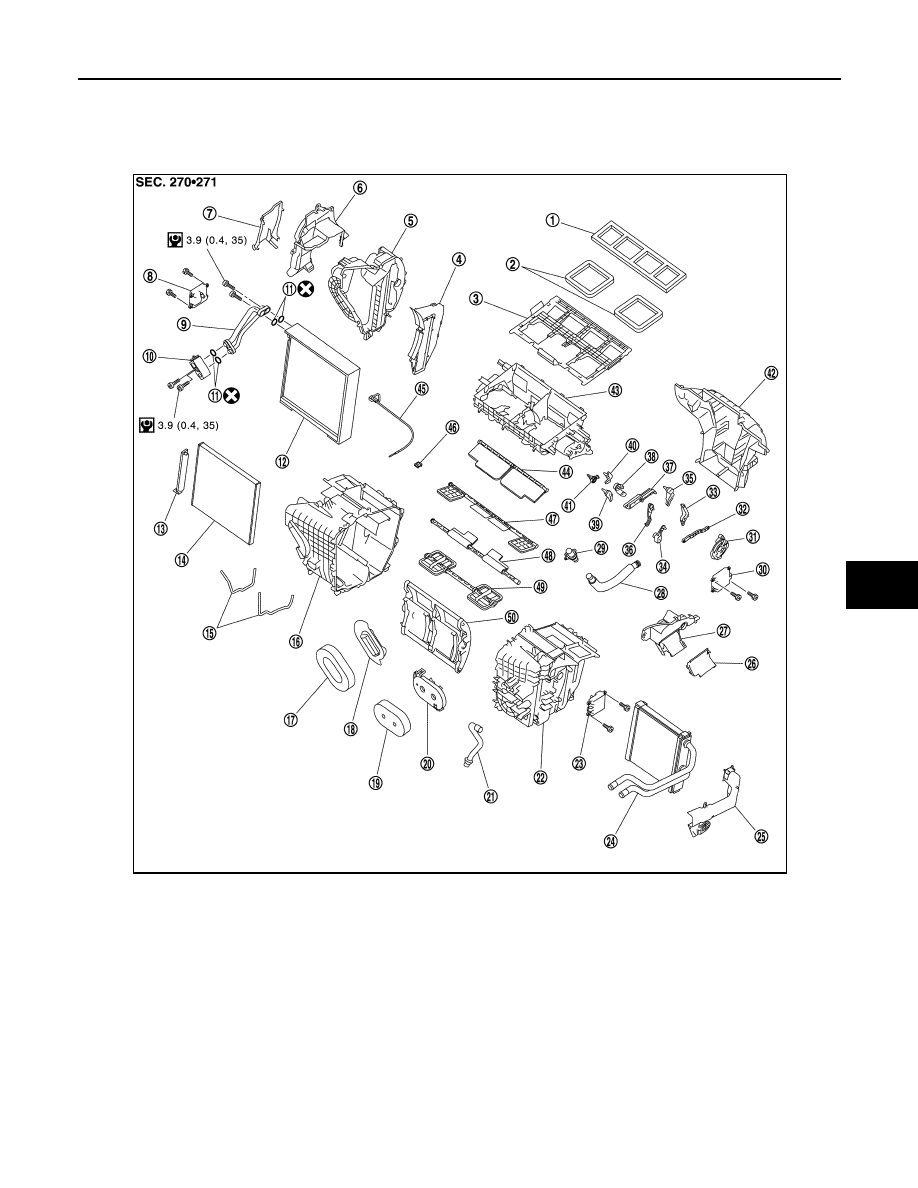

Exploded View

INFOID:0000000003821362

1.

Ventilator seal

2.

Defroster seal

3.

Distributor upper case

4.

Center case

5.

Heater & cooling unit case cover

6.

Foot duct 1 (right)

7.

Foot duct 2 (right)

8.

Air mix door motor (passenger side)

9.

Evaporator pipe assembly

10.

Expansion valve

11.

O-ring

12. Evaporator

13.

Filter cover

14.

Air conditioner filter

15. Case packing

16.

Heater & cooling unit case (right)

17.

Cooler pipe grommet

18. Grommet

19.

Heater pipe grommet

20.

Heater pipe support

21. Drain hose

22.

Heater & cooling unit case (left)

23.

Air mix door motor (driver side)

24. Heater core

25.

Heater pipe cover

26.

Foot duct 2 (left)

27. Foot duct 1 (left)

28.

Aspirator hose

29.

Aspirator

30. Mode door motor

31.

Main link

32.

Rod link

33. Ventilator door link

34.

Mode door lever

35.

Ventilator door lever

36. Max. cool door link

JPIIA0906GB

VTL-44

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

HEATER CORE

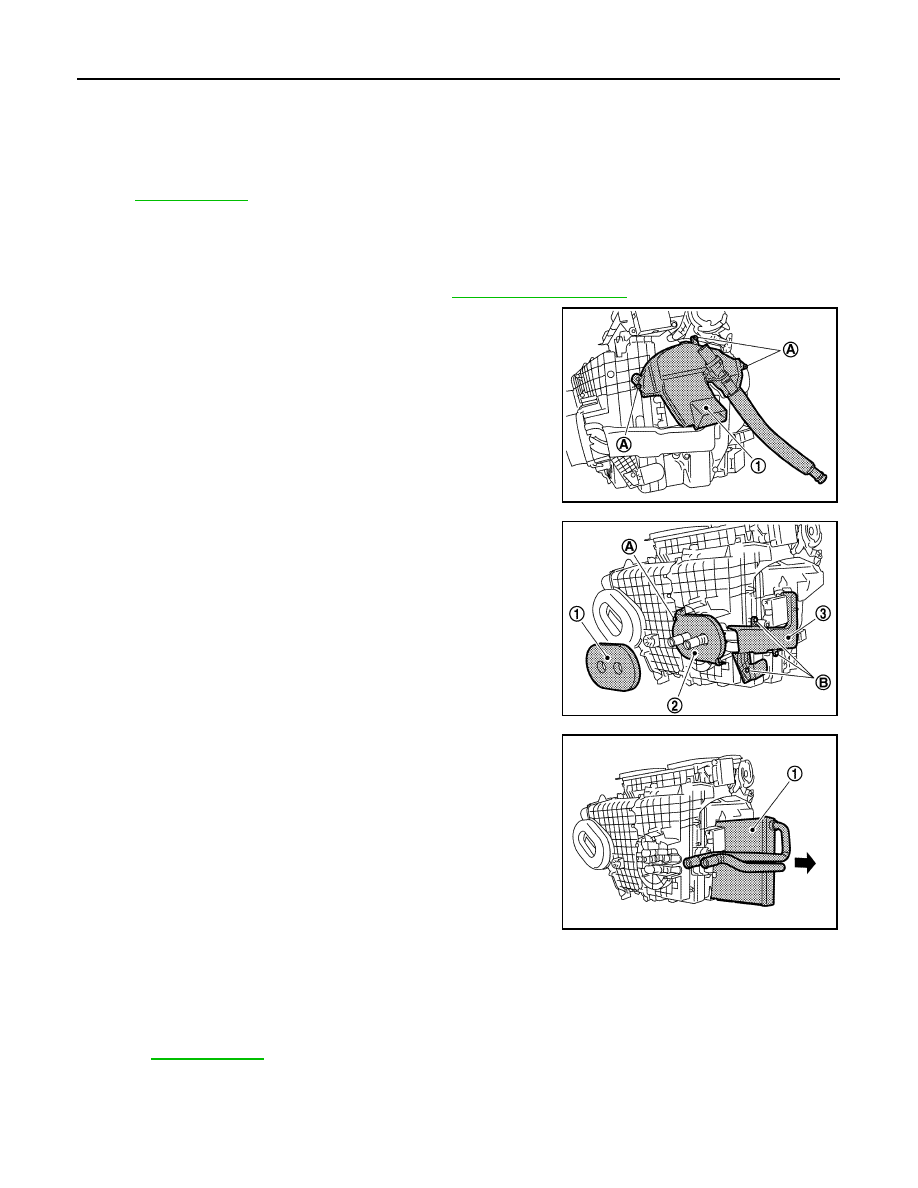

Removal and Installation

INFOID:0000000003774686

REMOVAL

1.

Remove heater & cooling unit assembly. Refer to

VTL-35, "Exploded View"

.

2.

Remove mounting screws (A), and then remove foot duct (left)
(1).

3.

Remove heater pipe grommet (1).

4.

Remove mounting screw (A), and then remove heater pipe sup-
port (2).

5.

Remove mounting screws (B), and then remove heater pipe
cover (3).

6.

Slide heater core (1) to leftward (as shown in the figure).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for refrigerant leakage when charging refrigerant.
NOTE:
• Refer to

CO-9, "Refilling"

 when filling radiator with engine coolant.

• Charge the refrigerant.

37. Defroster door link

38.

Foot door link

39.

Max. cool door lever

40. Foot door lever

41.

Defroster door lever

42.

Adapter case

43. Distributor lower case

44.

Ventilator door

45.

Intake sensor

46. Intake sensor bracket

47.

Foot door

48.

Max. cool door

49. Defroster door

50.

Air mix door (Slide door)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0925ZZ

JPIIA0926ZZ

JPIIA0927ZZ

DUCT AND GRILLE

VTL-45

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

DUCT AND GRILLE

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Exploded View

INFOID:0000000003774687

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000003774688

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Disengage the pawls, and then remove center ventilator grilles
(left and right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

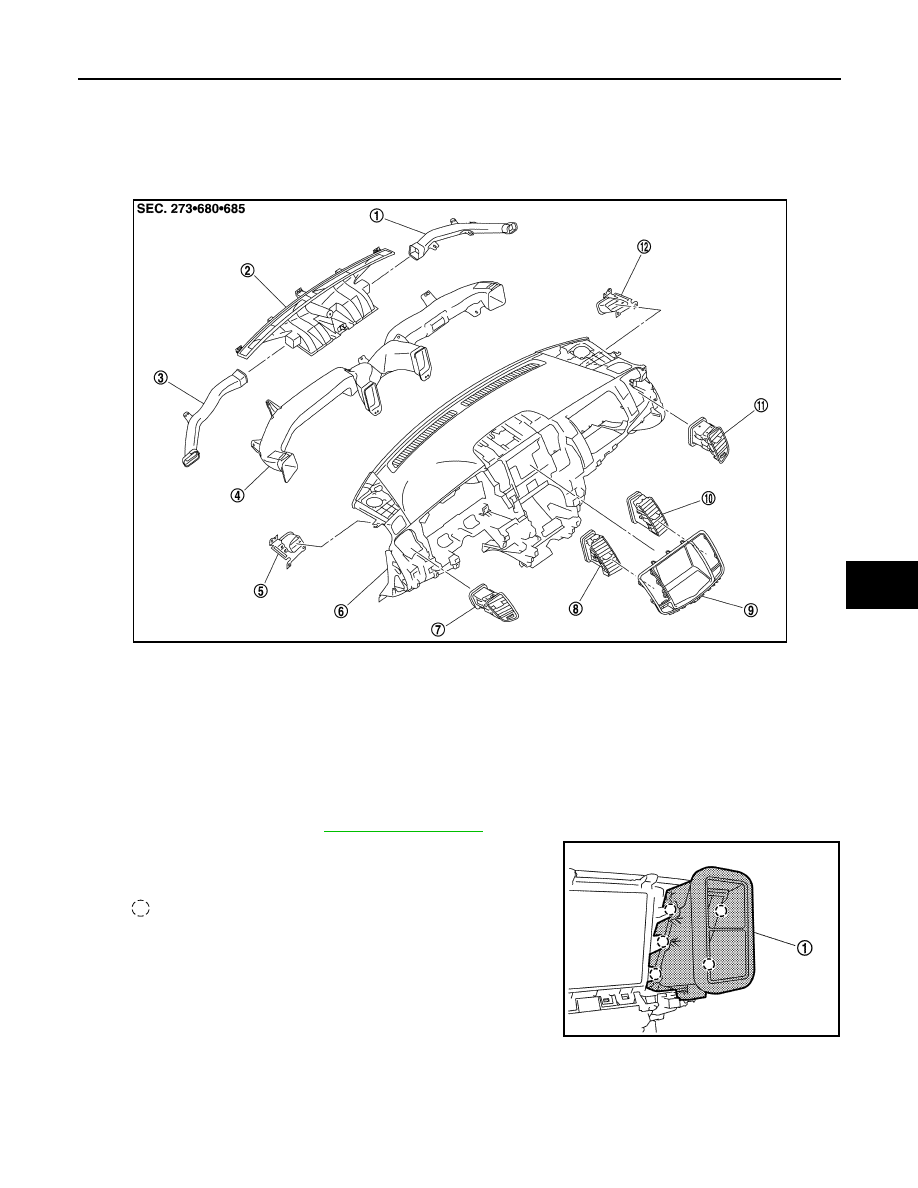

SIDE VENTILATOR GRILLE

1.

Side defroster nozzle (right)

2.

Defroster nozzle

3.

Side defroster nozzle (left)

4.

Ventilator duct

5.

Side defroster grille (left)

6.

Instrument panel assembly

7.

Side ventilator grille (left)

8.

Center ventilator grille (left)

9.

Cluster lid D

10. Center ventilator grille (right)

11. Side ventilator grille (right)

12. Side defroster grille (right)

JPIIA0928ZZ

: Pawl

JPIIA0929ZZ
