TM-12

< BASIC INSPECTION >

[CVT: RE0F09B]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Precaution for TCM
and CVT Assembly Replacement

INFOID:0000000003848916

CAUTION:

• Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in

TCM. (Connect CONSULT-III, and then turn ignition switch OFF.)

• When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the

TCM if necessary.

EEPROM ERASING PATTERNS

METHOD FOR ERASING THE EEPROM IN THE TCM

1.

Turn ignition switch ON.

2.

Move selector lever to “R” position.

3.

Perform “Self-Diagnostic Results” mode for “TRANSMISSION”.

4.

Press the brake pedal and turn the brake switch ON.

5.

Press the accelerator pedal (0.5/8 - 4/8 throttle) not to exceed the half, and hold it in the half or less open
position. (This will set the closed throttle position signal to OFF and the wide open throttle position signal
to OFF.)

6.

Perform “ERASE”.

7.

Wait 3 seconds and then release the accelerator pedal.

8.

Turn ignition switch OFF.

METHOD FOR WRITING DATA FROM THE ROM ASSEMBLY IN THE TRANSAXLE

In the following procedure, the TCM reads data from the ROM assembly and writes it to the EEPROM in the
TCM.

1.

Erase the EEPROM in the TCM.

2.

Move selector lever to “P” position.

3.

Turn ignition switch ON.

CHECK METHOD

• Standard: About 2 seconds after the ignition switch ON, the CVT indicator lamp lights up for 2 seconds.
• Non-standard: Even after the ignition switch ON, the CVT indicator lamp does not light up after 2 seconds or

illuminates immediately.

CAUTION:

Perform in the “P” or “N” position.

Action for Non-standard

• Replace the CVT assembly.
• Replace the TCM.

CVT assembly

TCM

Erasing EEPROM in TCM

Remarks

Replaced

Replaced

Not required

Not required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)

Not replaced

Replaced

Not required

Not required because the EEPROM in the TCM is in
the default state.

Replaced

Not replaced

Required

Required because data has been written in the EE-
PROM in the TCM and because the TCM cannot write
data from the ROM assembly in the transmission.

CVT SYSTEM

TM-13

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FUNCTION DIAGNOSIS

CVT SYSTEM

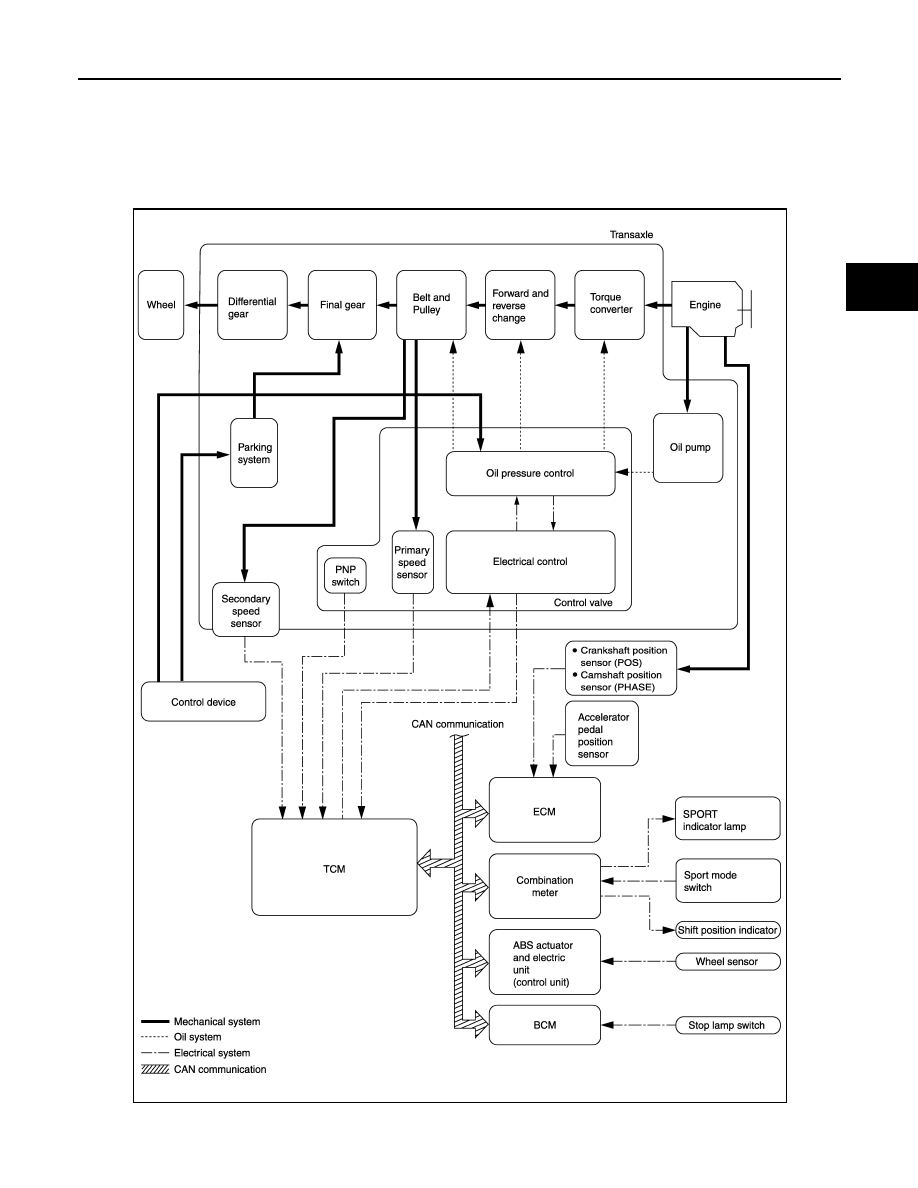

System Diagram

INFOID:0000000003848917

JPDIA0755GB

TM-14

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

CVT SYSTEM

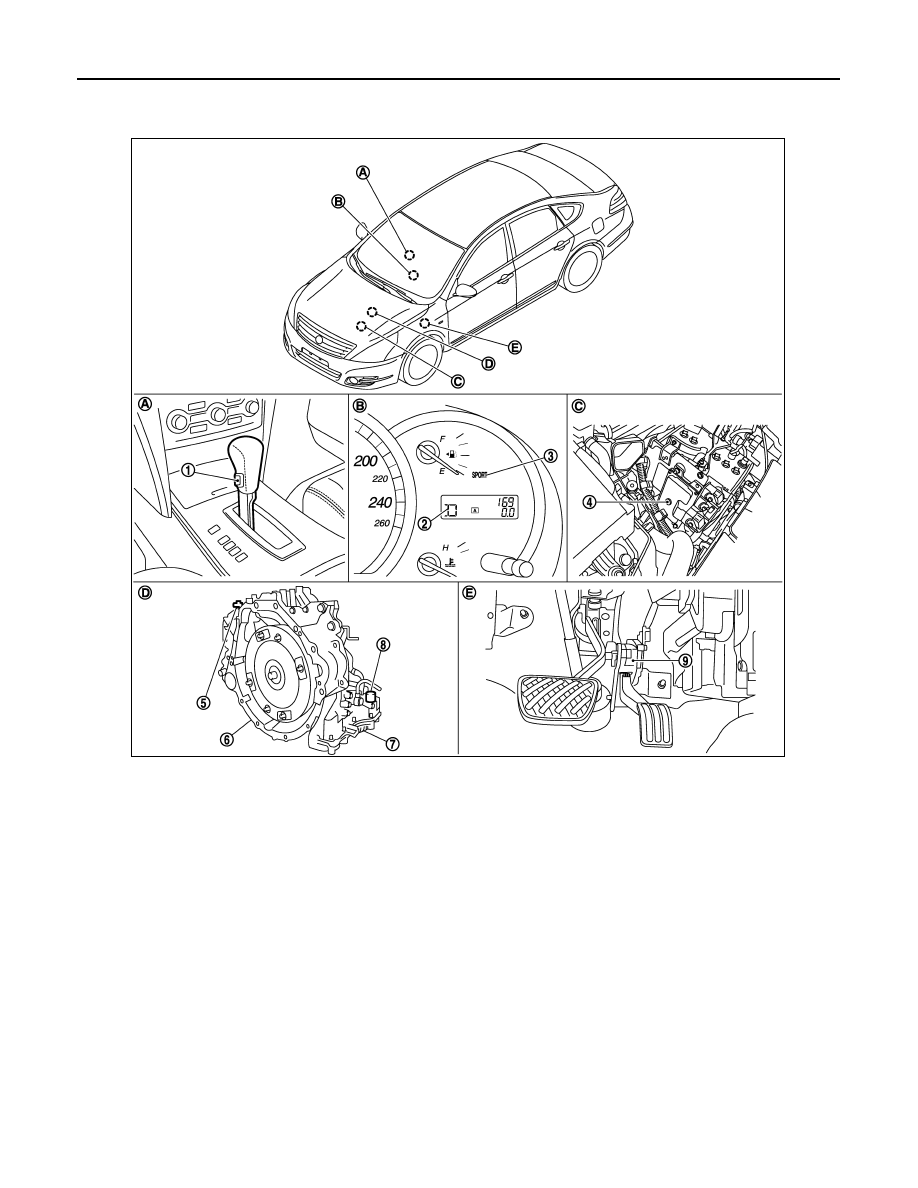

Component Parts Location

INFOID:0000000003848918

*1: Primary pressure sensor is included in CVT assembly.

*2: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (7).
• PNP switch
• Primary speed sensor
• Step motor
• Secondary pressure solenoid valve
• Line pressure solenoid valve
• Torque converter clutch solenoid valve
• Shift control valve
• Secondary valve
• Manual valve
• Lock-up select solenoid valve

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

Primary pressure sensor

*1

7.

Control valve assembly

*2

8.

CVT unit connector

9.

Accelerator pedal position sensor

A.

Center console

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0747ZZ

CVT SYSTEM

TM-15

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• CVT fluid temperature sensor
• Secondary pressure sensor
• ROM assembly
