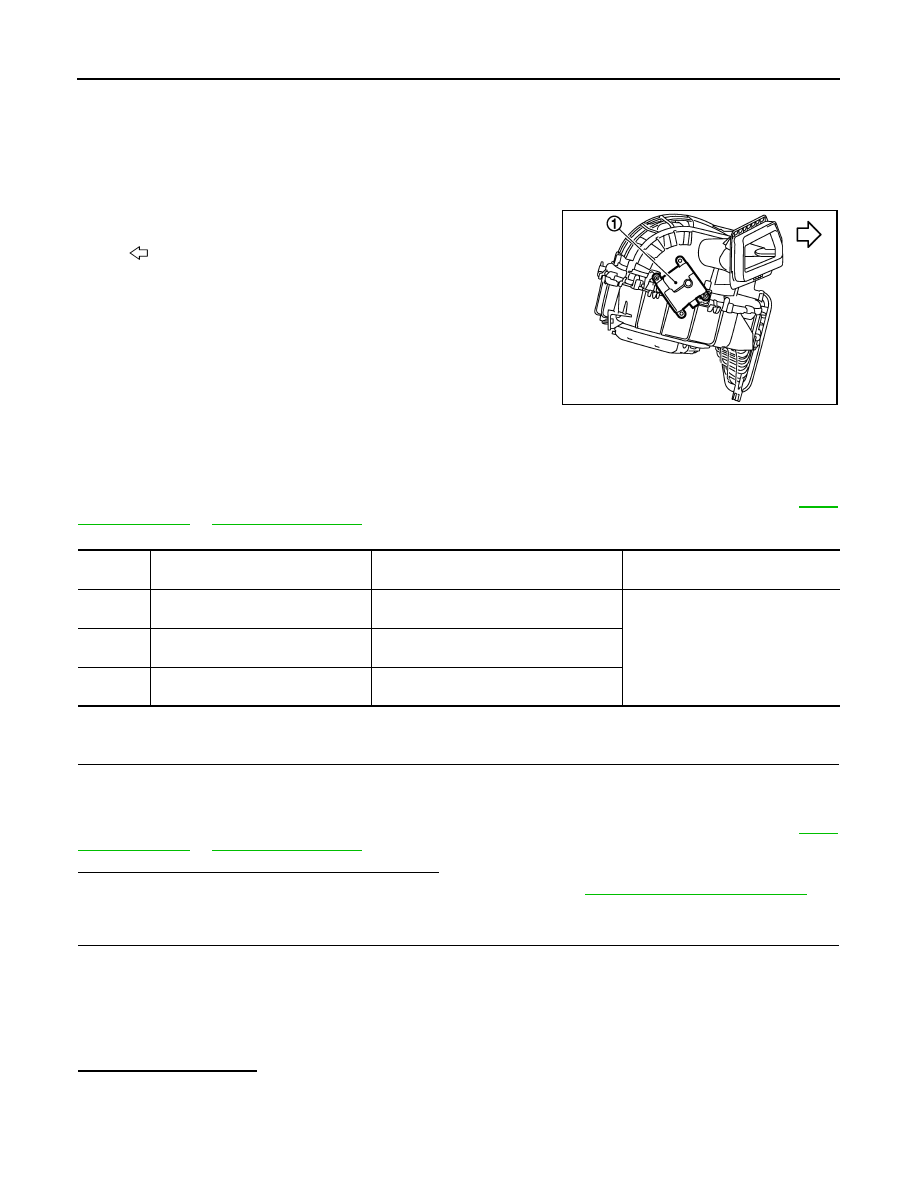

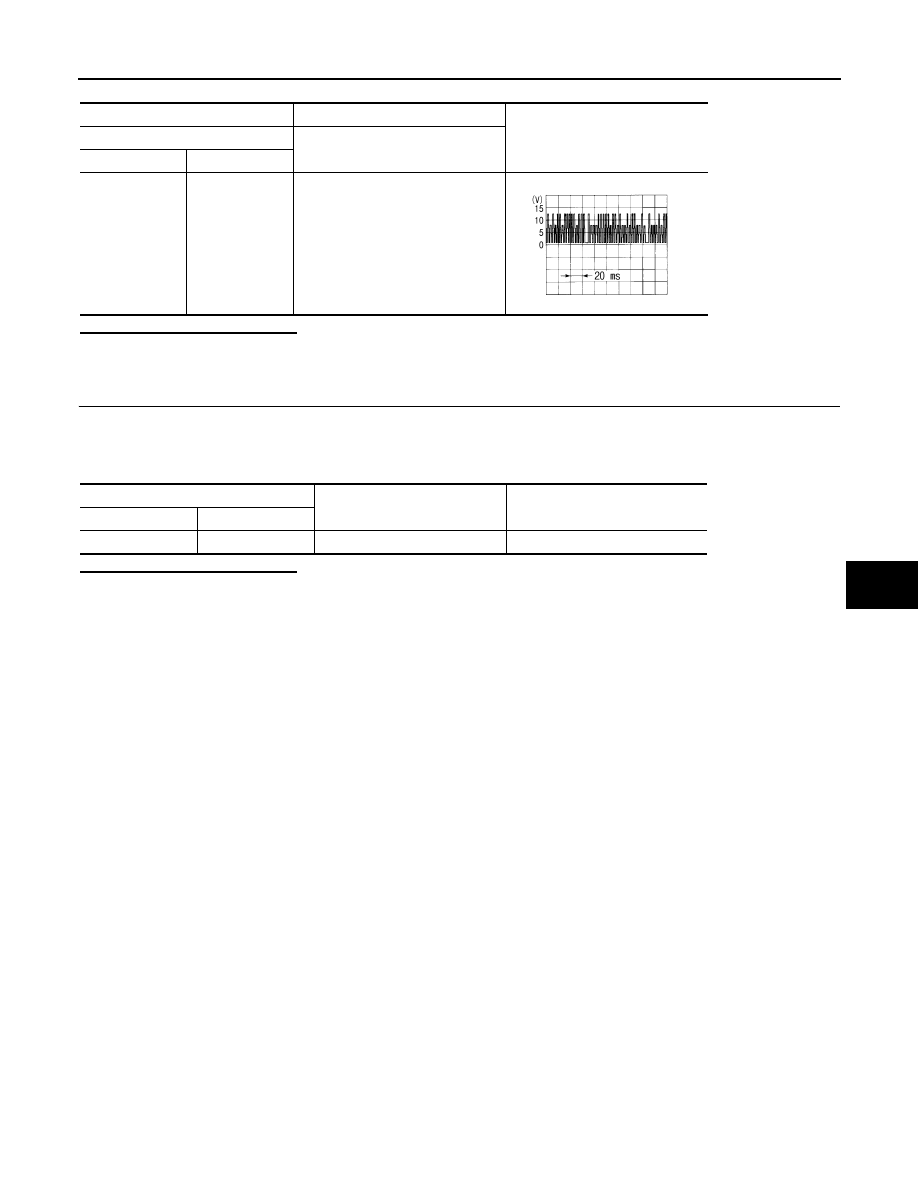

B2636, B2637, B2638, B2639, B2654, B2655 MODE DOOR MOTOR HAC-63 < DTC/CIRCUIT DIAGNOSIS > [WITHOUT 7 INCH DISPLAY] C D E F G H J K L M A B HAC N O P Is the inspection result normal? YES >> GO TO 3. NO >> Repair harness or connector. 3. CHECK MODE DOOR MOTOR GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect mode door motor connector. 3. Check continuity between mode door motor harness connector and ground. Is the inspection result normal? YES >> Replace mode door motor. NO >> Repair harness or connector. (+) ( − ) Voltage Mode door motor — Connector Terminal M310 3 Ground SJIA1453J Mode door motor — Continuity Connector Terminal M310 2 Ground Existed |
