EC-432

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

COOLING FAN

Check that cooling fan speed of condition B is higher than that of A.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace cooling fan motor.

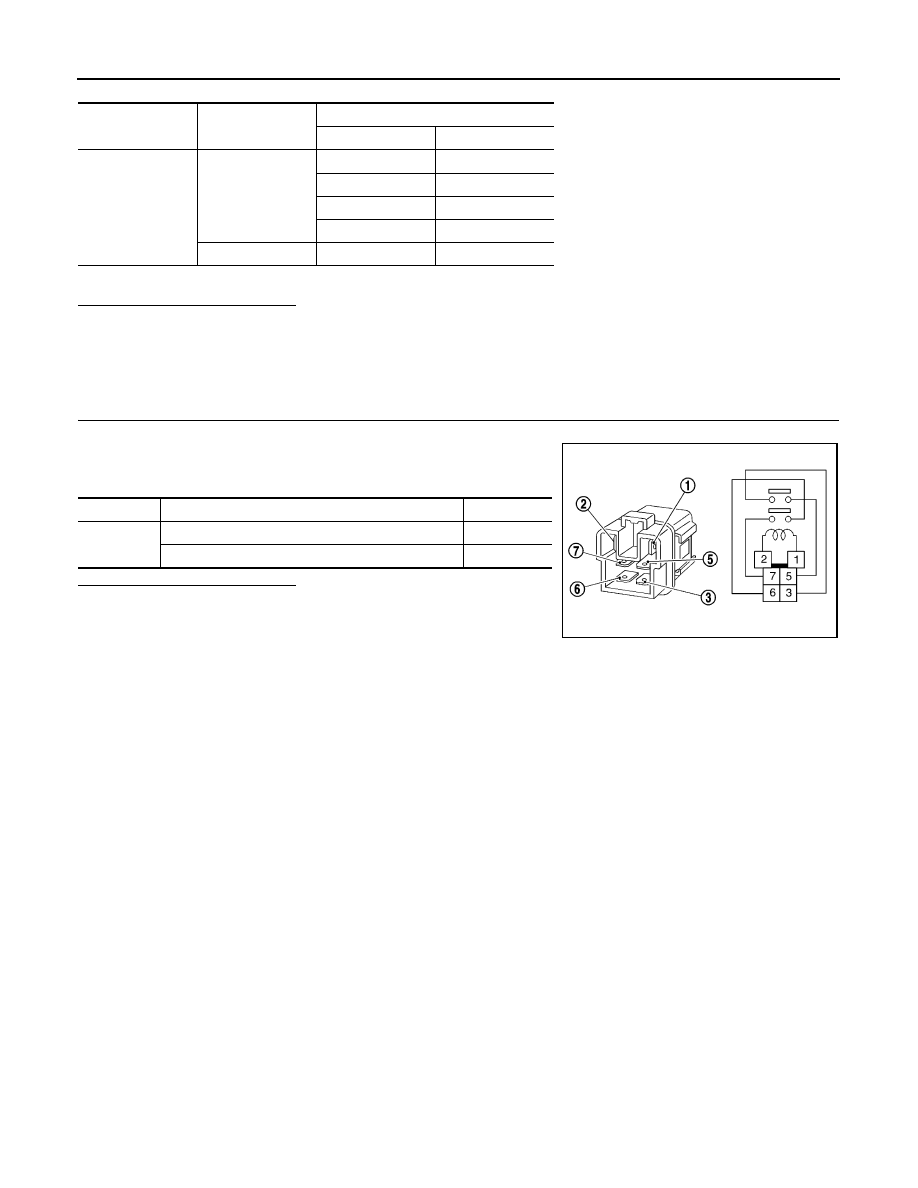

Component Inspection (Cooling Fan Relay)

INFOID:0000000005536861

1.

CHECK COOLING FAN RELAY

1.

Disconnect cooling fan relays -2, -3 harness connectors.

2.

Check continuity between cooling fan relay -2, -3 terminals
under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace cooling fan relay.

Condition

Terminals

(+)

(

−

)

Cooling fan motor

A

1

3 and 4

2

3 and 4

1 and 2

3

1 and 2

4

B

1, 2

3, 4

Terminals

Conditions

Continuity

3 and 5
6 and 7

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

SEF745U

ELECTRICAL LOAD SIGNAL

EC-433

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ELECTRICAL LOAD SIGNAL

Description

INFOID:0000000005536862

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred via
the CAN communication.

Component Function Check

INFOID:0000000005536863

1.

CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

1.

Turn ignition switch ON.

2.

Connect CONSULT-III and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

EC-433, "Diagnosis Procedure"

.

2.

CHECK LIGHTING SWITCH FUNCTION

Check “LOAD SIGNAL” indication under the following conditions.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Go to

EC-433, "Diagnosis Procedure"

.

3.

CHECK HEATER FAN CONTROL SWITCH FUNCTION

Select “HEATER FAN SW” and check indication under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-433, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005536864

1.

INSPECTION START

Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). Refer to

EC-433, "Compo-

nent Function Check"

.

Which circuit is related to the incident?

Rear window defogger>>GO TO 2.
Headlamp>>GO TO 3.
Heater fan>>GO TO 4.

2.

CHECK REAR WINDOW DEFOGGER SYSTEM

Refer to

DEF-3, "Work Flow"

.

Monitor item

Condition

Indication

LOAD SIGNAL

Rear window defogger switch

ON

ON

OFF

OFF

Monitor item

Condition

Indication

LOAD SIGNAL

Lighting switch

ON at 2nd position

ON

OFF

OFF

Monitor item

Condition

Indication

HEATER FAN SW

Heater fan control switch

ON

ON

OFF

OFF

EC-434

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

ELECTRICAL LOAD SIGNAL

>> INSPECTION END

3.

CHECK HEADLAMP SYSTEM

Refer to

EXL-6, "Work Flow"

 (XENON TYPE) or

EXL-195, "Work Flow"

 (HALOGEN TYPE).

>> INSPECTION END

4.

CHECK HEATER FAN CONTROL SYSTEM

Refer to

VTL-69, "System Description"

.

>> INSPECTION END

ELECTRONIC CONTROLLED ENGINE MOUNT

EC-435

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ELECTRONIC CONTROLLED ENGINE MOUNT

Description

INFOID:0000000005536865

The electronic controlled engine mount control solenoid valve controls the intake manifold vacuum signal for
electronic controlled engine mount. The electronic controlled engine mount control solenoid valve is moved by
ON/OFF signal from the ECM. When the solenoid is OFF, the vacuum signal from the intake manifold is cut.
When the solenoid is ON, the intake manifold vacuum signal is sent to the electronic controlled engine mount.

Component Function Check

INFOID:0000000005536866

1.

CHECK OVERALL FUNCTION

1.

Start engine and warm it up to normal operating temperature.

2.

Shift selector position is D while depressing the brake pedal and parking brake pedal.

3.

Disconnect electronic controlled engine mount control solenoid valve harness connector.

4.

Check that body vibration increases compared to the condition of step 2 above (with vehicle stopped).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-435, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005536867

1.

CHECK VACUUM SOURCE

1.

Turn ignition switch OFF.

2.

Reconnect electronic controlled engine mount control solenoid valve harness connector.

3.

Disconnect vacuum hose connected to electronic controlled engine mount.

4.

Start engine and let it idle.

5.

Check vacuum hose for vacuum existence.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

CHECK VACUUM HOSES AND VACUUM GALLERY

1.

Turn ignition switch OFF.

2.

Check vacuum hoses and vacuum gallery for clogging, cracks or improper connection. Refer to

EC-68,

"System Diagram"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace vacuum hoses and vacuum gallery.

3.

CHECK ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE POWER SUPPLY

CIRCUIT

1.

Disconnect electronic controlled engine mount control solenoid valve harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between front electronic controlled engine mount harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Vacuum should exist.

Electronic controlled engine mount

control solenoid valve

Ground

Voltage

Connector

Terminal

F11

1

Ground

Battery voltage
