P0447 EVAP CANISTER VENT CONTROL VALVE

2.

Check the rubber tube for clogging.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Clean the rubber tube using an air blower.

8.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-288, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace EVAP canister vent control valve.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005536681

1.

CHECK EVAP CANISTER VENT CONTROL VALVE-I

1.

Remove EVAP canister vent control valve from EVAP canister.

2.

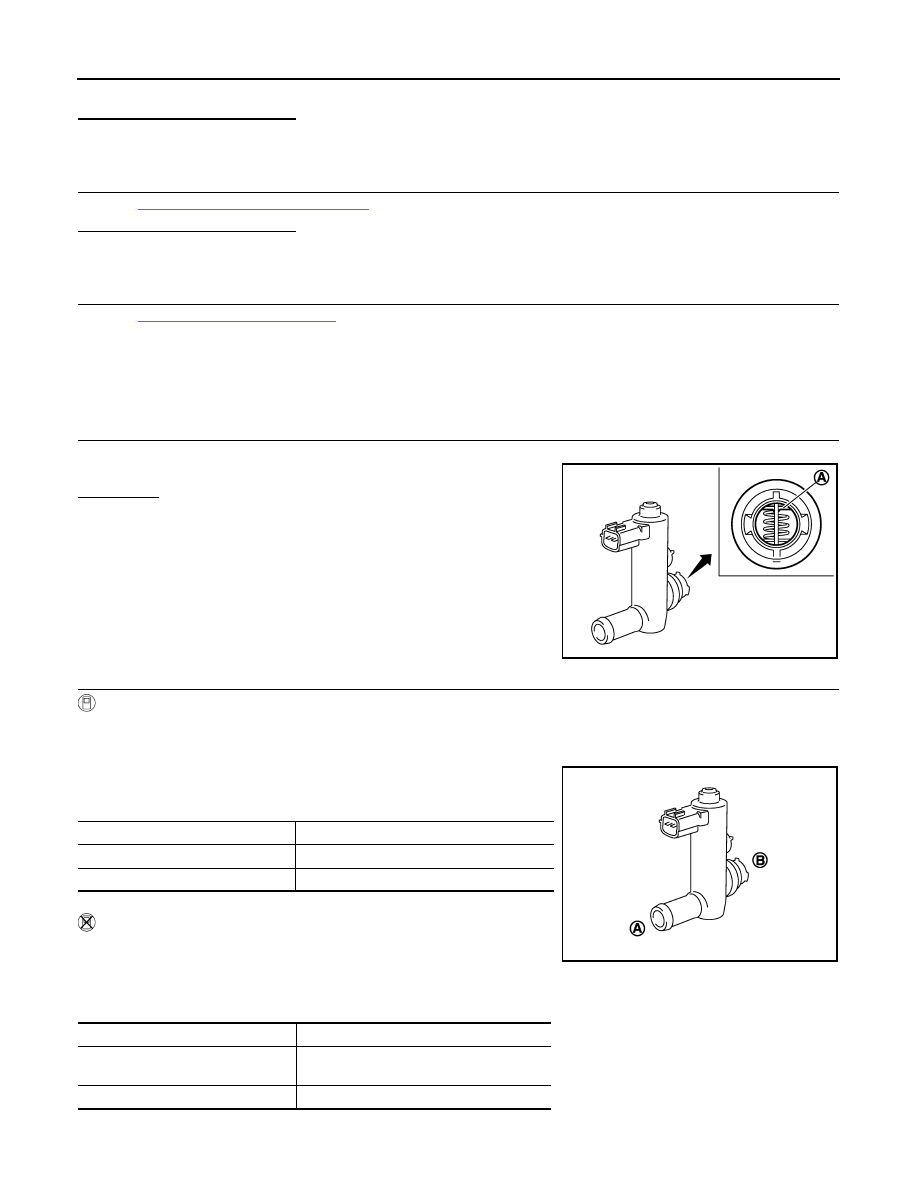

Check portion (A) of EVAP canister vent control valve for rust.

Is it rusted?

YES

>> Replace EVAP canister vent control valve.

NO

>> GO TO 2.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE-II

With CONSULT-III

1.

Reconnect harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

4.

Check air passage continuity and operation delay time.
Check that new O-ring is installed properly.

Operation takes less than 1 second.

Without CONSULT-III

1.

Disconnect EVAP canister vent control valve harness connector.

2.

Check air passage continuity and operation delay time under the
following conditions.

Check that new O-ring is installed properly.

Operation takes less than 1 second.

JMBIA0168ZZ

Condition VENT CONTROL/V

Air passage continuity between (A) and (B)

ON

Not existed

OFF

Existed

Condition

Air passage continuity between (A) and (B)

12 V direct current supply between
 terminals 1 and 2

Not existed

OFF

Existed

JMBIA0169ZZ

P0447 EVAP CANISTER VENT CONTROL VALVE

EC-289

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE-III

With CONSULT-III

1.

Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.

2.

Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

3.

Check air passage continuity and operation delay time.
Check that new O-ring is installed properly.

Operation takes less than 1 second.

Without CONSULT-III

1.

Clean the air passage [portion (A) to (B)] of EVAP canister vent
control valve using an air blower.

2.

Check air passage continuity and operation delay time under the
following conditions.
Check that new O-ring is installed properly.

Operation takes less than 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP canister vent control valve

Condition VENT CONTROL/V

Air passage continuity between (A) and (B)

ON

No

OFF

Yes

Condition

Air passage continuity between (A) and (B)

12 V direct current supply between
 terminals (1) and (2)

No

OFF

Yes

JMBIA0169ZZ

EC-290

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0448 EVAP CANISTER VENT CONTROL VALVE

P0448 EVAP CANISTER VENT CONTROL VALVE

Description

INFOID:0000000005536682

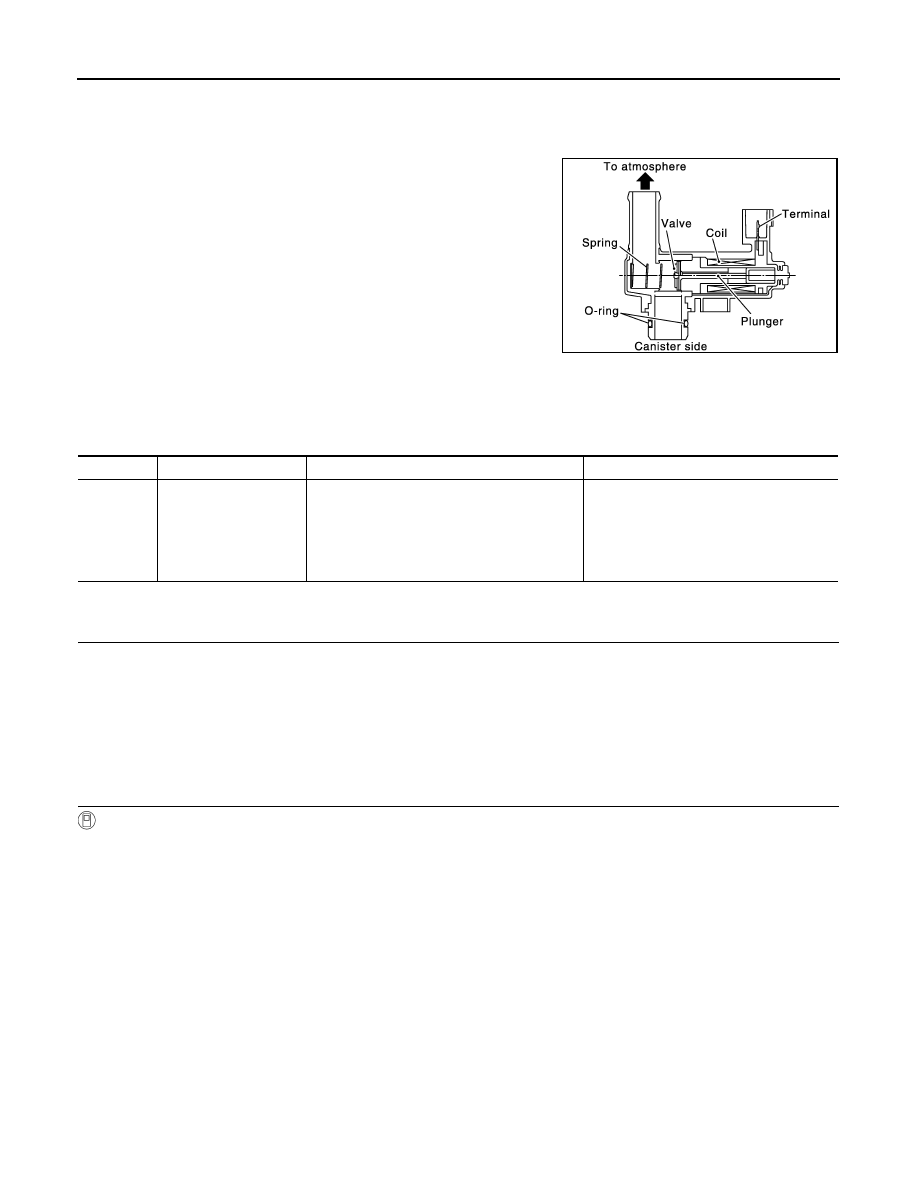

The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.

DTC Logic

INFOID:0000000005536683

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.

4.

Start engine and let it idle for at least 1 minute.

5.

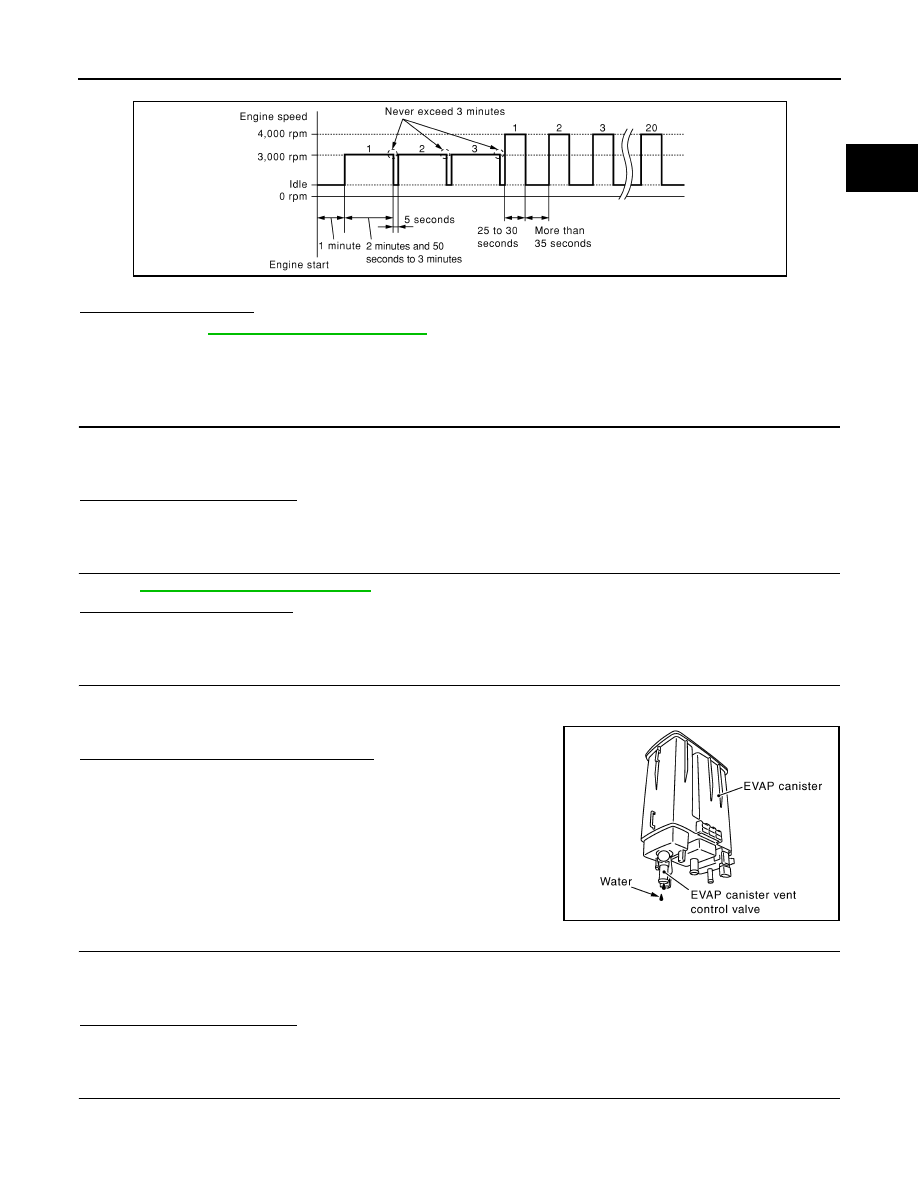

Repeat next procedures 3 times.

-

Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 min-
utes.

Never exceed 3 minutes.

-

Fully released accelerator pedal and keep engine idle for about 5 seconds.

6.

Repeat next procedure 20 times.

-

Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.

PBIB1263E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0448

EVAP canister vent con-
trol valve close

EVAP canister vent control valve remains
closed under specified driving conditions.

• EVAP canister vent control valve
• EVAP control system pressure sensor

and the circuit

• Blocked rubber tube to EVAP canister

vent control valve

• EVAP canister is saturated with water

P0448 EVAP CANISTER VENT CONTROL VALVE

EC-291

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

-

Fully released accelerator pedal and keep engine idle for at least 35 seconds.

7.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-291, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000005536684

1.

CHECK RUBBER TUBE

1.

Turn ignition switch OFF.

2.

Disconnect rubber tube connected to EVAP canister vent control valve.

3.

Check the rubber tube for clogging.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Clean rubber tube using an air blower.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-292, "Component Inspection"

.

Is he inspection result normal?

YES

>> GO TO 3.

NO

>> Replace EVAP canister vent control valve.

3.

CHECK IF EVAP CANISTER SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.

2.

Check if water will drain from the EVAP canister.

Does water drain from the EVAP canister?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• EVAP canister for damage

PBIB0972E
