DLN-46

< PREPARATION >

[TRANSFER: TY20A]

PREPARATION

ST30720000
(J-25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

• Installing gear ring bearing outer race

(transfer case side)

• Installing gear ring bearing inner race

(transfer case side)

• Installing gear ring bearing inner race

(adapter case side)

• Installing gear ring bearing outer race

(adapter case side)

• Installing transfer case oil seal

ST27863000
(

—

)

Drift
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

Installing gear ring bearing inner race (transfer
case side)

KV40101630
(J-35870)
Drift
a: 68 mm (2.68 in) dia.
b: 60 mm (2.36 in) dia.

Installing gear ring bearing inner race (transfer
case side)

KV38102510
(

—

)

Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia.

Installing gear ring bearing inner race (adapter
case side)

KV38100300
(J-25523)
Drift
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

Installing pinion rear bearing outer race

ST30901000
(J-26010-01)
Drift
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

• Installing pinion front bearing outer race
• Installing pinion front bearing inner race

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

• Installing pinion front bearing outer race
• Installing pinion sleeve oil seal

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0811D

ZZA1003D

ZZA1003D

ZZA1003D

ZZA1046D

ZZA0978D

ZZA0814D

PREPARATION

DLN-47

< PREPARATION >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Commercial Service Tool

INFOID:0000000005514204

ST3127S000
(J-25765-A)
Preload gauge

Measuring preload torque

KV40101840
(

—

)

Drift
a: 77 mm (3.03 in) dia.
b: 85 mm (3.35 in) dia.

Installing gear ring bearing outer race (transfer
case side)

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0503D

ZZA0881D

Tool name

Description

Power tool

Loosening nuts and bolts and nuts

Drift
a: 89 mm (3.50 in) dia.
b: 72 mm (2.83 in) dia.

Installing gear ring bearing outer race (adapt-
er case side)

Replacer

Removing pinion front bearing inner race

PBIC0190E

NT660

ZZA0700D

DLN-48

< PERIODIC MAINTENANCE >

[TRANSFER: TY20A]

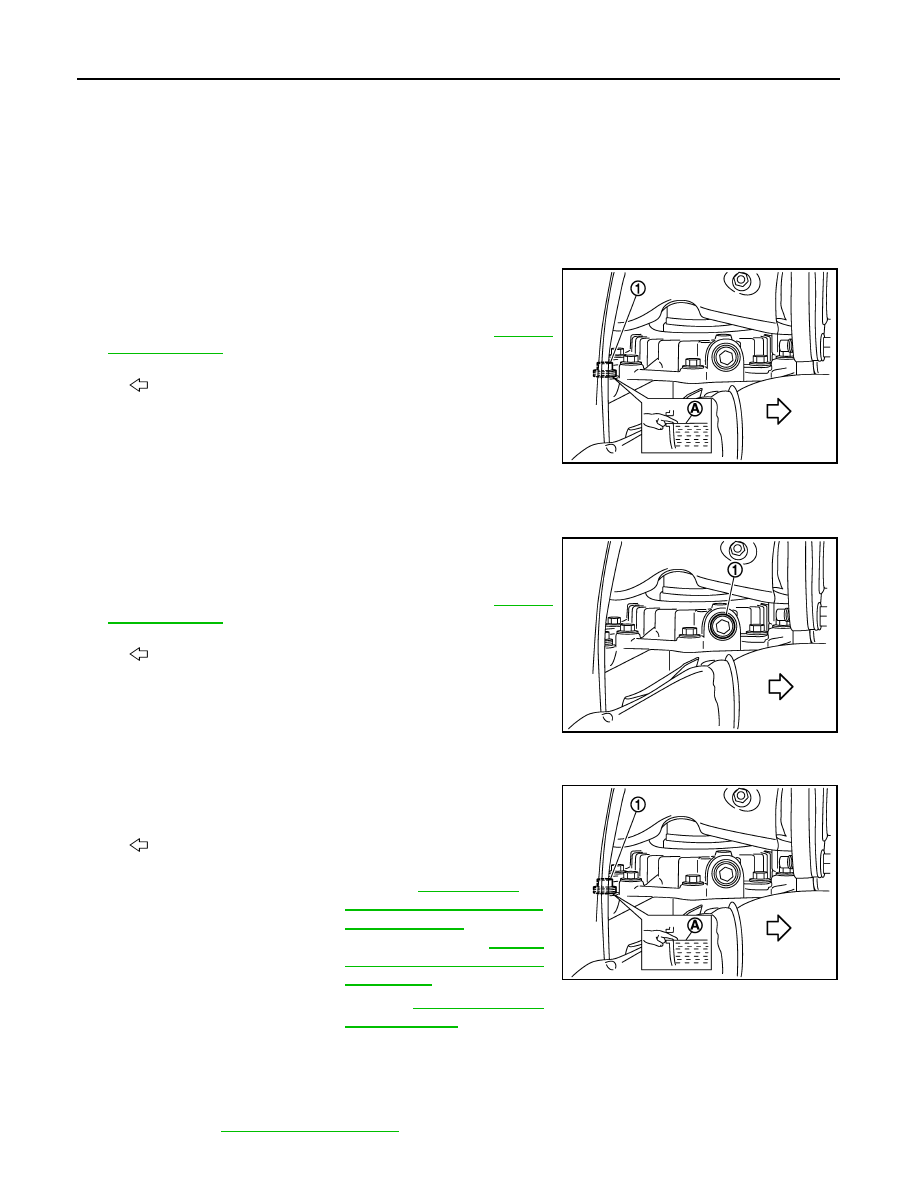

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000005514205

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, filler plug, and transfer case, etc.) for oil leakage.

OIL LEVEL

1.

Remove filler plug (1) and gasket. Then check that oil is filled up
(A) from mounting hole for the filler plug.

2.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-56,

"Exploded View"

.

CAUTION:

Never reuse gaskets.

Draining

INFOID:0000000005514206

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and gaskets to drain
the transfer oil.

3.

Before installing drain plug, set a new gasket. Install drain plug
on transfer and tighten to the specified torque. Refer to

DLN-56,

"Exploded View"

.

CAUTION:

Never reuse gaskets.

Refilling

INFOID:0000000005514207

1.

Remove filler plug (1) and gasket. Then fill oil up to mounting
hole (A) for the filler plug.

CAUTION:

Carefully fill the oil. (Fill up for approximately 3 minutes.)

2.

Leave the vehicle for 3 minutes. Then check oil level again.

3.

Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified
torque. Refer to

DLN-56, "Exploded View"

.

: Vehicle front

JPDIE0017ZZ

: Vehicle front

JPDIE0016ZZ

: Vehicle front

Oil grade and viscosity

: Refer to

MA-15, "FOR

NORTH AMERICA : Fluids
and Lubricants"

 (for

NORTH AMERICA),

MA-16,

"FOR MEXICO : Fluids and
Lubricants"

 (for MEXICO).

Oil capacity

: Refer to

DLN-79, "General

Specifications"

.

JPDIE0017ZZ

TRANSFER OIL

DLN-49

< PERIODIC MAINTENANCE >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

CAUTION:

Never reuse gasket.
