REAR DOOR LOCK

5.

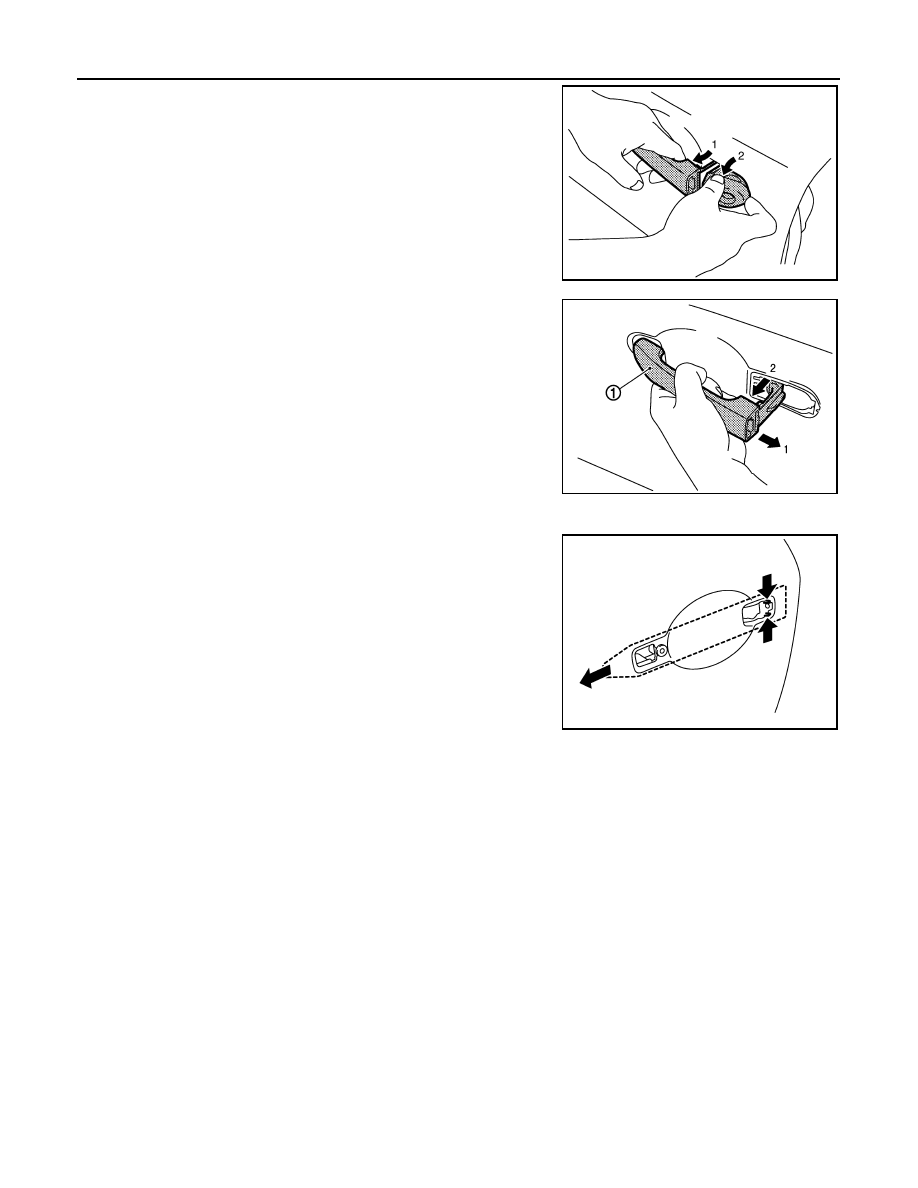

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

JMKIA0560ZZ

JMKIA0524ZZ

PIIB5814E

BACK DOOR LOCK

DLK-353

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR LOCK

DOOR LOCK

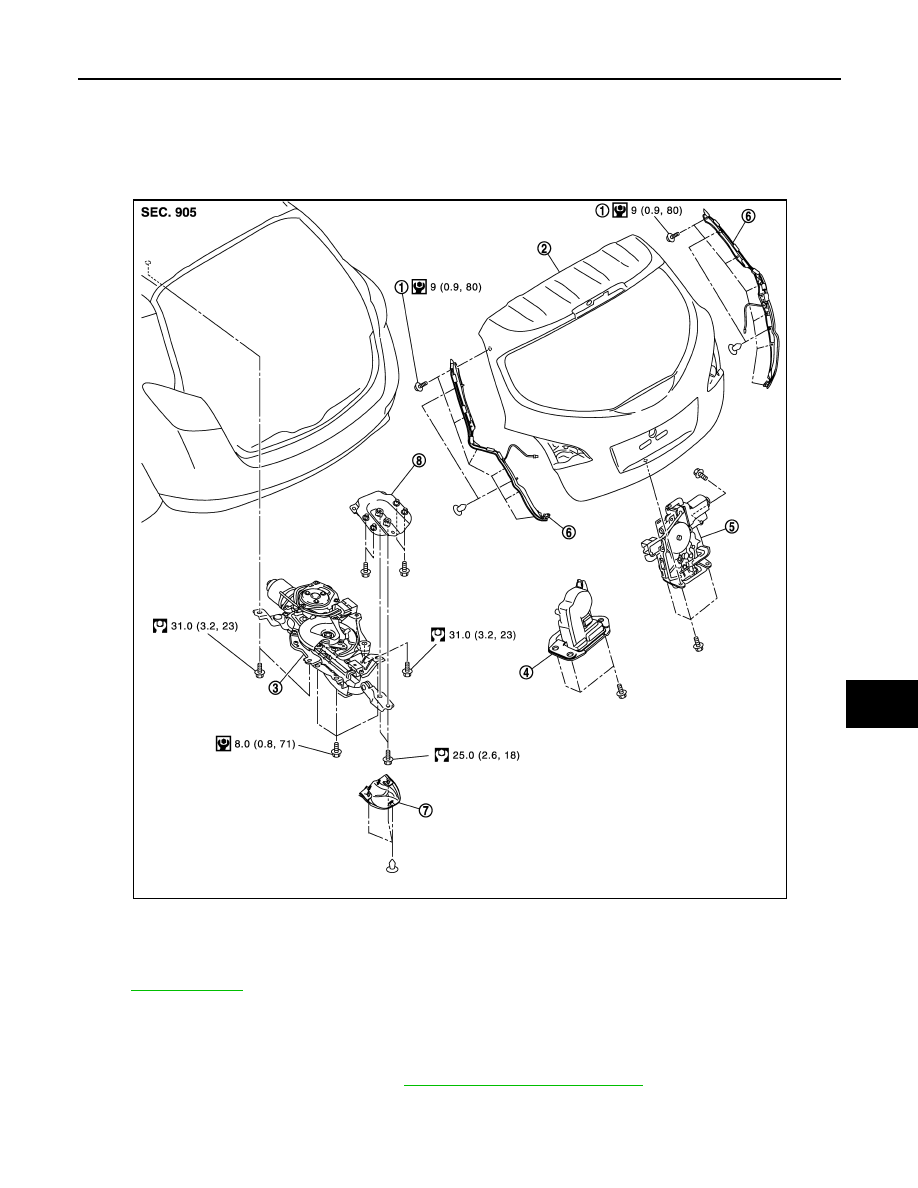

DOOR LOCK : Exploded View

INFOID:0000000005517823

DOOR LOCK : Removal and Installation

INFOID:0000000005517824

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Disconnect back door lock assembly and back door opener switch connectors.

3.

Remove back door lock mounting bolts, and then remove back door lock assembly.

JMKIA1804GB

1.

TORX bolt

2.

Back door assembly

3.

Power back door drive assembly

4.

Back door lock assembly (normal)

5.

Back door lock assembly (super lock)

6.

Touch sensor (RH/LH)

7.

Cover

8.

Patch

Refer to

GI-4, "Components"

 for symbols in the figure.

DLK-354

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check back door open/close, lock/unlock operation after installation.

POWER BACK DOOR DRIVE ASSEMBLY

POWER BACK DOOR DRIVE ASSEMBLY : Exploded View

INFOID:0000000005517825

POWER BACK DOOR DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000005517826

REMOVAL

JMKIA1804GB

1.

TORX bolt

2.

Back door assembly

3.

Power back door drive assembly

4.

Back door lock assembly (normal)

5.

Back door lock assembly (super lock)

6.

Touch sensor (RH/LH)

7.

Cover

8.

Patch

Refer to

GI-4, "Components"

 for symbols in the figure.

BACK DOOR LOCK

DLK-355

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Remove headlining. Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

 (NORMAL ROOF),

INT-30, "SUNROOF : Removal and Installation"

 (SUNROOF).

2.

Disconnect power back door drive assembly connector.

3.

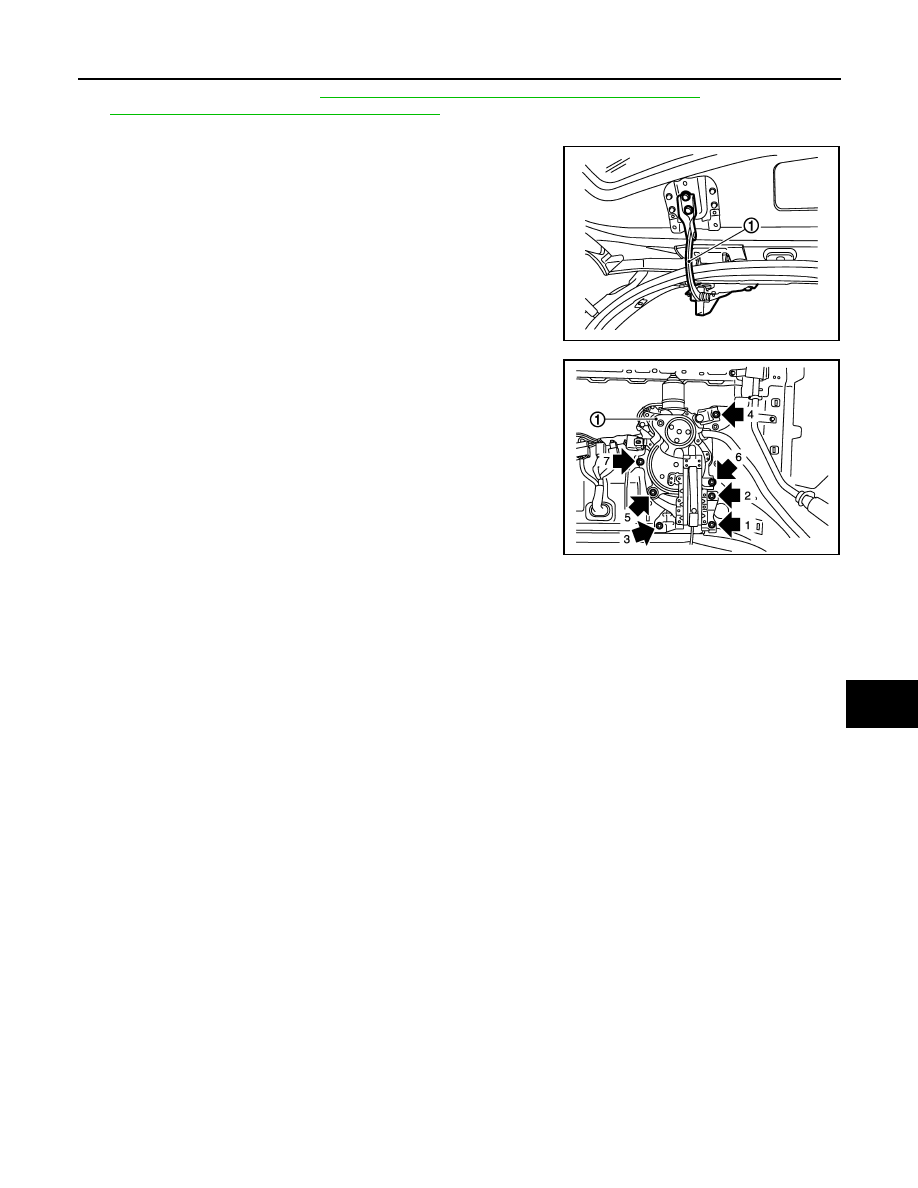

Remove mounting bolts of power back door drive assembly (1)
(back door side).

4.

Remove mounting bolts of power back door drive assembly (1)
(body side), and then remove power back door drive assembly.

CAUTION:

Remove the bolts of power back door drive assembly refer-
ring to figure.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install the bolts of power back door drive assembly in the reverse order of removal.
• Check back door open/close operation after installation.
