BACK DOOR

2.

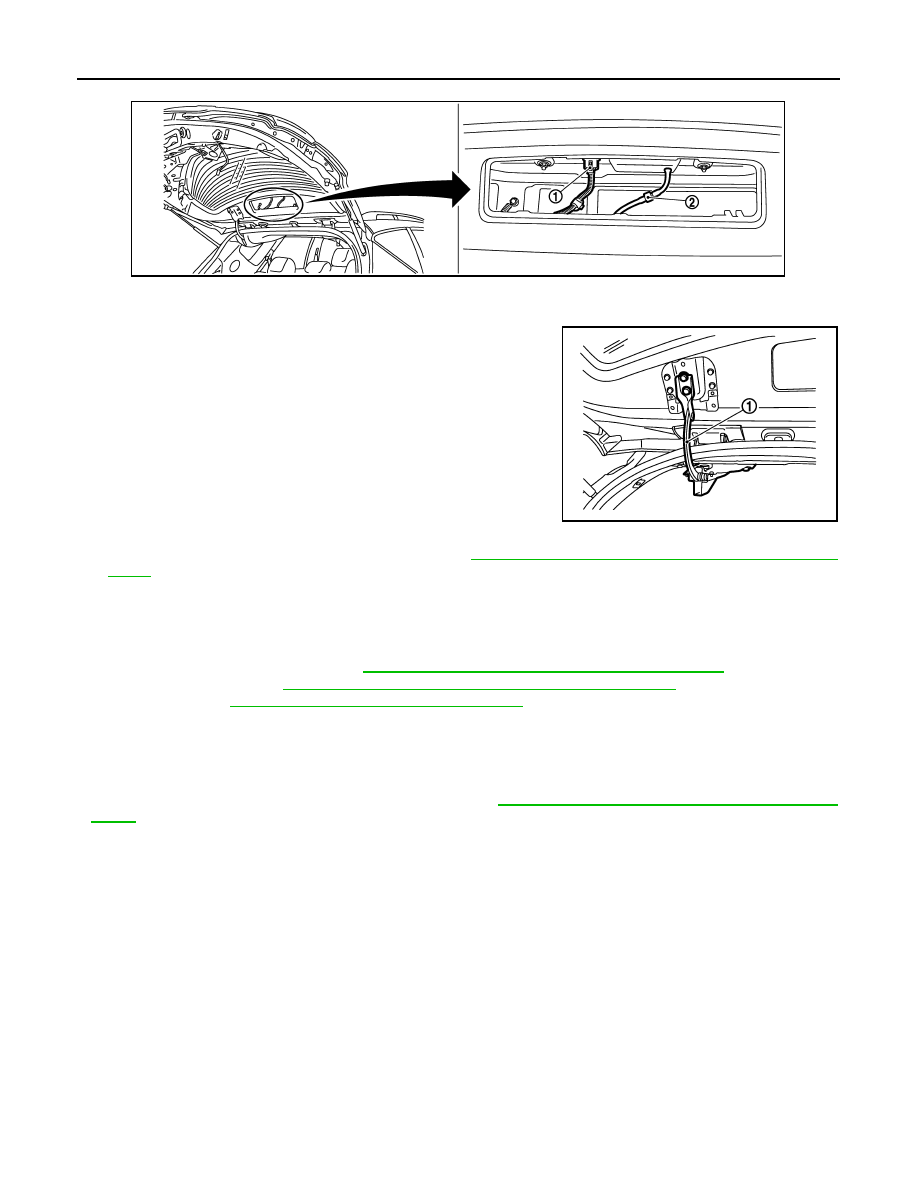

Remove grommet, and then disconnect connector (1), and washer tube (2).

3.

Pull harness and washer tube out of back door.

4.

Support back door lock with the proper material to prevent it from falling.

5.

Remove mounting bolts of power back door drive assembly (1).
(back door side)

6.

Remove back door stay on back door side. Refer to

DLK-337, "BACK DOOR STAY : Removal and Instal-

lation"

.

7.

Remove back door hinge mounting bolts on back door and remove back door assembly.

8.

Remove the following parts after removing back door assembly.
• Bumper rubber
• Stud ball
• Back door lock assembly: Refer to

DLK-353, "DOOR LOCK : Removal and Installation"

.

• Touch sensor: Refer to

DLK-356, "TOUCH SENSOR : Removal and Installation"

.

• Patch: Refer to

DLK-353, "DOOR LOCK : Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• After installation, perform fitting adjustment. Refer to

DLK-333, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

JMKIA1917ZZ

JMKIA1918ZZ

BACK DOOR

DLK-333

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000005517798

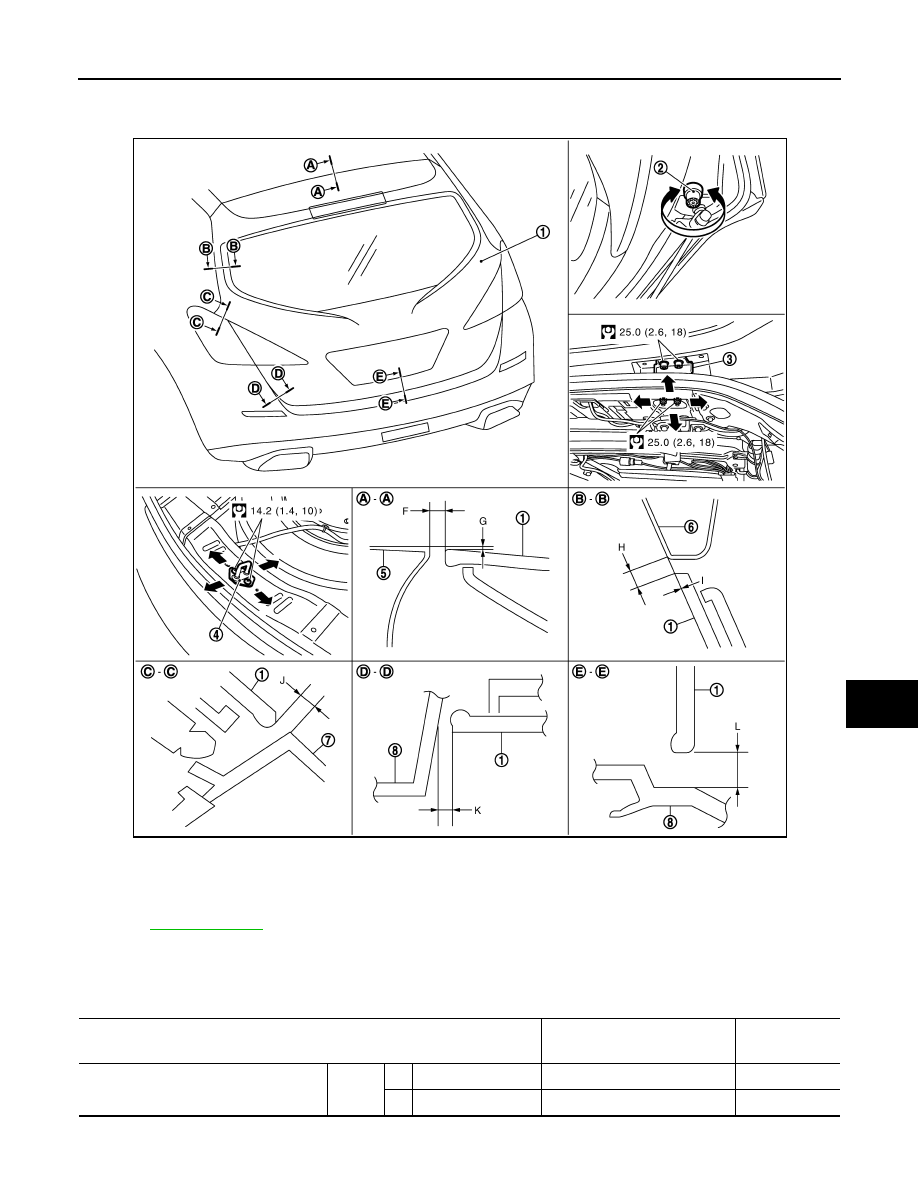

Check the clearance and the surface height between back door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Back door assembly

2.

Bumper rubber

3.

Back door hinge

4.

Back door striker

5.

Roof panel

6.

Body side outer

7.

Rear combination lamp

8.

Rear bumper fascia

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1835GB

Portion

Standard

Difference

(RH/LH)

Back door – Roof

A – A

F

Clearance

5.0 – 9.0 (0.197 – 0.354)

—

G

Surface height

-1.0 – 3.0 (-0.039 – 0.118)

—

DLK-334

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

1.

Remove back door hinge cover. Refer to

INT-38, "Removal and Installation"

.

2.

Loosen back door hinge mounting bolts (back door side).

3.

Loosen bumper rubber.

4.

Remove luggage rear plate mask. Refer to

INT-35, "Removal and Installation"

.

5.

Loosen back door striker mounting bolts.

6.

Lift up back door approximately 100 – 150 mm (3.937 – 5.906 in) height then close it lightly and check that
it is engaged firmly with back door closed.

7.

Check the clearance and surface height.

8.

Finally tighten back door hinge, bumper rubber, and back door striker.

9.

Install back door hinge cover and luggage rear plate mask. Refer to

INT-38, "Removal and Installation"

and

INT-35, "Removal and Installation"

.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Exploded View

INFOID:0000000005517799

Back door – Rear fender

B – B

H

Clearance

4.0 – 8.0 (0.157 – 0.315)

—

I

Surface height

-2.0 – 2.0 (-0.079 – 0.079)

—

Back door – Rear combination
lamp

C – C

J

Clearance

4.0 – 8.0 (0.157 – 0.315)

< 2.0 (0.079)

Back door – Rear bumper fascia

D – D

K

Clearance

4.0 – 8.0 (0.157 – 0.315)

< 2.0 (0.079)

E – E

L

Clearance

5.0 – 9.0 (0.197 – 0.354)

—

Portion

Standard

Difference

(RH/LH)

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

JMKIA3496ZZ

BACK DOOR

DLK-335

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000005517800

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-35, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• When removing and installing back door striker, be sure to perform the fitting adjustment. Refer to

DLK-333, "BACK DOOR ASSEMBLY : Adjustment"

.

BACK DOOR HINGE

BACK DOOR HINGE : Exploded View

INFOID:0000000005517801

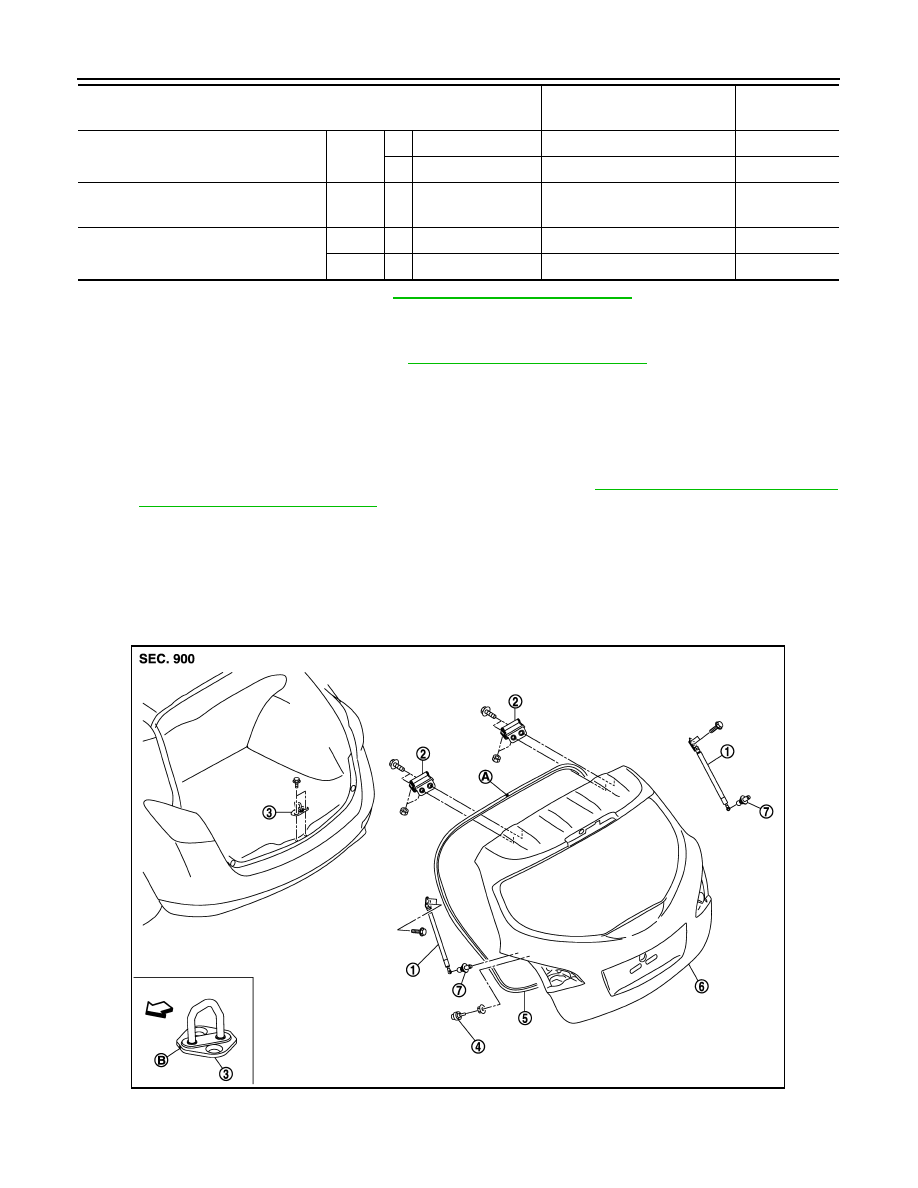

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

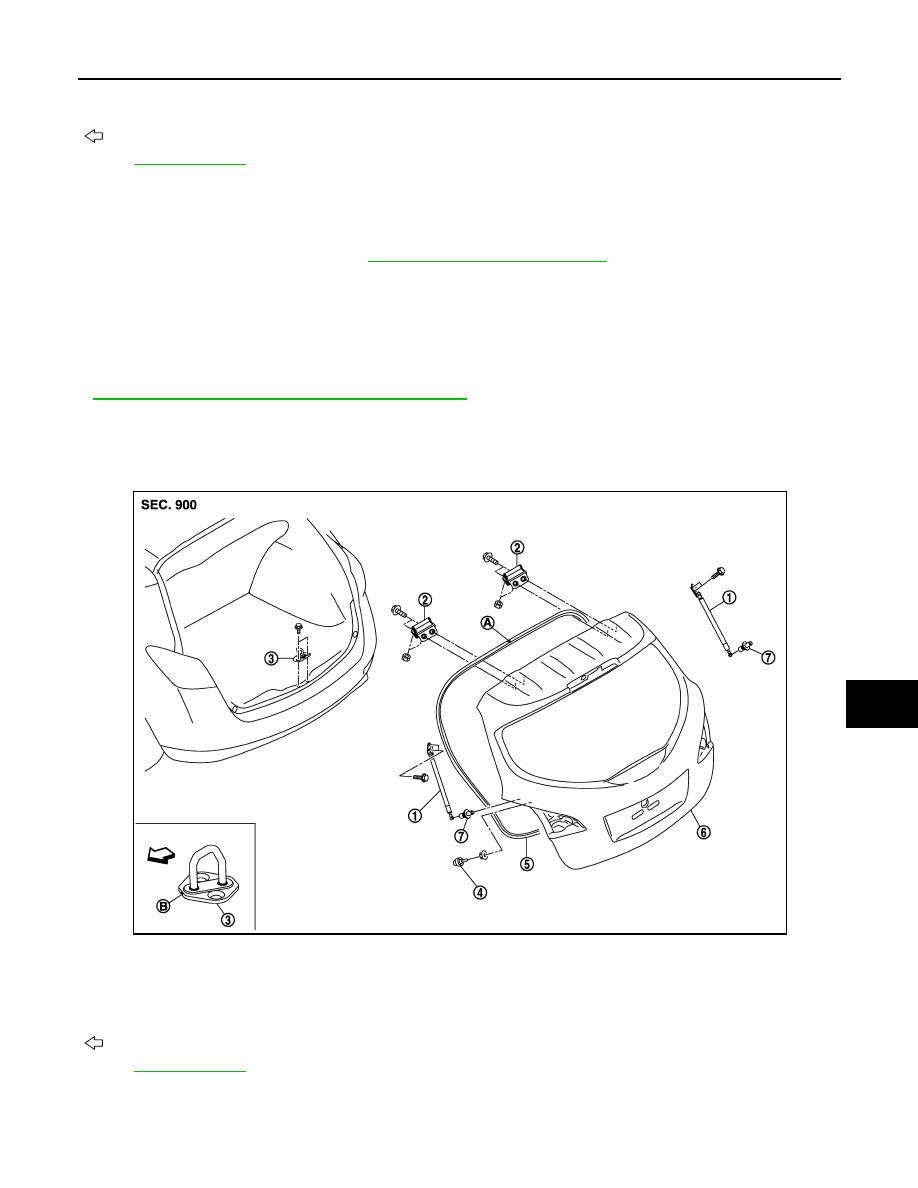

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ
