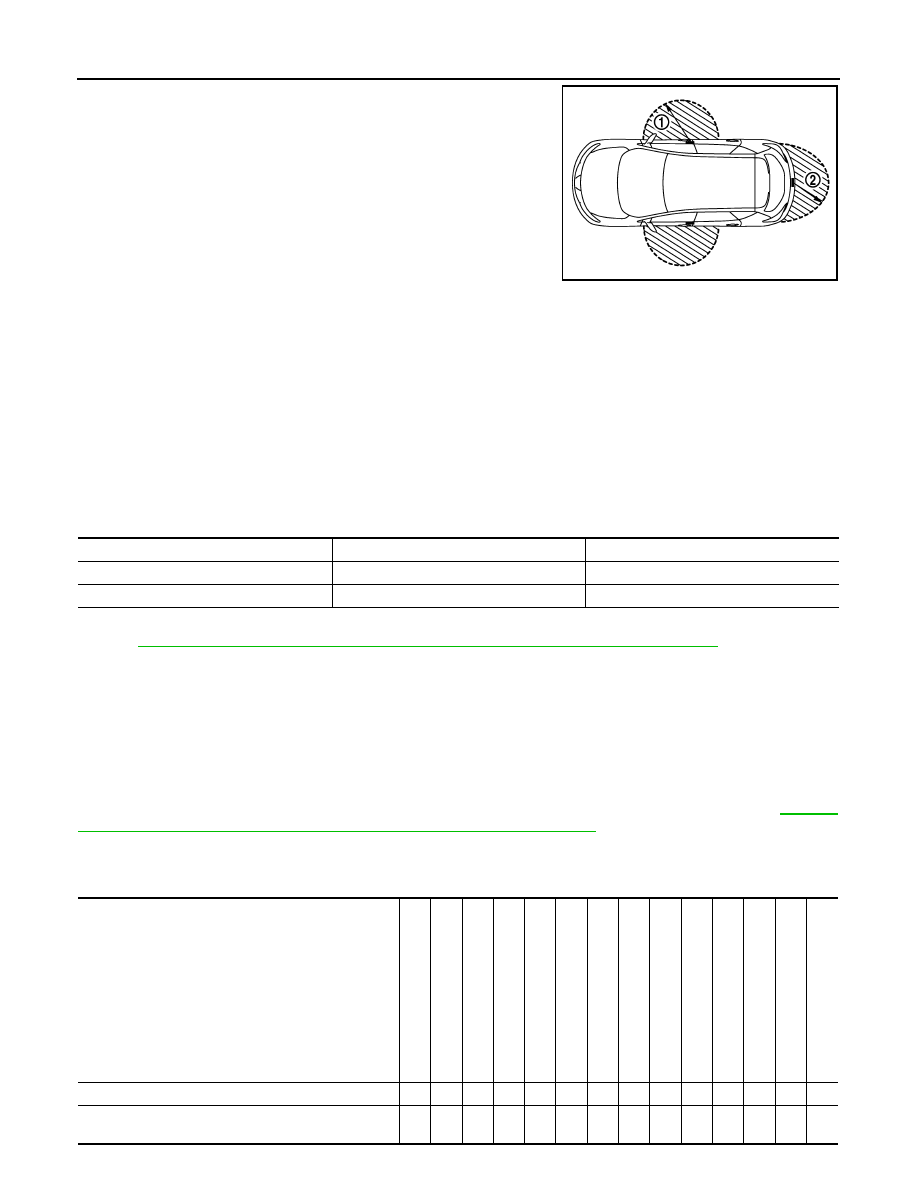

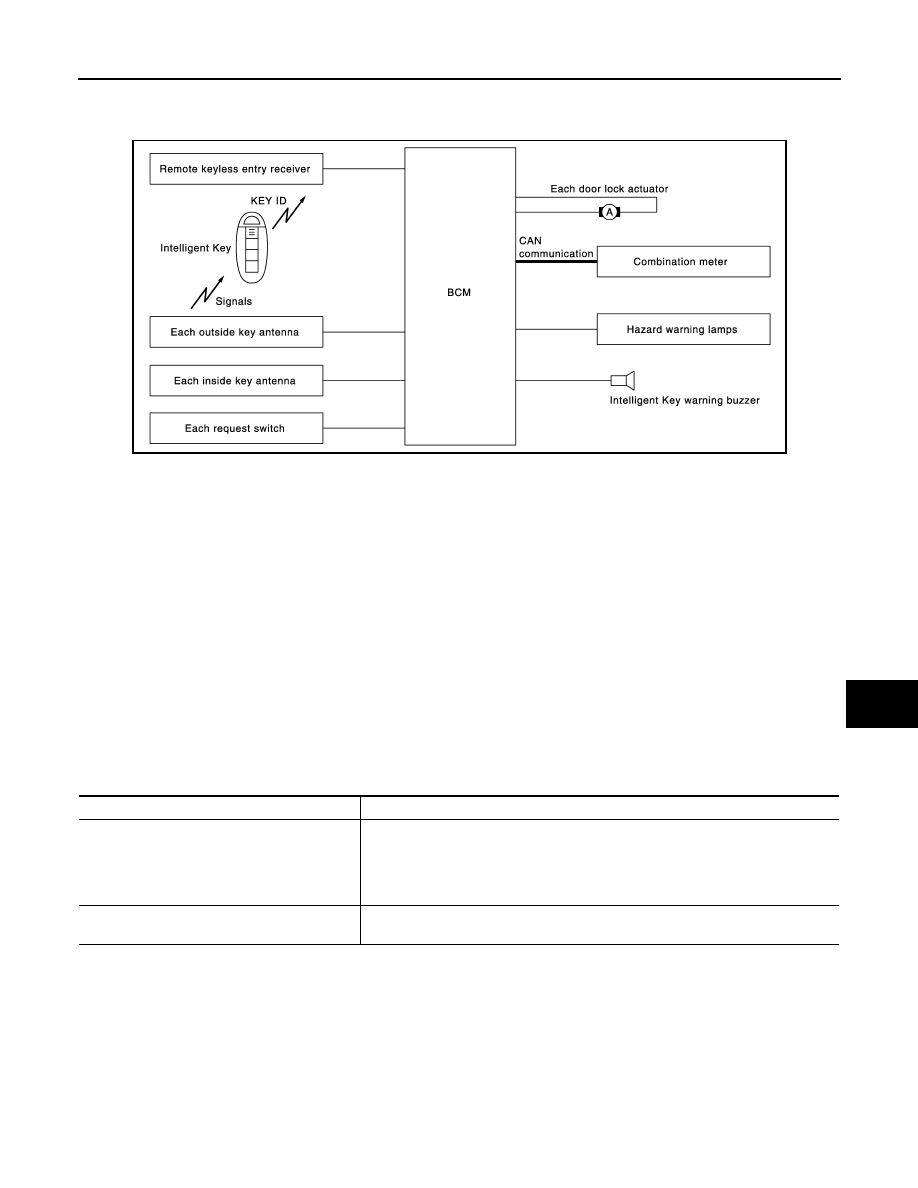

DLK-20 < SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM] INTELLIGENT KEY SYSTEM INTELLIGENT KEY SYSTEM : Component Description INFOID:0000000005517442 10. Inside key antenna (luggage room) B86 11. Front outside handle LH (outside key 12. Front outside handle LH (request 13. Outside key antenna (rear bumper) B85 14. Front door switch (driver side) B34 A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel D. Behind the center console E. Under the rear seat seatback F. View with rear bumper removed JMKIA1933ZZ 1. Back door lock assembly 2. Front door lock assembly (driver side) D9 3. Rear door lock assembly LH D85 4. Automatic back door control unit B7, B8 5. Back door opener switch assembly (open- 6. Back door opener switch assembly 7. Intelligent Key A. View with front door finisher removed B. View with rear door finisher removed C. Behind the luggage side finisher lower (LH) Item Function BCM Controls the Intelligent Key system. Door lock actuator Output lock/unlock signal from BCM and locks/unlocks each door. Door switch Input door open/close condition to BCM. Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM. Request switch Input lock/unlock operation to BCM. Intelligent Key Transmits button operation to remote keyless entry receiver. Outside key antenna Detects if Intelligent Key is outside the vehicle. Inside key antenna Detects if Intelligent Key is inside the vehicle. Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound. |
