REPLACEMENT OPERATIONS

BRM-39

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

: Vehicle front

JSKIA0539GB

BRM-40

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000005513919

Rear Floor Rear

INFOID:0000000005513920

Work after rear panel is removed.
Remove the rear seat back support (reusable).

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

z

Rear panel assembly

JSKIA0540ZZ

REPLACEMENT OPERATIONS

BRM-41

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Install the spare wheel clamp reinforcement (replacement part) to the rear floor rear (replacement part) to
install it to the vehicle.

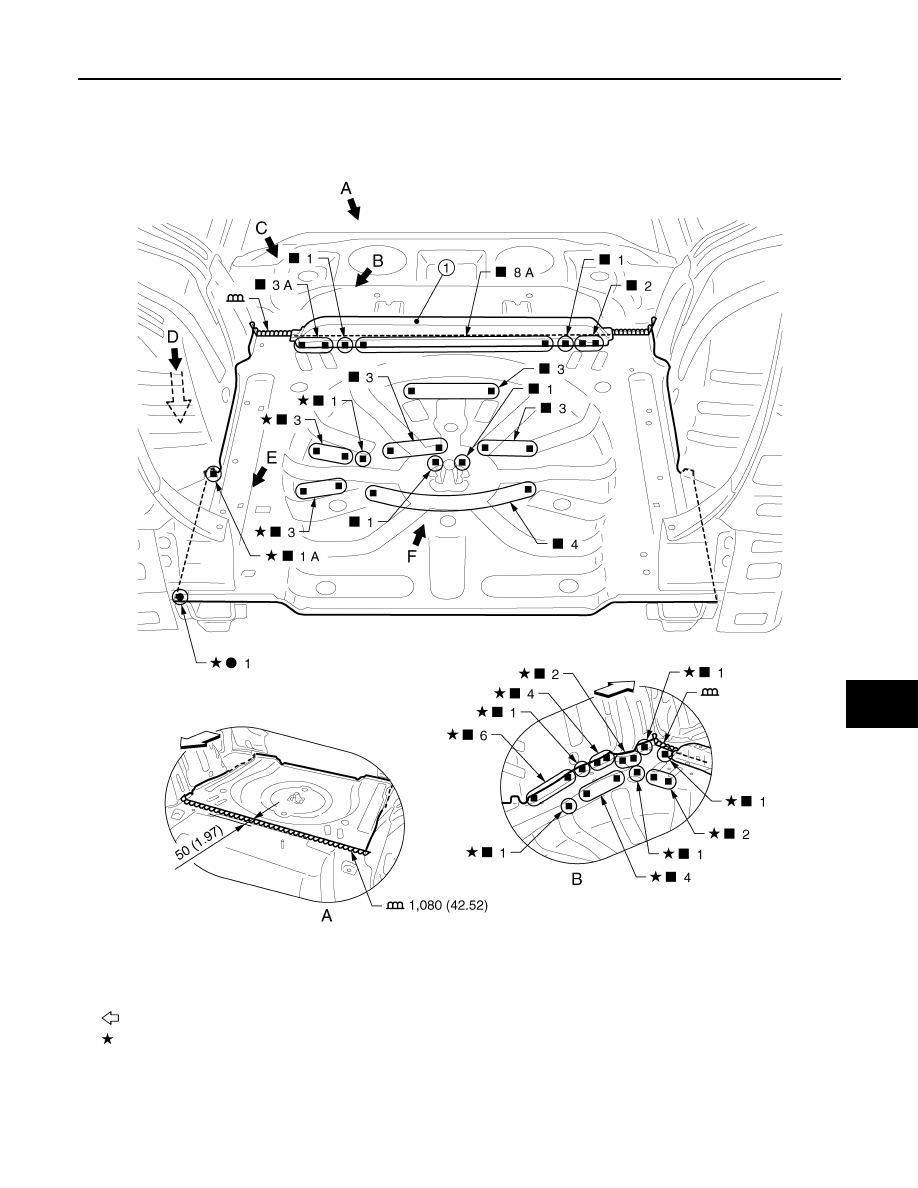

View A: Before installing rear seat back support

1.

Rear seat back support

Unit: mm (in)

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

z

Rear floor rear

z

Spare tire clamp bracket

z

Spare wheel clamp reinforcement

JSKIA1095GB

BRM-42

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

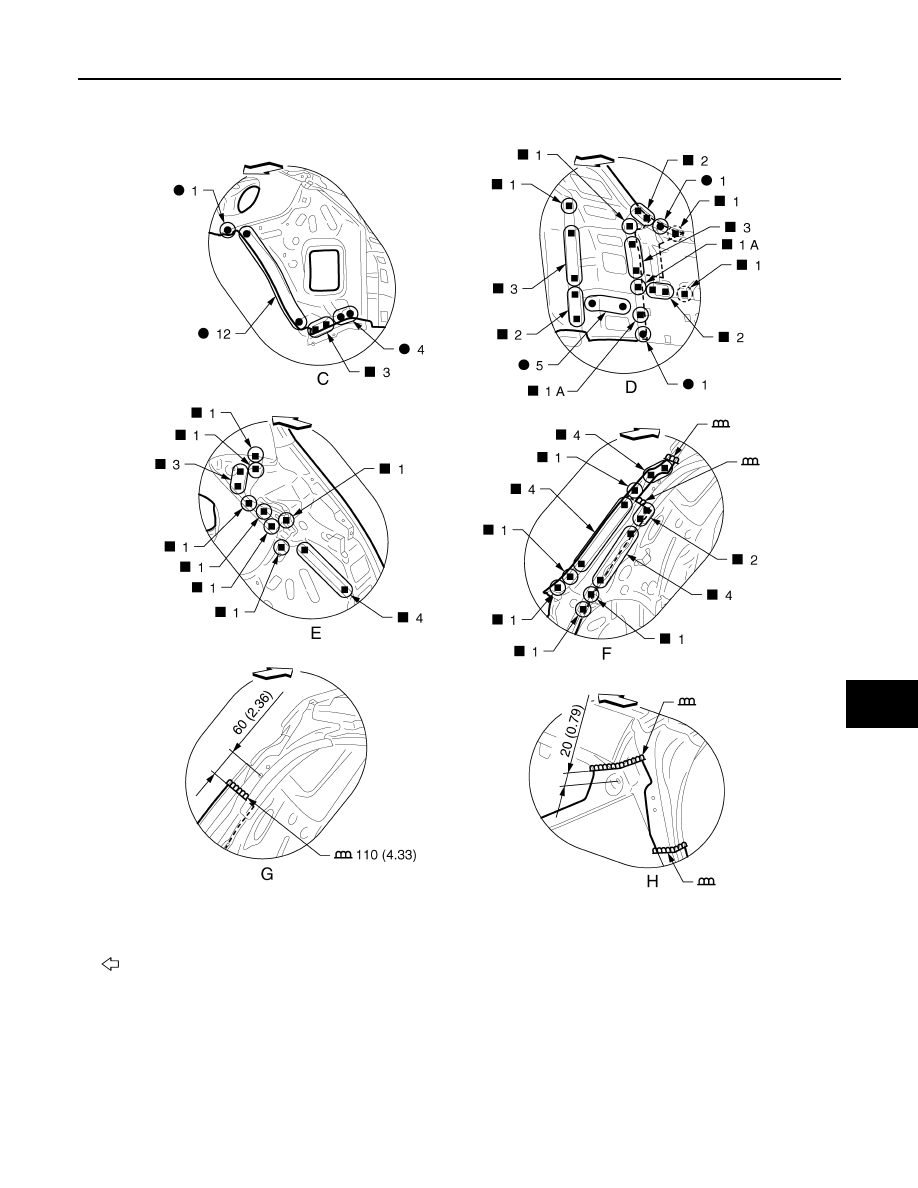

View F: Rear floor rear (replacement part), spare tire clamp bracket (replacement part), and spare wheel
clamp reinforcement (replacement part)

Rear Side Member Extension

INFOID:0000000005513921

Work after rear panel is removed.

1.

Rear seat back support

2.

Spare wheel clamp reinforcement

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

JSKIA1096ZZ
